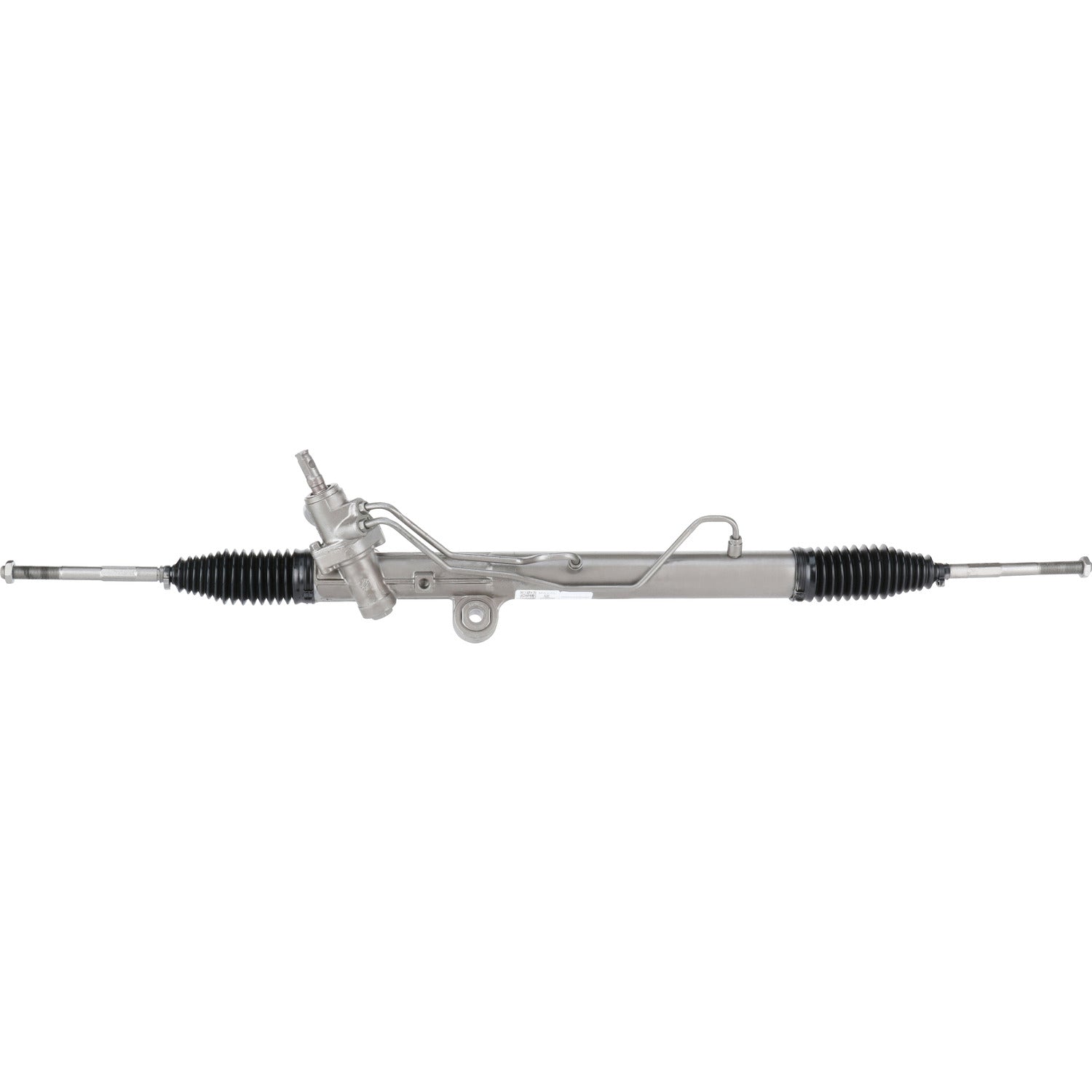

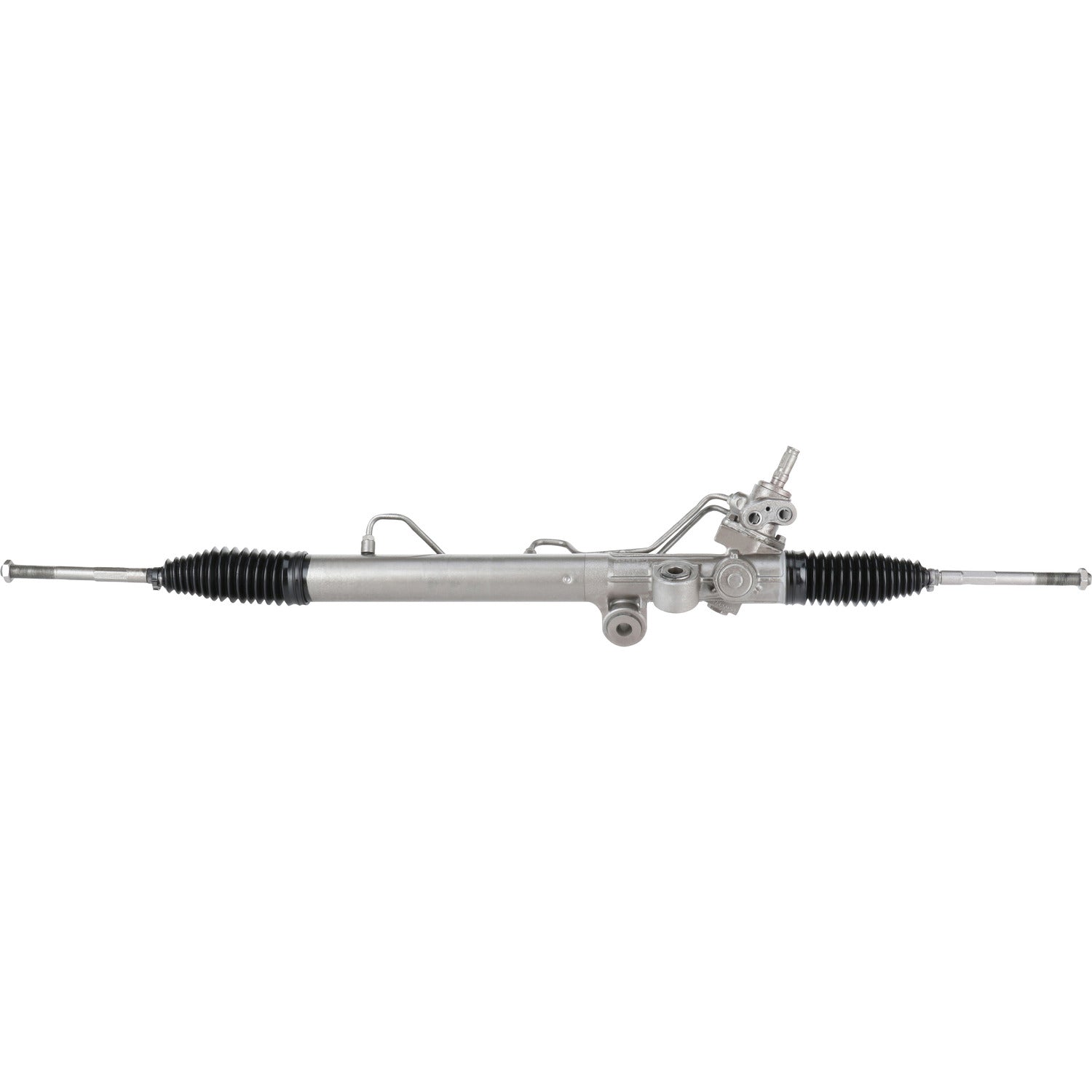

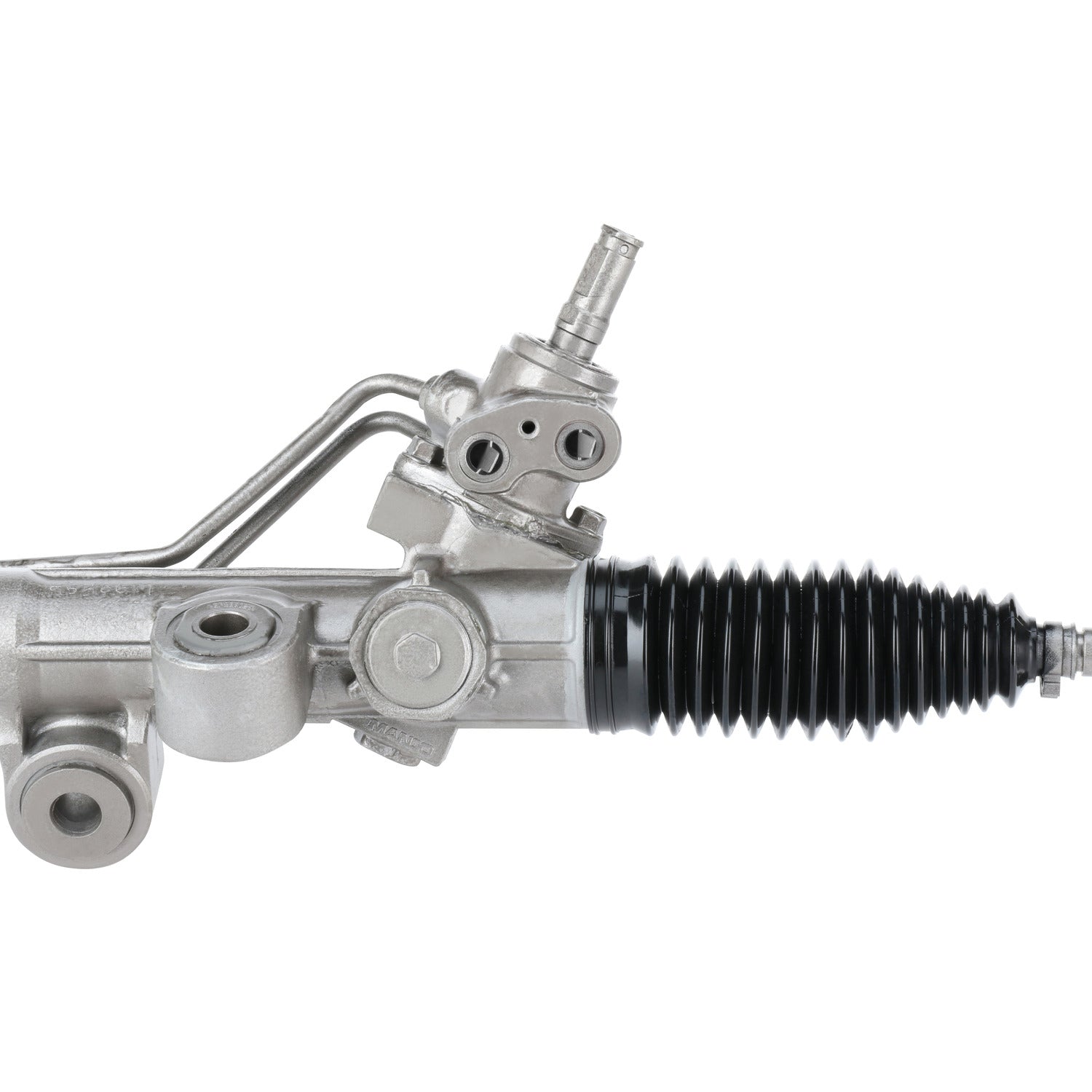

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95466M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95466M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 2.32 IN
Distance Between Mounting Holes 59 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.8 MM
Input Shaft Length 1.59 IN
Input Shaft Length 40.5 MM
Mounting Hole Quantity 2
Port ID Size 12
Rack Length 48.58 IN
Rack Length 1234 MM
Return Port ID Size 11.12
Thread Length 2.36 IN
Thread Length 60 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.25

Application Info: Hummer H3 (2006-10), H3T (2009-10) ***W/16MM Diameter Tie Rods***

Interchange: 15234374, 15864176, 25817577, 25885237, 94725465

BBB Cross-Reference: 103-0264

Cardone Cross-Reference: 22-1040

Instructions - 1          Instructions - 2
