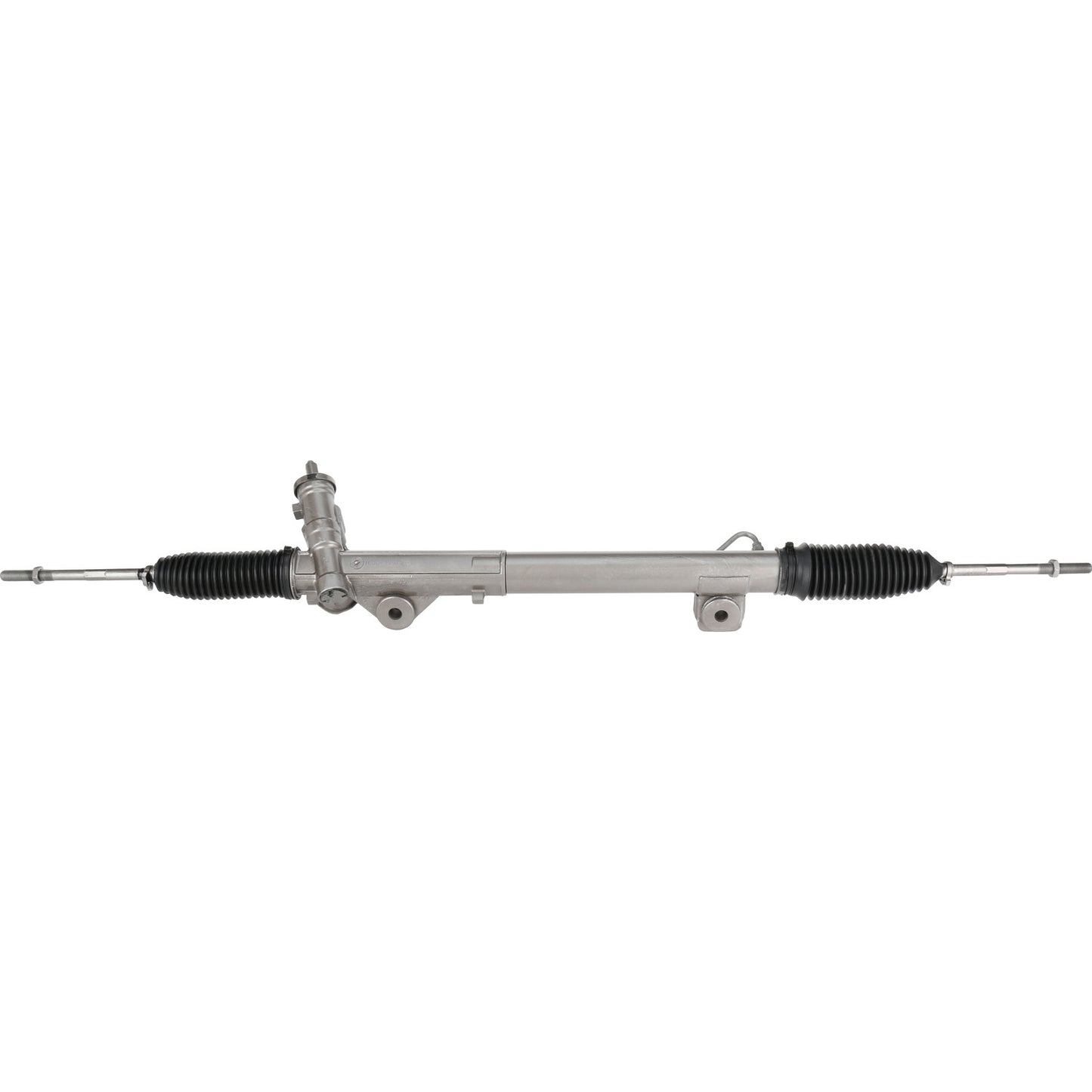

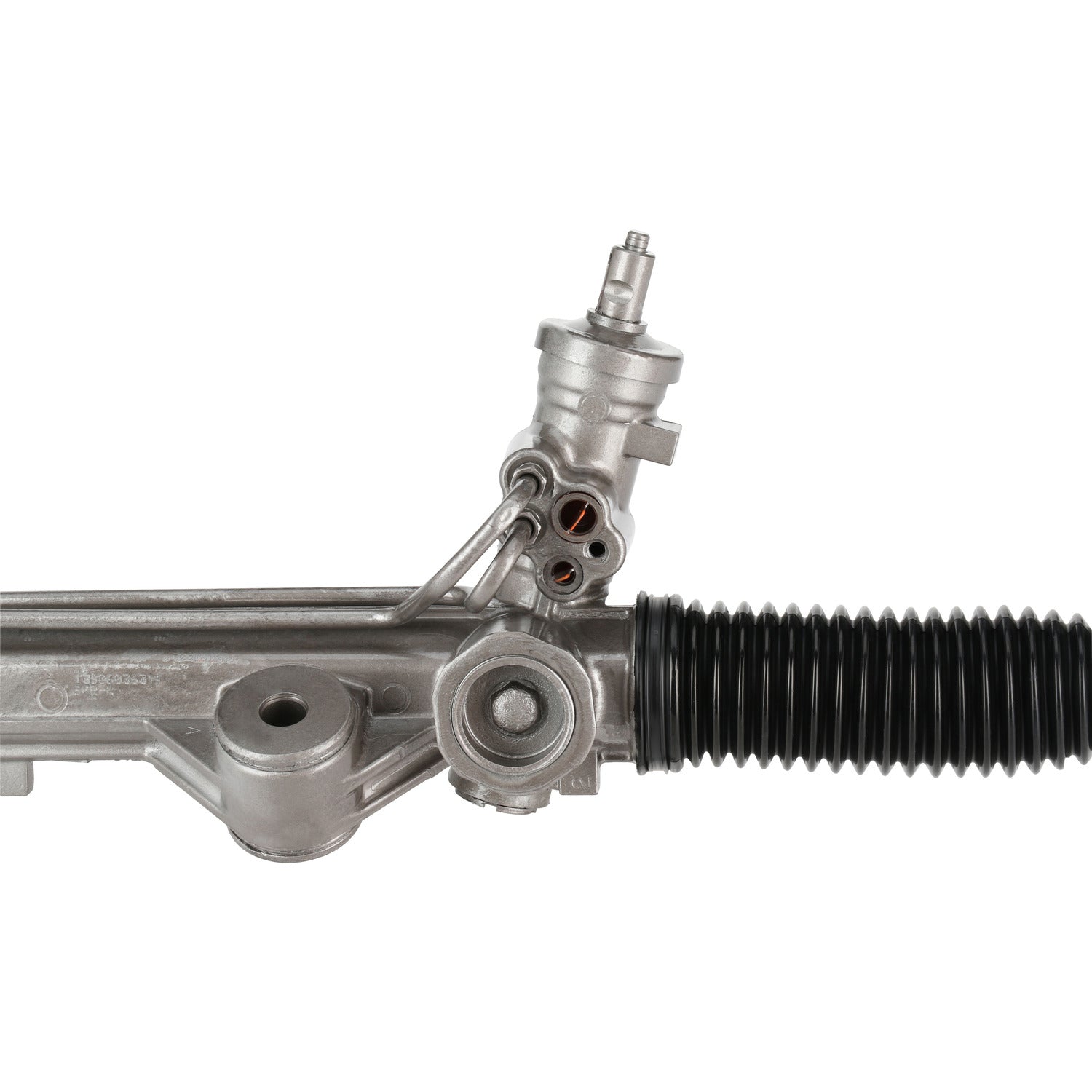

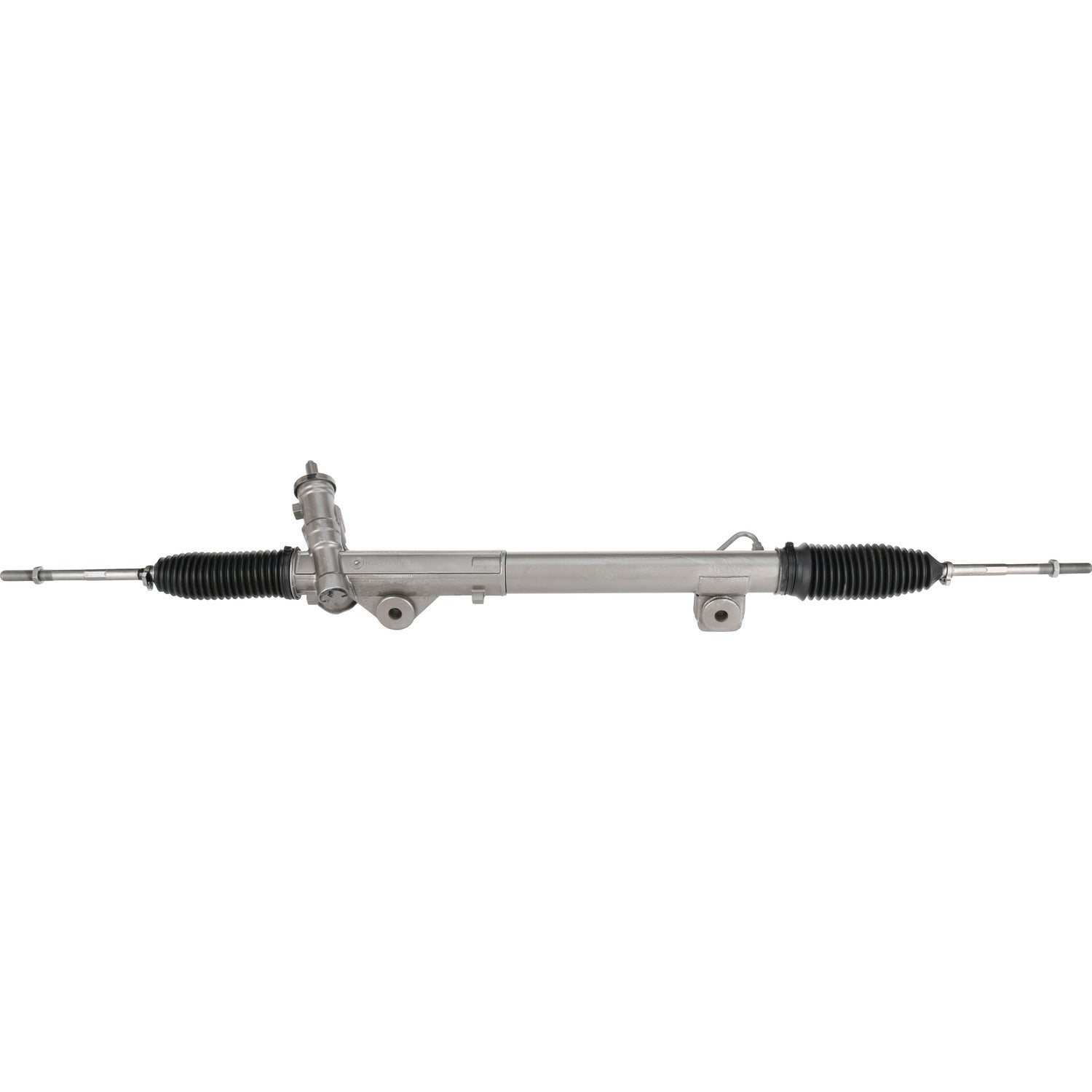

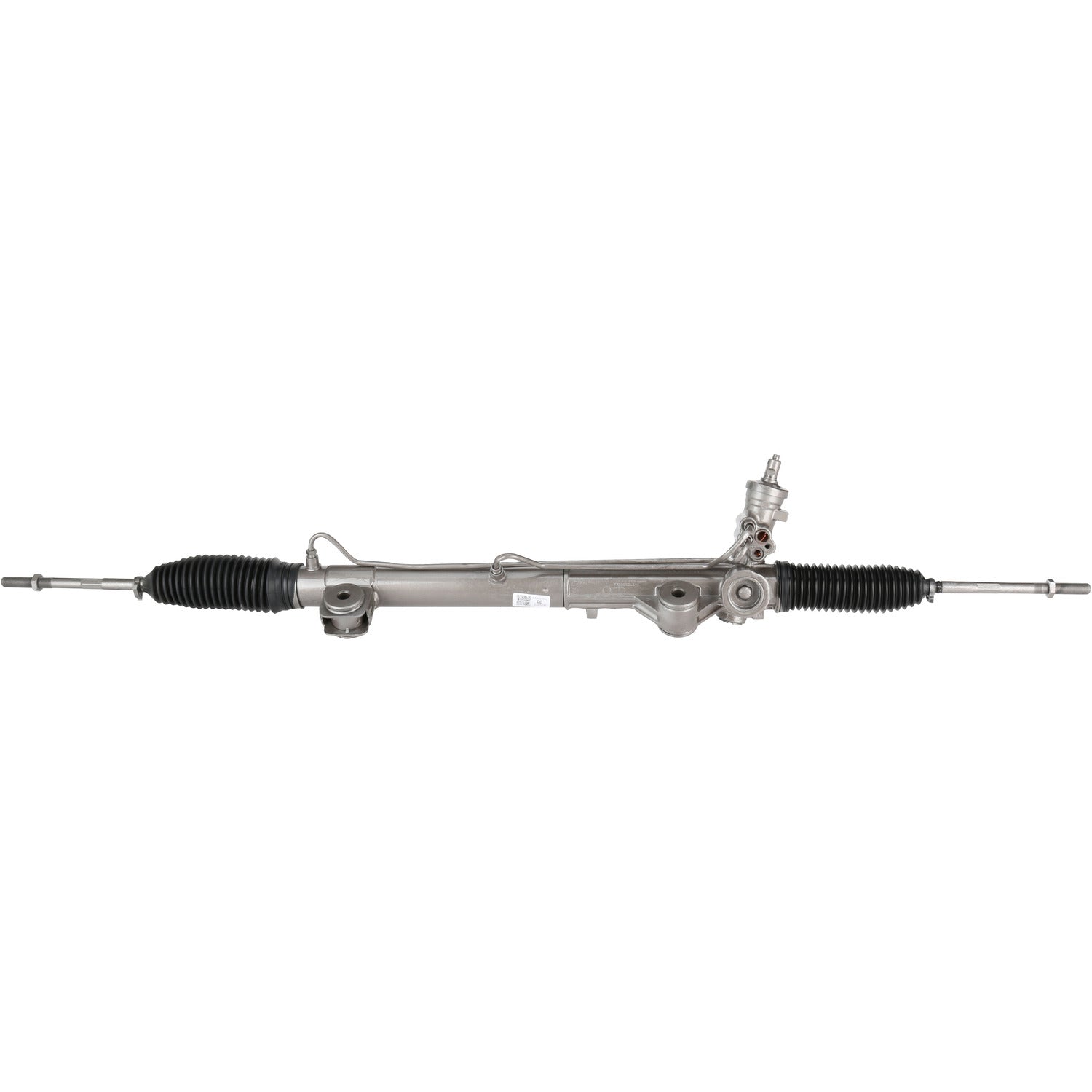

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95465M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95465M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 17.6 IN
Distance Between Mounting Holes 447 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.72 IN
Input Shaft Diameter 18.4 MM
Input Shaft Length 1.22 IN
Input Shaft Length 31 MM
Mounting Hole Quantity 2
Port ID Size 14.3mm
Rack Length 57.8 IN
Rack Length 1468 MM
Return Port ID Size 9.5mm
Thread Length 2.76 IN
Thread Length 70 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.28

Application Info: Ford F-150 (2004-2008)

Interchange: 4L3Z3280DA, 4L3Z3504BB, 4L3Z3504DB, 5L3Z3504FA, 5L3Z3504HA, 6L3Z3280B, 6L3Z3504BA, 6L3Z3504DA, 7L3Z3504B, 7L3Z3504D, 8L3Z3504B, 8L3Z3504D

BBB Cross-Reference: 101-0214

Cardone Cross-Reference: 22-279
