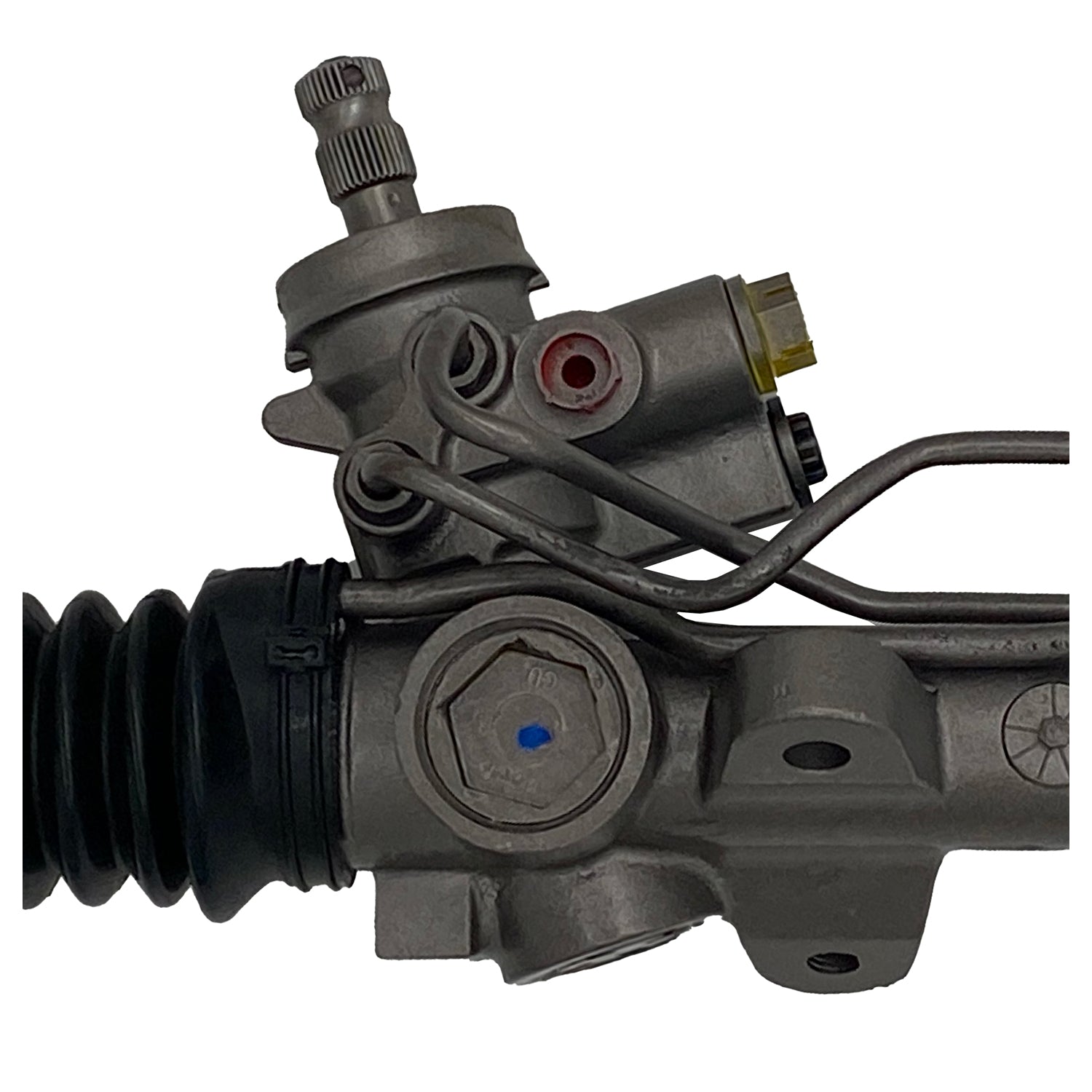

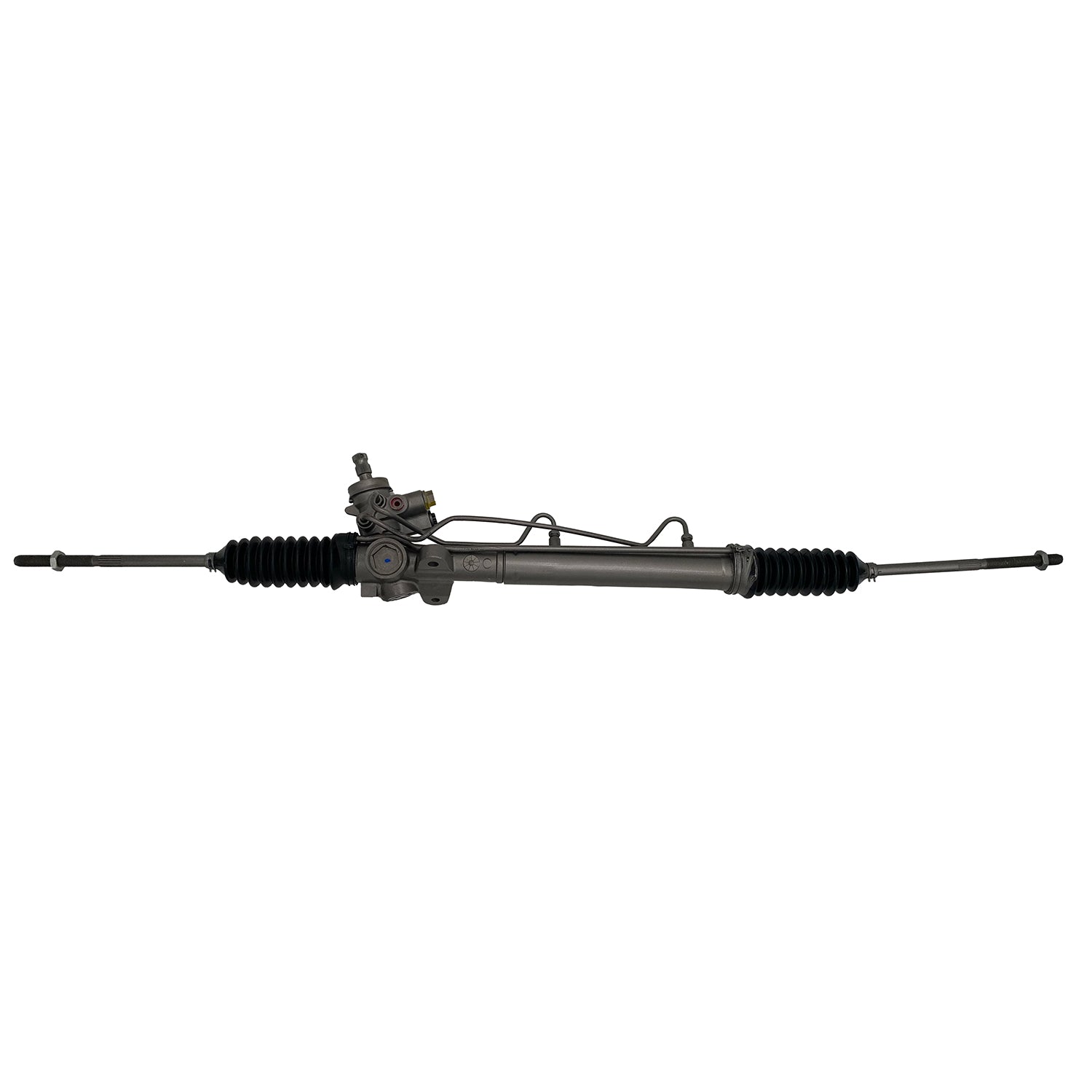

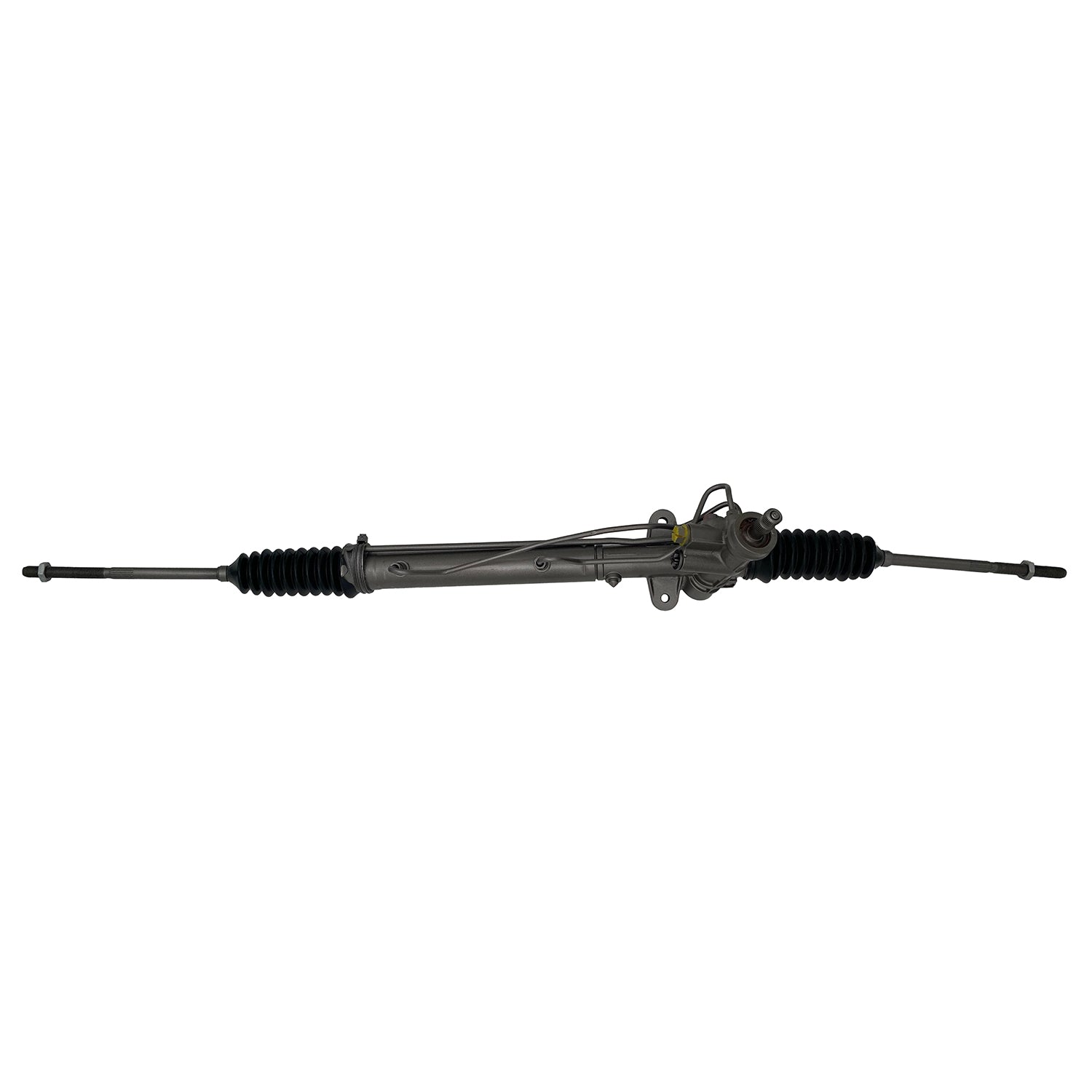

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95461M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95461M

SKU:95461M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.63 IN
Distance Between Mounting Holes 92.08 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.75 IN
Input Shaft Length 44.45 MM
Mounting Hole Quantity 4
Pressure Port Thread Size M18 x 1.5
Rack Length 48.5 IN
Rack Length 1231.9 MM
Return Port Thread Size M16 x 1.5
Thread Length 3.49 IN
Thread Length 88.62 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.88

Application Info: Dodge Neon 2004-2005 - All w/Performance Steering.

Interchange: Chrysler - 4656750AD

BBB Cross-Reference: 102-0159

Cardone Cross-Reference: 22-355
