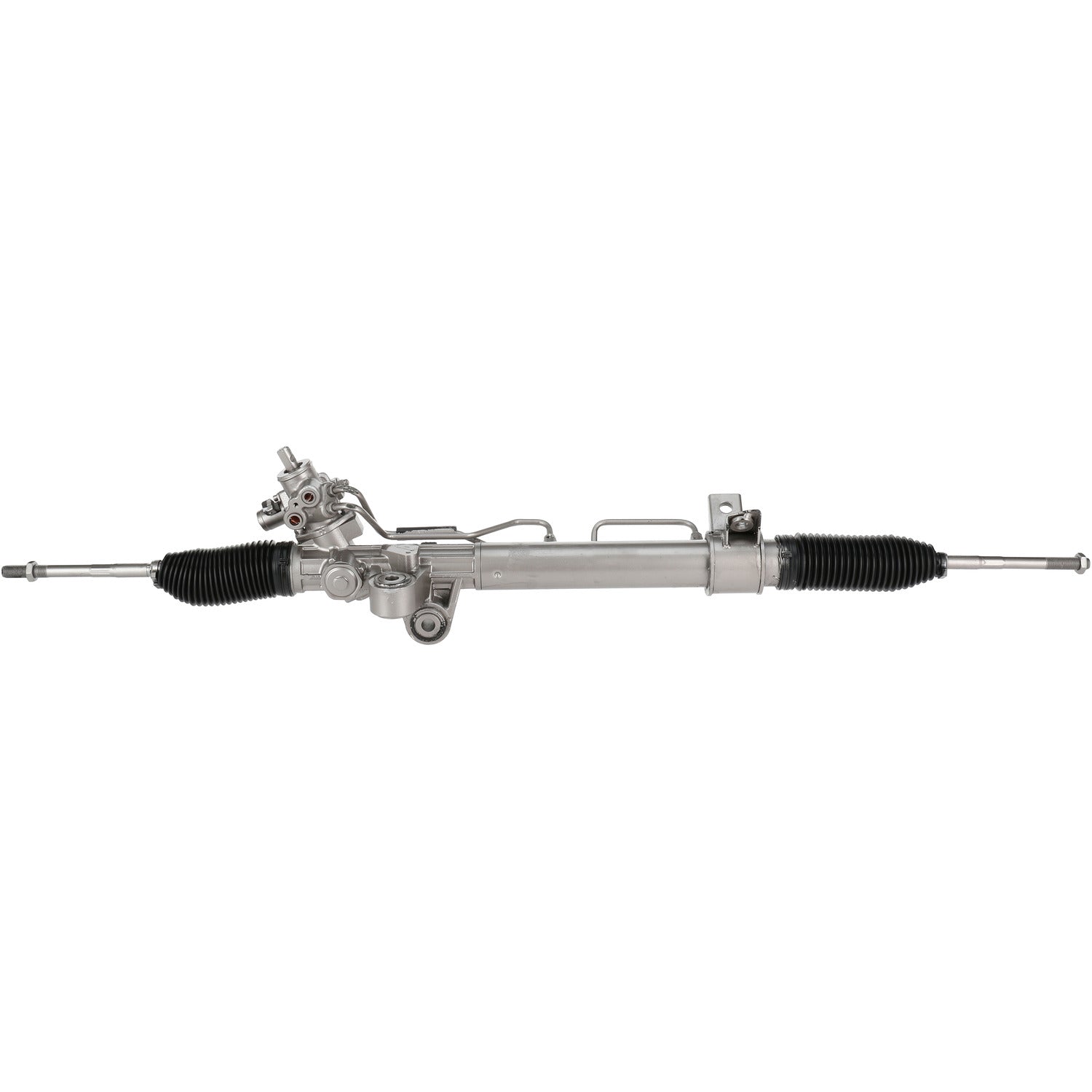

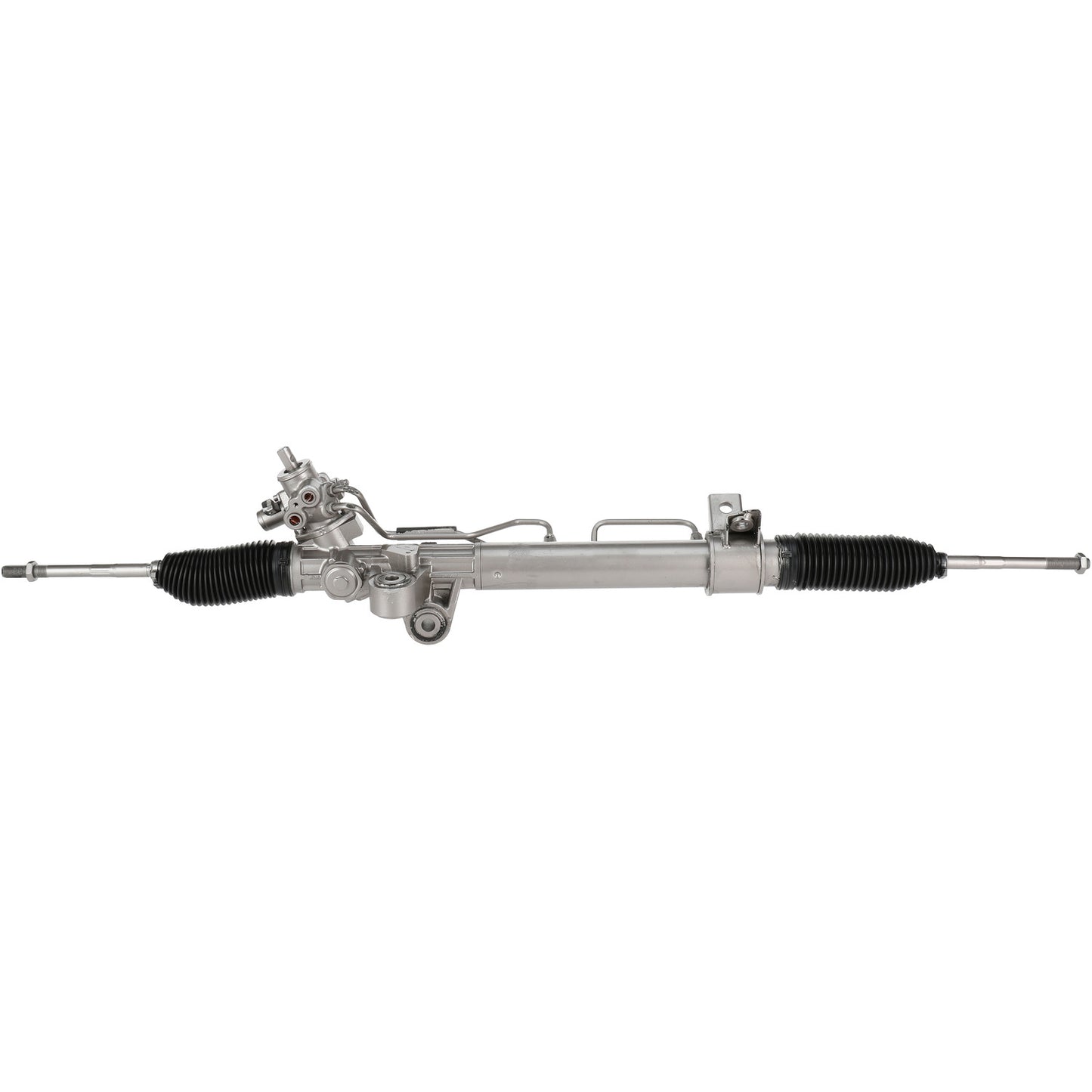

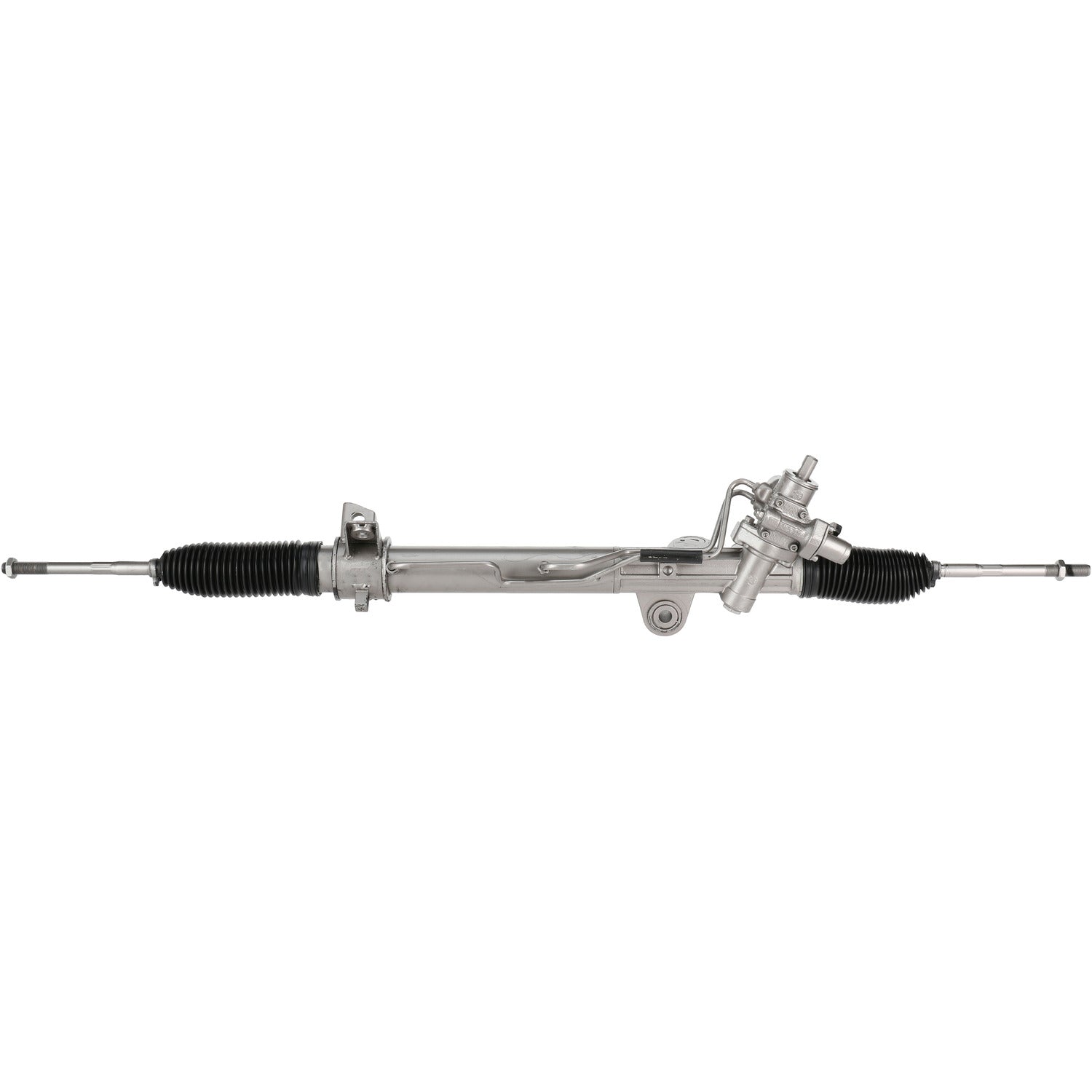

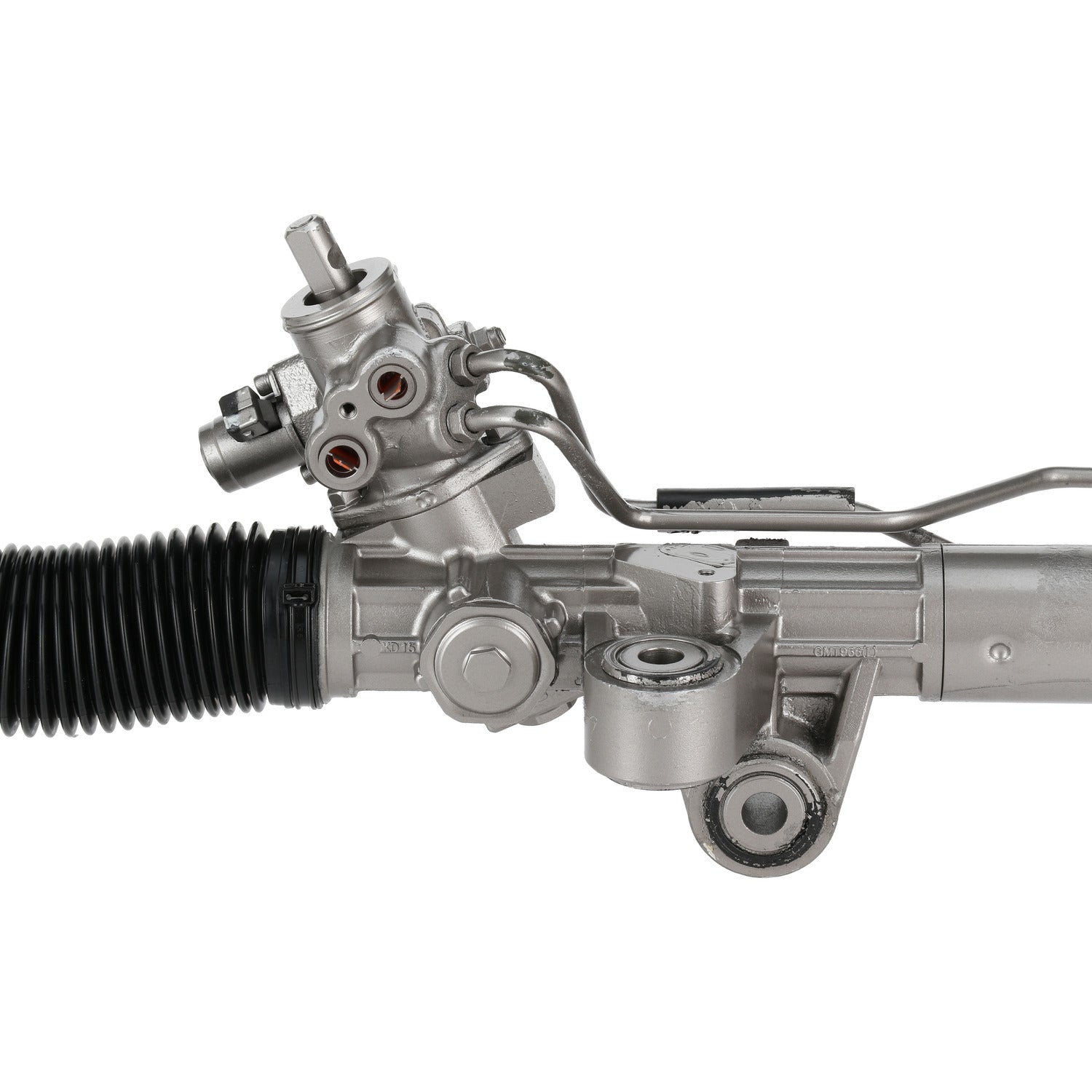

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95459M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95459M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 2.88 IN
Distance Between Mounting Holes 73.03 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.71 MM
Input Shaft Length 2 IN
Input Shaft Length 50.8 MM
Mounting Hole Quantity 4
Port ID Size 0.472
Rack Length 53 IN
Rack Length 1346.2 MM
Return Port ID Size 0.436
Thread Length 2.09 IN
Thread Length 53.04 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.88

Application Info: Buick Enclave (2008-17); Chevrolet Traverse (2009-17); GMC Acadia (2007-16), Acadia Limited (2017); Saturn Outlook (2007-10) ***W/Variable Assist Steering (NV7), W/EVO Component***

Interchange: 15869783, 20843950, 20964165, 22902260, 25789067, 25876162, 25971331

BBB Cross-Reference: 103-0255

Cardone Cross-Reference: 22-1042

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
