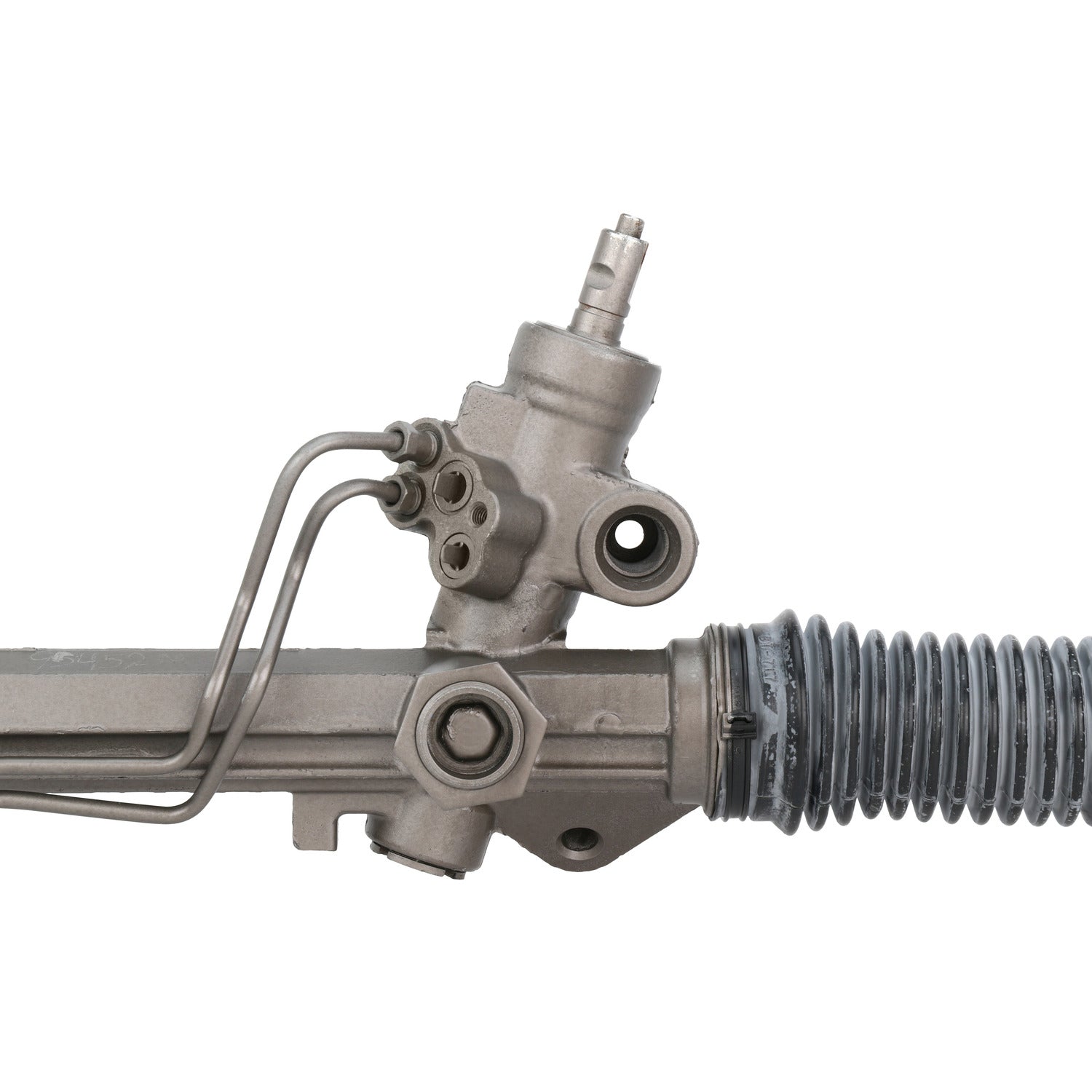

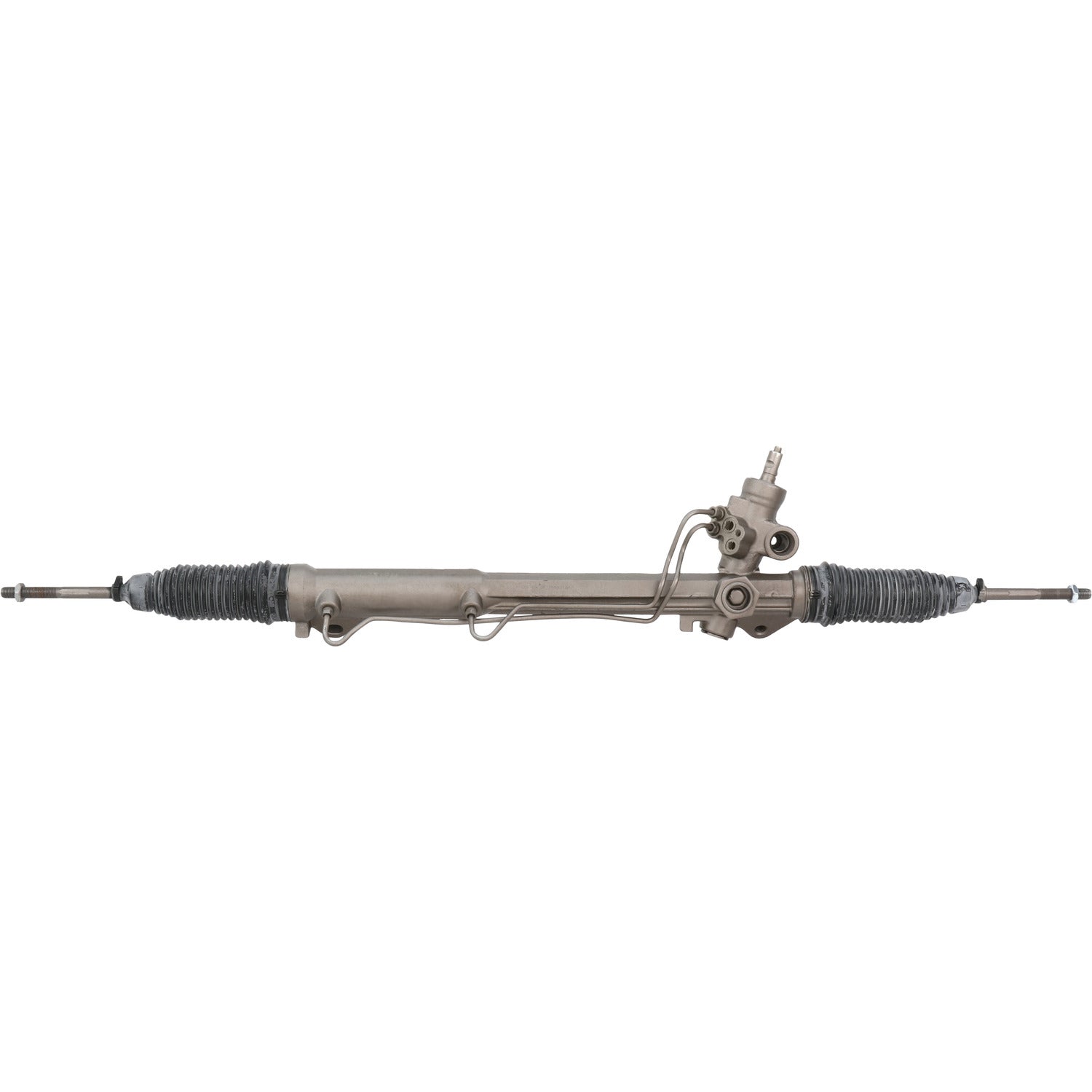

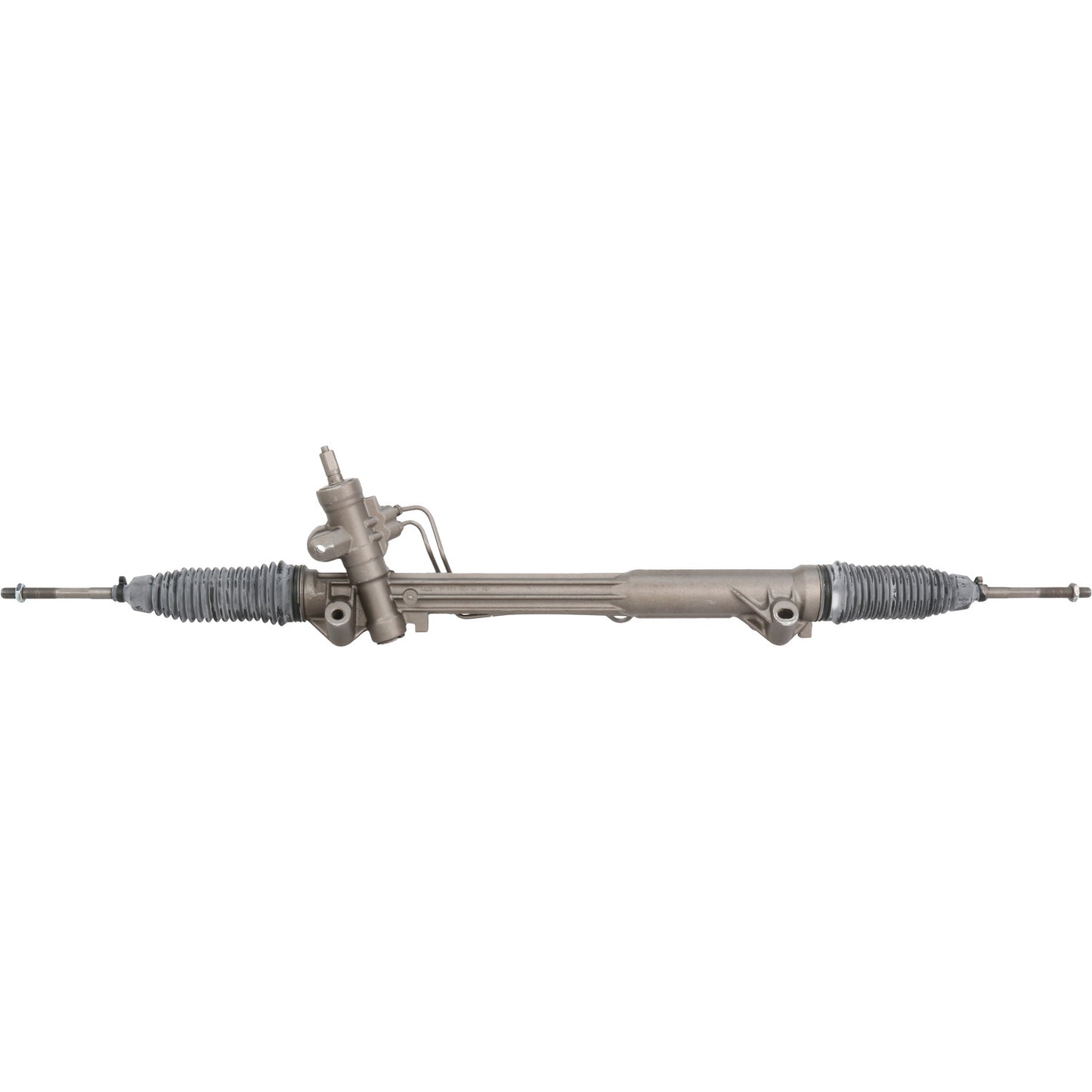

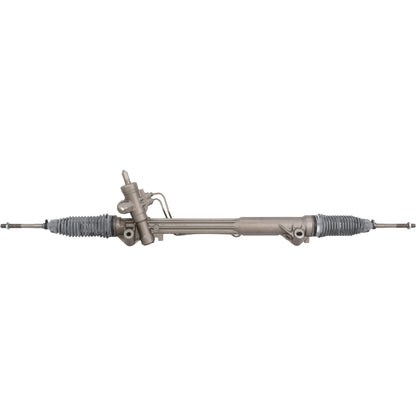

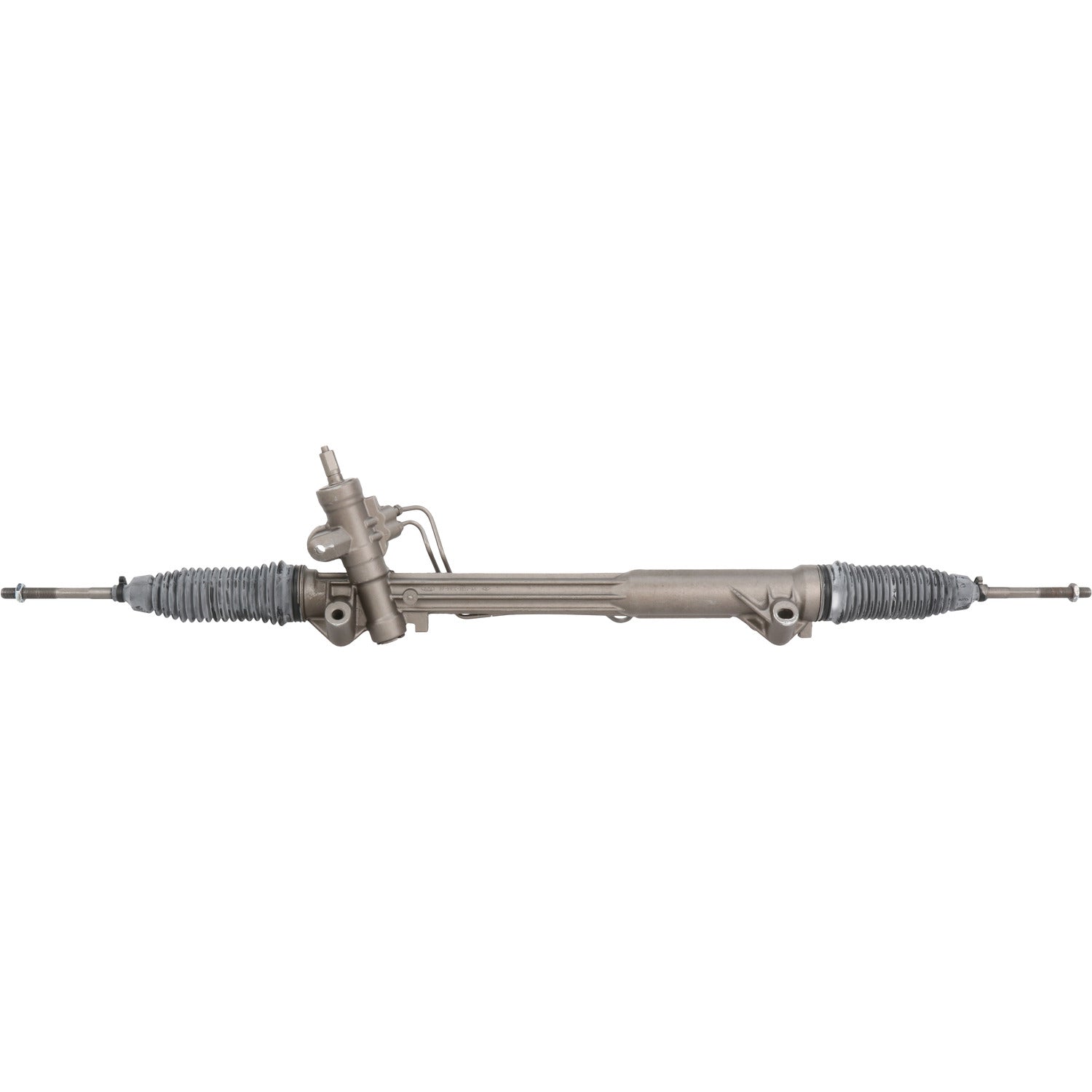

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95452M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95452M

SKU:95452M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 20.13 IN
Distance Between Mounting Holes 511.18 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.81 IN
Input Shaft Diameter 20.62 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Mounting Hole Quantity 2
Port ID Size 0.437
Rack Length 50.13 IN
Rack Length 1273.18 MM
Return Port ID Size 0.376
Thread Length 2.43 IN
Thread Length 61.77 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3

Application Info: Ford Crown Victoria (2008-11); Lincoln Town Car (2008-11); Mercury Grand Marquis (2008-11)

Interchange: 3W1Z-3280-BA, 8W7Z-3280-A, 8W7Z-3504-A, 8W7Z-3504-B

BBB Cross-Reference: 101-0226

Cardone Cross-Reference: 22-2016
