MAVAL

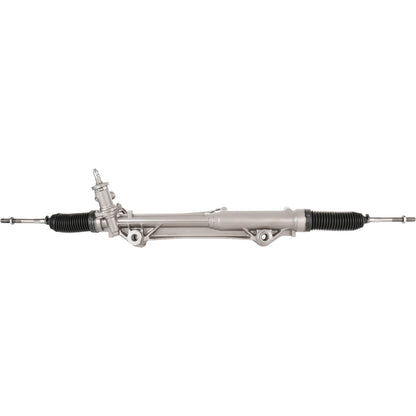

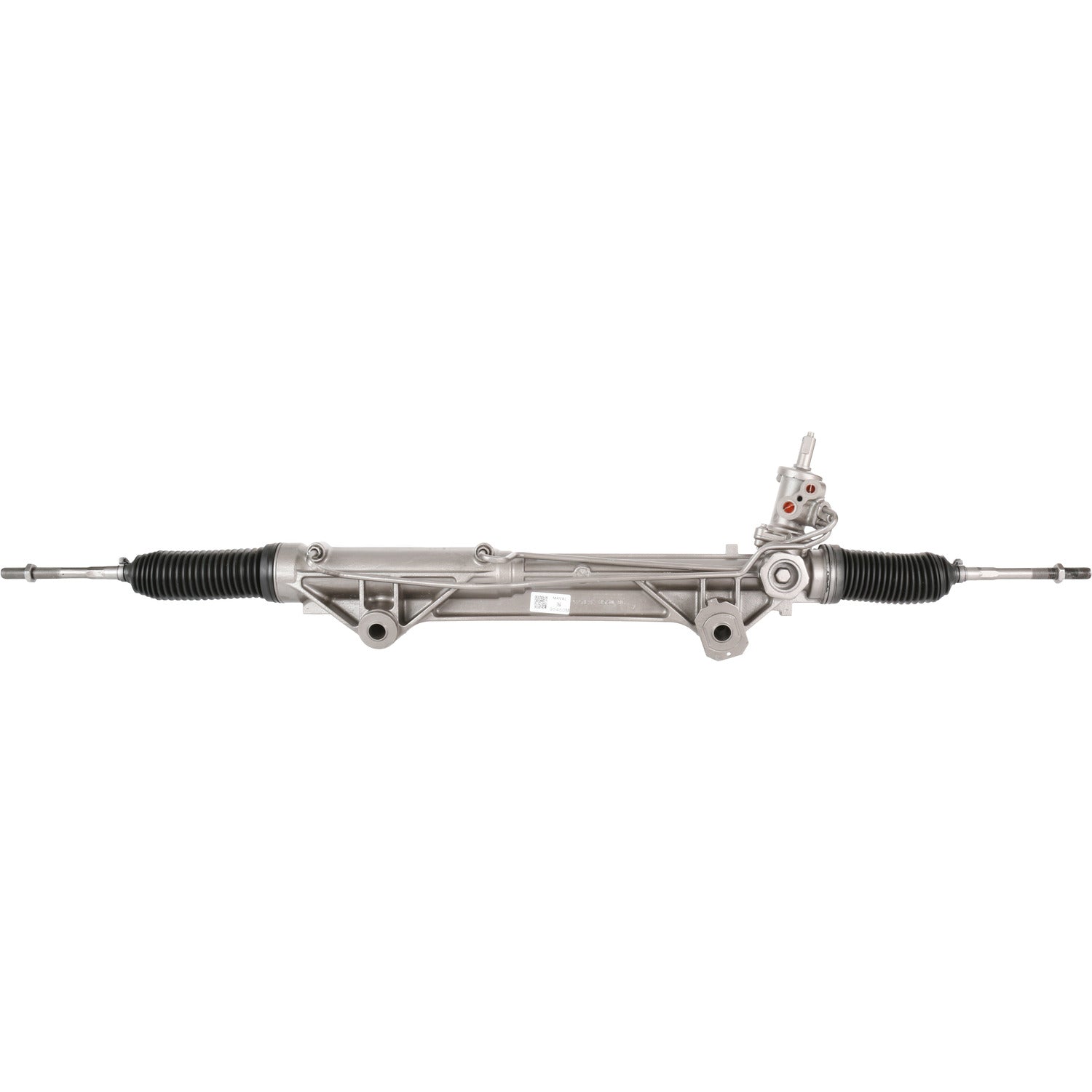

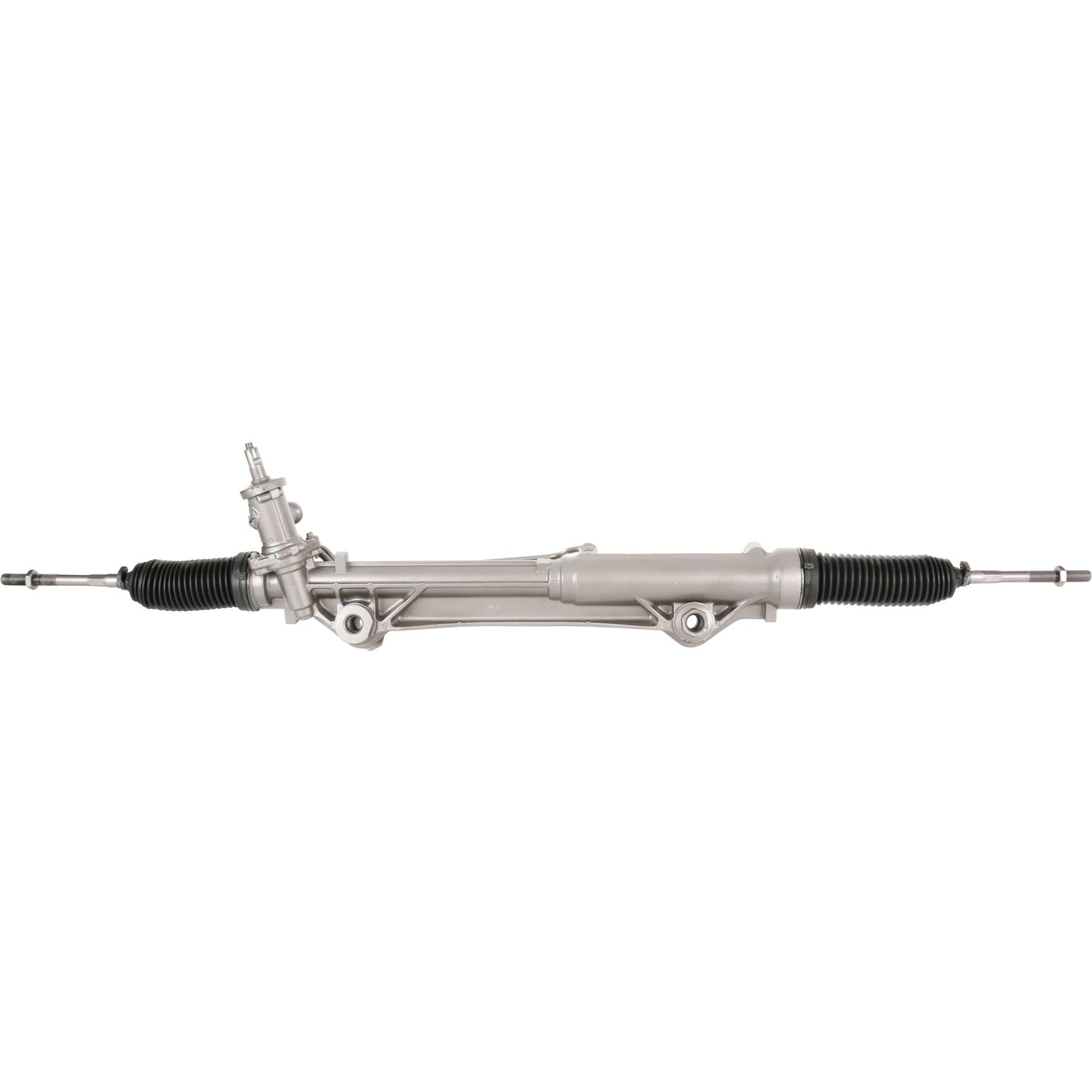

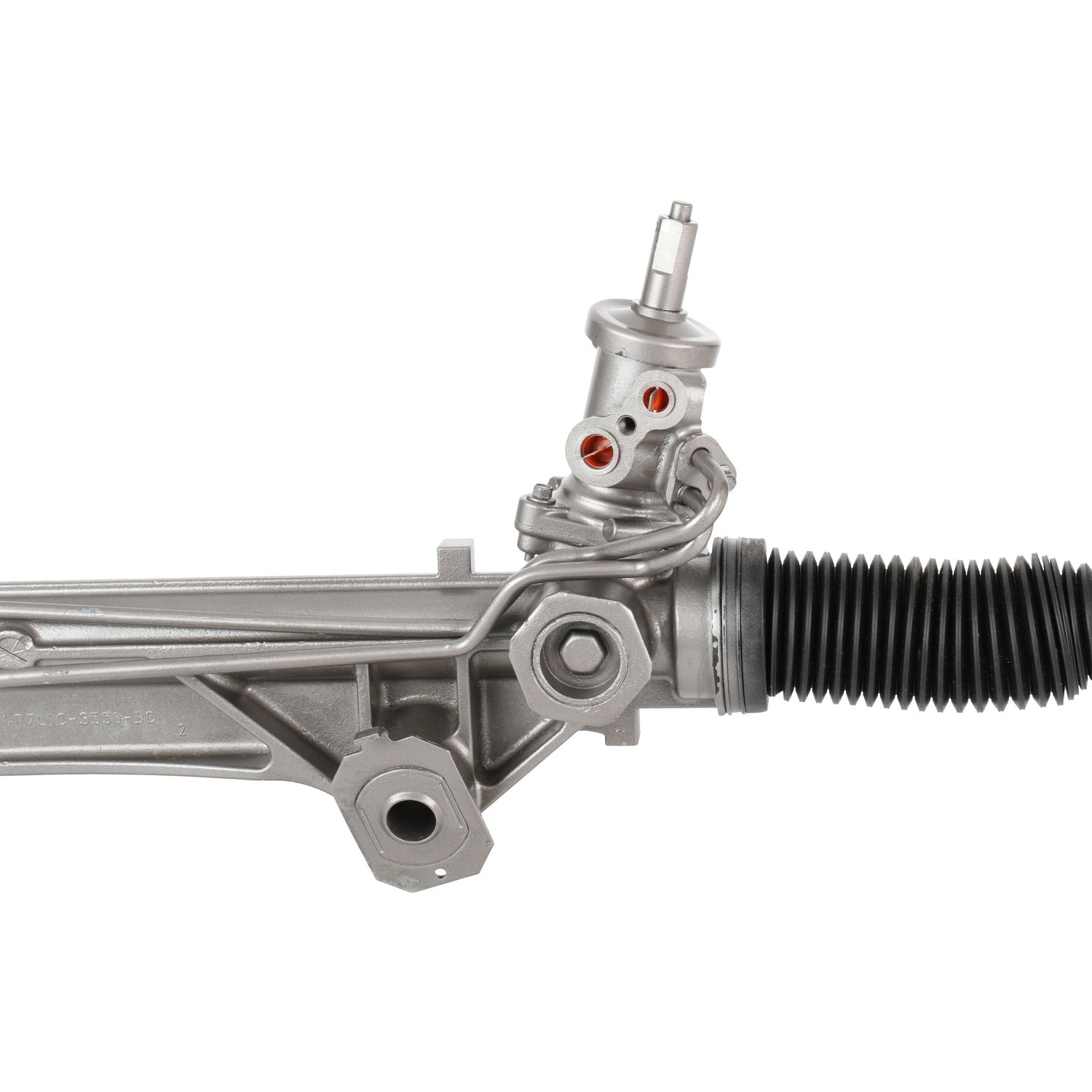

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95450M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95450M

SKU:95450M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 16.88 IN
Distance Between Mounting Holes 428.63 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.82 IN
Input Shaft Diameter 20.83 MM
Input Shaft Length 2.6 IN
Input Shaft Length 66.04 MM
Mounting Hole Quantity 2
Port ID Size 0.436
Rack Length 55.63 IN
Rack Length 1412.88 MM
Return Port ID Size 0.386
Thread Length 3.12 IN
Thread Length 79.27 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.75

Application Info: Ford Expedition (2007-08); Lincoln Navigator (2007-08)

Interchange: 7L1Z-3280-A, 7L1Z-3504-A, 8L1Z-3504-A

BBB Cross-Reference: 101-0234

Cardone Cross-Reference: 22-297

Instructions - 1          Instructions - 2
