MAVAL

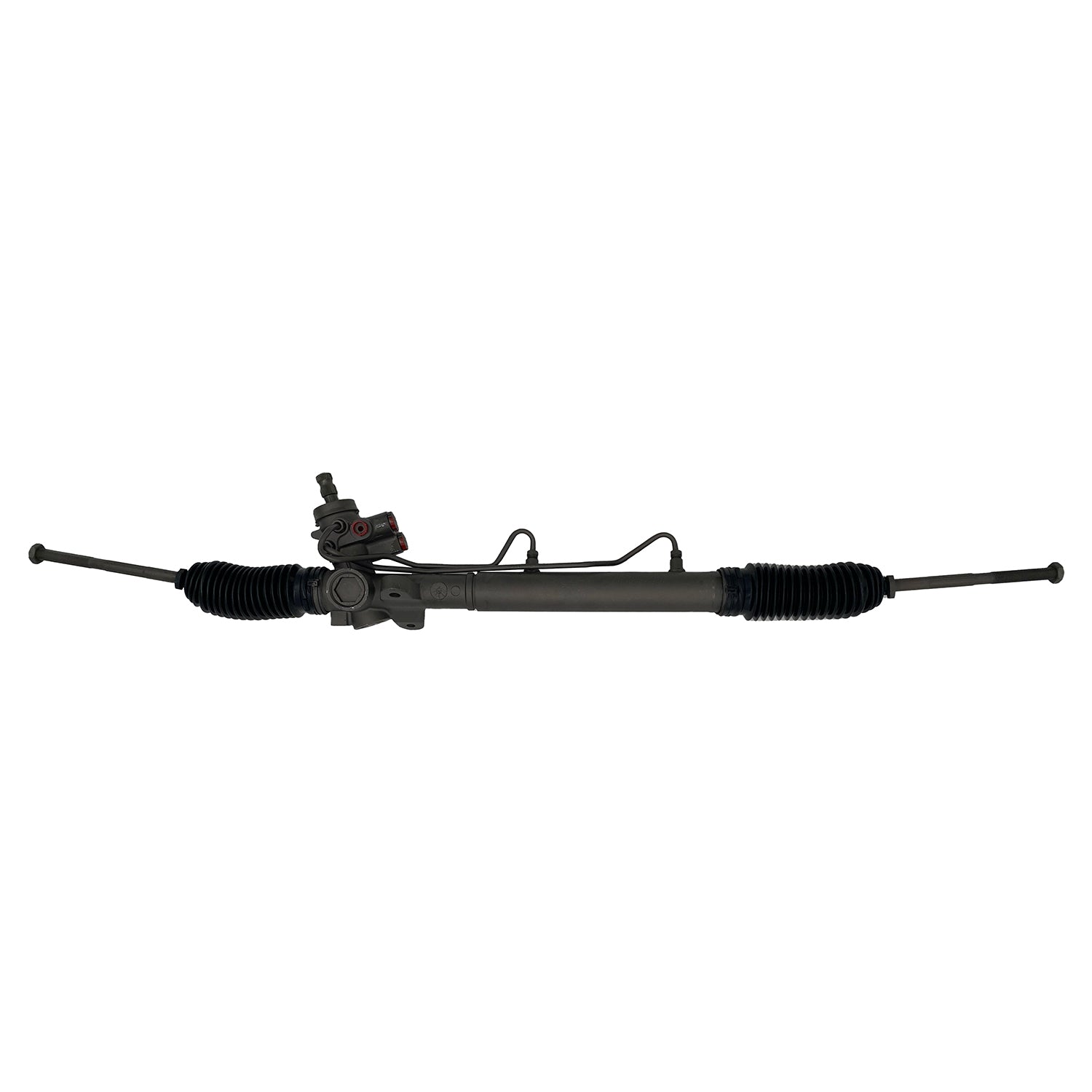

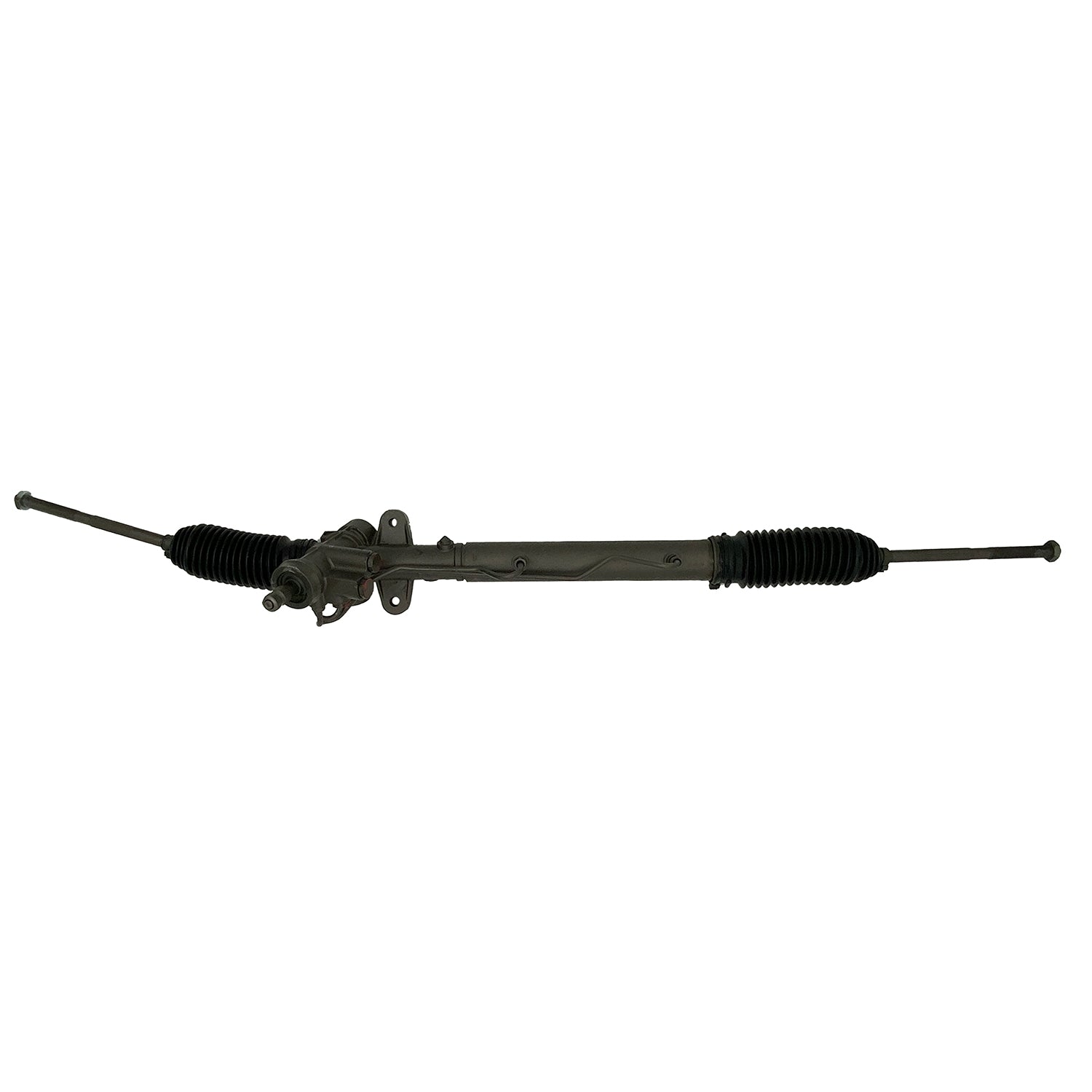

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95448M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95448M

SKU:95448M

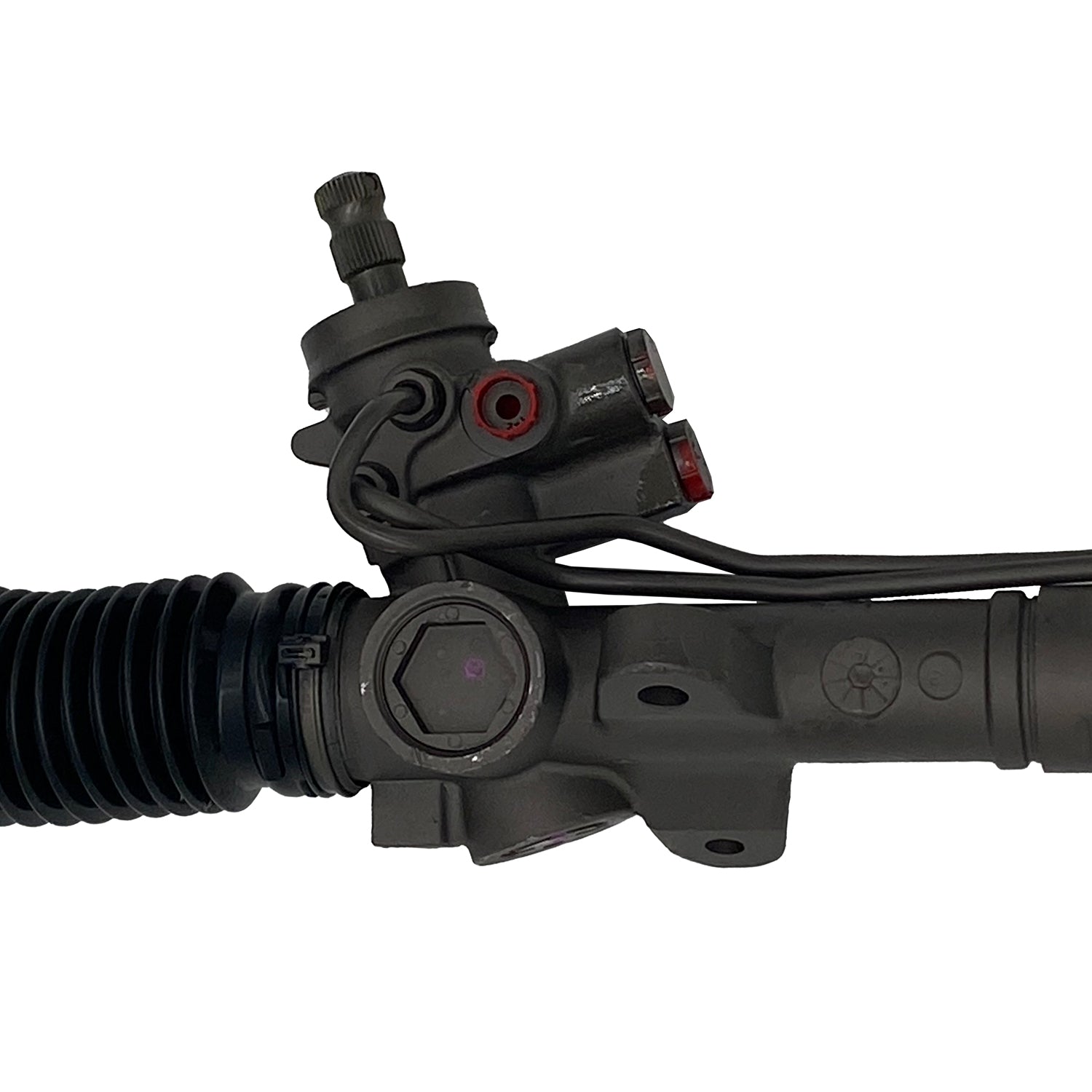

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.63 IN
Distance Between Mounting Holes 92.08 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 47 IN
Rack Length 1193.8 MM
Return Port Thread Size M16 x 1.5
Thread Length 3.1 IN
Thread Length 78.74 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.75



Application Info: Chrysler PT Cruiser 2001-2002 - All w/Std Steering

Interchange: Chrysler - 4656456AD

BBB Cross-Reference: 102-0154

Cardone Cross-Reference: 22-351
