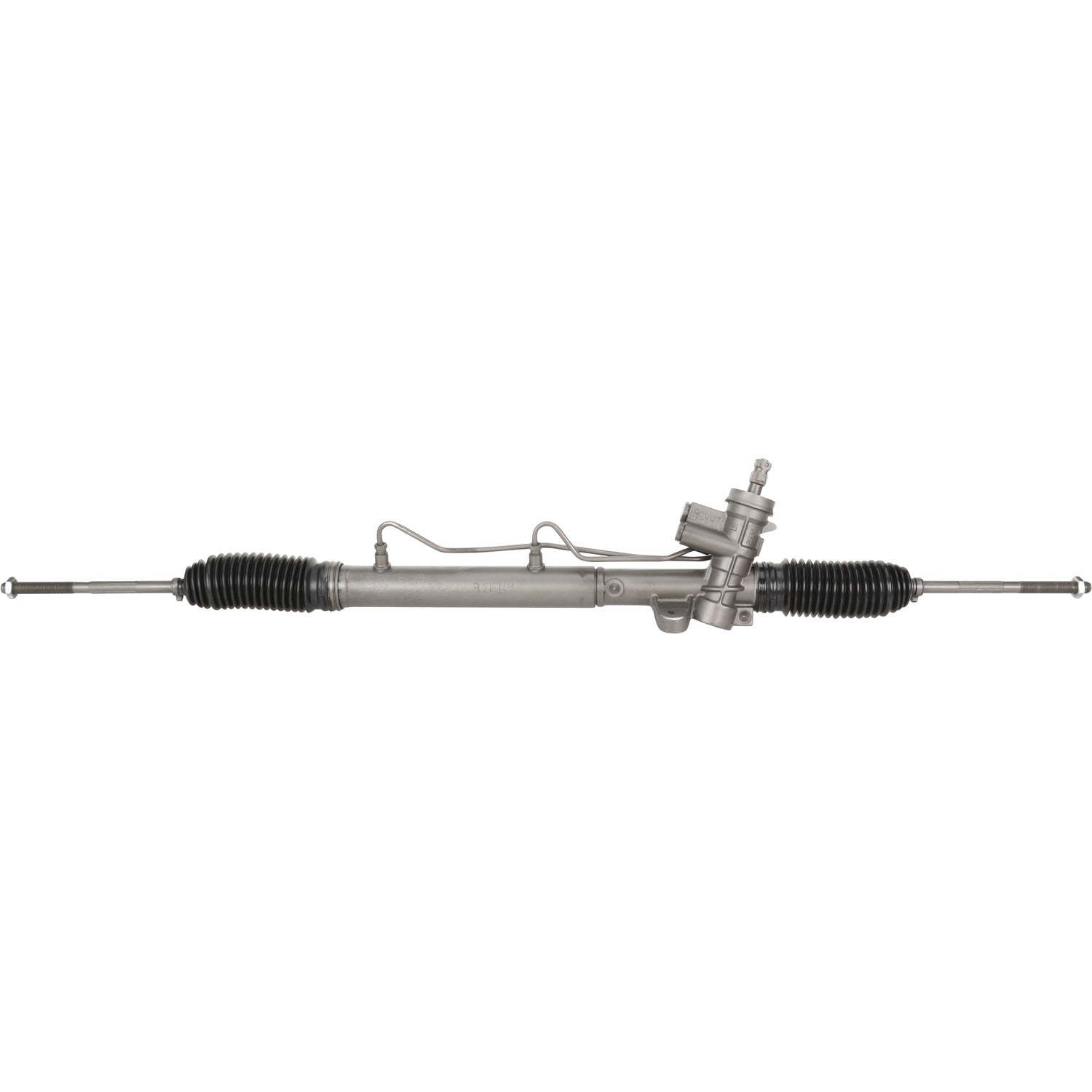

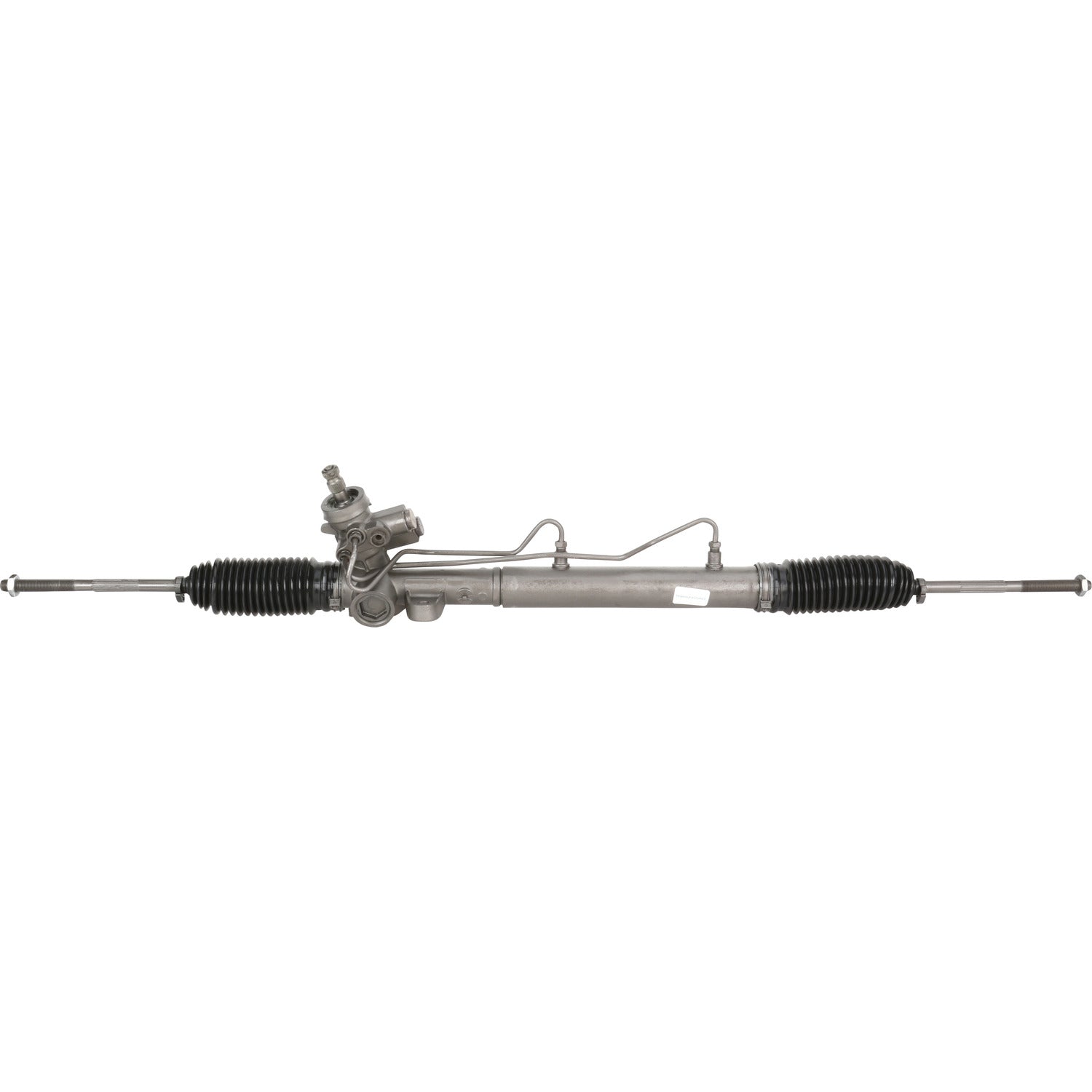

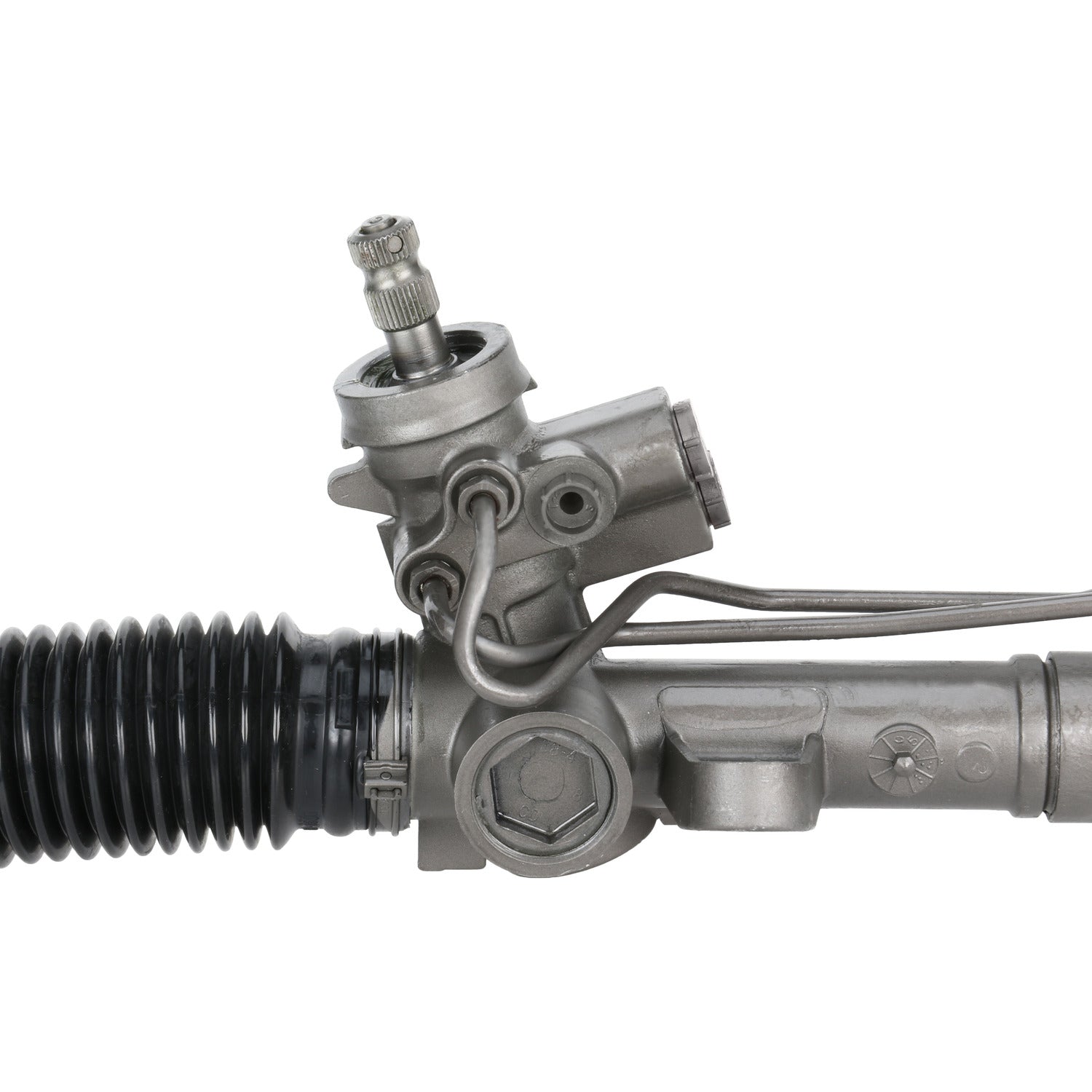

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95447M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95447M
SKU:95447M
MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Steel; Aluminum | |
| Distance Between Mounting Holes | 3.63 | IN |
| Distance Between Mounting Holes | 92.08 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.75 | IN |
| Input Shaft Diameter | 19.05 | MM |
| Input Shaft Length | 1.75 | IN |
| Input Shaft Length | 44.45 | MM |
| Mounting Hole Quantity | 2 | |
| Pressure Port Thread Size | M18 x 1.5 | |
| Rack Length | 47 | IN |
| Rack Length | 1193.8 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 3.18 | IN |
| Thread Length | 80.84 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.56 |
Application Info: Chrysler PT Cruiser 2001-2001 - All w/ Std Str
Interchange: Chrysler - 4656745AD
BBB Cross-Reference: 102-0175
Cardone Cross-Reference: 22-370
