MAVAL

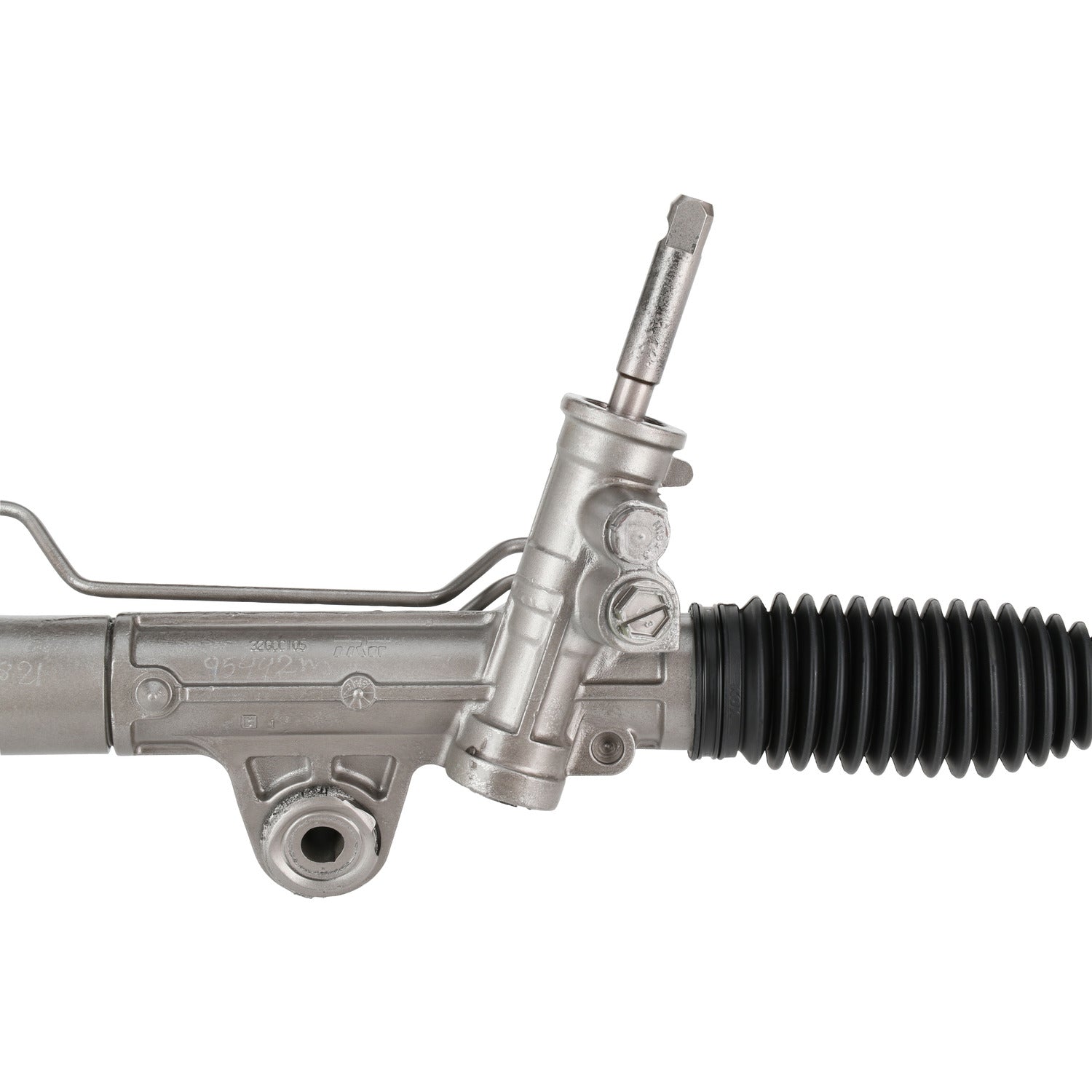

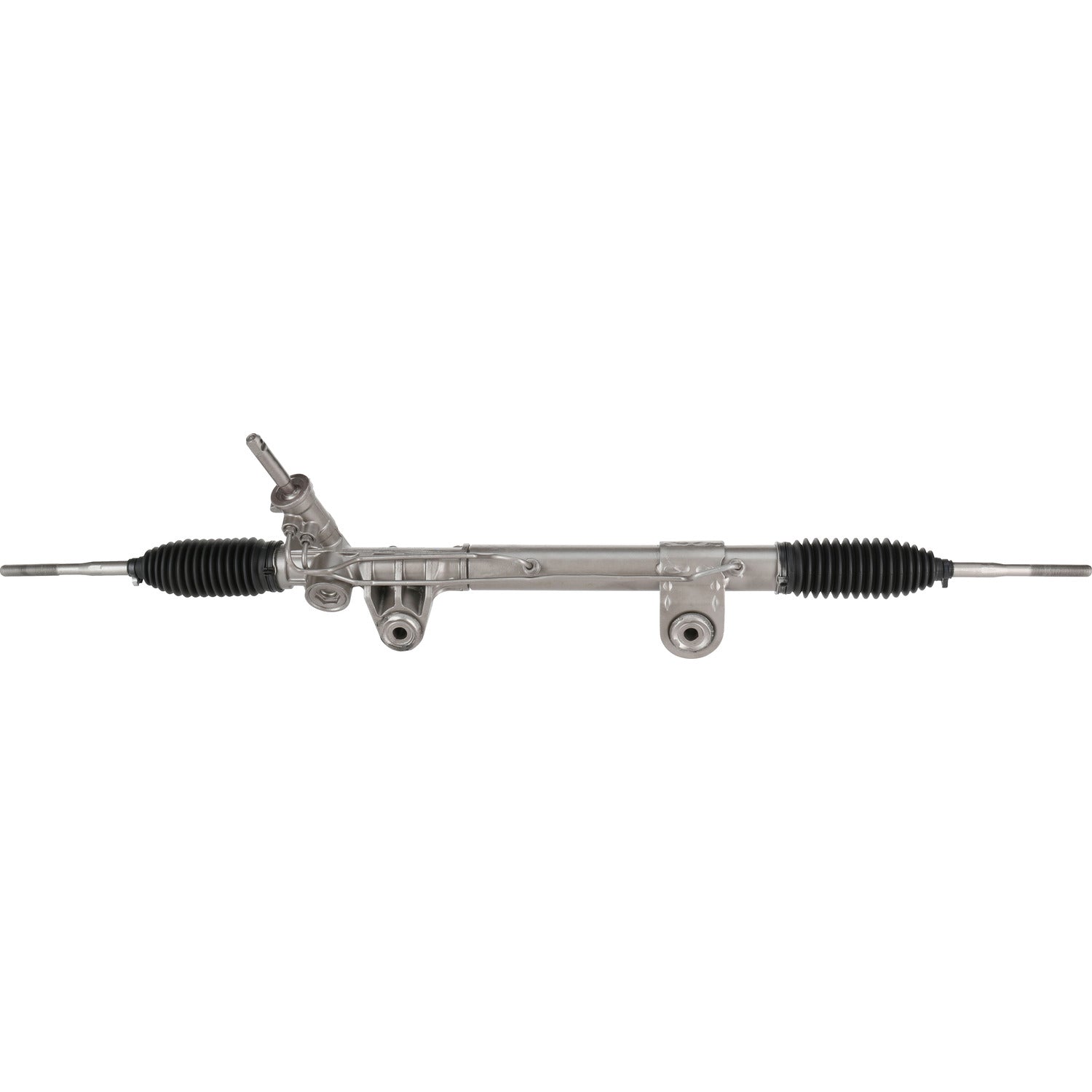

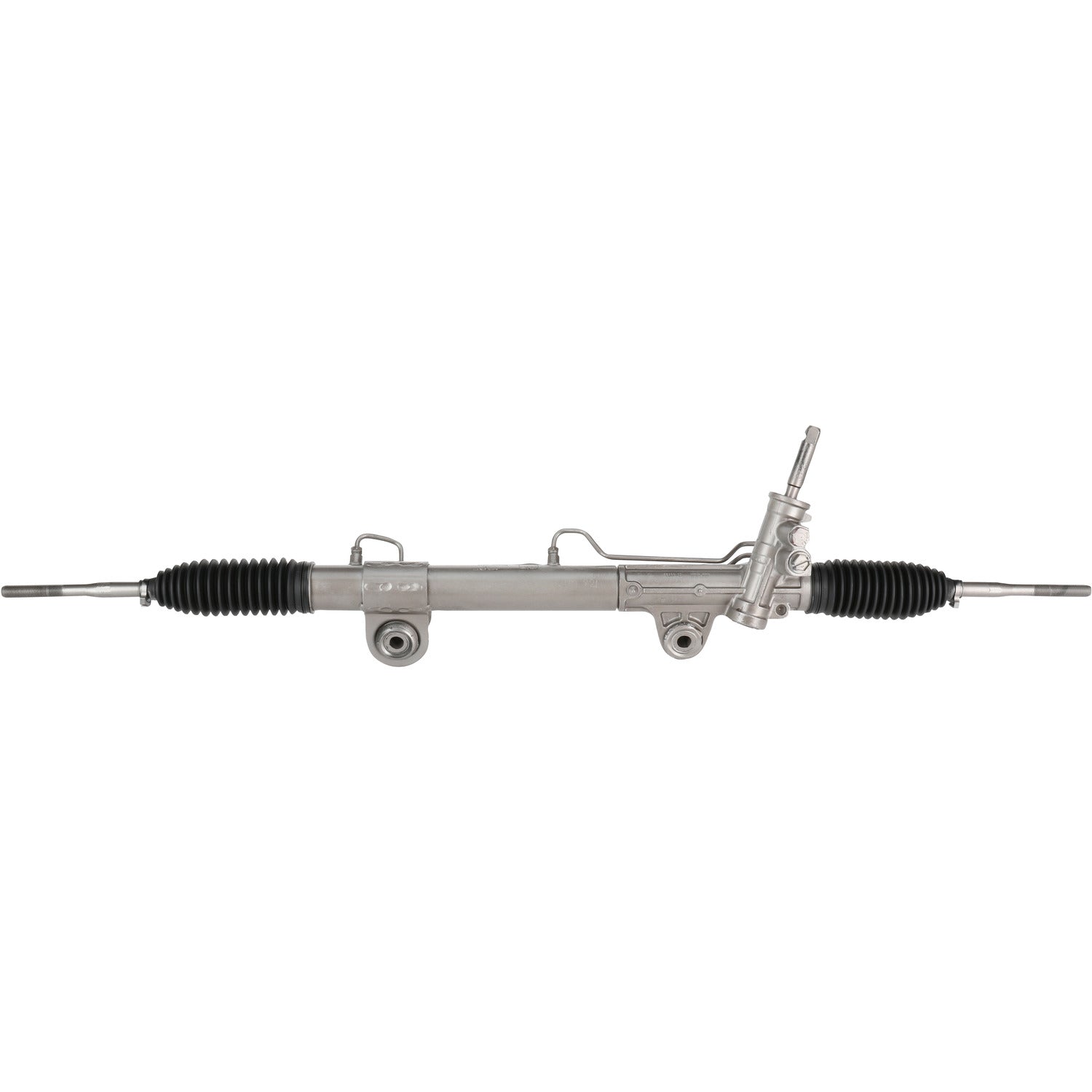

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95442M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95442M

SKU:95442M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 13.33 IN
Distance Between Mounting Holes 338.53 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 18.01 MM
Input Shaft Length 3.38 IN
Input Shaft Length 85.73 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M20 x 1.5
Rack Length 50.13 IN
Rack Length 1273.18 MM
Return Port Thread Size M18 x 1.5
Thread Length 2.5 IN
Thread Length 63.5 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.44

Application Info: Chrysler Aaspen (2007-09); Dodge Durango (2004-09) With 15mm tie rod threads - rack tagged 52855758

Interchange: 52122302AB, 52855758AE, 52855758AF, 52855758AG, 68040226AA

BBB Cross-Reference: 102-0198

Cardone Cross-Reference: 22-386

Instructions - 1          Instructions - 2
