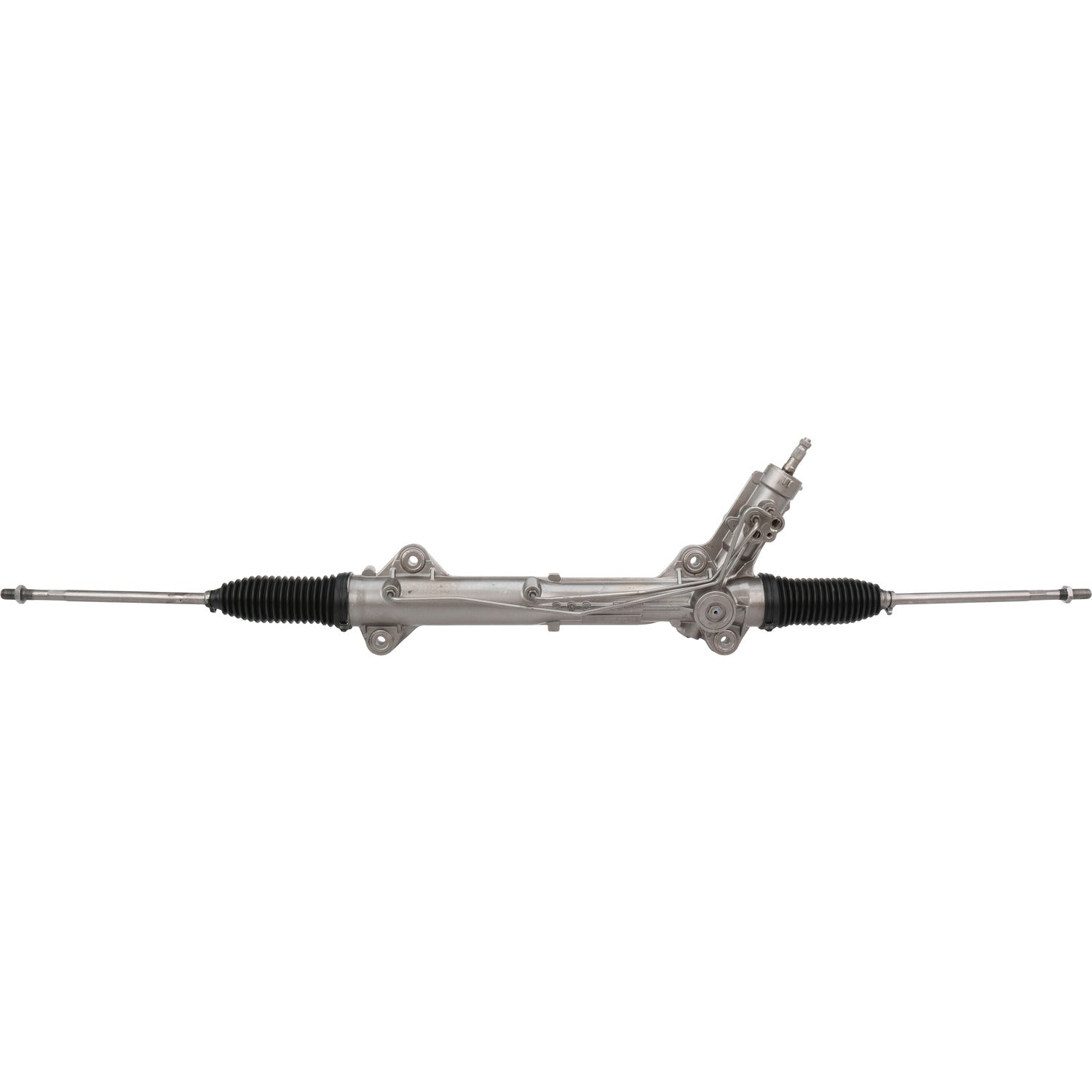

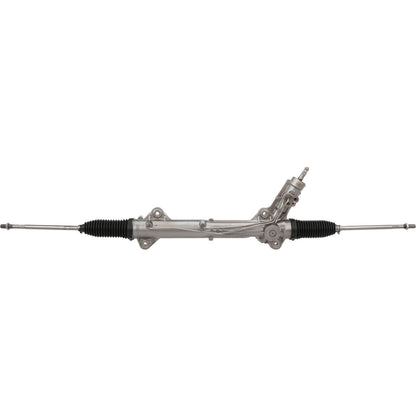

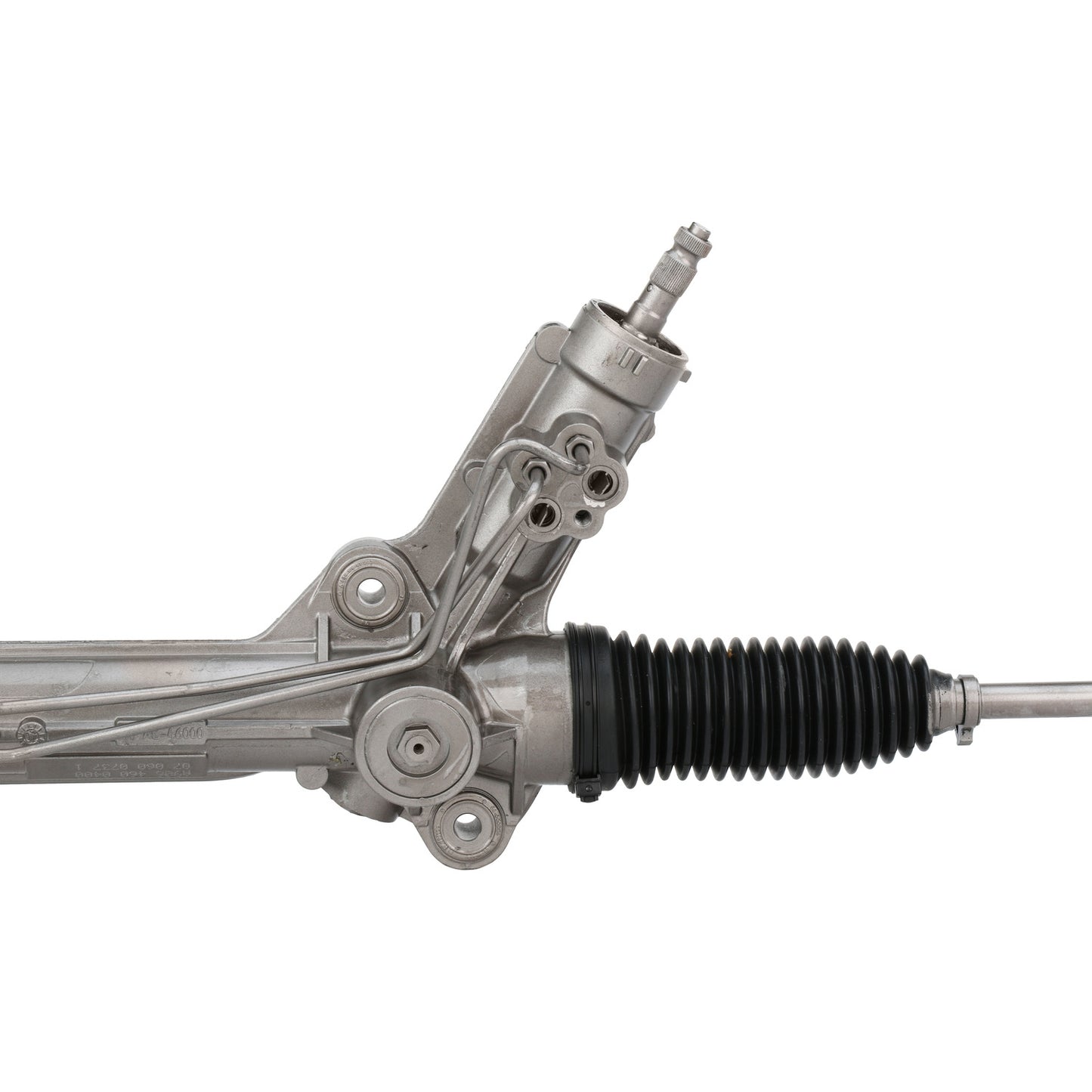

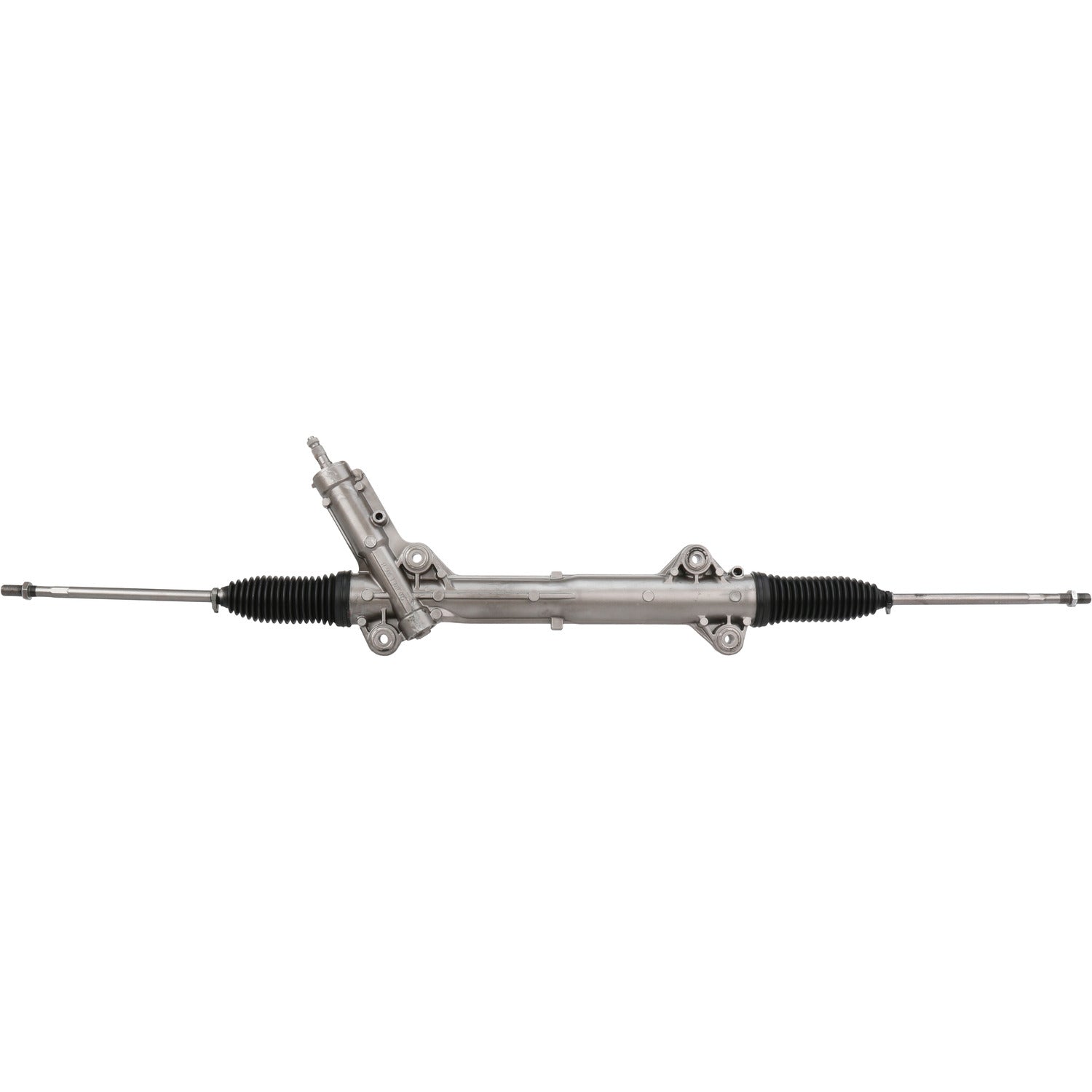

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95441M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95441M

SKU:95441M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Distance Between Mounting Holes 15.13 IN
Distance Between Mounting Holes 384.302 MM
Type Hydraulic
Inner Tie Rods Included Yes
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.25 IN
Input Shaft Length 31.75 MM
Mounting Hole Quantity 4
New Or Remanufactured Remanufactured
Pressure Port Thread Size 12mm
Rack Length 59.125 IN
Rack Length 1501.775 MM
Return Port Thread Size 12mm
Total Turns Lock To Lock 3.313

Application Info: Dodge Sprinter 2500 (2007-09), Sprinter 3500 (2007-09); Freightliner Sprinter 2500 (2007-11), Freightliner Sprinter 3500 (2007-11); Mercedes-Benz Sprinter 1500 (2019), Sprinter 2500 (2010-11, 14-19), Sprinter 3500 (2010-11, 14-19)

Interchange: FCA: 68012180AA, 68034032AA, 68048697AA; MB: 9064600800, 9064601700, 906460170080

BBB Cross-Reference: 102-0229

Cardone Cross-Reference: 22-3044

Instructions - 1          Instructions - 2

Instructions - 3
