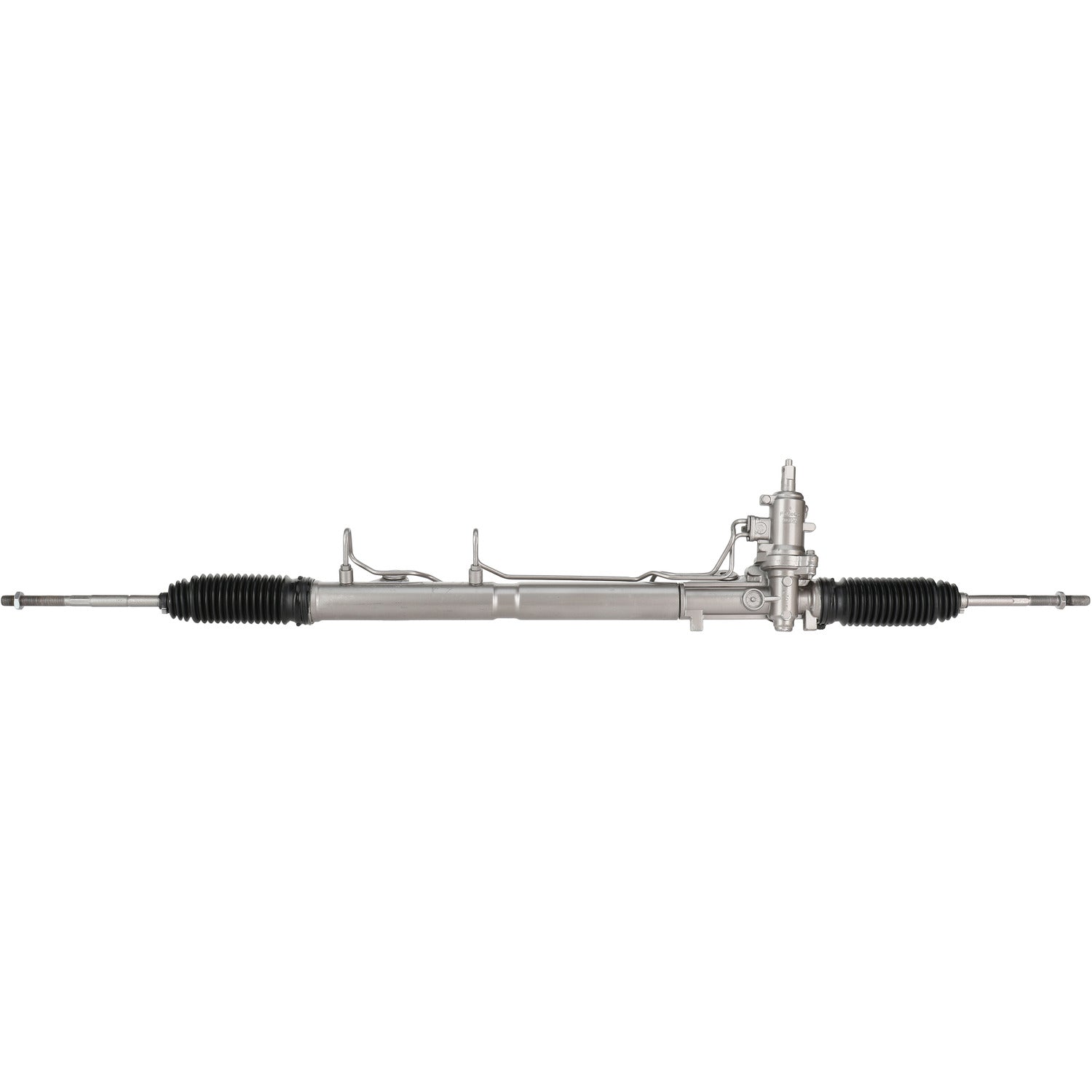

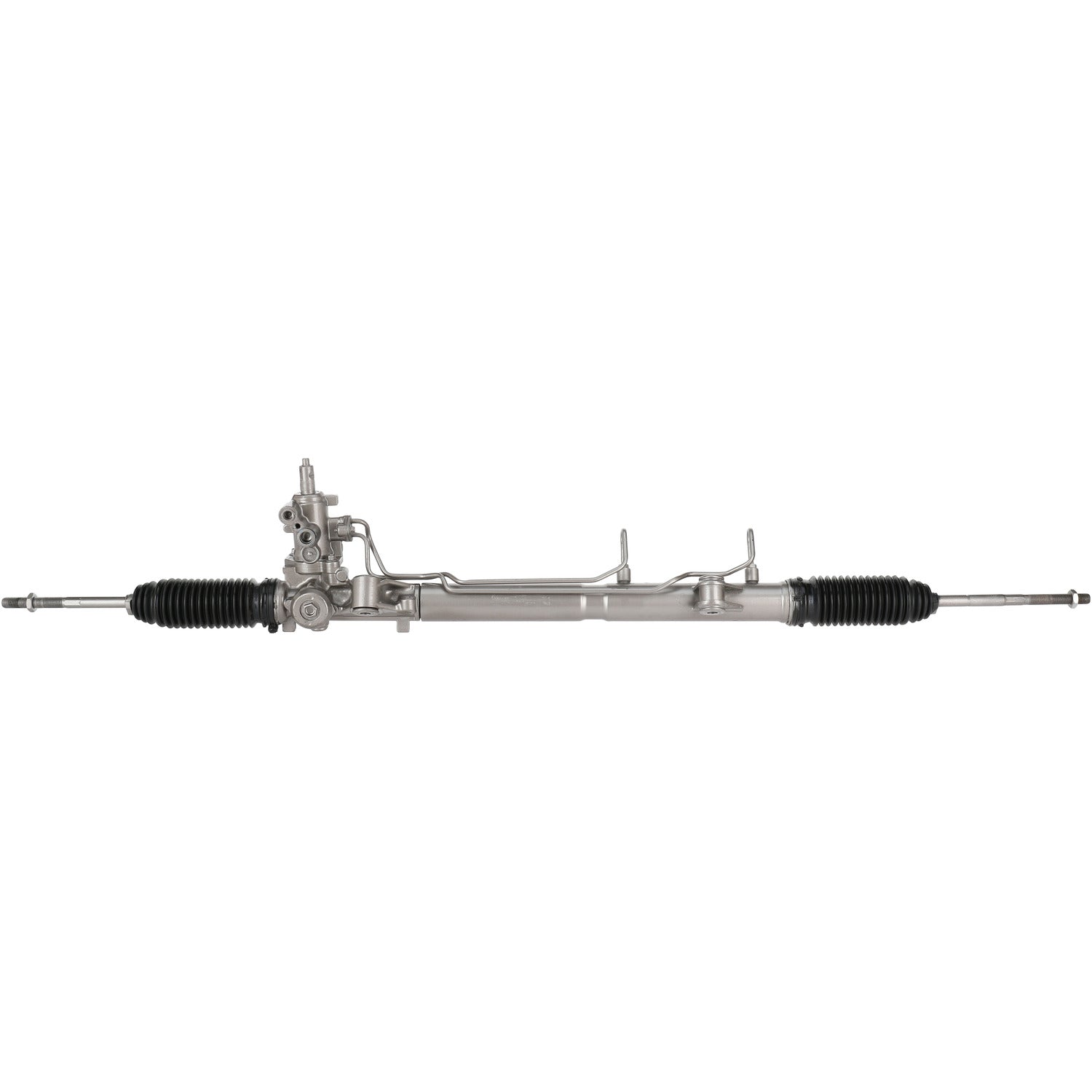

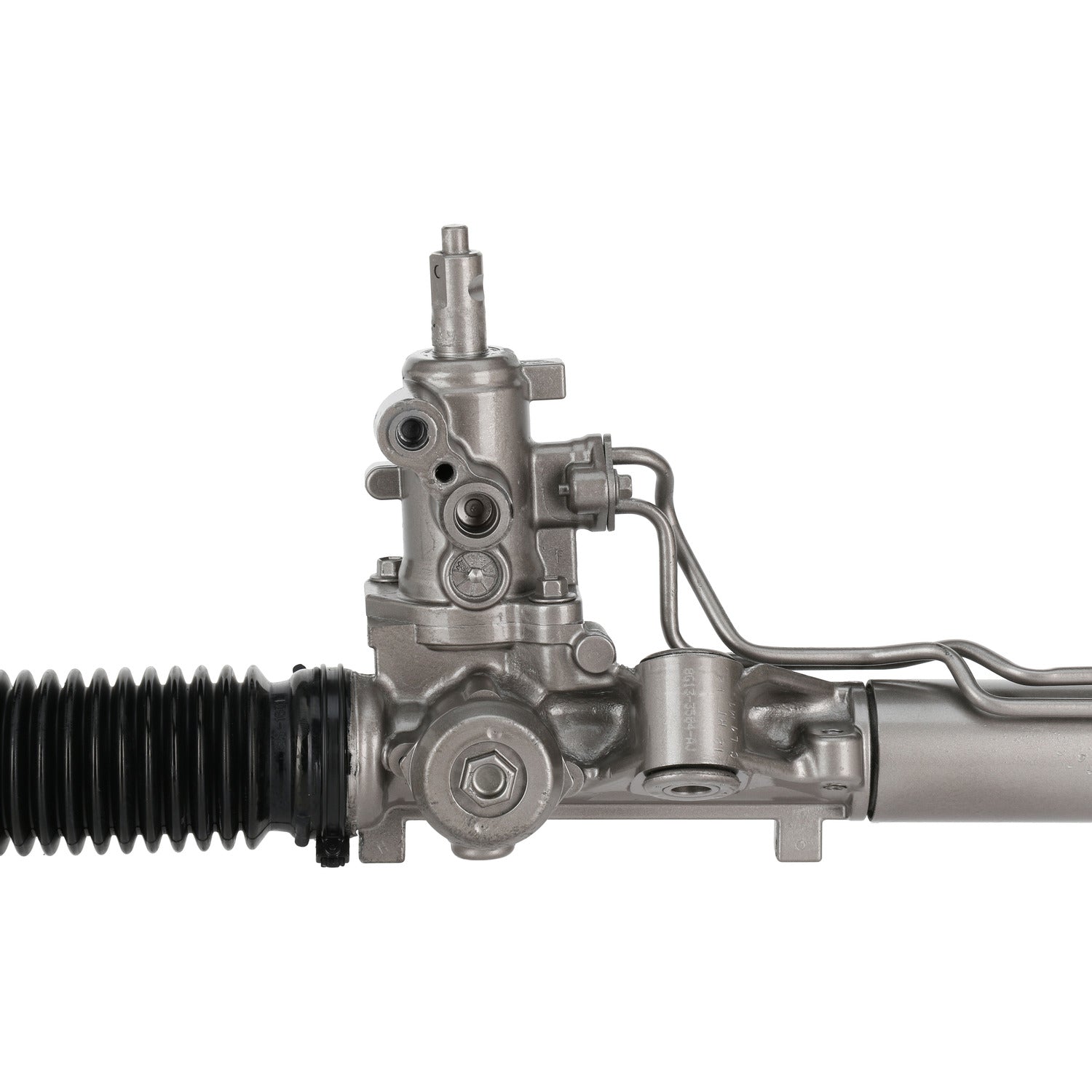

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95440M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95440M

SKU:95440M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 17 IN
Distance Between Mounting Holes 431.8 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Input Shaft Length 1.38 IN
Input Shaft Length 34.93 MM
Mounting Hole Quantity 2
Port ID Size 0.556
Rack Length 54.25 IN
Rack Length 1377.95 MM
Return Port ID Size 0.436
Thread Length 2.96 IN
Thread Length 75.06 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3

Application Info: Taurus (2008-12), Taurus X (2008-09); MKT (2010-12); Mercury Sable (2008-09) ***W/Hydraulic Steering***

Interchange: 5F9Z3280AA, 8A5Z3504E, 8A8Z3504C, 8G1Z3280B, 8G1Z3504A, 8G1Z3504ARM, 8G1Z3504B, 8G1Z3504C, AA8Z3504A, AA8Z3504B, BG1Z3504A, BG1Z3504B

BBB Cross-Reference: 101-0232

Cardone Cross-Reference: 22-2003
