MAVAL

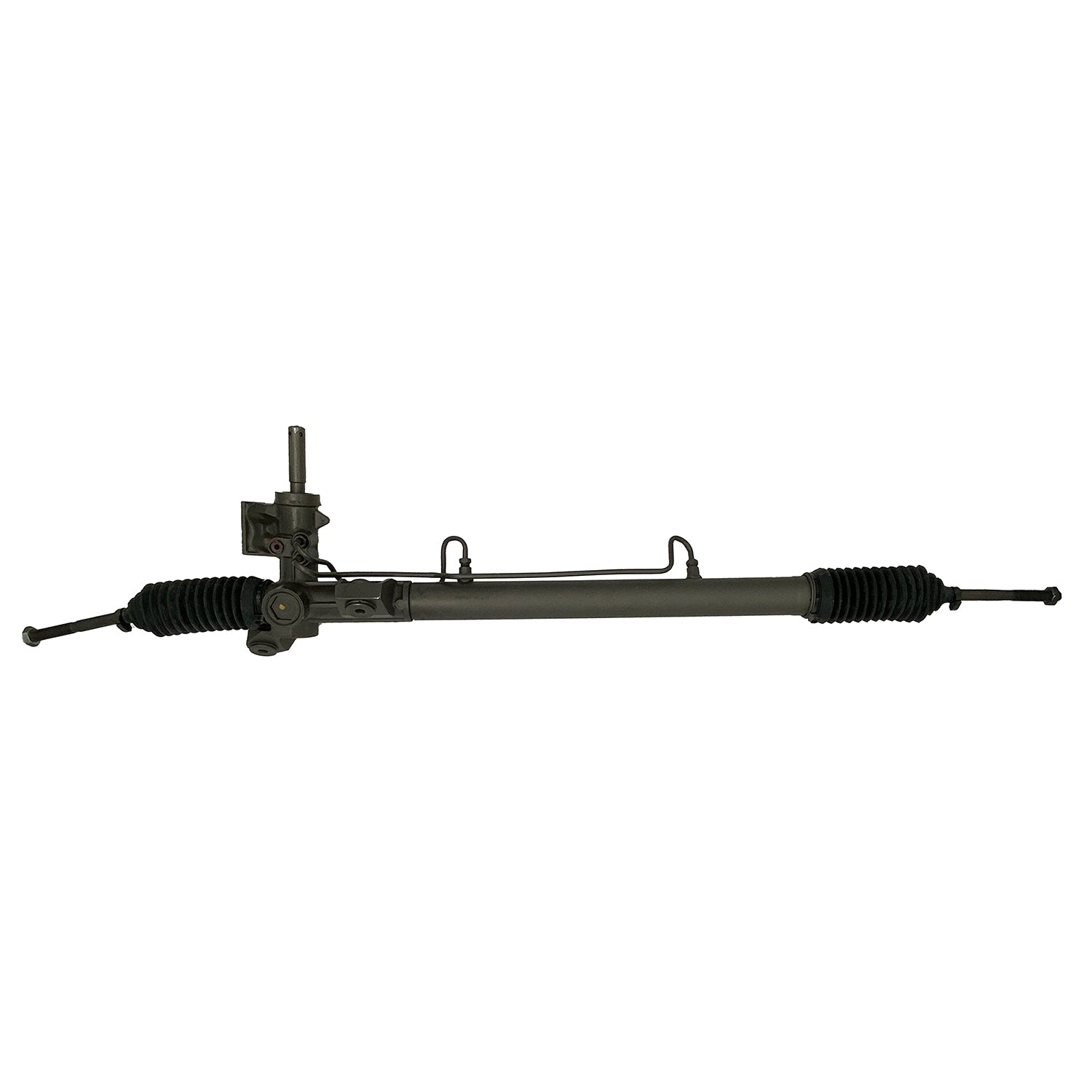

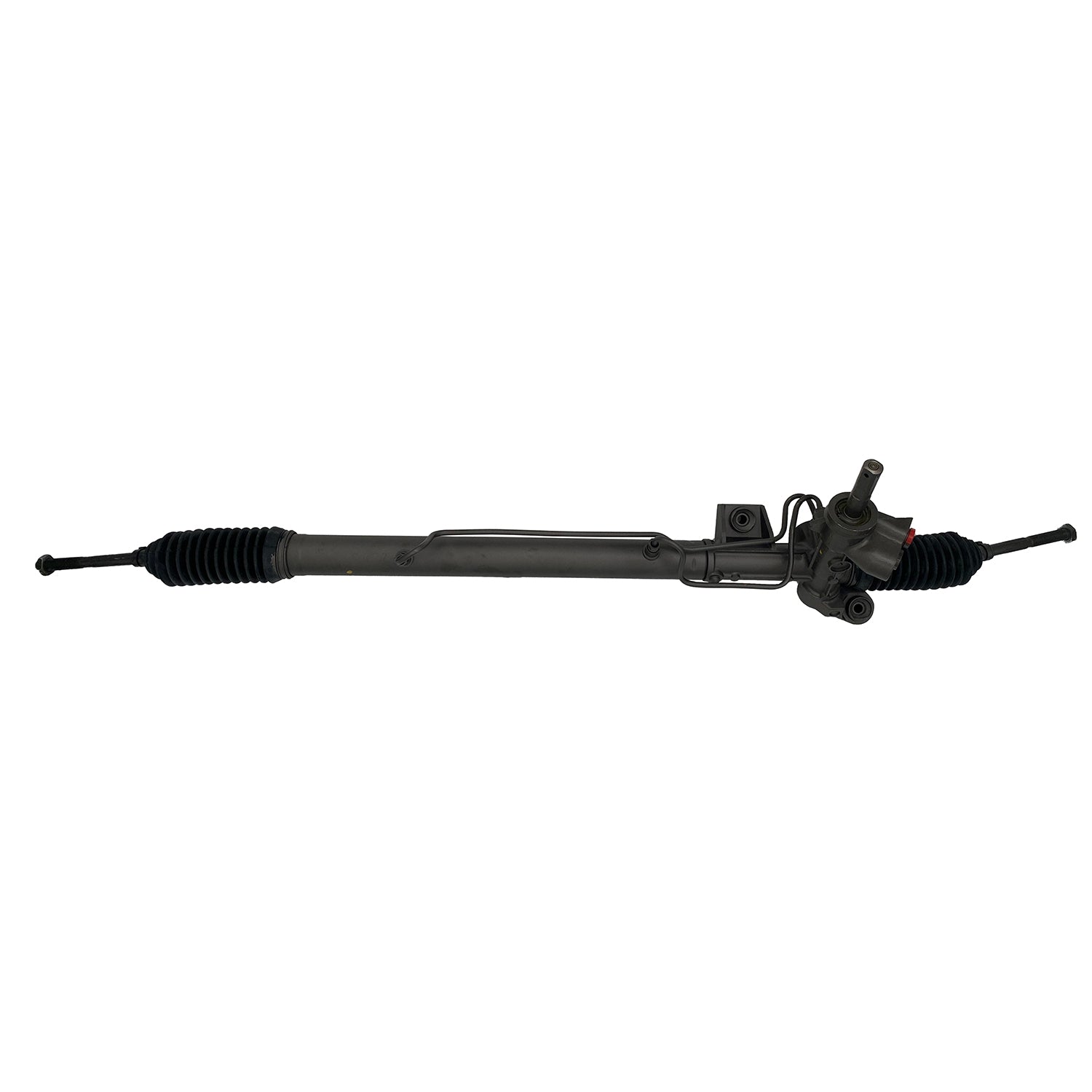

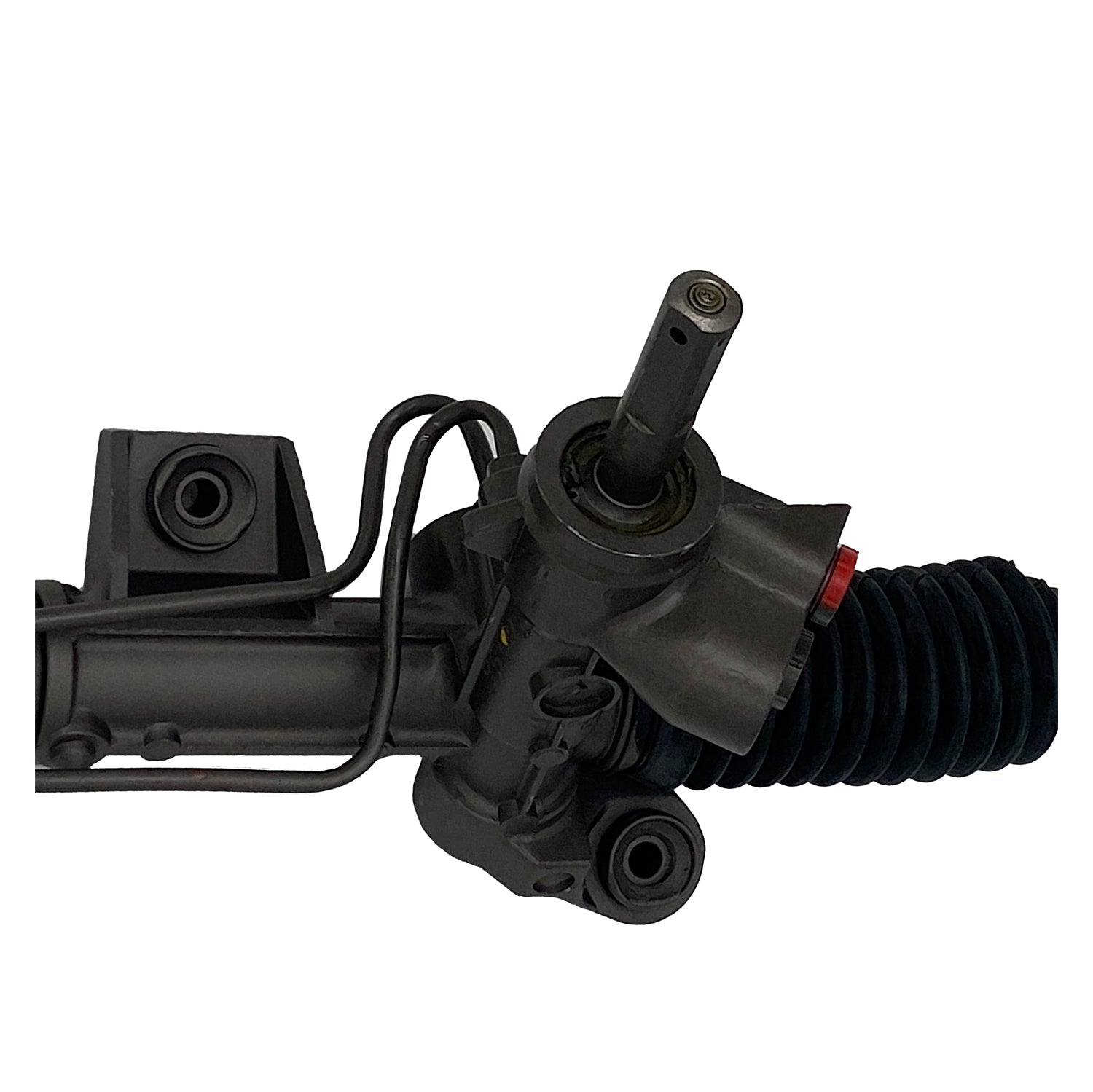

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95421M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95421M

SKU:95421M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 6.75 IN
Distance Between Mounting Holes 171.45 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.95 MM
Input Shaft Length 2.94 IN
Input Shaft Length 74.63 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 48 IN
Rack Length 1219.2 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.25 IN
Thread Length 57.15 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.06



Application Info: Dodge Stratus 1997-2000 - Models w/2.5L Eng. f

Interchange: Chrysler - 4764395AA

BBB Cross-Reference:

Cardone Cross-Reference: 22-331
