MAVAL

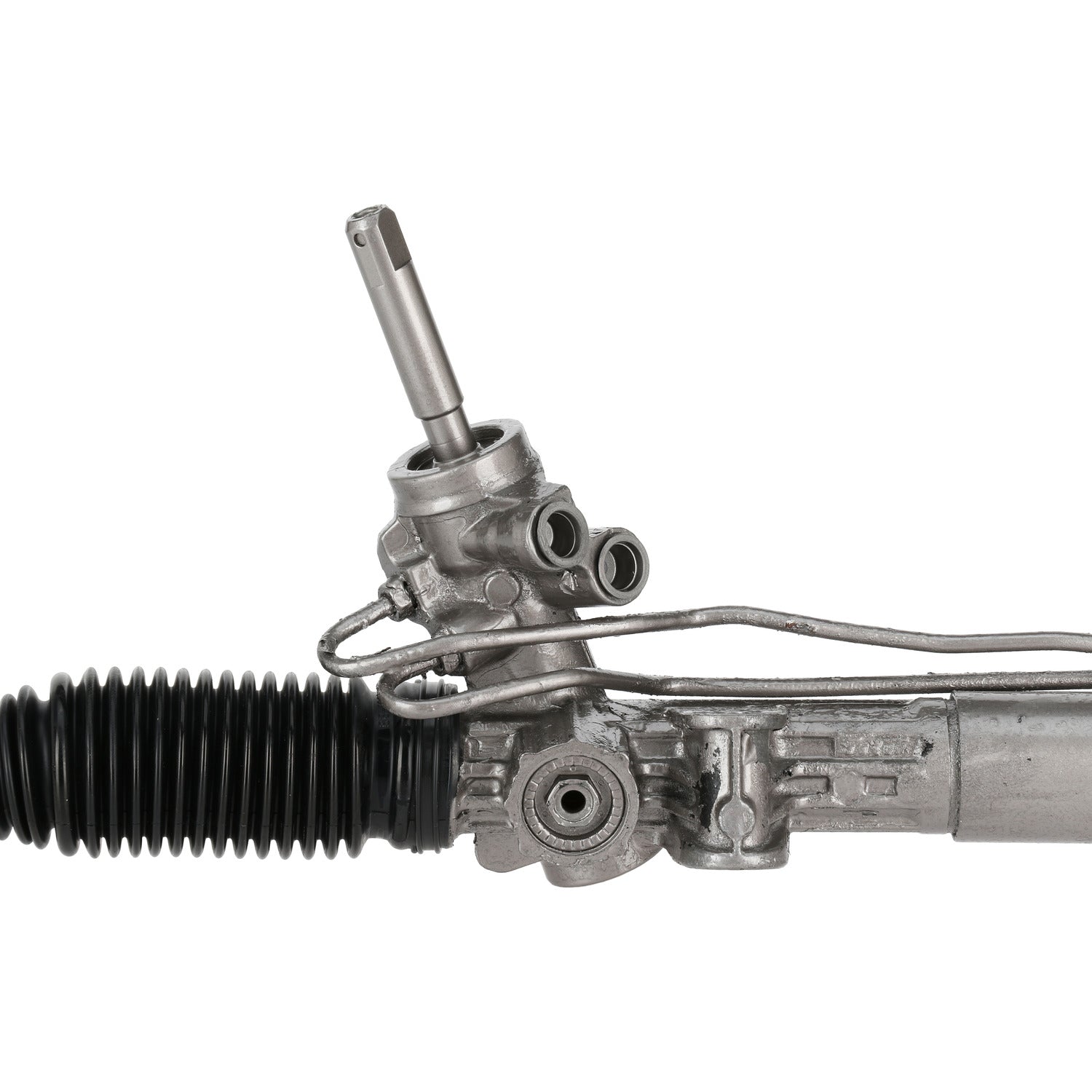

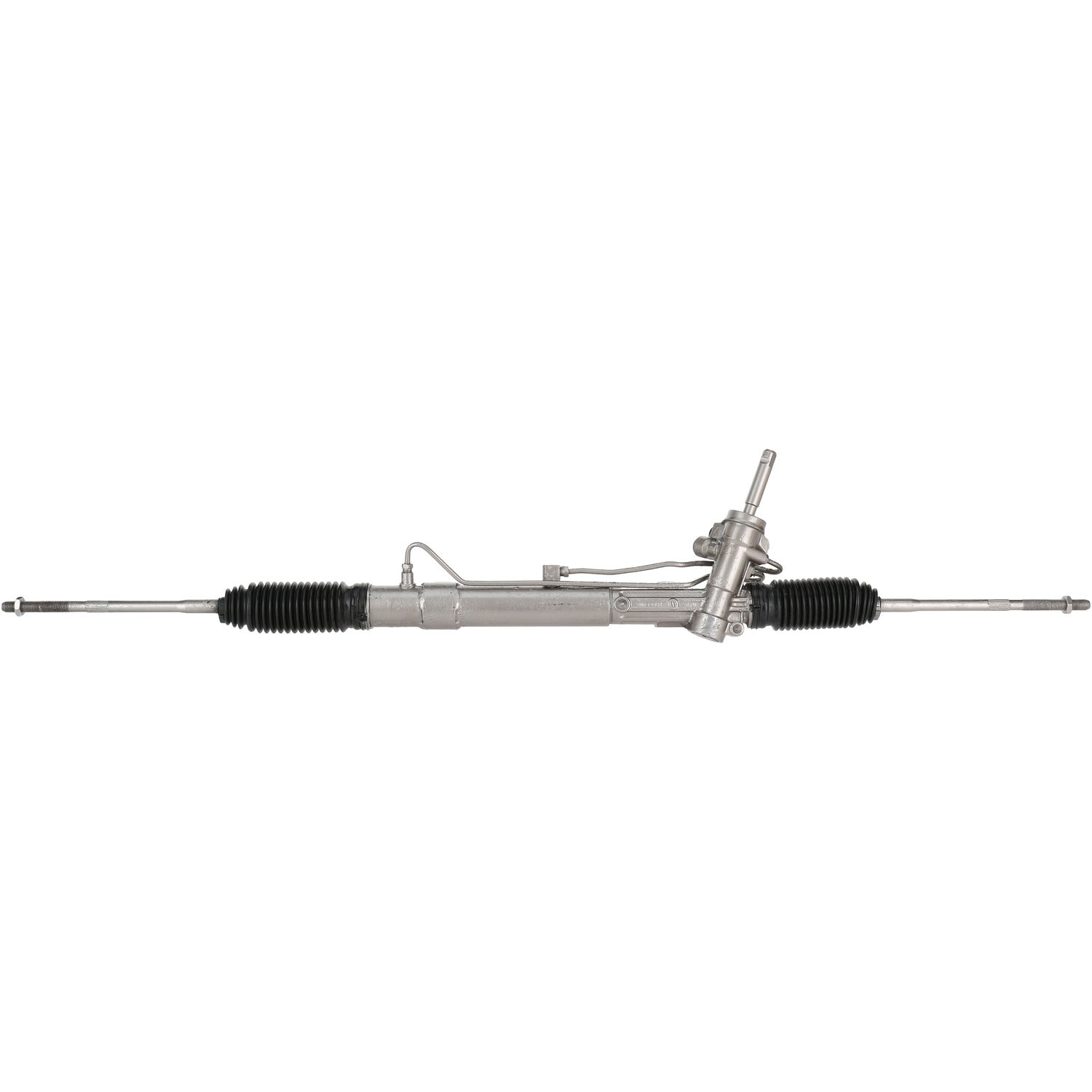

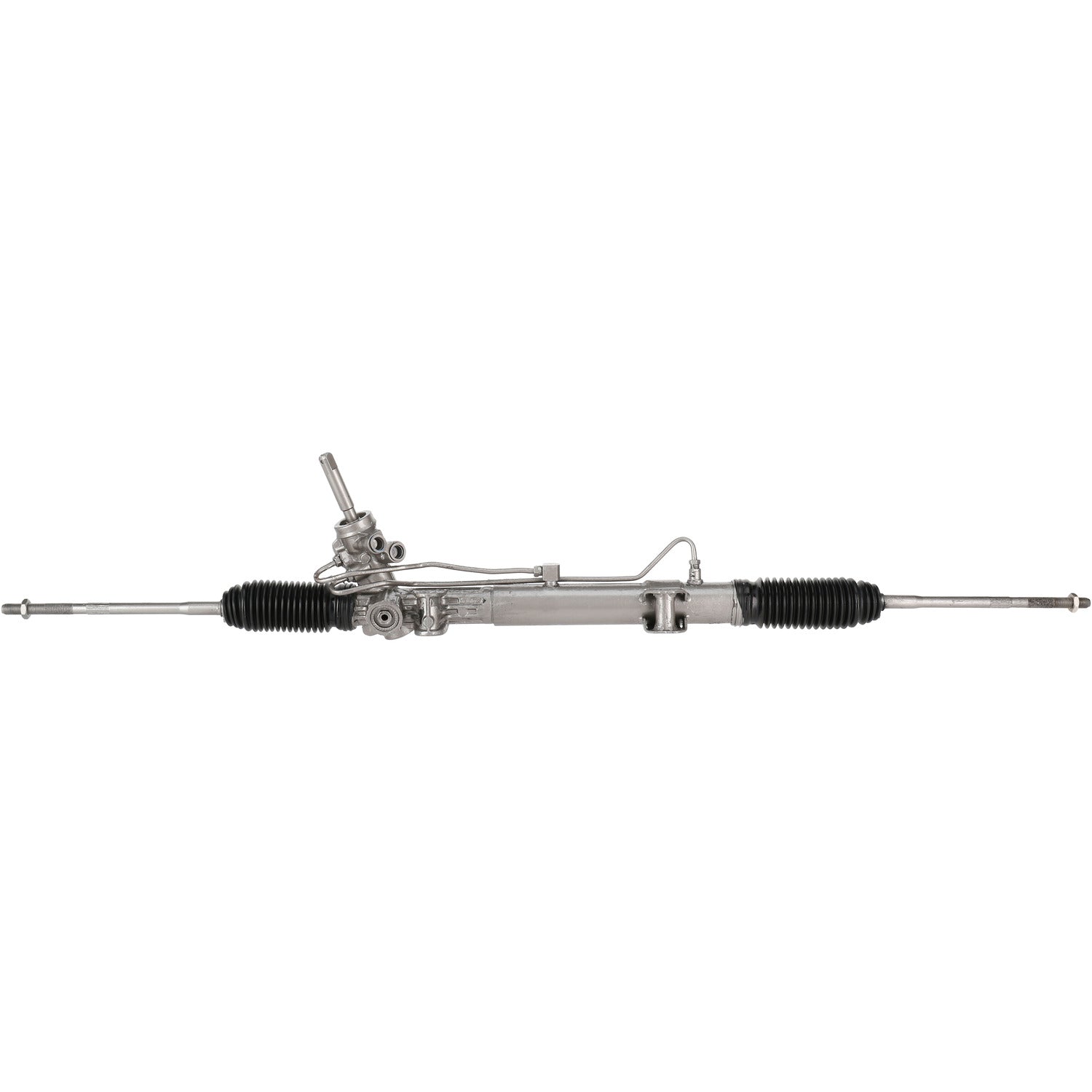

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95419M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95419M

SKU:95419M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Distance Between Mounting Holes 11.25 IN
Distance Between Mounting Holes 285.75 MM
Type Hydraulic
Inner Tie Rods Included Yes
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 3.375 IN
Input Shaft Length 85.725 MM
Mounting Hole Quantity 2
New Or Remanufactured Remanufactured
Pressure Port Thread Size M18x1.50
Rack Length 52.375 IN
Rack Length 1330.325 MM
Return Port Thread Size M16x1.50
Total Turns Lock To Lock 3.125



Application Info: Chrysler Town & Country (2008-10); Dodge Grand Caravan (2008-10)

Interchange: 5006253ACB, 5006523AC

BBB Cross-Reference: 102-0199

Cardone Cross-Reference: 22-3005
