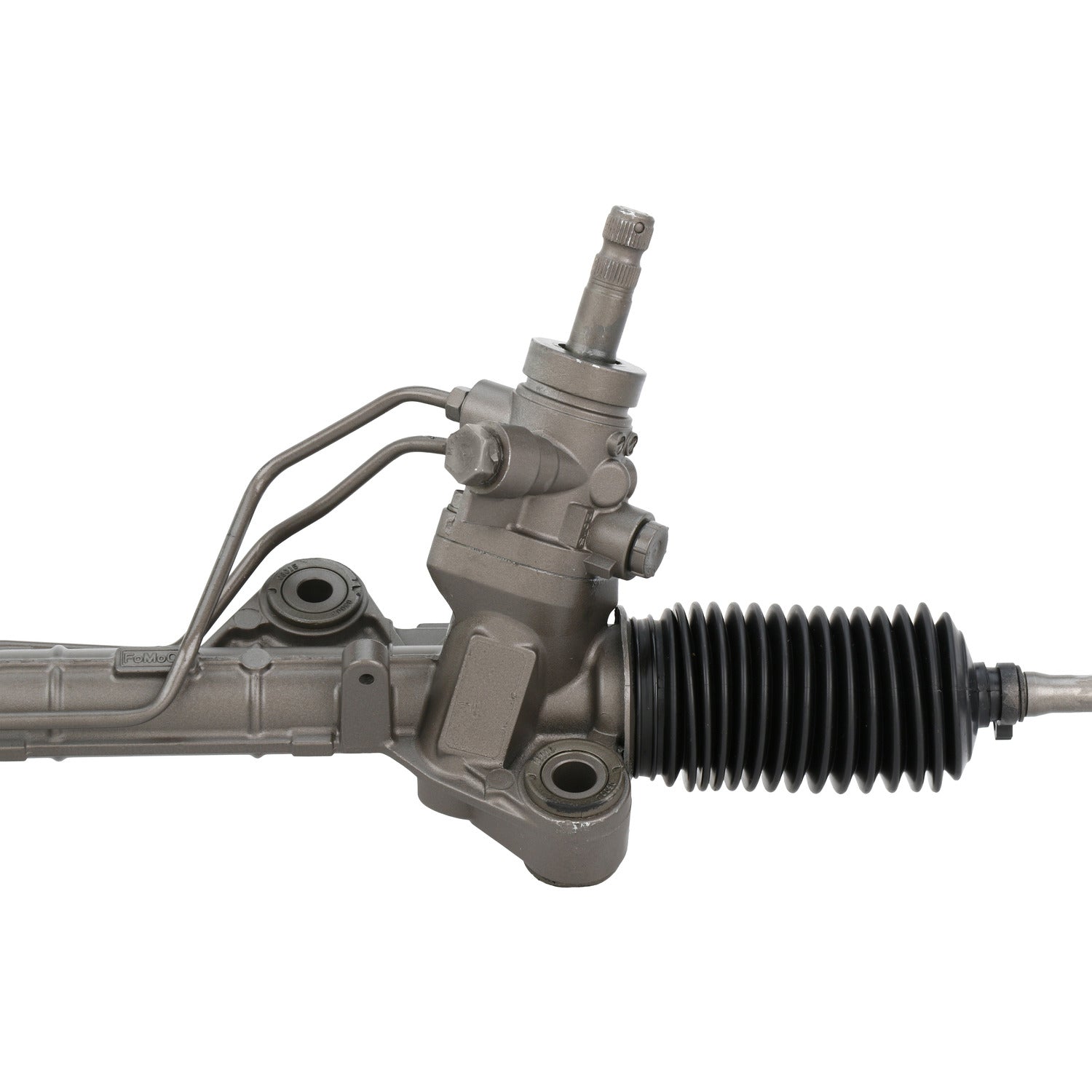

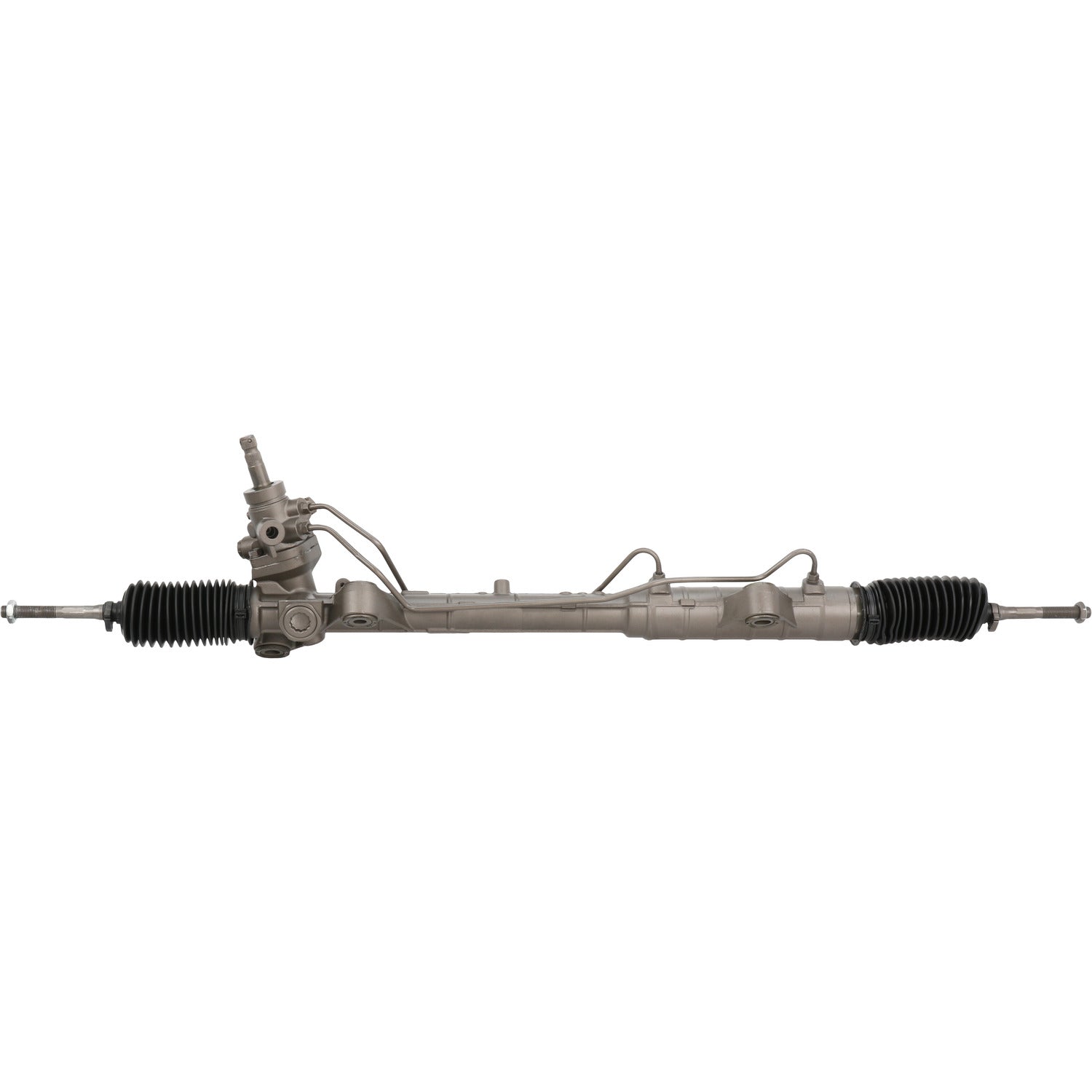

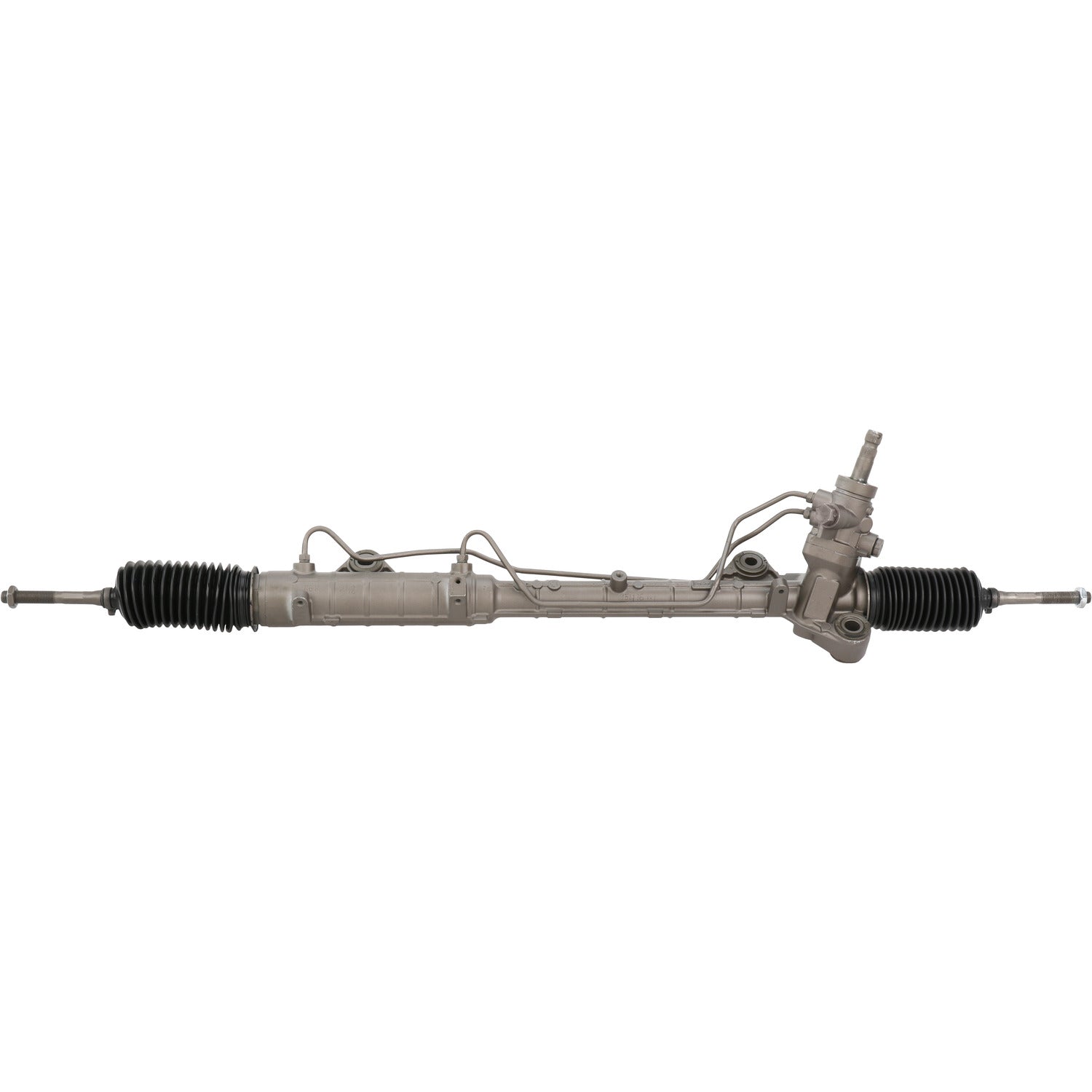

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95416M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95416M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 16.13 IN
Distance Between Mounting Holes 409.58 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.64 MM
Input Shaft Length 2.06 IN
Input Shaft Length 52.4 MM
Mounting Hole Quantity 3
Pressure Port Thread Size M14 x 1.5
Rack Length 44.31 IN
Rack Length 1125.55 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.07 IN
Thread Length 52.65 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.5


Application Info: Ford Fusion (2006-09): Lincoln MKZ (2007-09), Zephyr (2006); Mercury Milan (2006-09) ***W/17" Wheels***

Interchange: 6E5Z-3280-AA, 6E5Z-3504-D, 7E5Z-3504-B, 7H6Z-3504-A

BBB Cross-Reference: 101-0228

Cardone Cross-Reference: 26-2046

Instructions - 1          Instructions - 2
