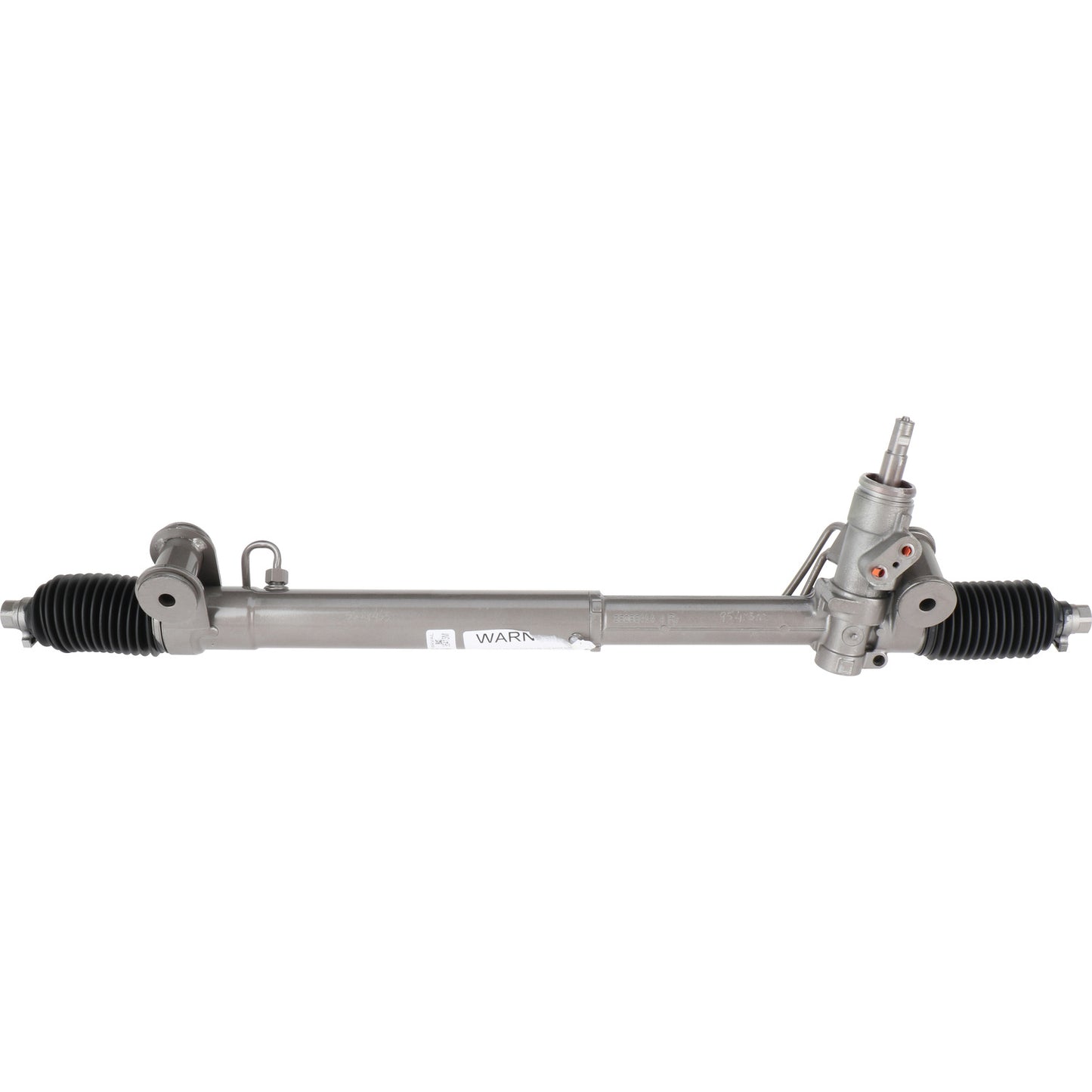

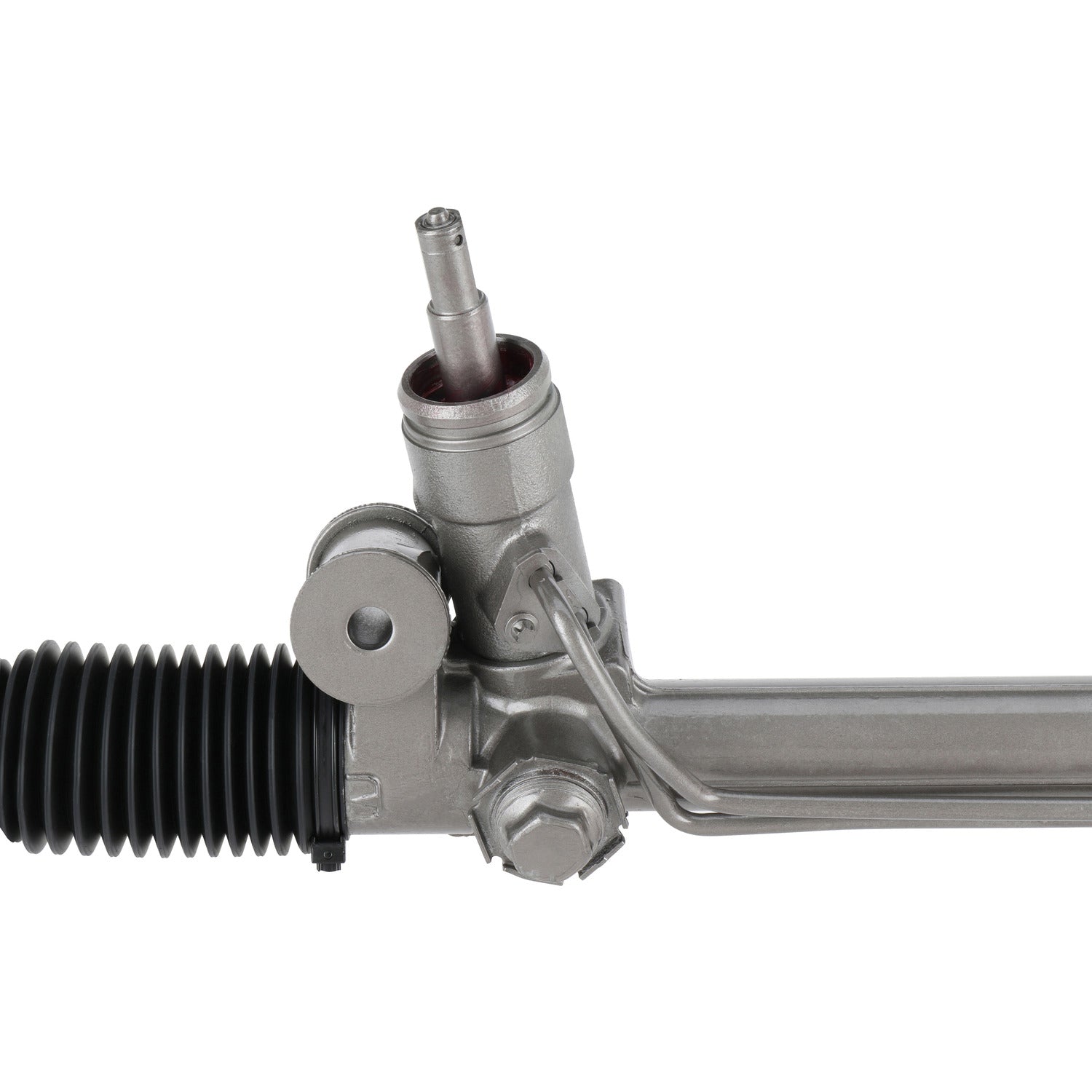

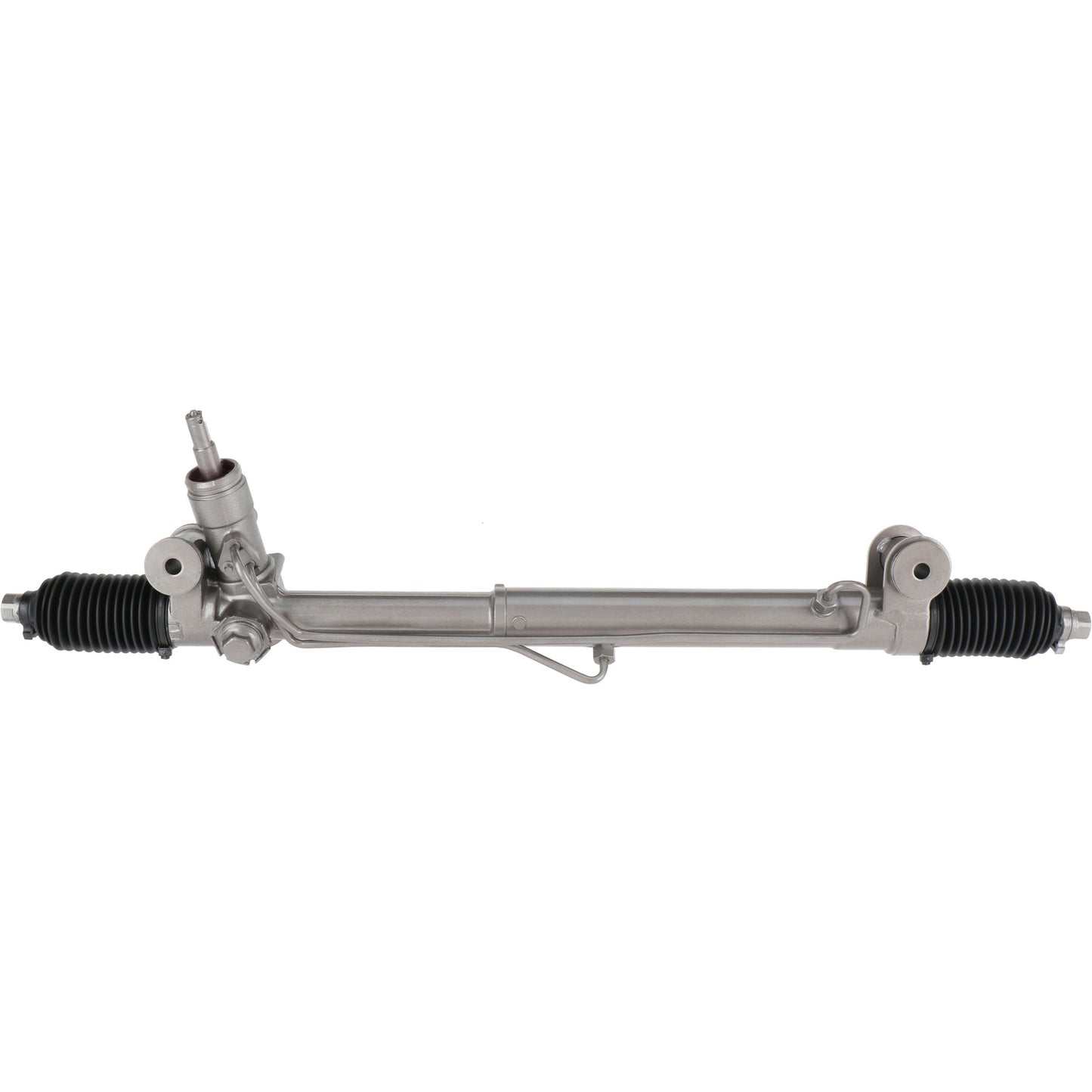

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95413M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95413M

SKU:95413M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 25.73 IN
Distance Between Mounting Holes 653.5 MM
Hose Port Type O-Ring/O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.8 MM
Input Shaft Length 53.5 IN
Input Shaft Length 1358.9 MM
Mounting Hole Quantity 2
Port ID Size 12mm
Rack Length 38.98 IN
Rack Length 990 MM
Return Port ID Size 12mm
Thread Length 1.77 IN
Thread Length 45 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.59

Application Info: Buick Rainier (2004-07); Chevrolet SSR (2003-06), Trailblazer (2002-09), Trailblazer EXT (2002-06); GMC Envoy (2002-09), Envoy XL (2002-06), Envoy XUV (2004-05); Isuzu Ascender (2003-08); Oldsmobile Bravada (2002-04); Saab 9-7x (2005-09) ***W/16mm Diameter Inner Tie Rods***

Interchange: 15164042, 19207780, 19207781, 19207782, 26100285, 26101416, 26102962, 88965340, 88965356, 88965488, 88967181

BBB Cross-Reference: 103-0206

Cardone Cross-Reference: 22-1014
