MAVAL

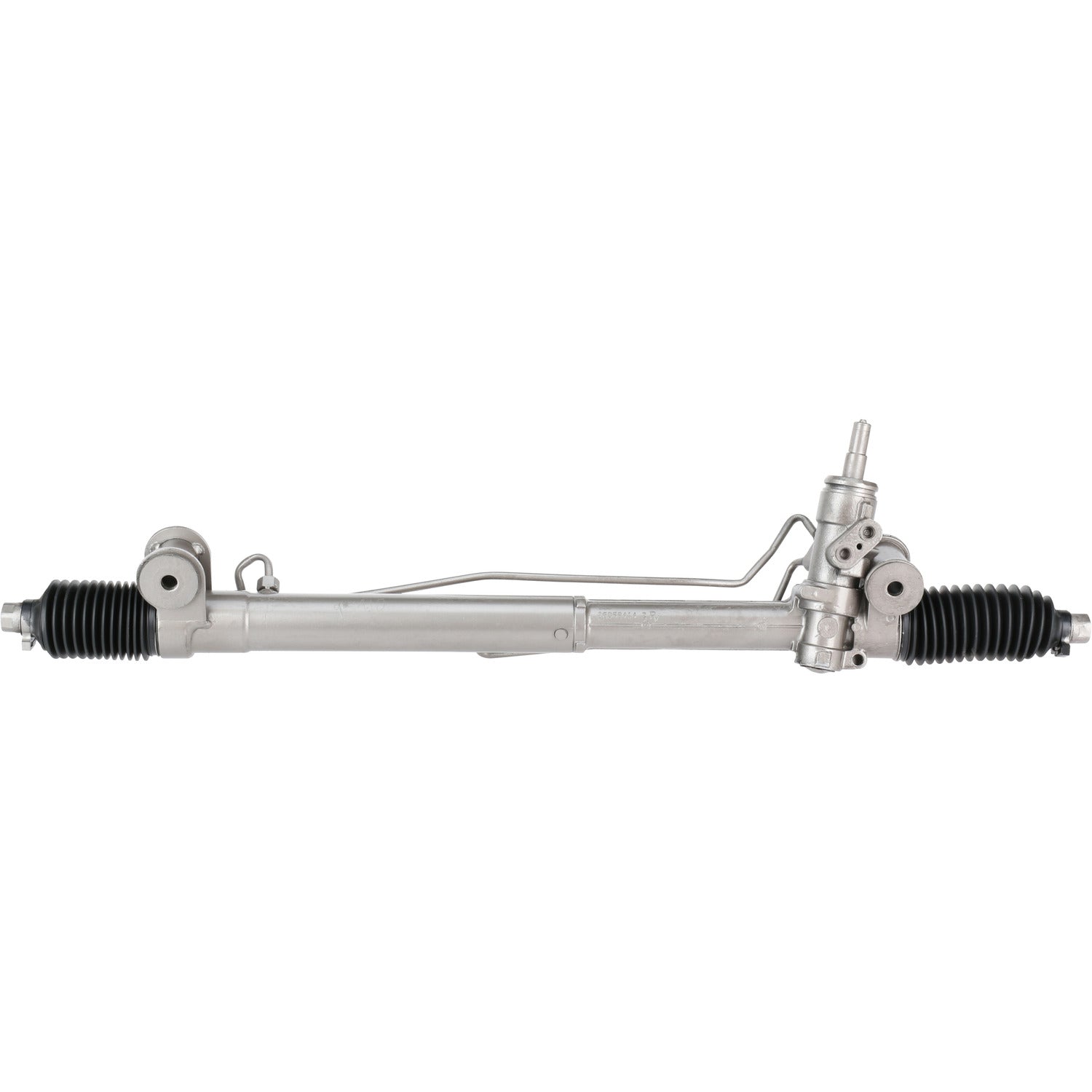

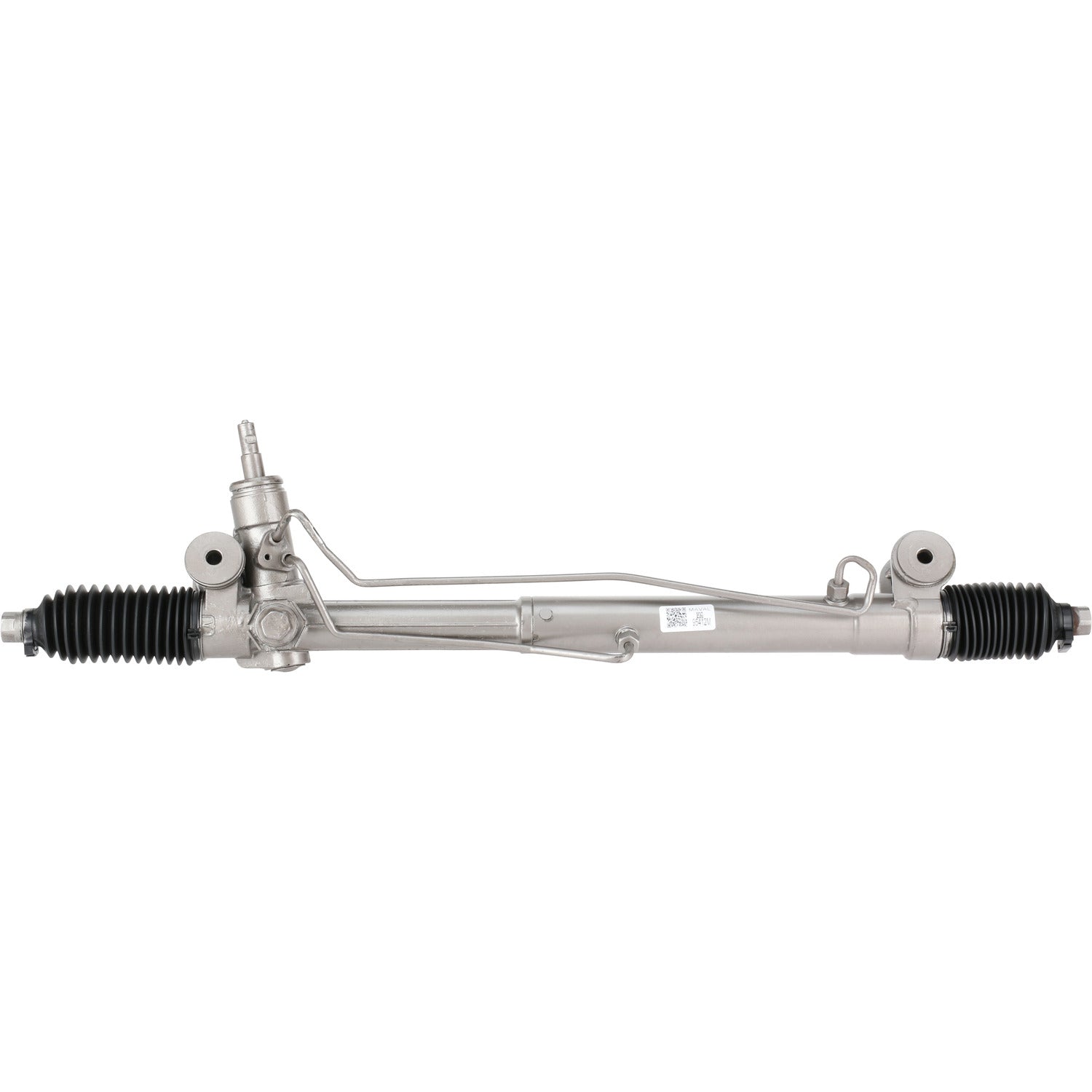

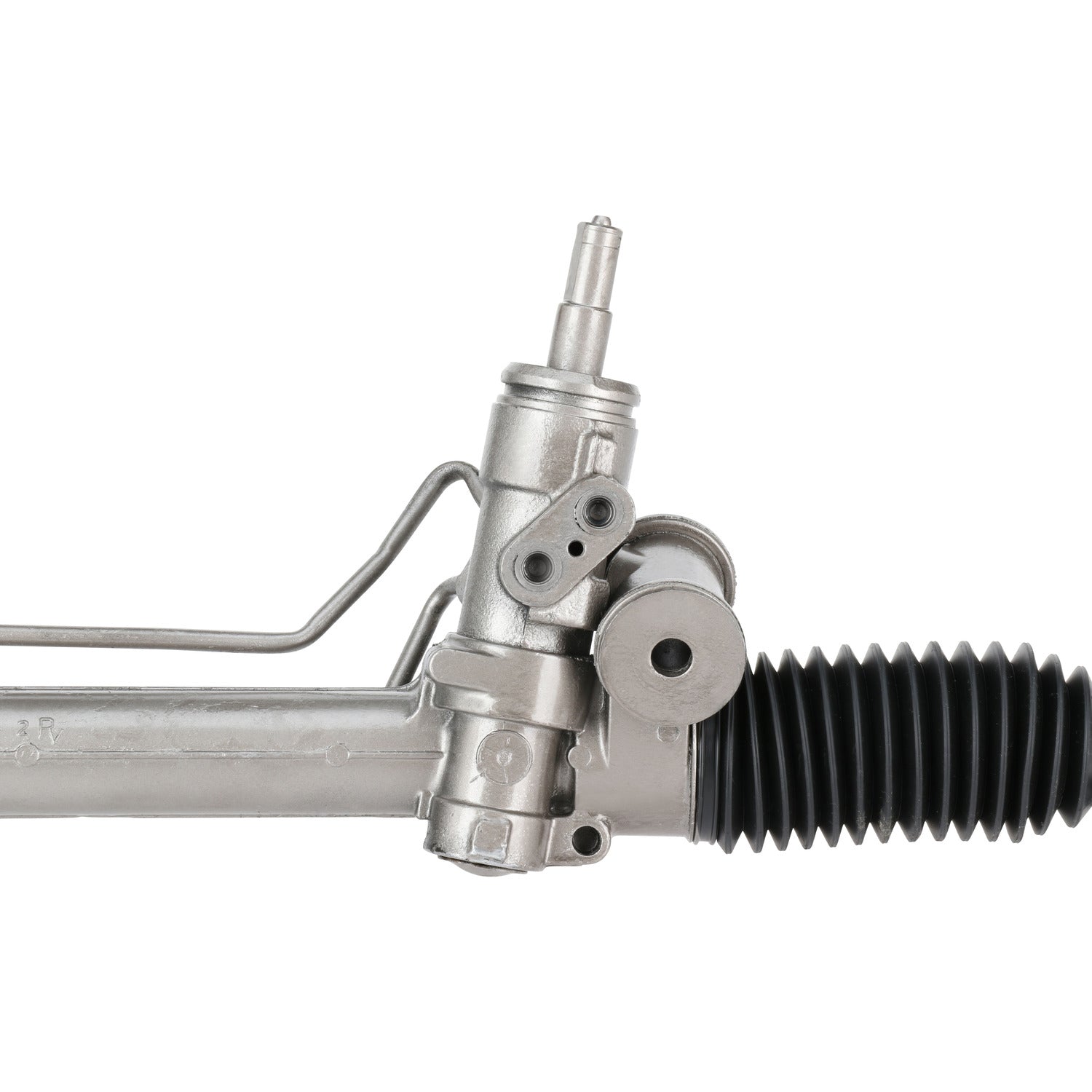

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95412M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95412M

SKU:95412M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 25.75 IN
Distance Between Mounting Holes 654.05 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.79 IN
Input Shaft Diameter 19.96 MM
Input Shaft Length 2.1 IN
Input Shaft Length 53.44 MM
Mounting Hole Quantity 2
Port ID Size 0.472
Rack Length 39 IN
Rack Length 990.6 MM
Return Port ID Size 0.436
Thread Length 2.21 IN
Thread Length 56.08 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.81



Application Info: Chevrolet Trailblazer (2002); GMC Envoy (2002); Oldsmobile Bravada (2002) ***W/14mm Diameter Inner Tie Rods***

Interchange: 26089516

BBB Cross-Reference: 103-0198

Cardone Cross-Reference: 22-1006
