MAVAL

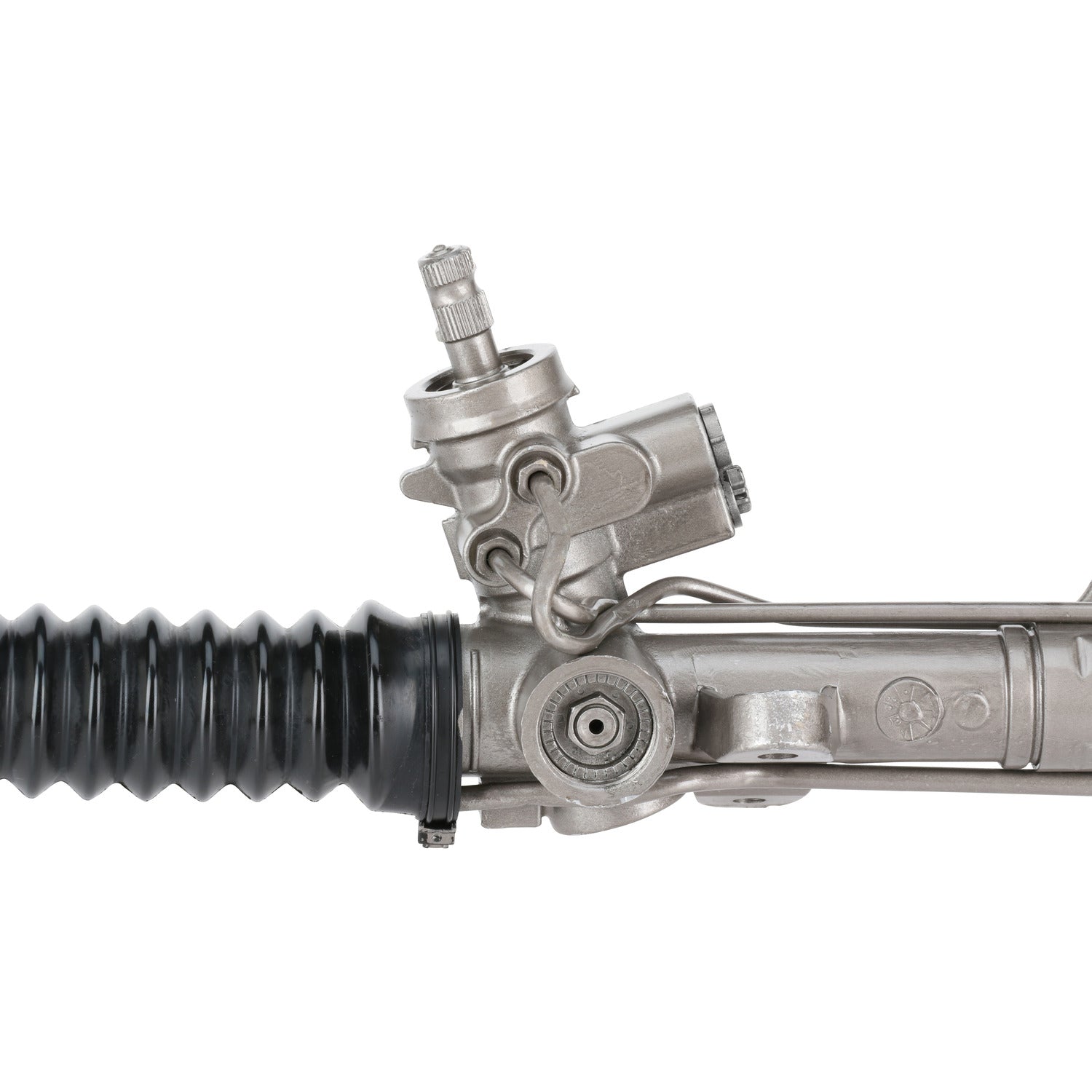

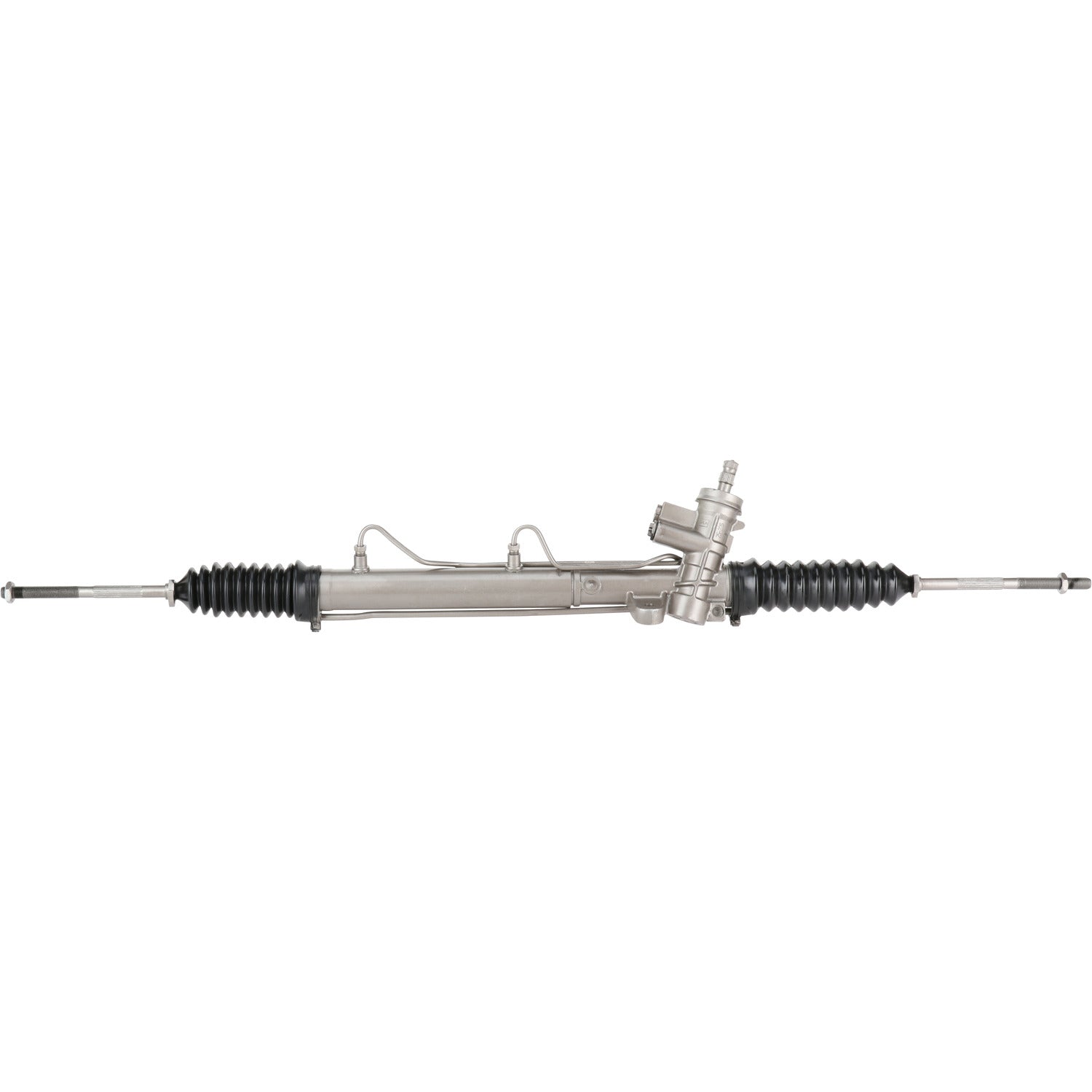

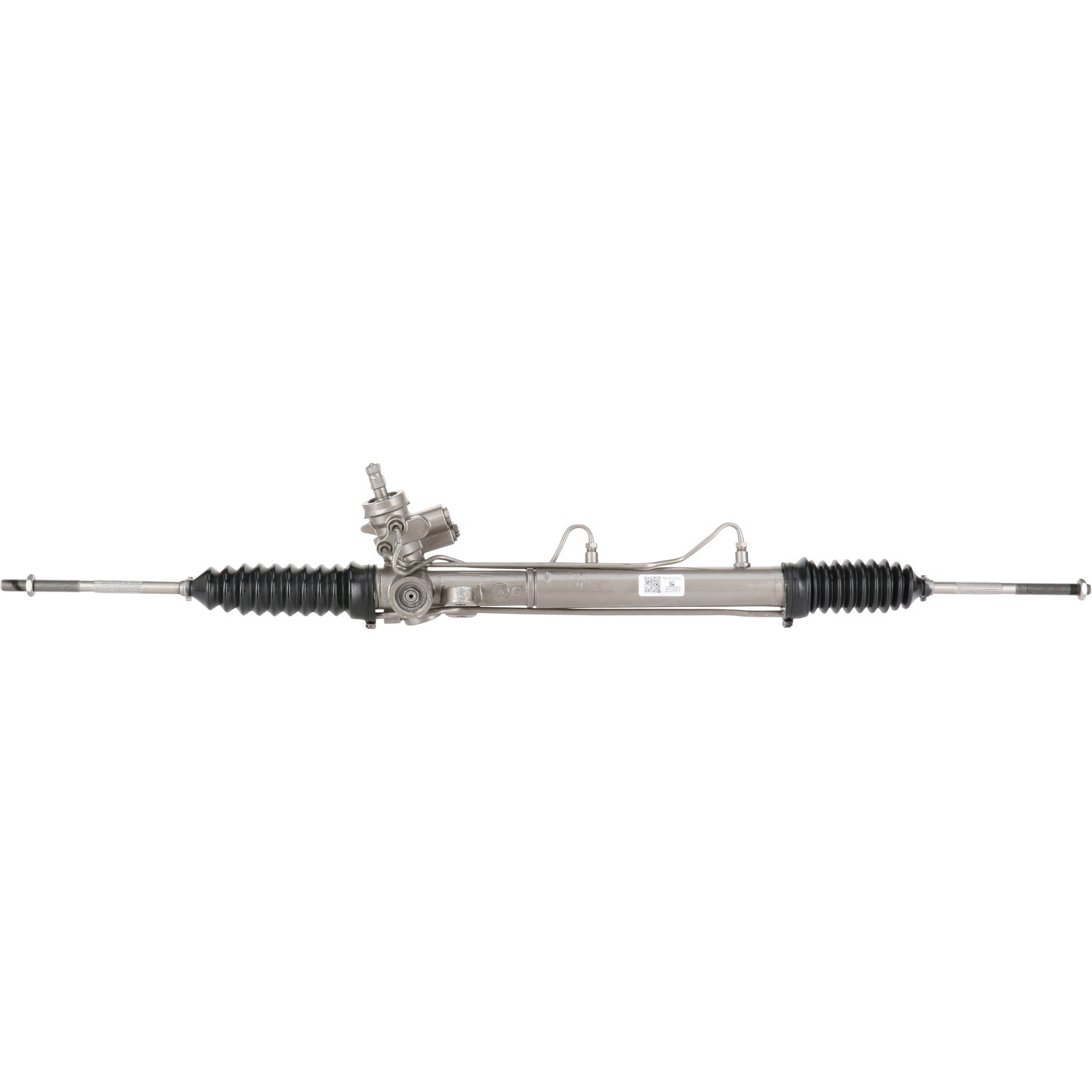

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95384M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95384M

SKU:95384M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.69 IN
Distance Between Mounting Holes 93.68 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.75 IN
Input Shaft Length 44.45 MM
Number of Mounting Holes 2
Pressure Port Thread Size M18 x 1.5
Rack Length 47 IN
Rack Length 1193.8 MM
Return Port Thread Size M16 x 1.5
Thread Length 3.49 IN
Thread Length 88.62 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.75

Application Info: Chrysler PT Cruiser 2003-2003 - All w/Std Steering

Interchange: Chrysler - 5272722AG

BBB Cross-Reference: 102-0163

Cardone Cross-Reference: 22-361

Instructions - 1               Instructions - 2
