MAVAL

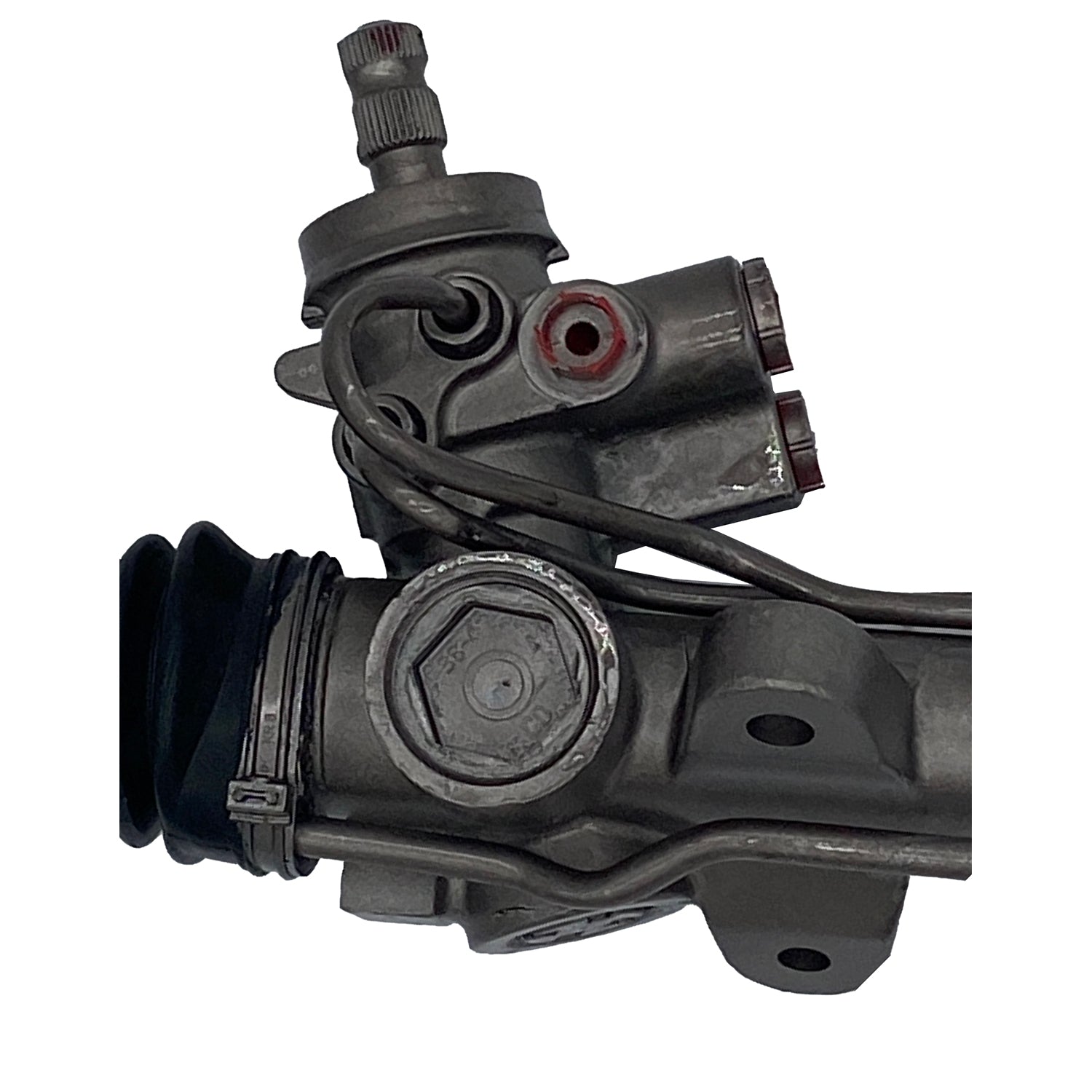

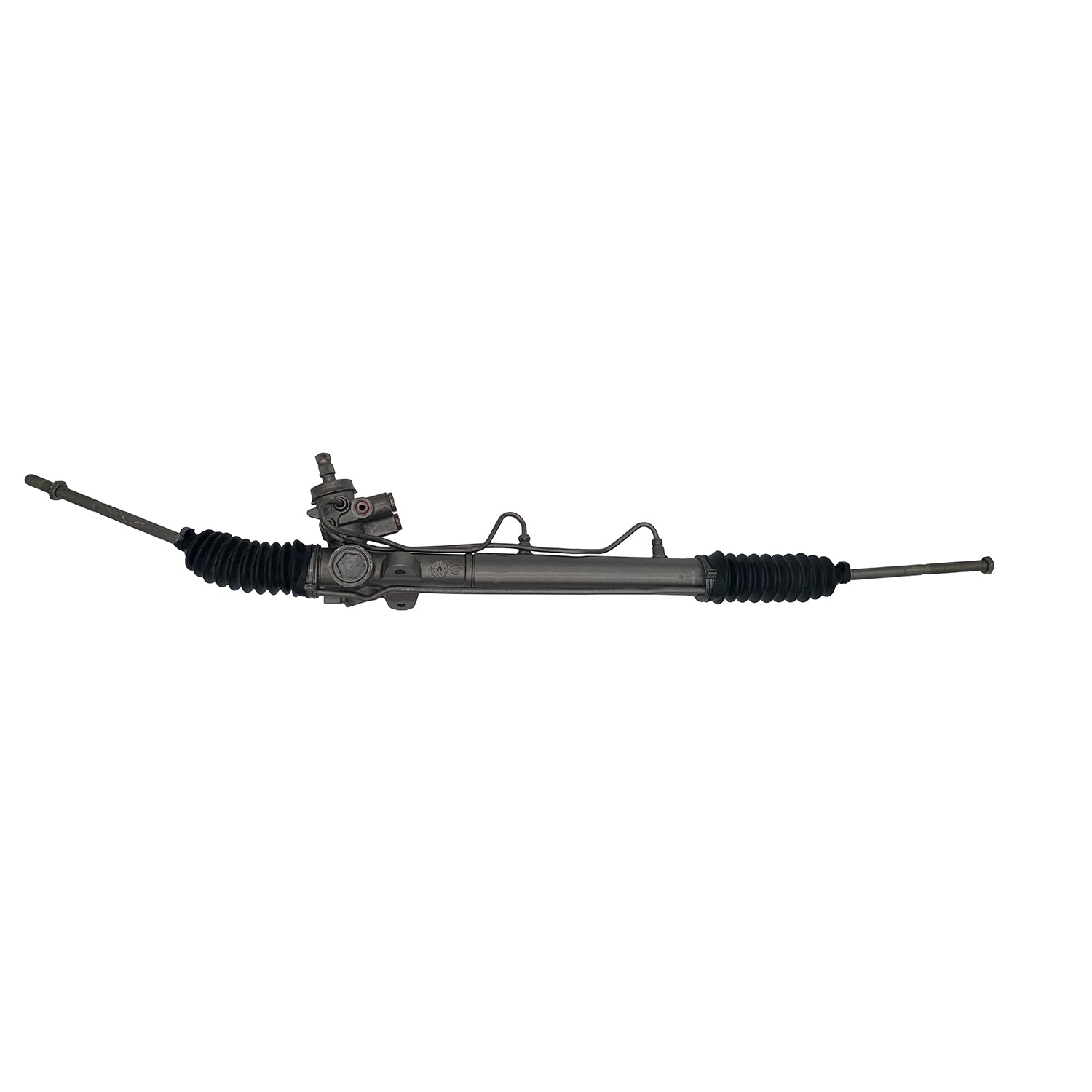

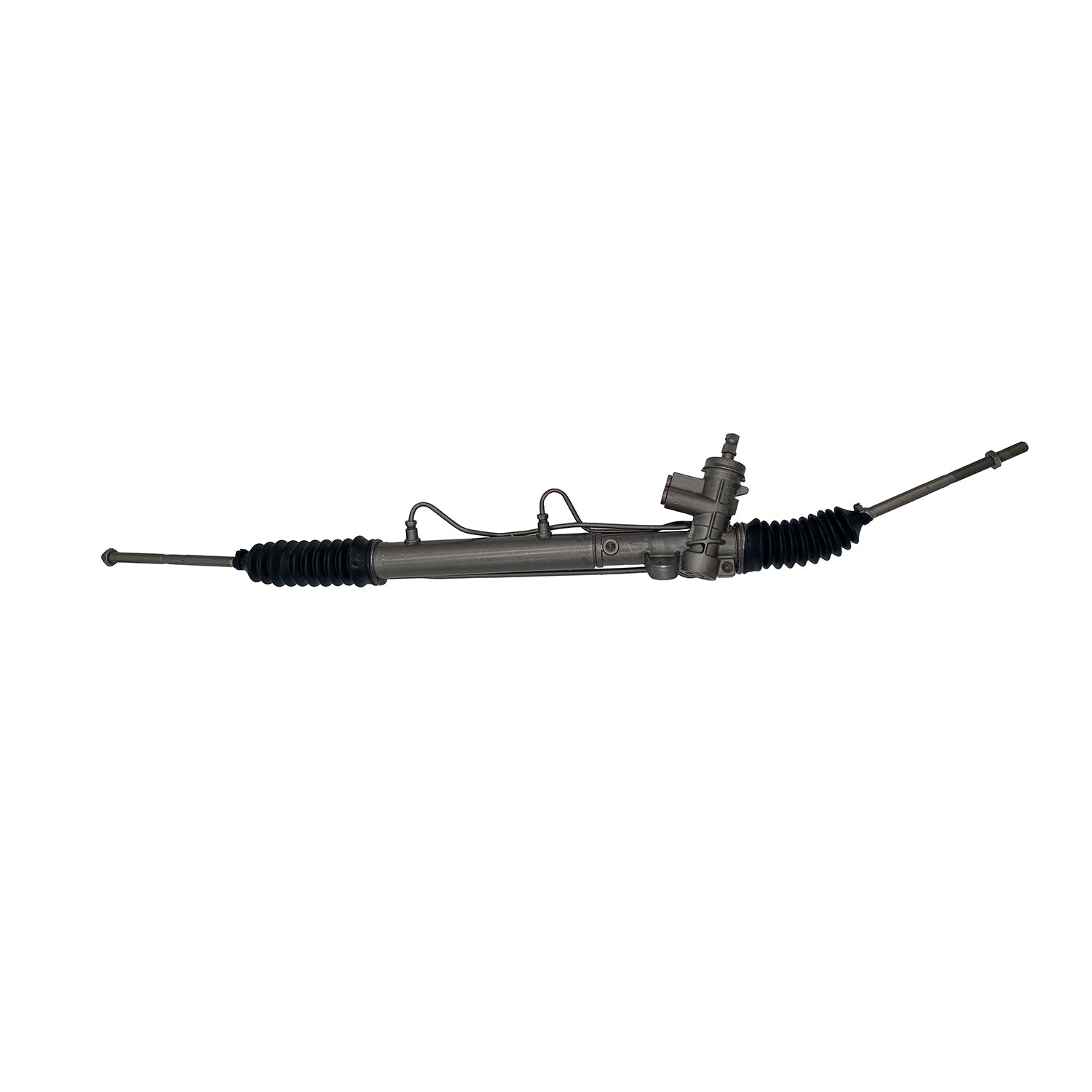

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95367M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95367M

SKU:95367M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 5.05 IN
Distance Between Mounting Holes 128.19 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Number of Mounting Holes 2
Pressure Port Thread Size M18 x 1.5
Rack Length 47 IN
Rack Length 1193.8 MM
Return Port Thread Size M16 x 1.5
Thread Length 3.49 IN
Thread Length 88.65 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.81

Application Info: Dodge Neon (2001-2005), Plymouth Neon (2001) ***W/Standard Steering Package (SBA)***

Interchange: Chrysler - 5272500AD

BBB Cross-Reference: 102-0173

Cardone Cross-Reference: 22-377

Instructions - 1               Instructions - 2
