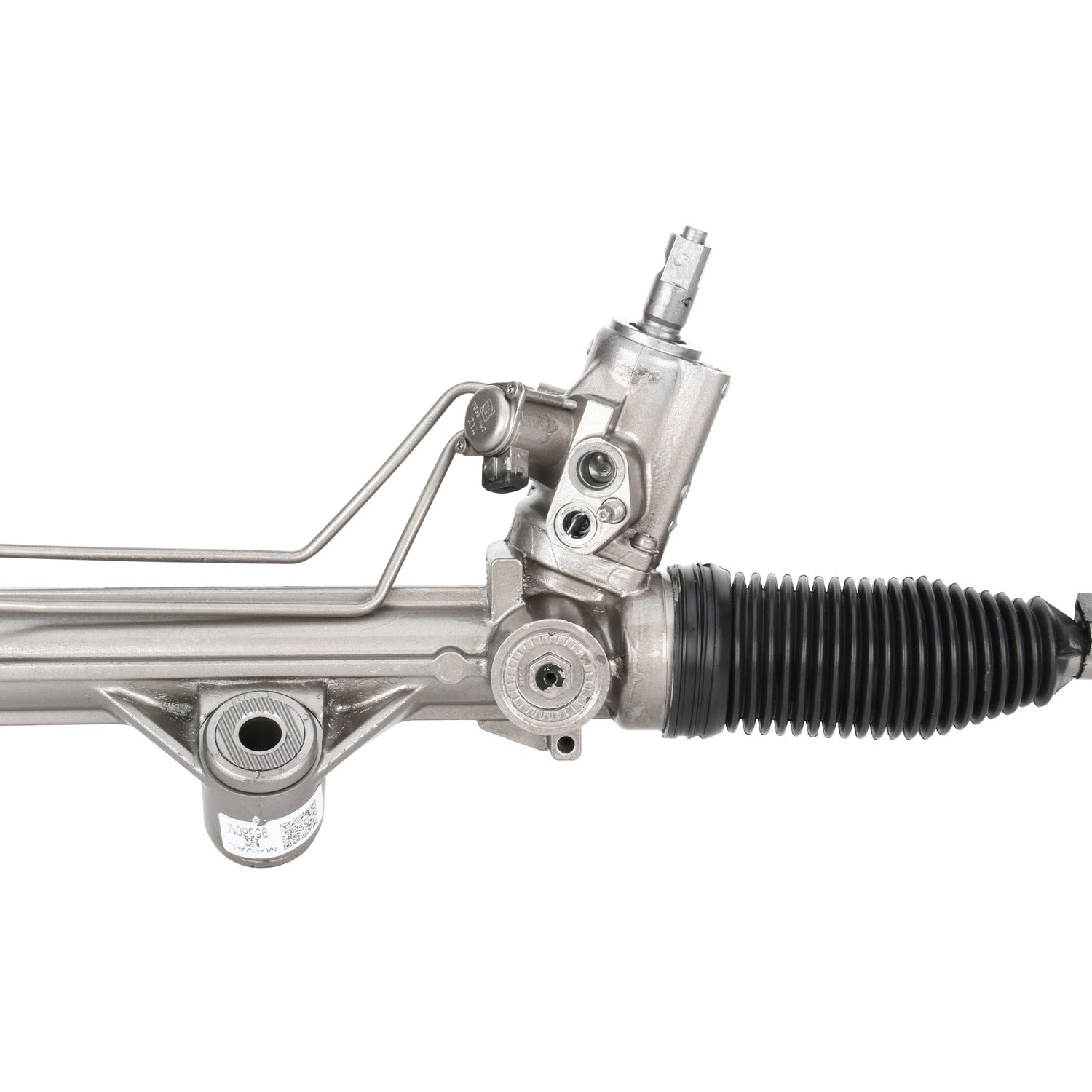

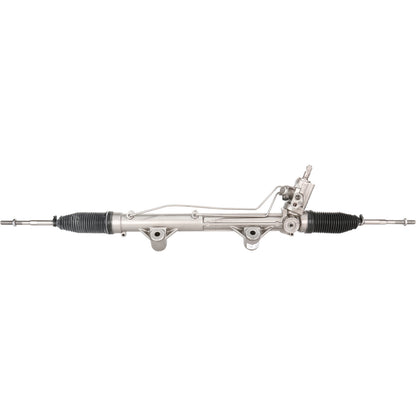

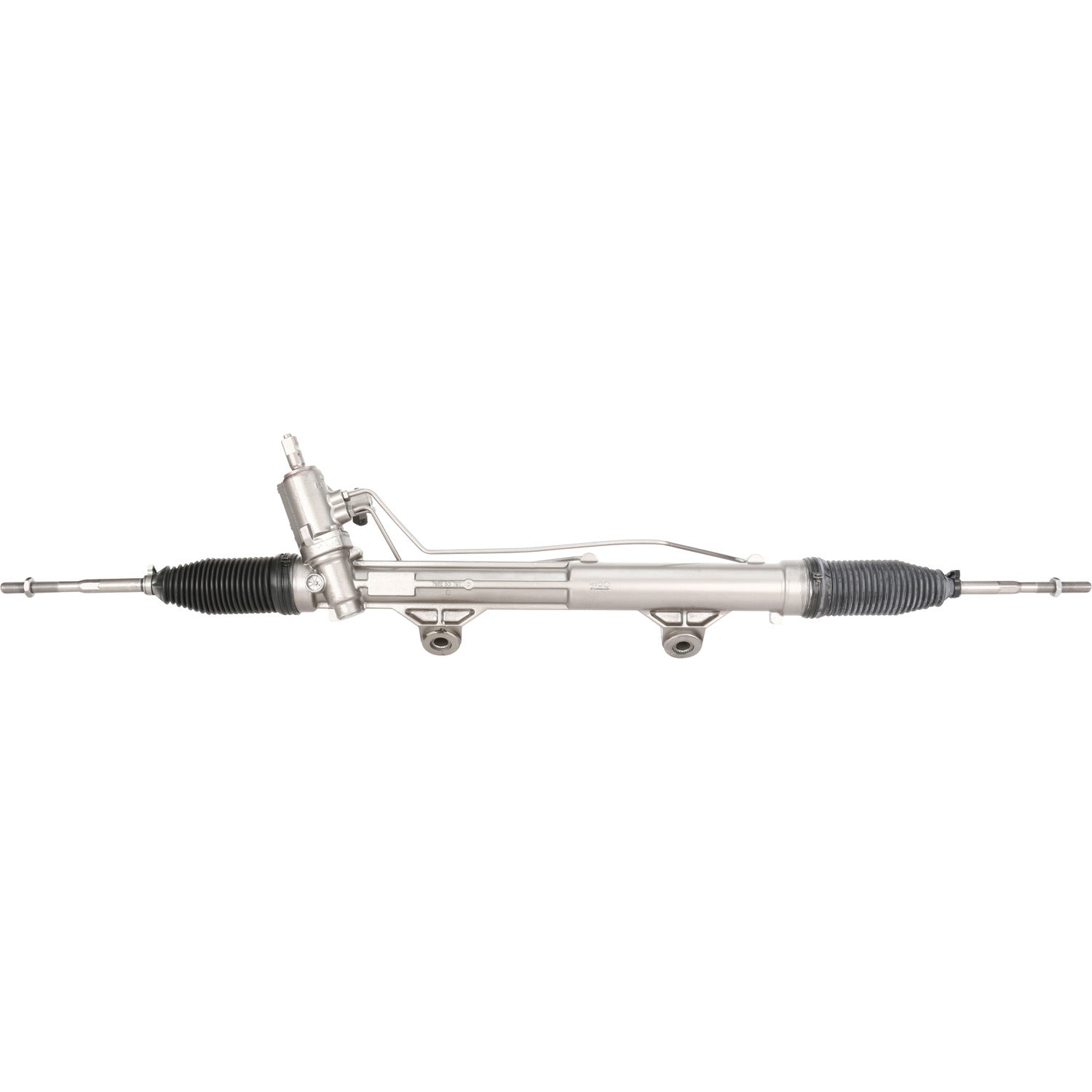

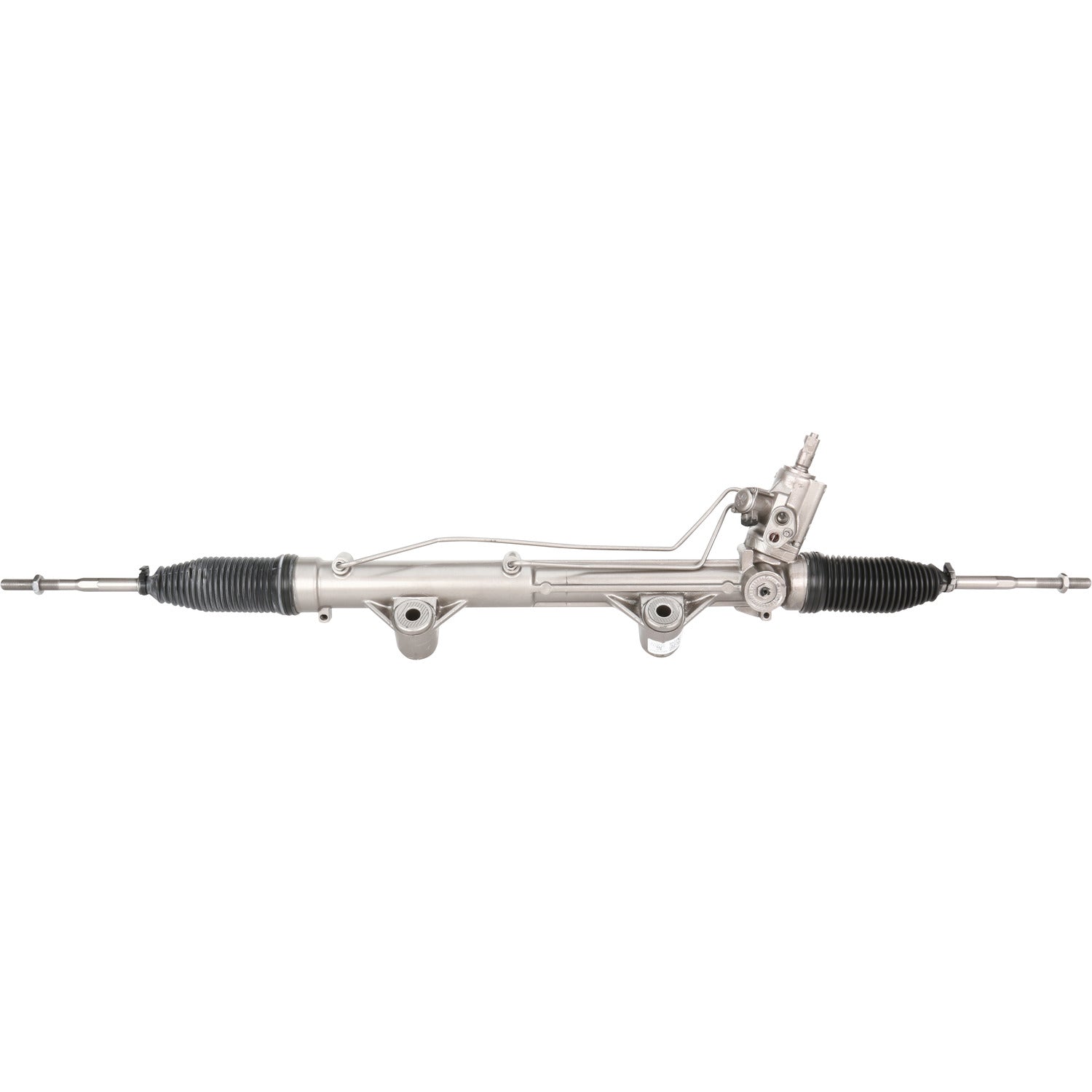

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95360M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95360M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Attribute AttributeValue AttributeUom
Casting Material Aluminum
Distance Between Mounting Holes 11.25 IN
Distance Between Mounting Holes 285.75 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.78 IN
Input Shaft Diameter 19.89 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Number of Mounting Holes 2
Rack Length 50.25 IN
Rack Length 1276.35 MM
Thread Length 2.53 IN
Thread Length 64.26 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.06

Application Info: Lincoln Aviator (2003-2005)

Interchange: Ford - 5C5Z-3504-AA

BBB Cross-Reference: 101-0206

Cardone Cross-Reference: 26-2037

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4
