MAVAL

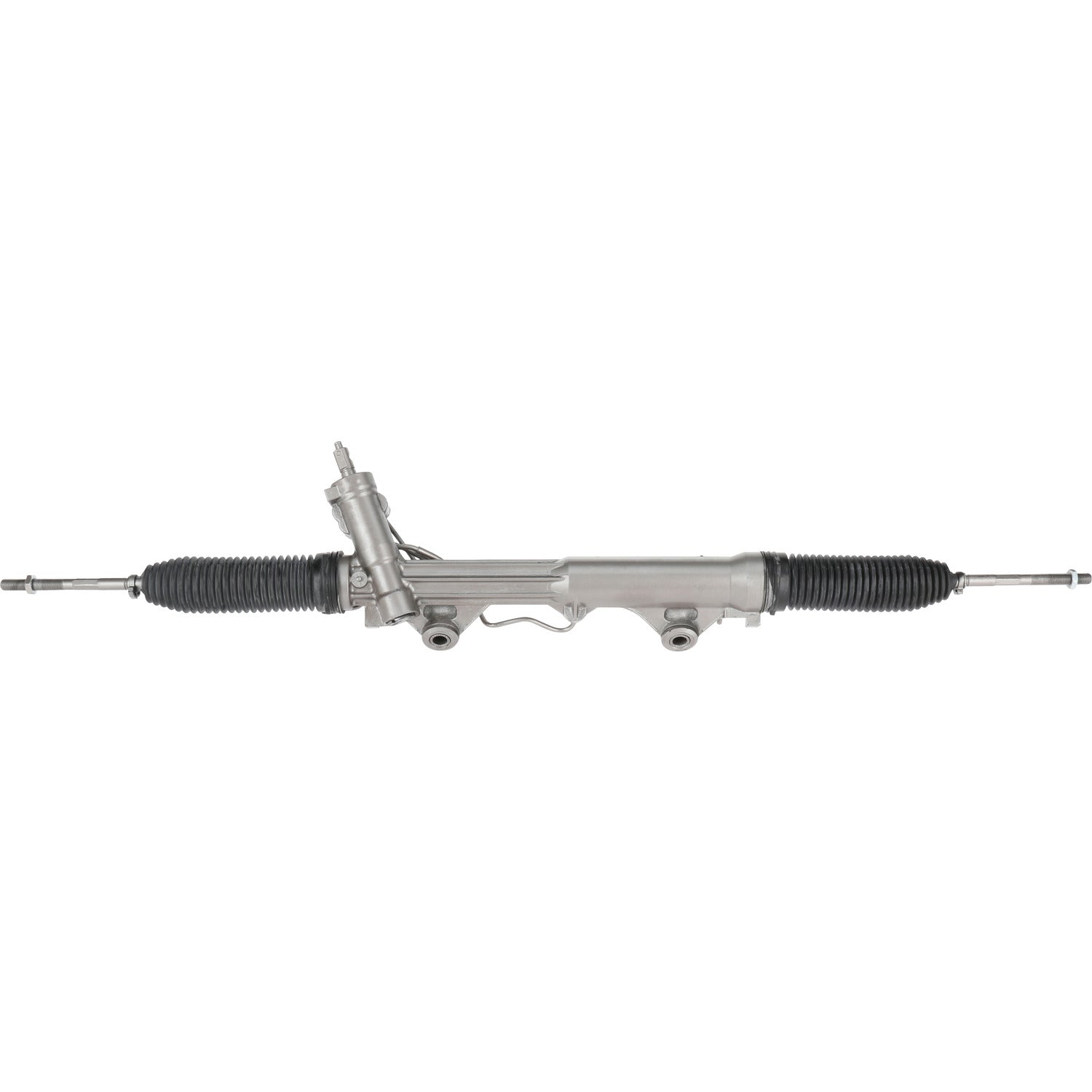

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95352M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95352M

SKU:95352M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 11.25 IN
Distance Between Mounting Holes 285.75 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Mounting Hole Quantity 2
Port ID Size 0.24
Rack Length 50.5 IN
Rack Length 1282.7 MM
Return Port ID Size 0.24
Thread Length 2.86 IN
Thread Length 72.52 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.69

Application Info: Mercury Mountaineer (2002-2005), Ford Explorer (2002-2005) ***W/4.0L V6 Engine***

Interchange: Ford - 1L2Z-3504-NARM

BBB Cross-Reference: 101-0180

Cardone Cross-Reference: 22-267

Instructions - 1               Instructions - 2
