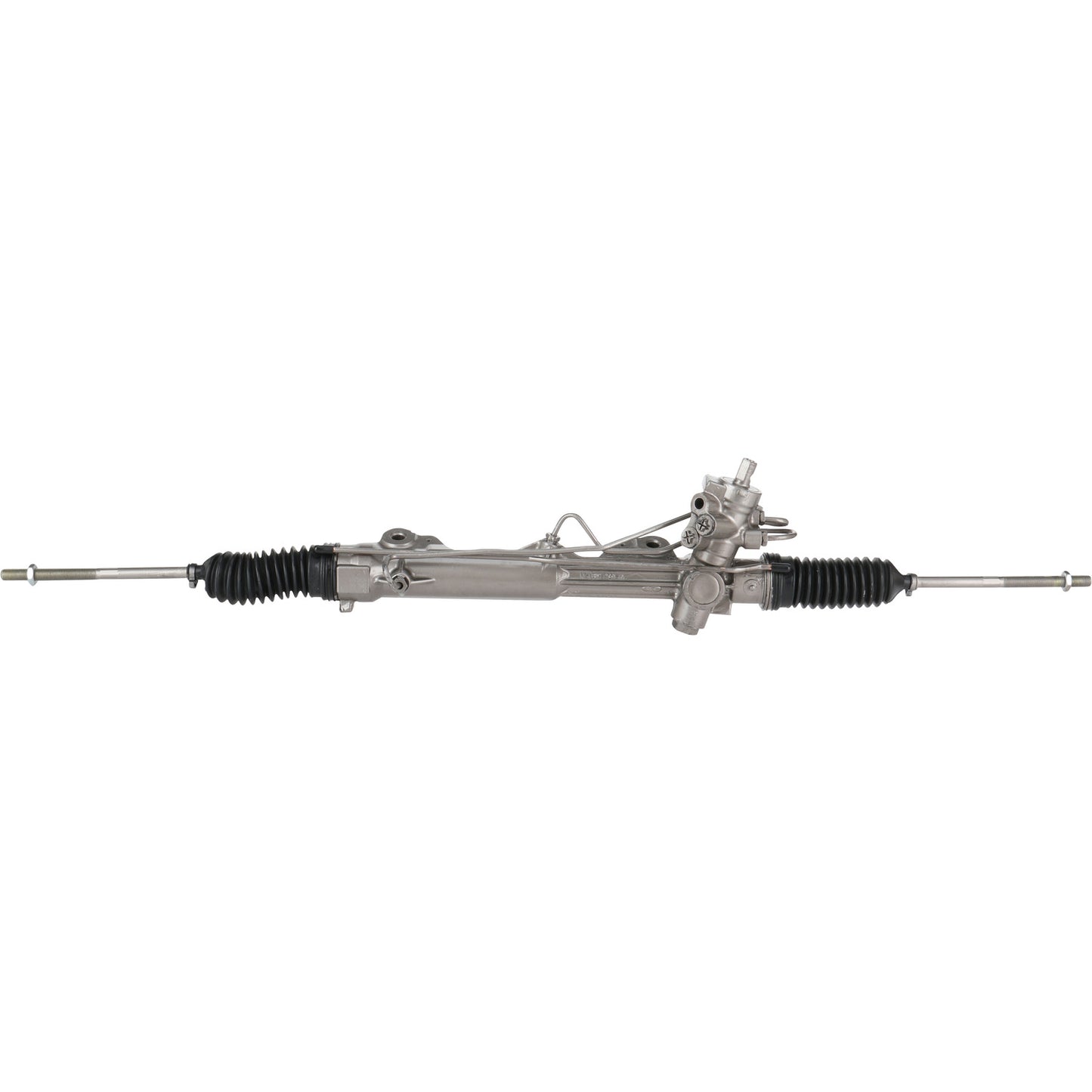

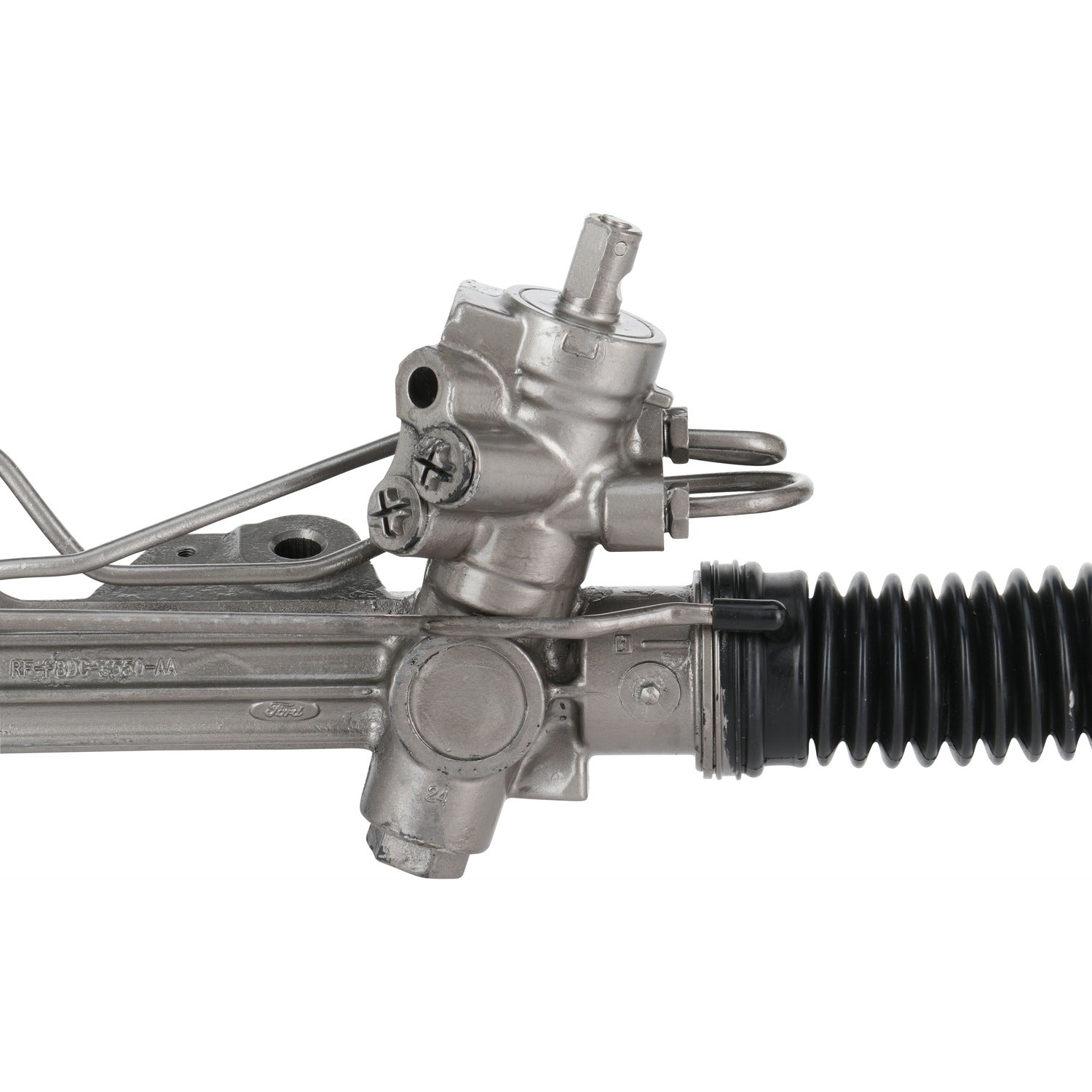

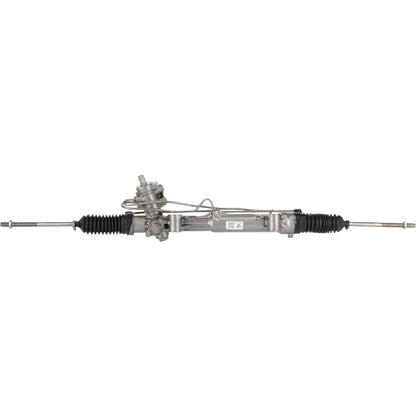

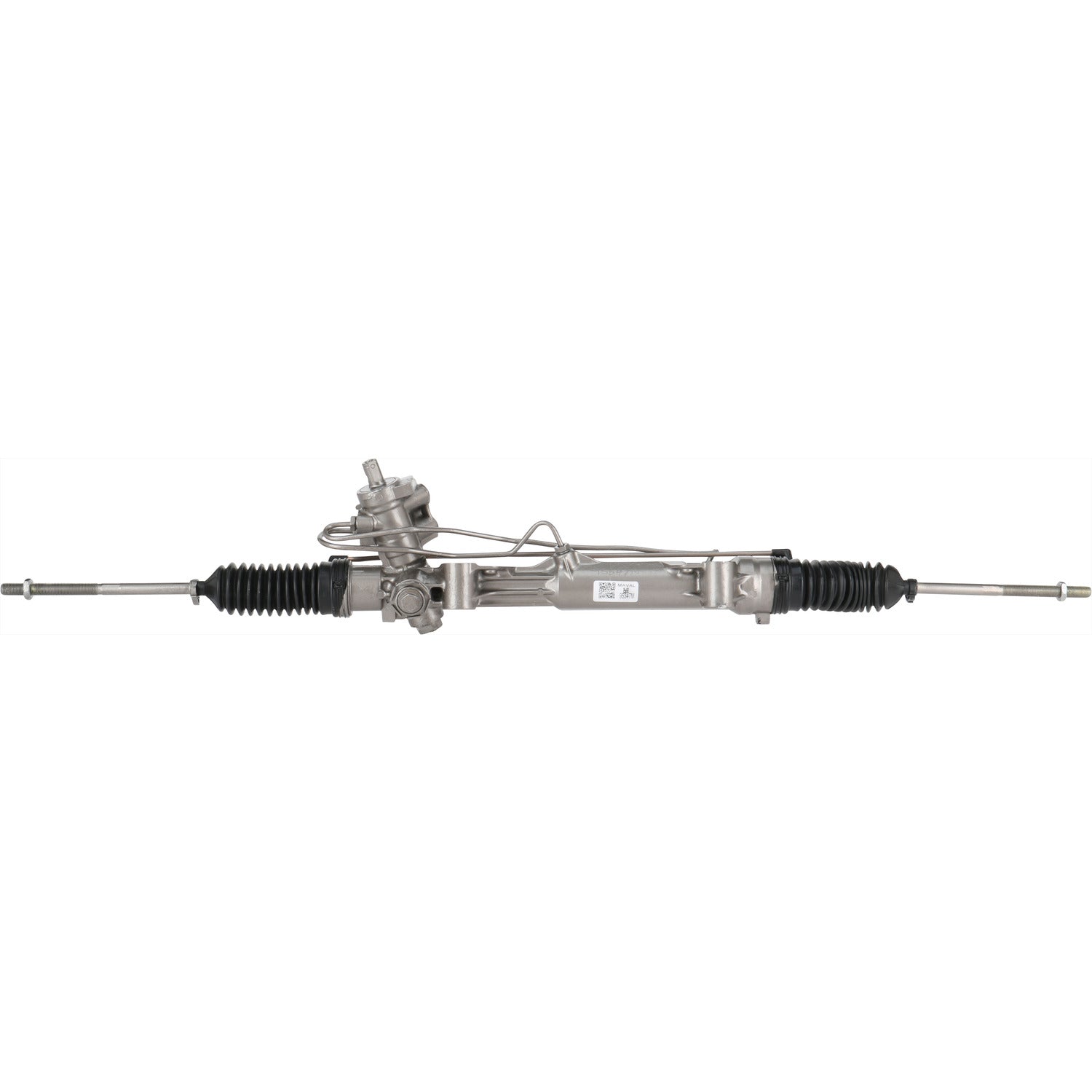

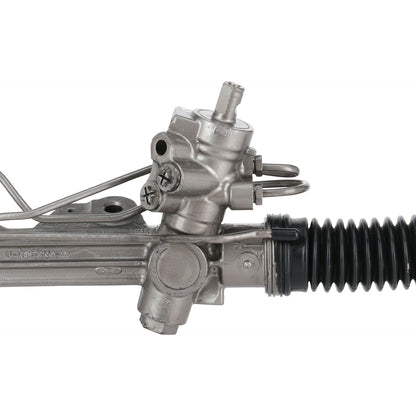

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95347M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95347M

SKU:95347M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 11.5 IN
Distance Between Mounting Holes 292.1 MM
Hose Port Type Teflon
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.62 MM
Input Shaft Length 1.56 IN
Input Shaft Length 39.67 MM
Number of Mounting Holes 2
Pressure Port Thread Size M16 x 1.5
Rack Length 48.5 IN
Rack Length 1231.9 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.63 IN
Thread Length 66.68 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.81

Application Info: Ford Taurus (2000-03, 05-07); Mercury Sable (2000-03,05)

Interchange: 1F1Z3280AA, 2F1Z3504AARM, 4F1Z3504AA, 5F1Z3504A, 6F1Z3504A, F6DZ3280AA, YF1Z3504ABRM, YF1Z3504DARM, YF1Z3504EARM

BBB Cross-Reference: 101-0141

Cardone Cross-Reference: 22-246
