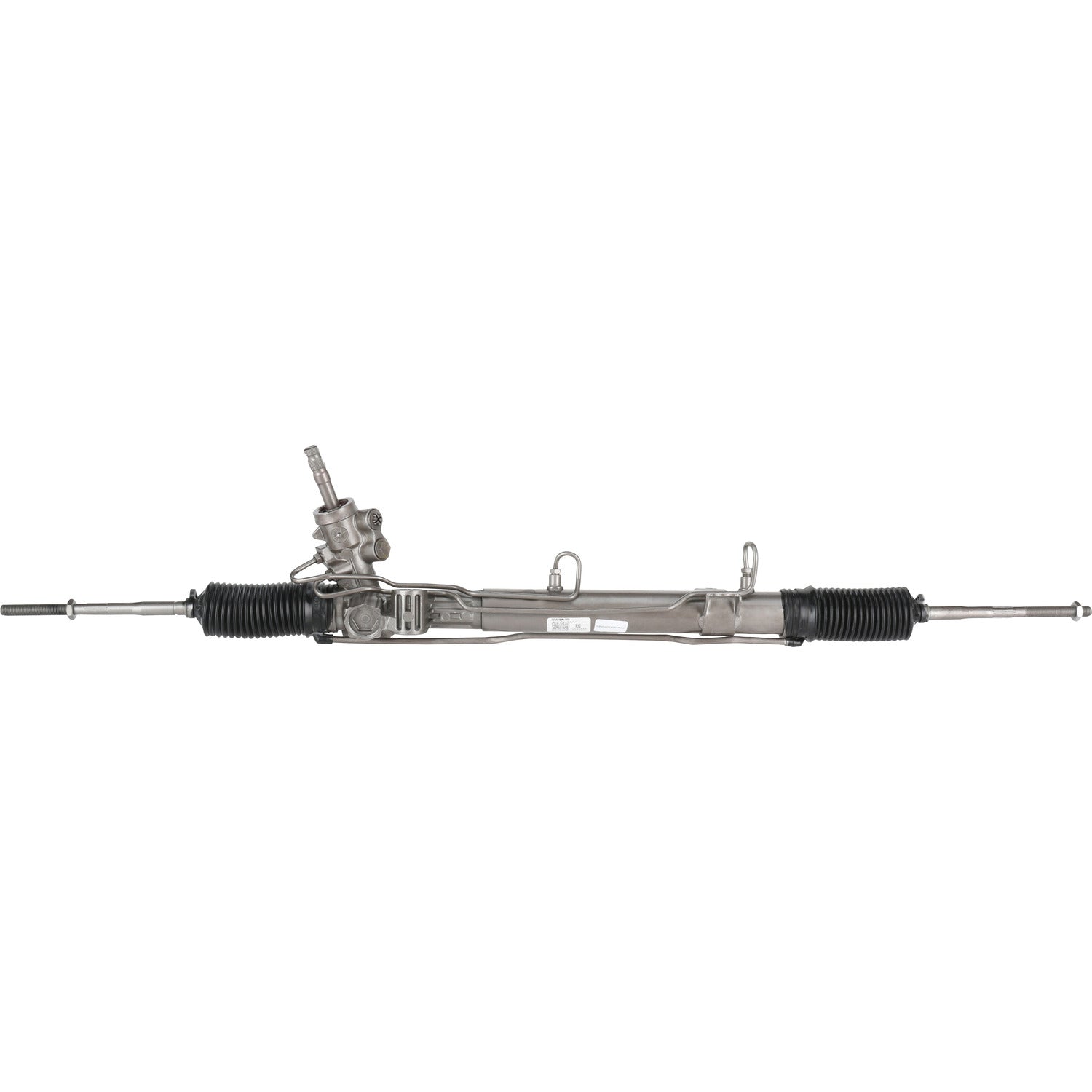

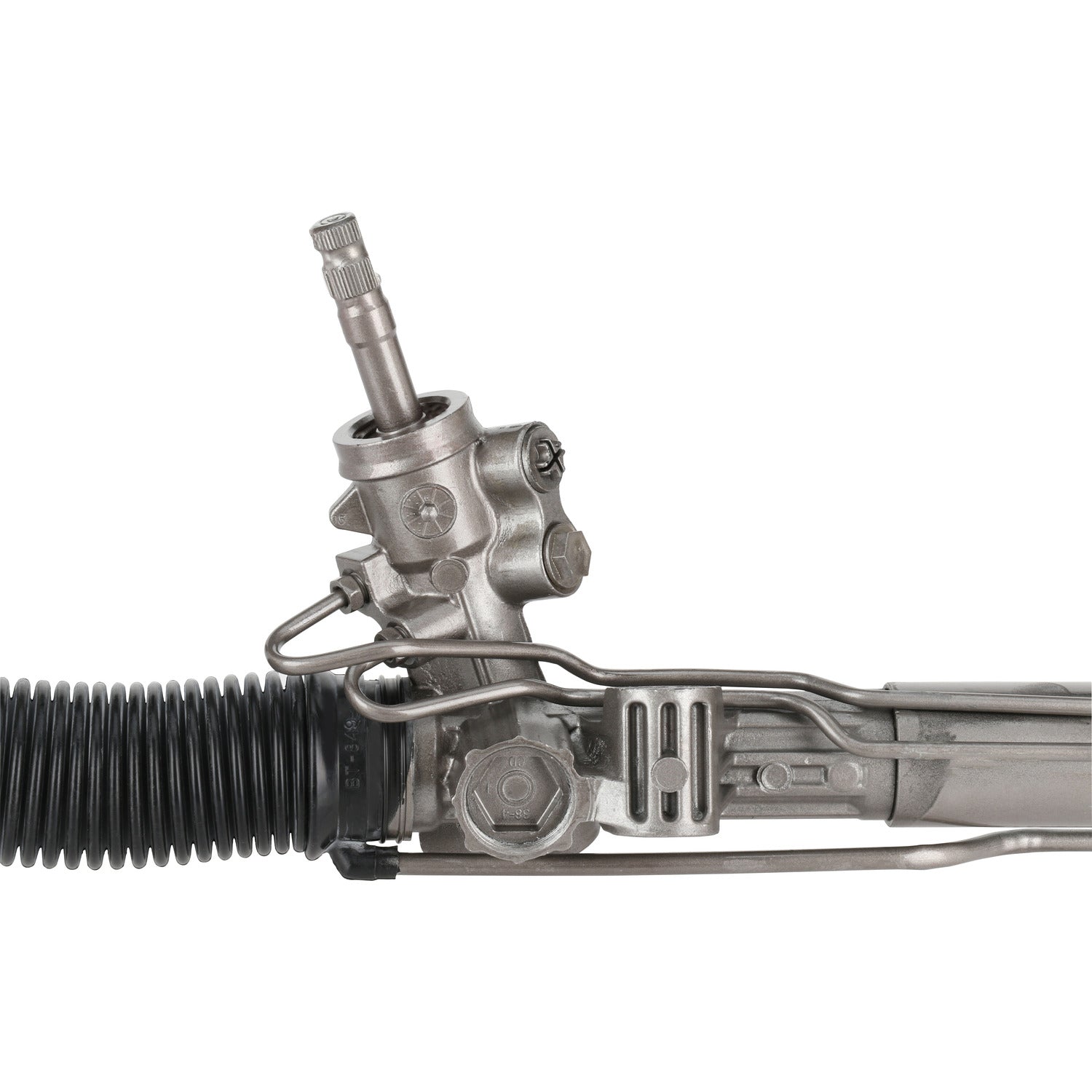

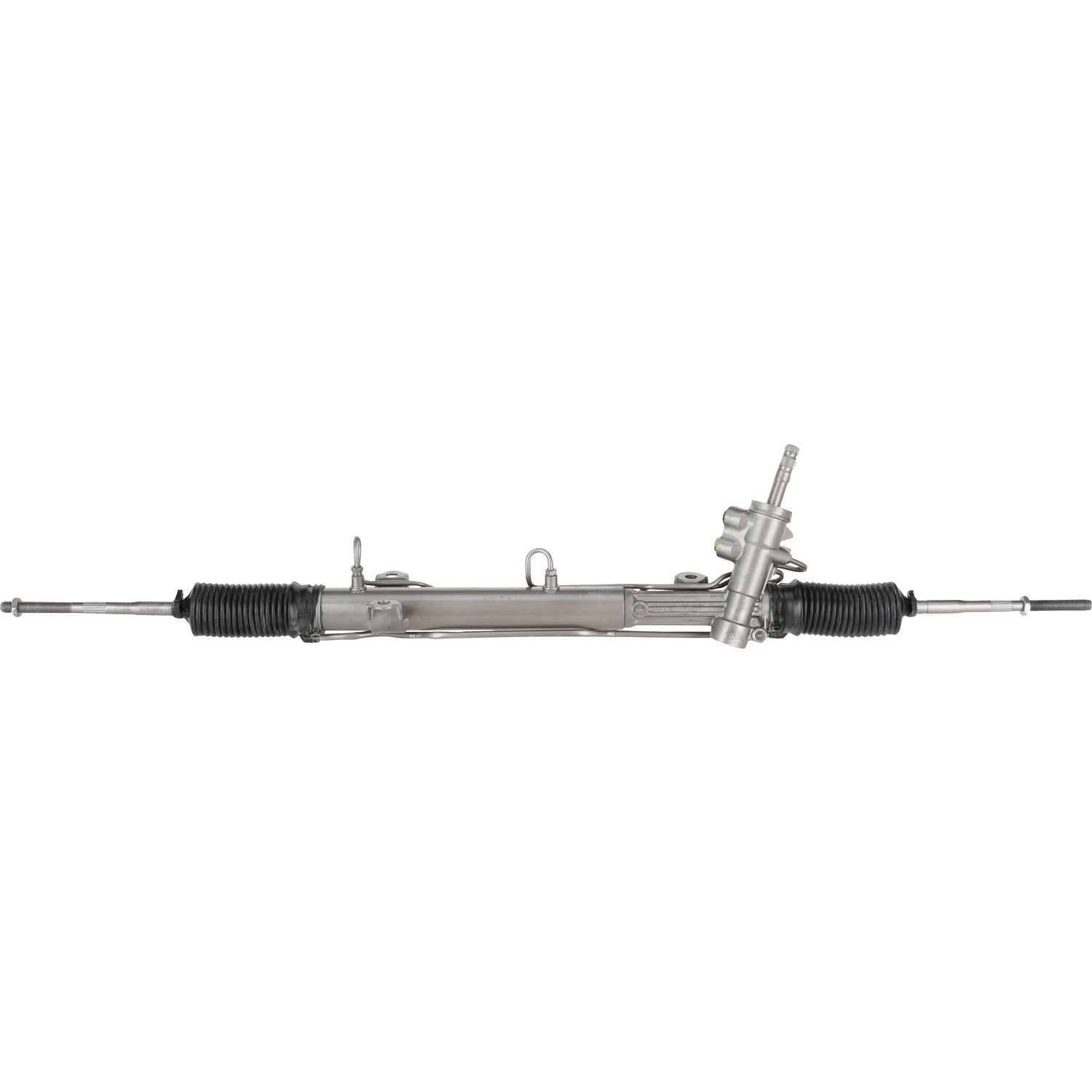

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95328M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95328M

SKU:95328M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 14.19 IN
Distance Between Mounting Holes 360.38 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.76 MM
Input Shaft Length 2.88 IN
Input Shaft Length 73.03 MM
Number of Mounting Holes 3
Pressure Port Thread Size M18 x 1.5
Rack Length 50.5 IN
Rack Length 1282.7 MM
Return Port Thread Size M16 x 1.5
Thread Length 3.18 IN
Thread Length 80.87 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.13

Application Info: Chrysler Town & Country (2005-07), Voyager (2005-08); Dodge Caravan (2005-07), Grand Caravan (2005-07)

Interchange: 4766250AF, 4766250AG, 4766260AF, 4766260AL, 4766270AB, 4766270AC, 68072216AC

BBB Cross-Reference: 102-0176

Cardone Cross-Reference: 22-373
