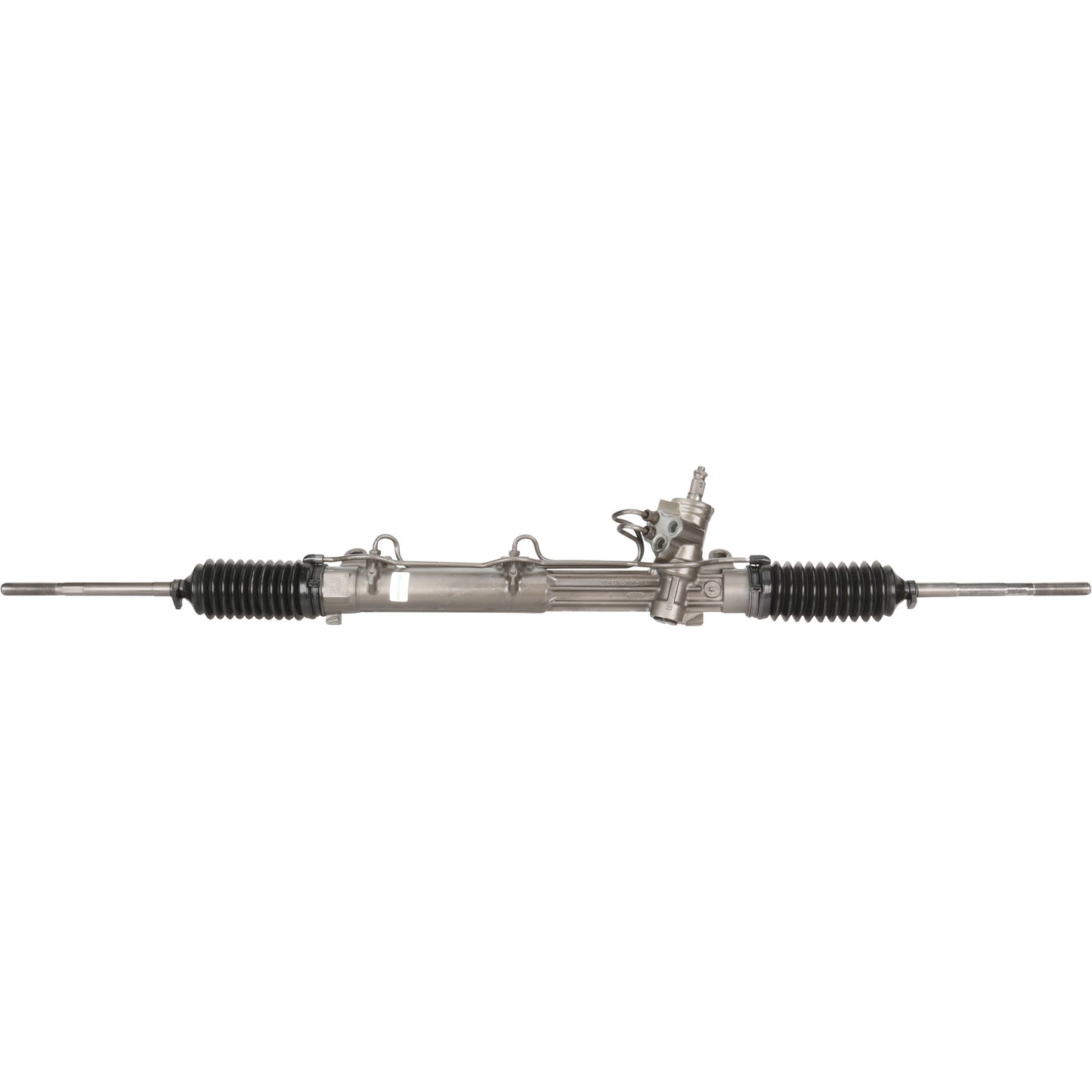

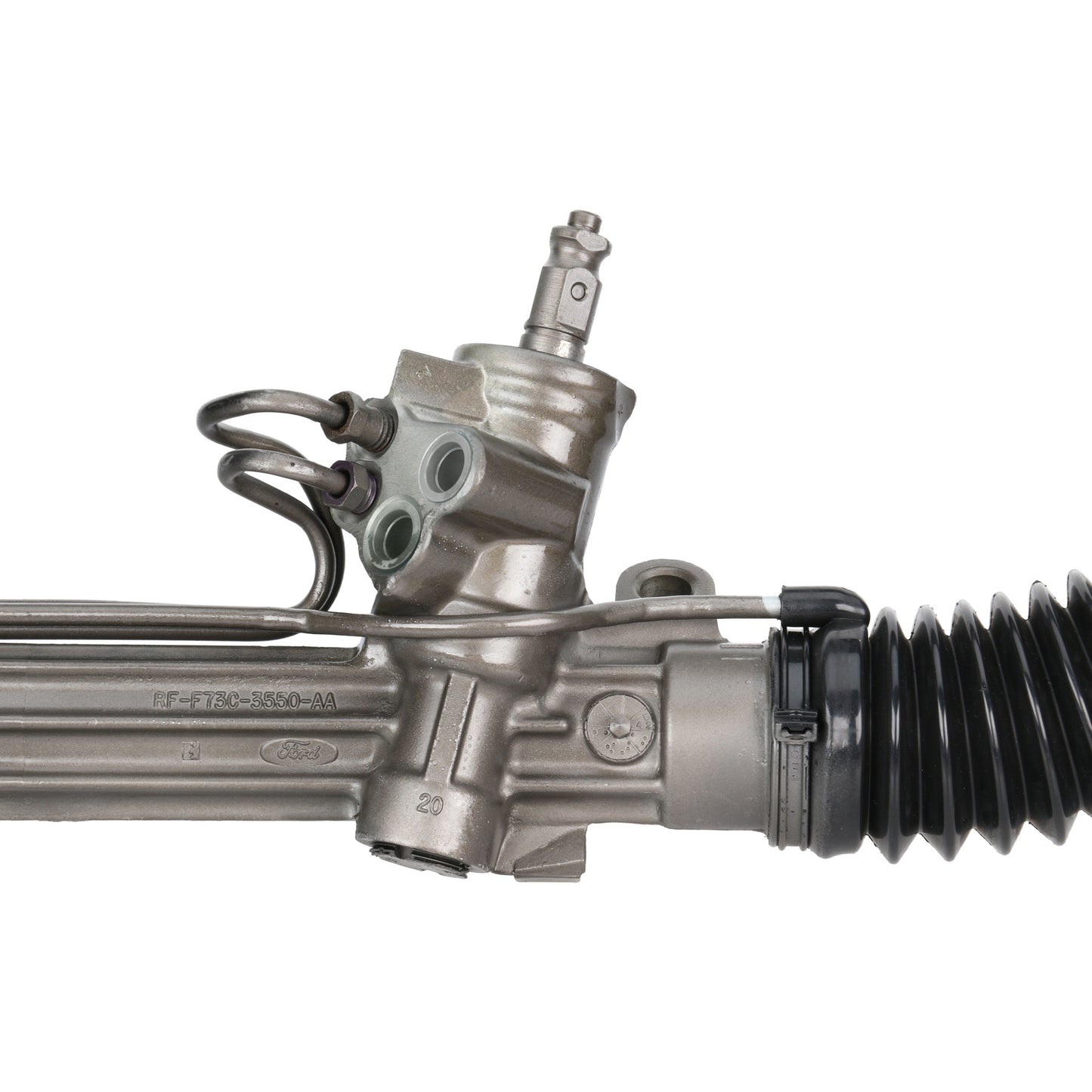

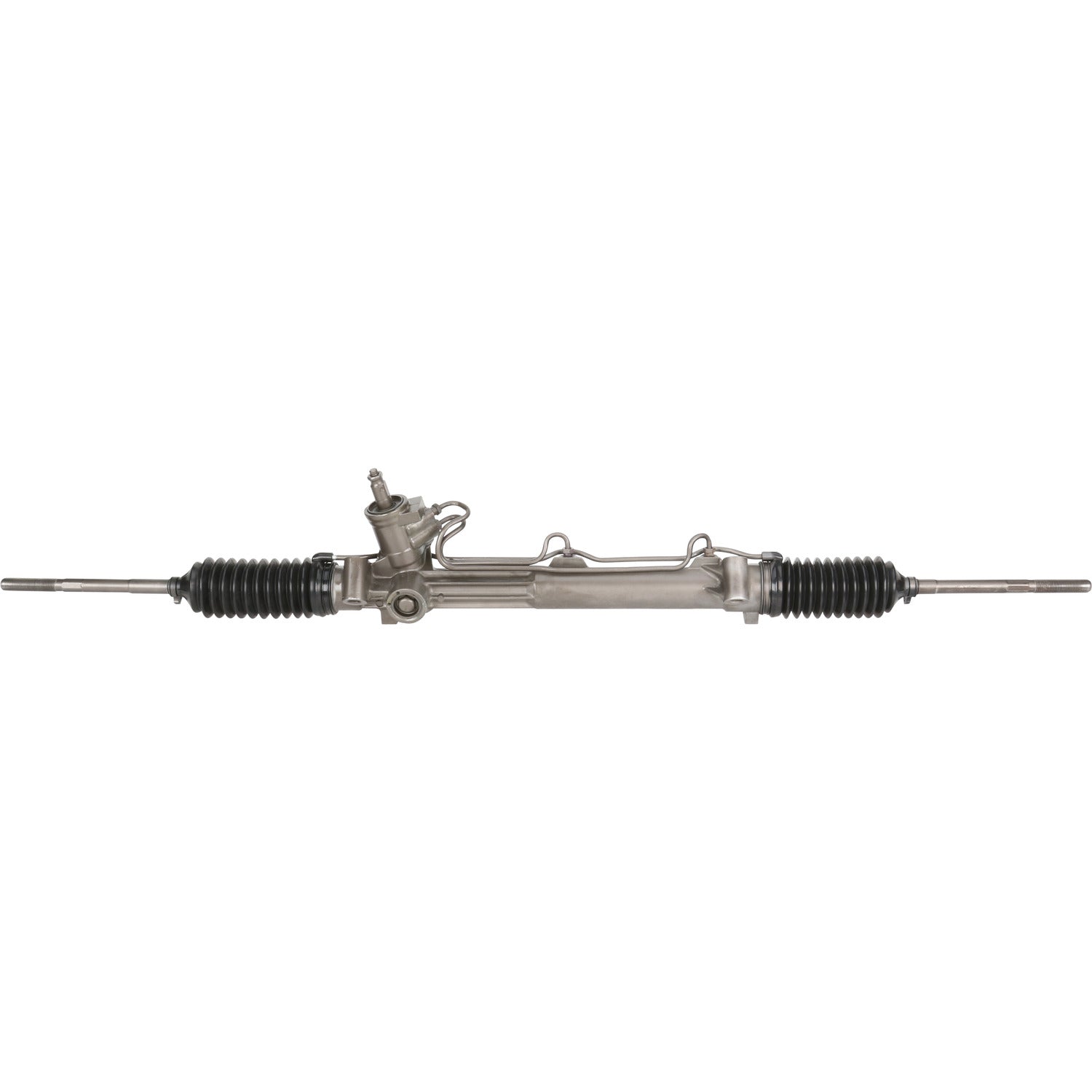

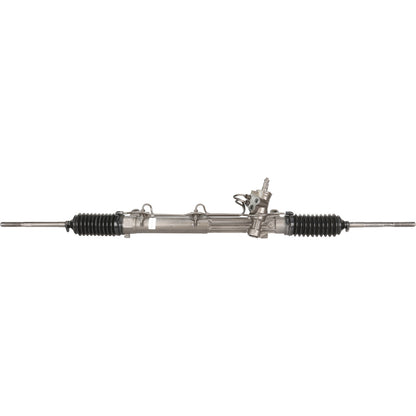

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95324M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95324M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 17 IN
Distance Between Mounting Holes 431.8 MM
Hose Port Type Teflon
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Input Shaft Length 1.56 IN
Input Shaft Length 39.67 MM
Number of Mounting Holes 2
Pressure Port Thread Size 5/8 X 18
Rack Length 50 IN
Rack Length 1270 MM
Return Port Thread Size 5/8"- 18
Thread Length 2.63 IN
Thread Length 66.83 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.63

Application Info: Ford Contour 1998-2000 - SVT w/16" Tires

Interchange: Ford - F73Z3504CCRM

BBB Cross-Reference: 101-0139

Cardone Cross-Reference: 22-244

Instructions - 1               Instructions - 2

Instructions - 3
