MAVAL

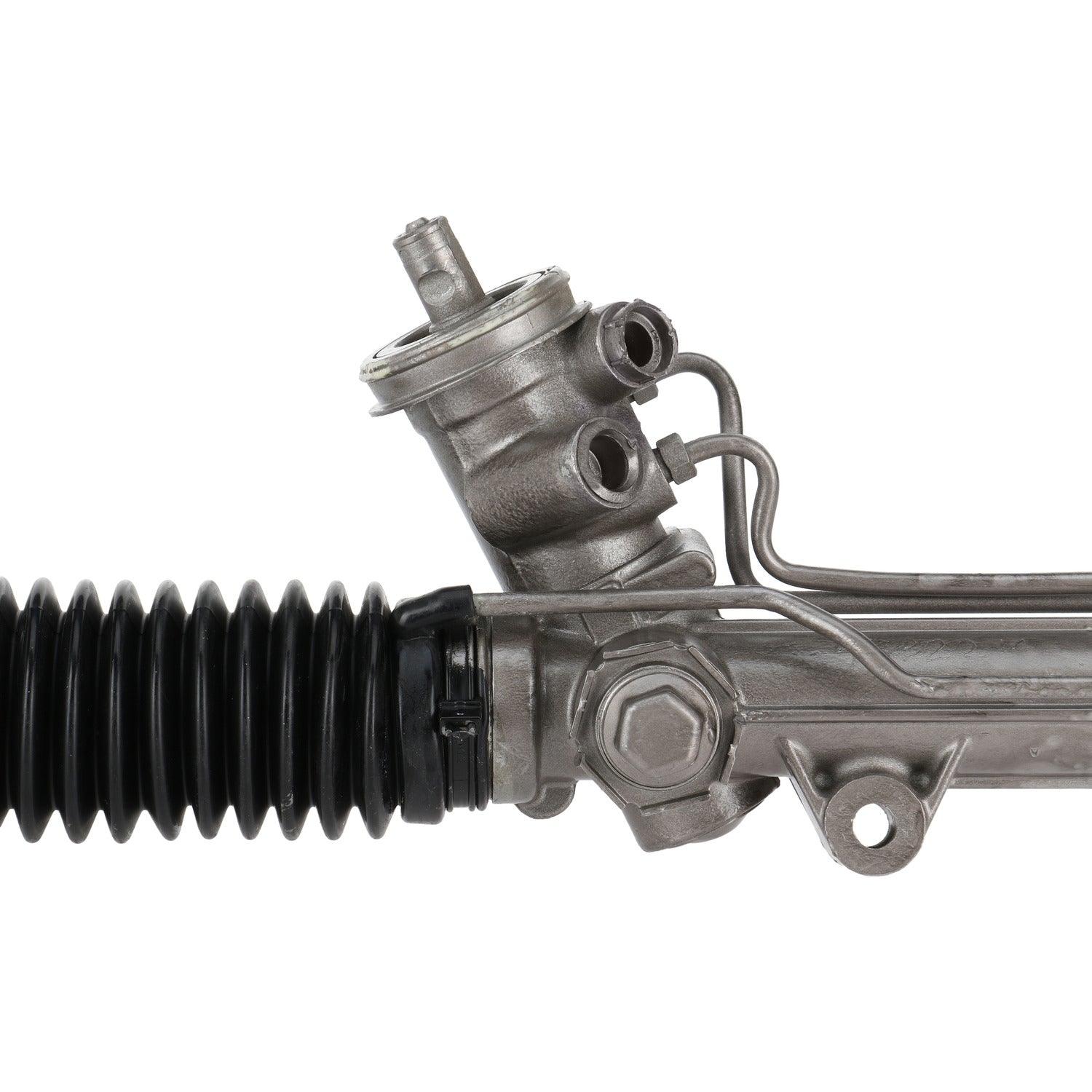

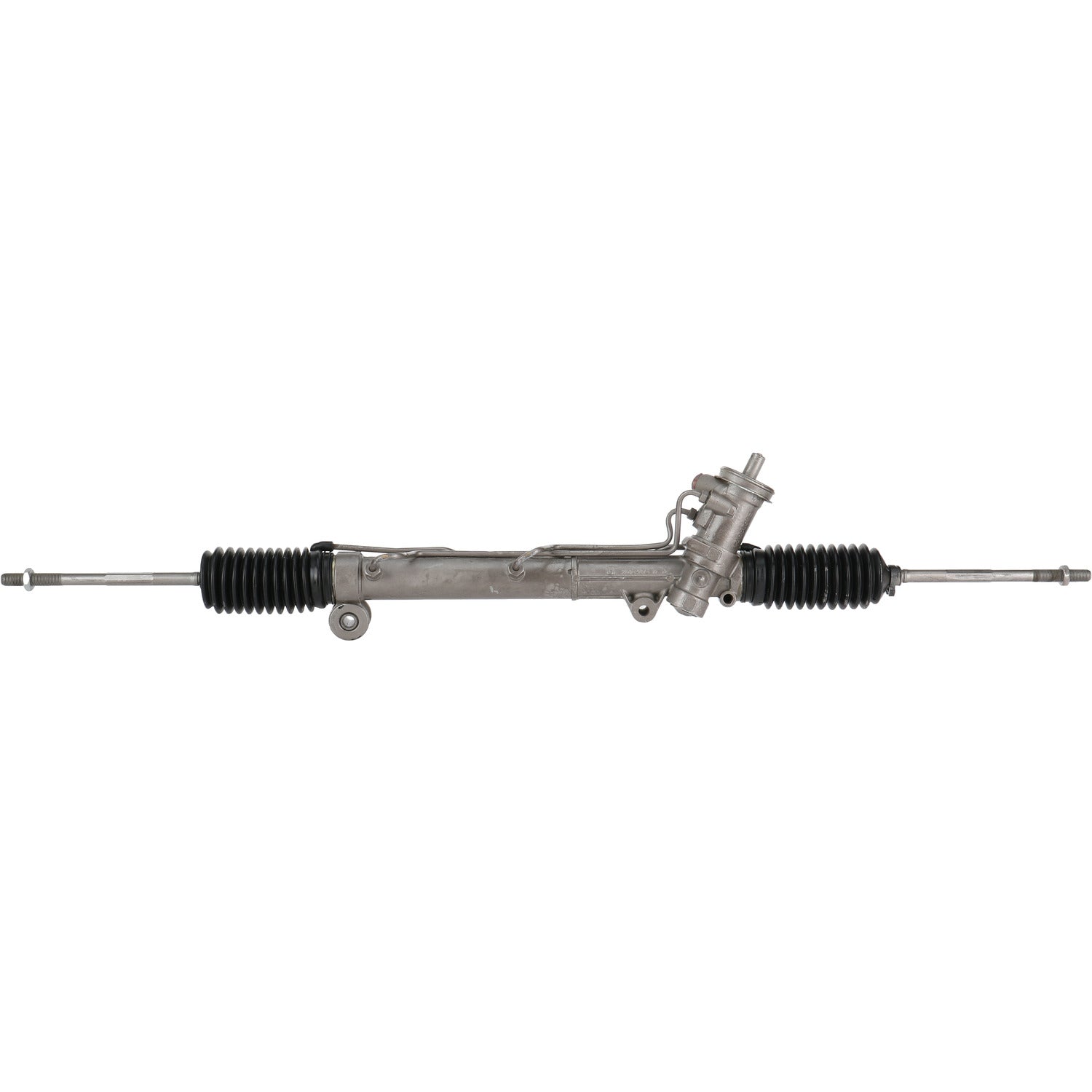

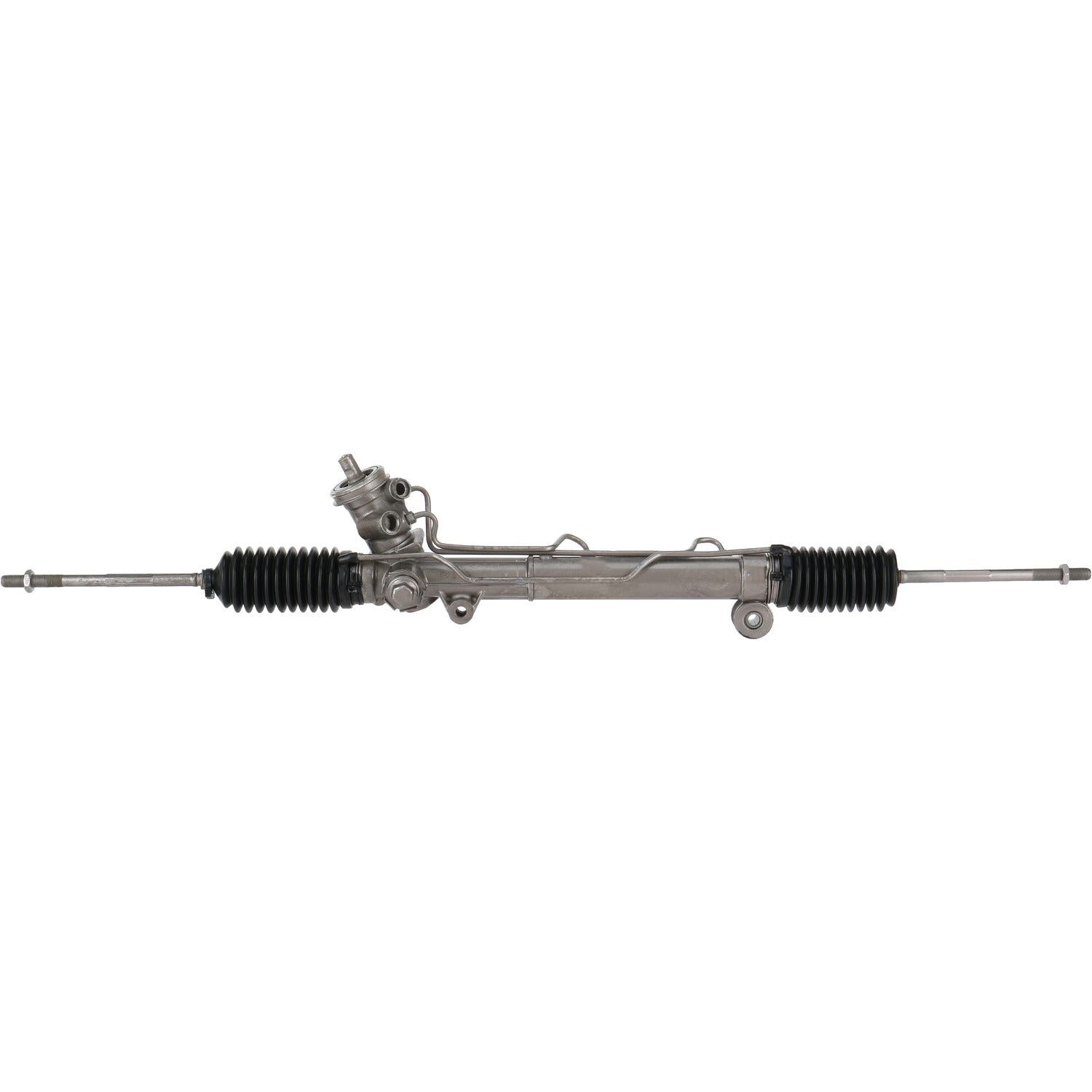

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95322M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95322M

SKU:95322M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 12.25 IN
Distance Between Mounting Holes 311.15 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.78 MM
Input Shaft Length 1.125 IN
Input Shaft Length 28.58 MM
Number of Mounting Holes 2
Pressure Port Thread Size M18 x 1.5
Rack Length 45.5 IN
Rack Length 1155.7 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.44 IN
Thread Length 62.05 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.88

Application Info: Oldsmobile Alero (1999-2004); Pontiac Grand Am (1999-2005)

Interchange: 26073992

BBB Cross-Reference: 103-0159

Cardone Cross-Reference: 22-184

Instructions - 1          Instructions - 2
