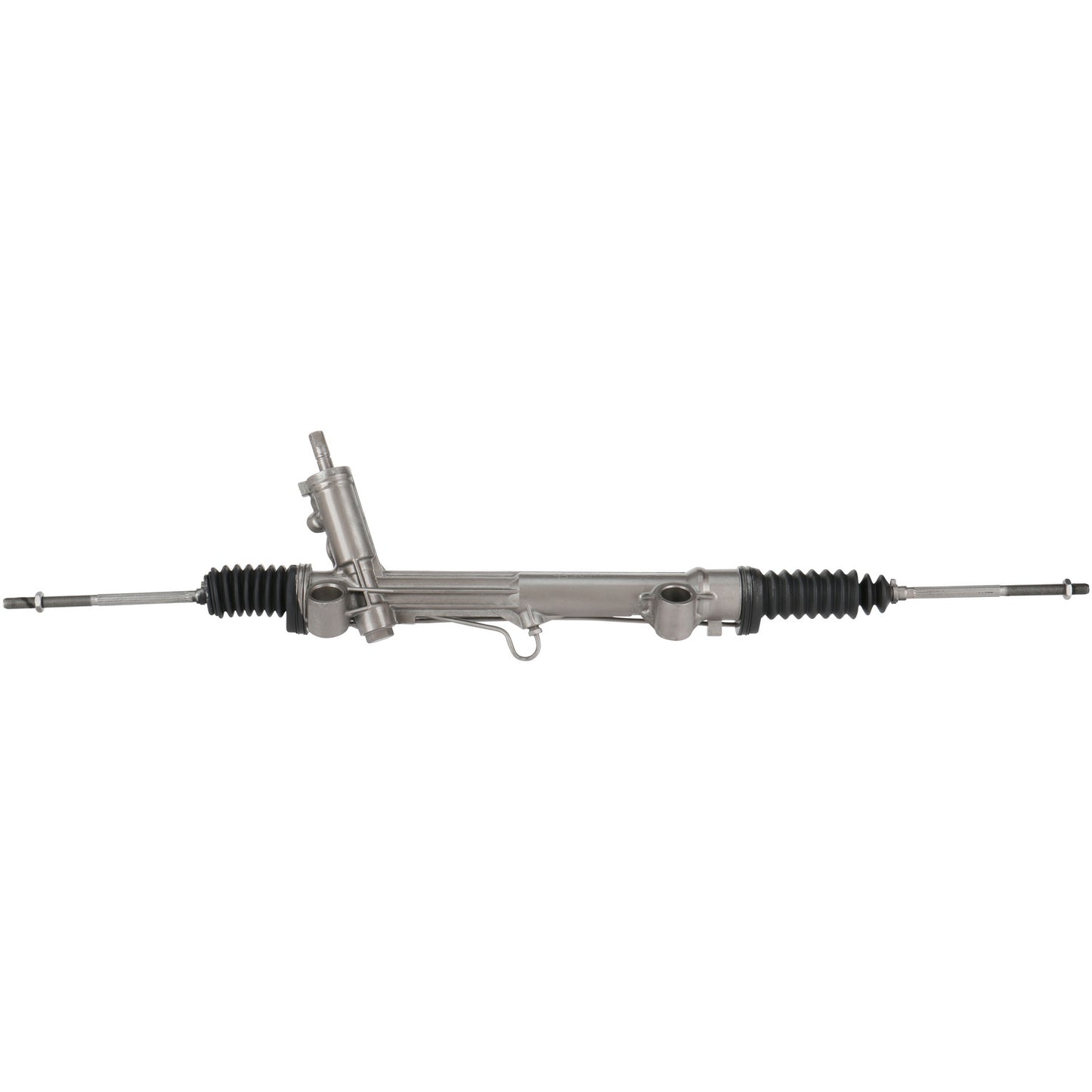

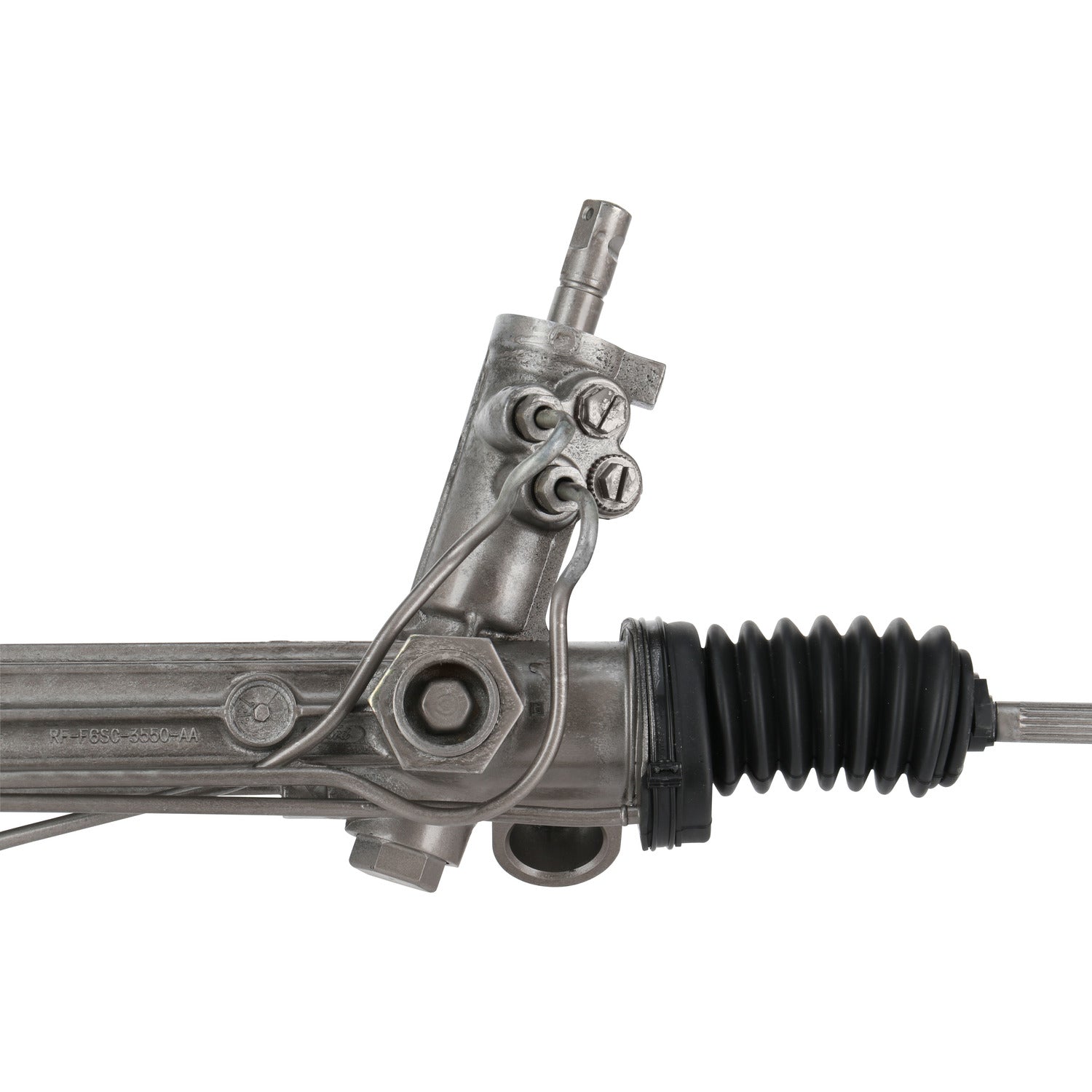

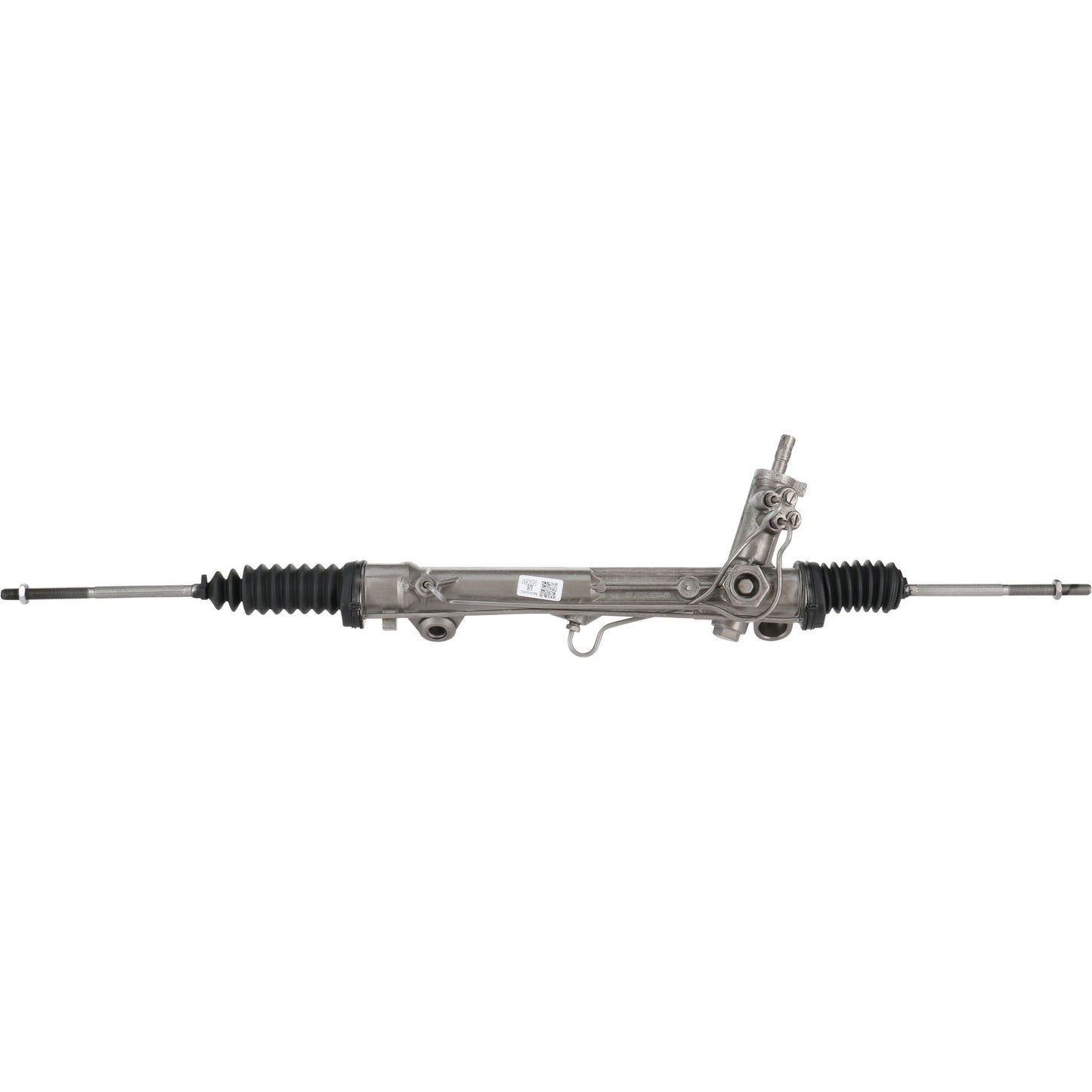

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95308M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95308M

SKU:95308M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 15.5 IN
Distance Between Mounting Holes 393.7 MM
Hose Port Type Teflon
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.62 MM
Input Shaft Length 2.8 IN
Input Shaft Length 71.12 MM
Mounting Hole Quantity 2
Pressure Port Thread Size 9/16 x 18
Rack Length 48.5 IN
Rack Length 1231.9 MM
Return Port Thread Size 5/8"- 18
Thread Length 3.65 IN
Thread Length 92.58 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.12

Application Info: Ford Mustang (1999-04) ***W/3.8L V6 Engine***

Interchange: 2R3Z-3504-CARM, F6SZ-3280-BA, XR3Z-3504-ACRM

BBB Cross-Reference: 101-0140

Cardone Cross-Reference: 22-245
