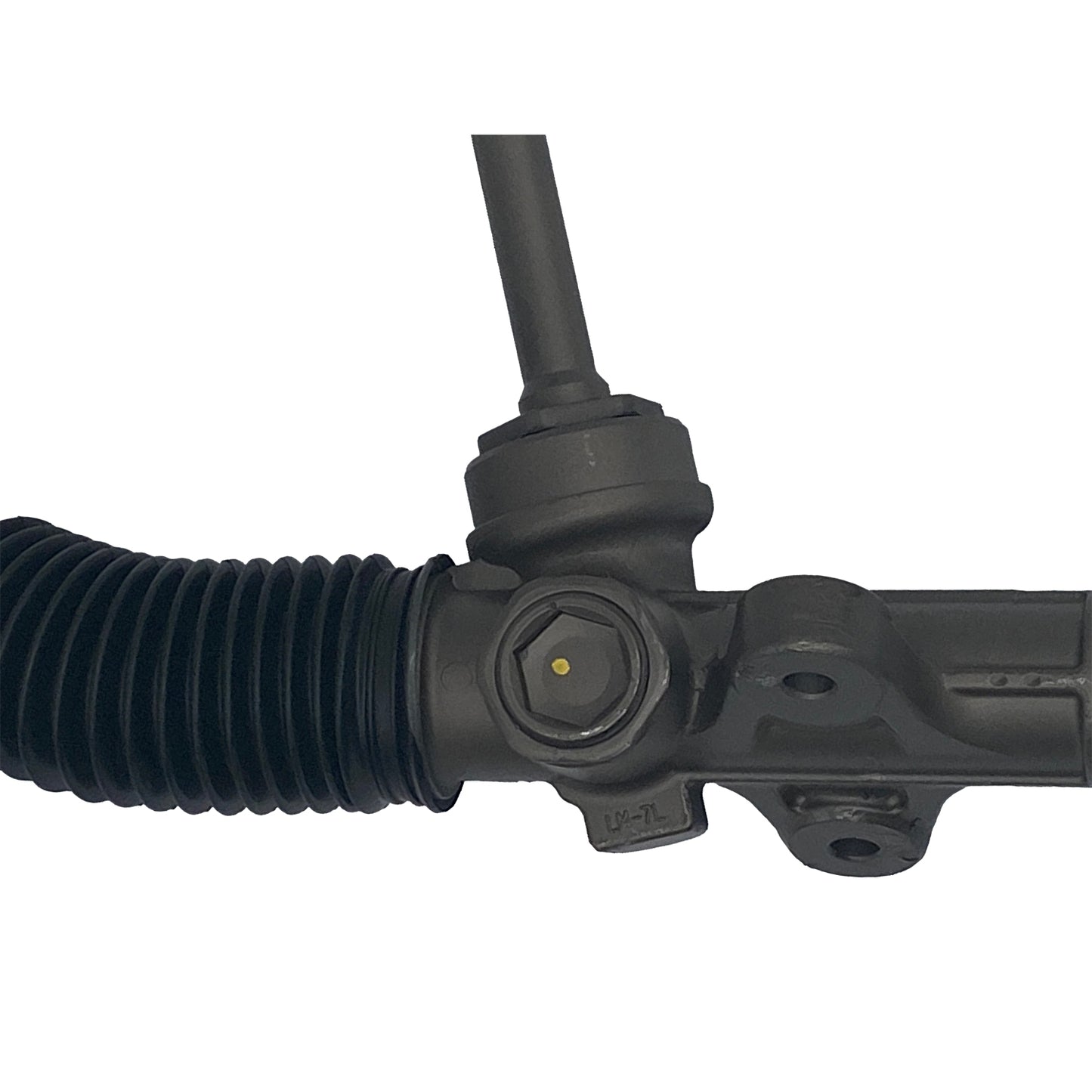

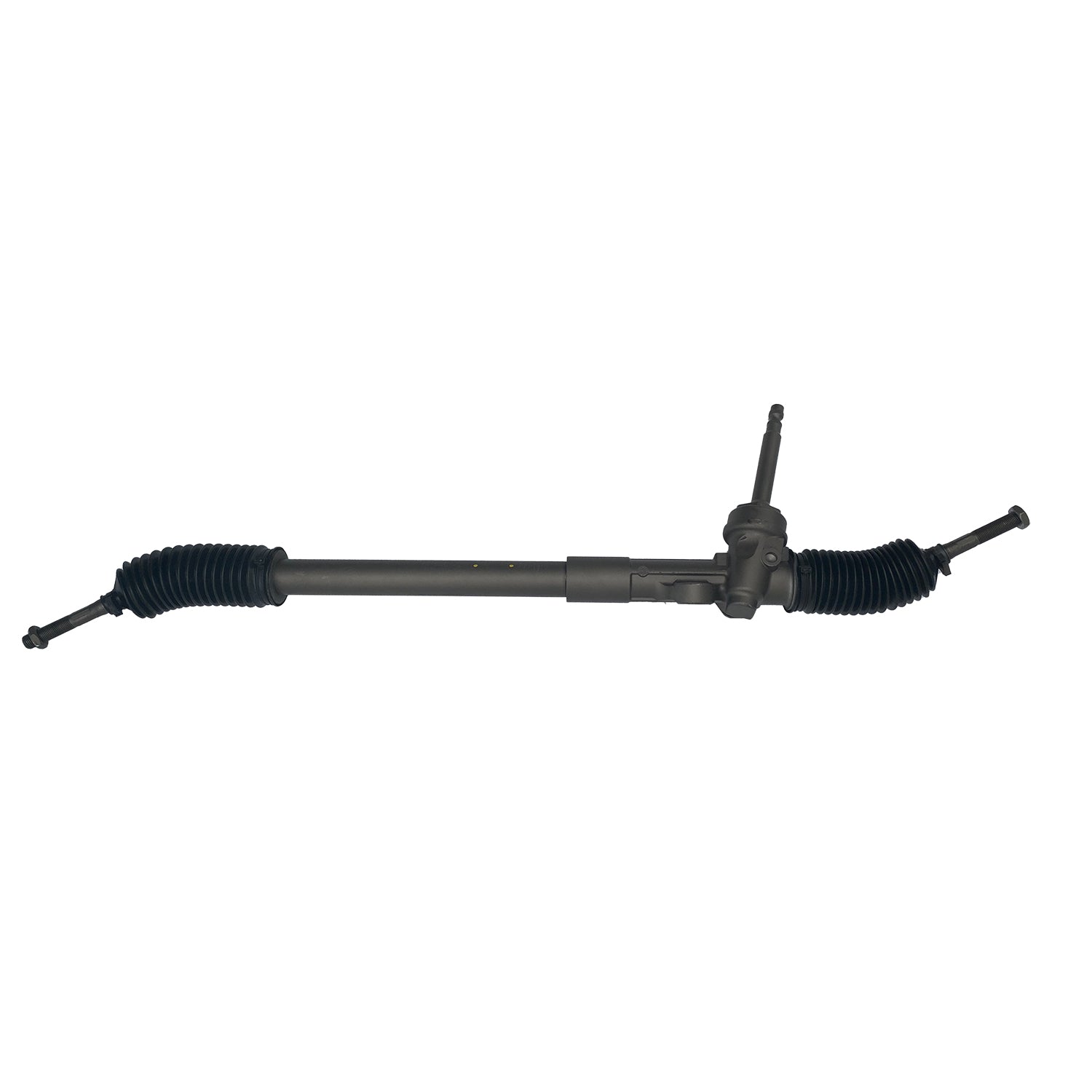

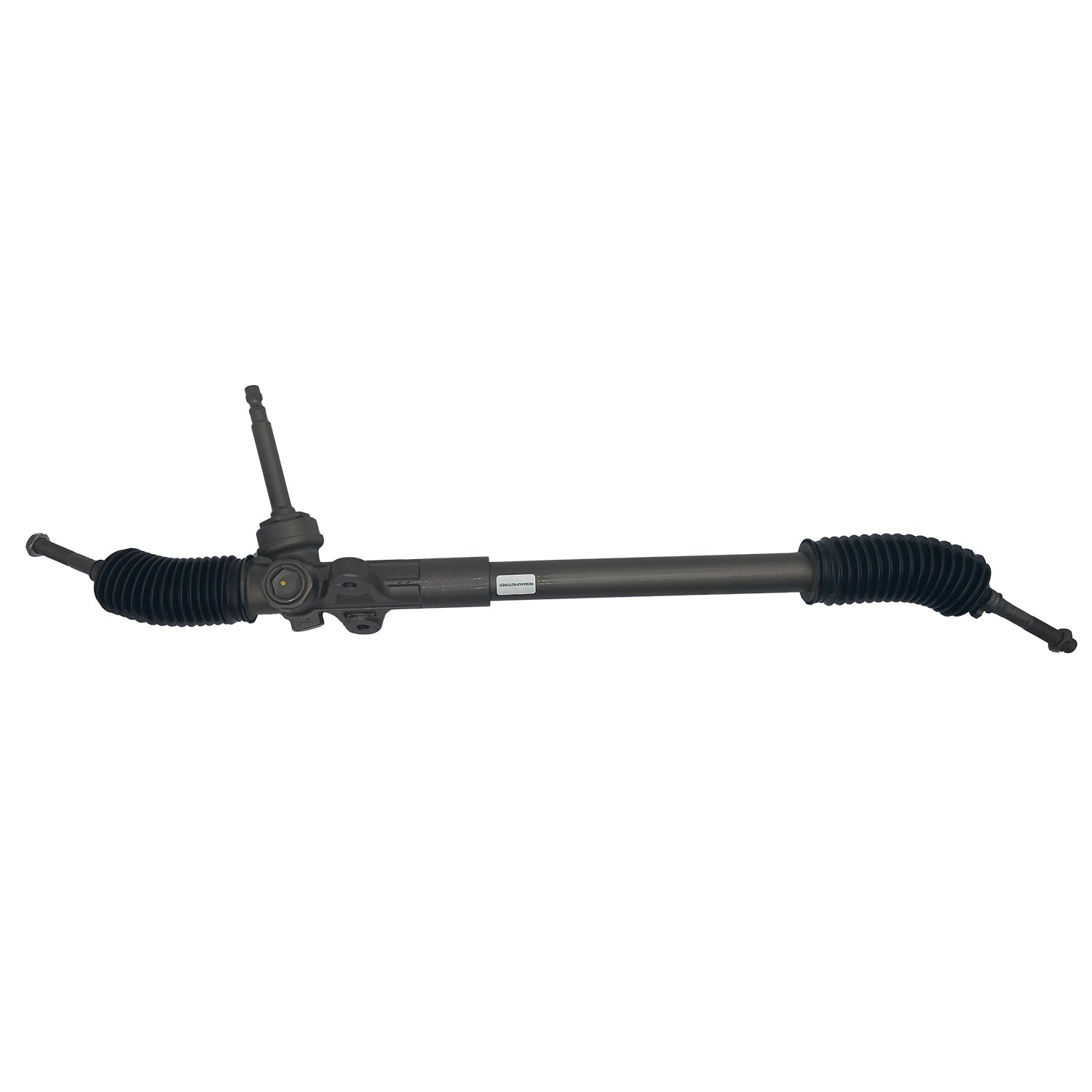

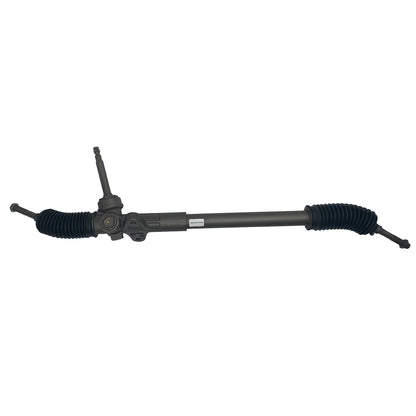

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94449M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94449M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel-Aluminum
Distance Between Mounting Holes 3.622 IN
Distance Between Mounting Holes 100 MM
Input Shaft Diameter 0.786 IN
Input Shaft Diameter 19.96 MM
Input Shaft Length 5.938 IN
Input Shaft Length 150.81 MM
Mounting Hole Quantity 2
Rack Length 42.25 IN
Rack Length 1073.15 MM
Thread Length 1.816 IN
Thread Length 46.13 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3
Type Manual

Application Info: Hyundai Tucson (2012-13); Kia Sportage (2012-13)

Interchange: 56500-2S001

BBB Cross-Reference: 213-0121

Cardone Cross-Reference: 1G-2401

Instructions - 1
