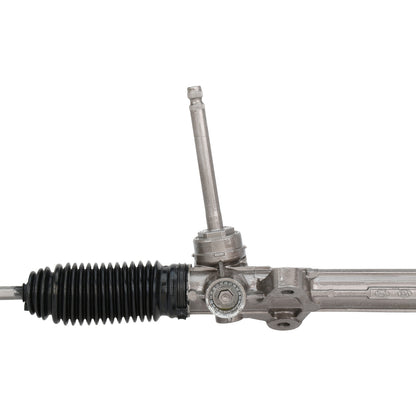

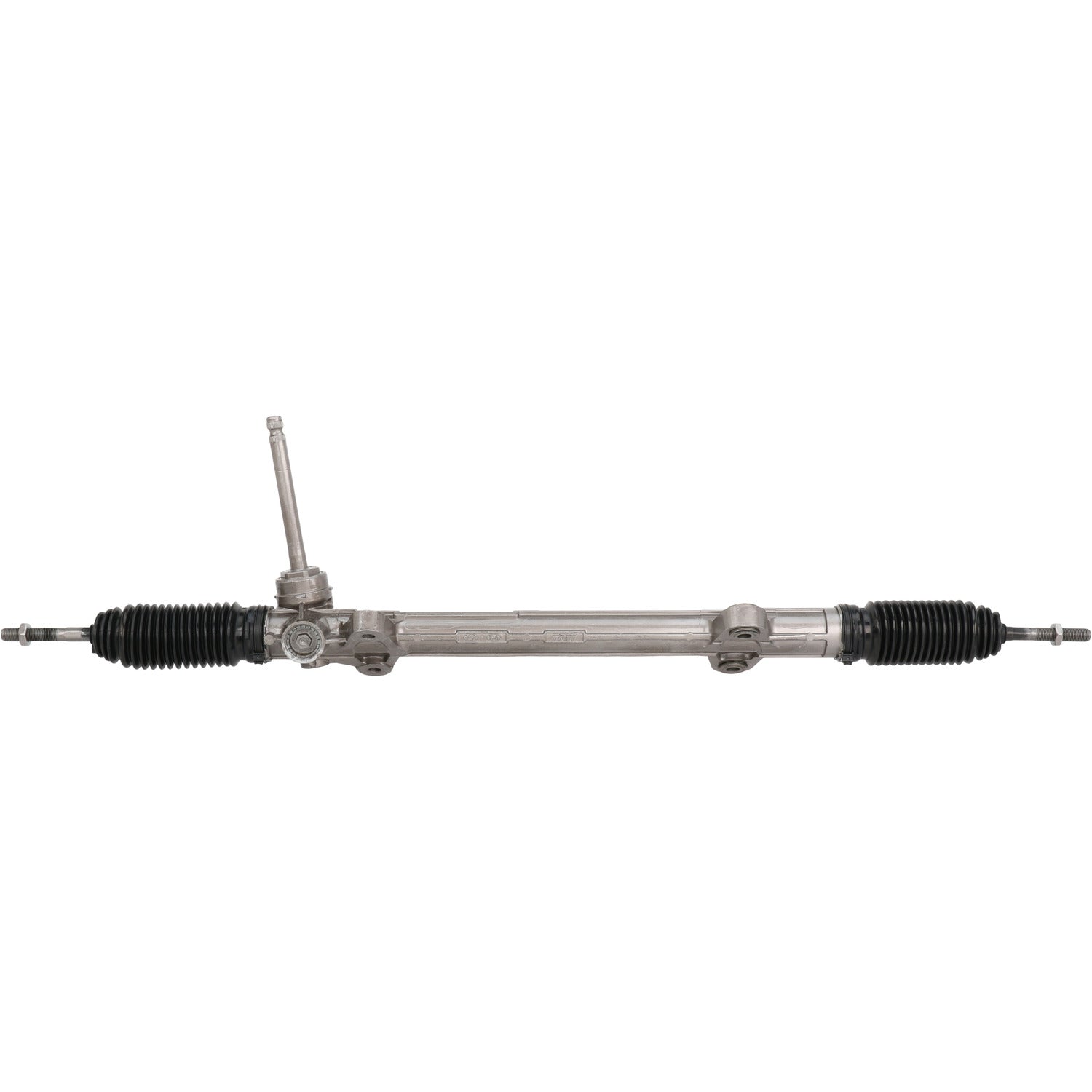

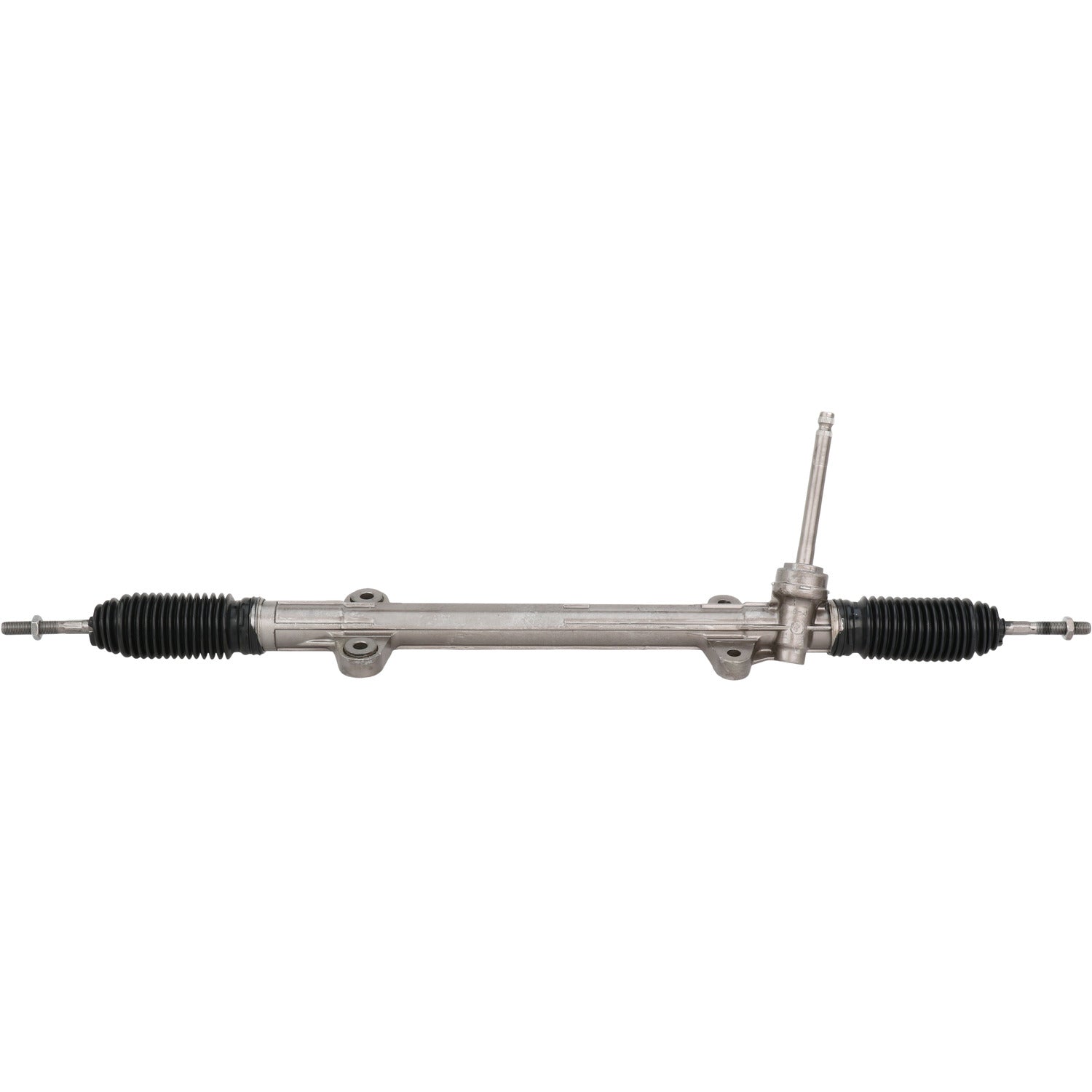

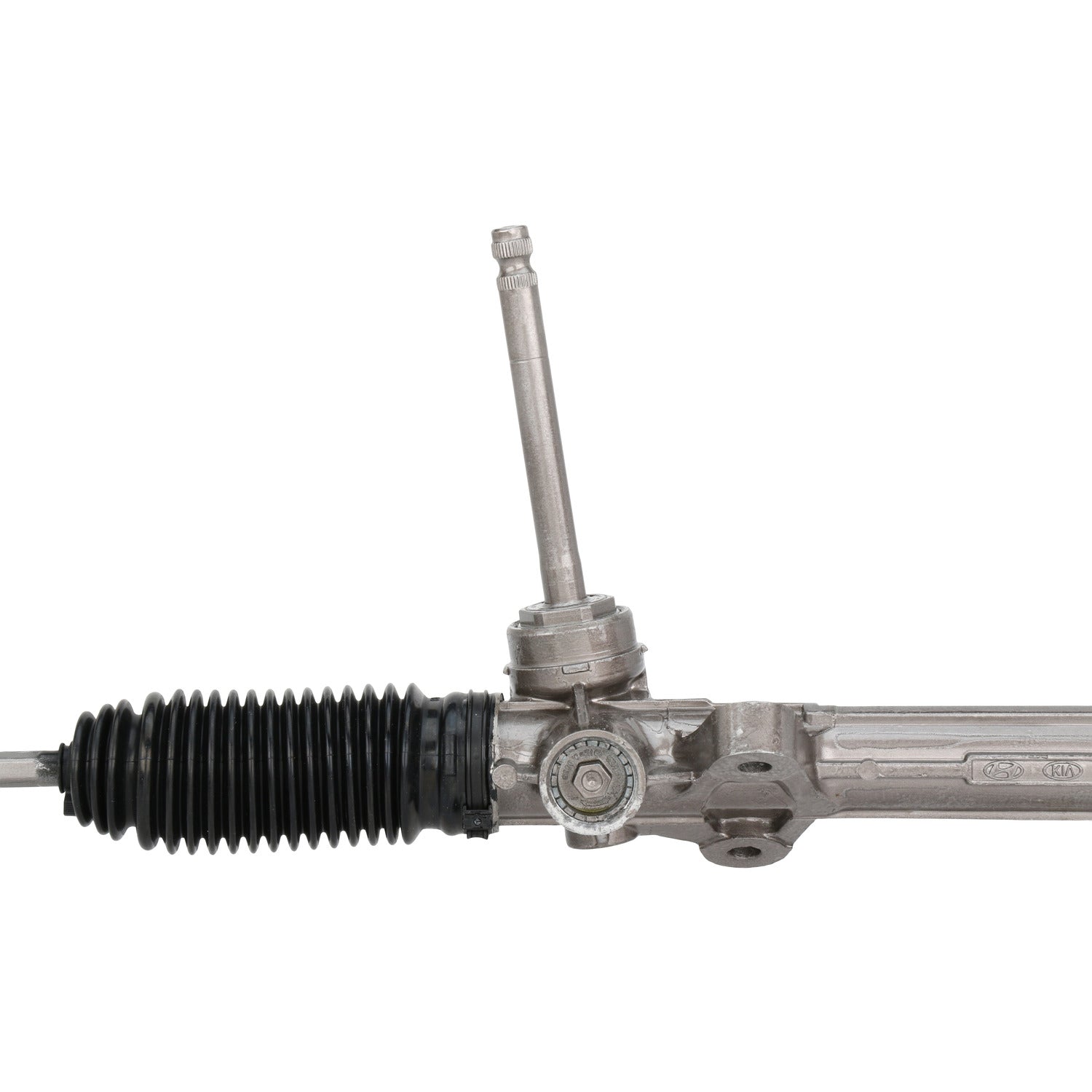

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94381M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94381M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 14.125 IN
Distance Between Mounting Holes 358.78 MM
Input Shaft Diameter 0.667 IN
Input Shaft Diameter 16.94 MM
Input Shaft Length 6.168 IN
Input Shaft Length 156.66 MM
Mounting Hole Quantity 4
Rack Length 41.375 IN
Rack Length 1050.925 MM
Thread Length 2.095 IN
Thread Length 53.21 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.75
Type Manual

Application Info: Hyundai Elantra (2009-12) ***W/17" Wheels***

Interchange: 56500-1M100

BBB Cross-Reference: 213-0122

Cardone Cross-Reference: 1G-2402

Instructions - 1
