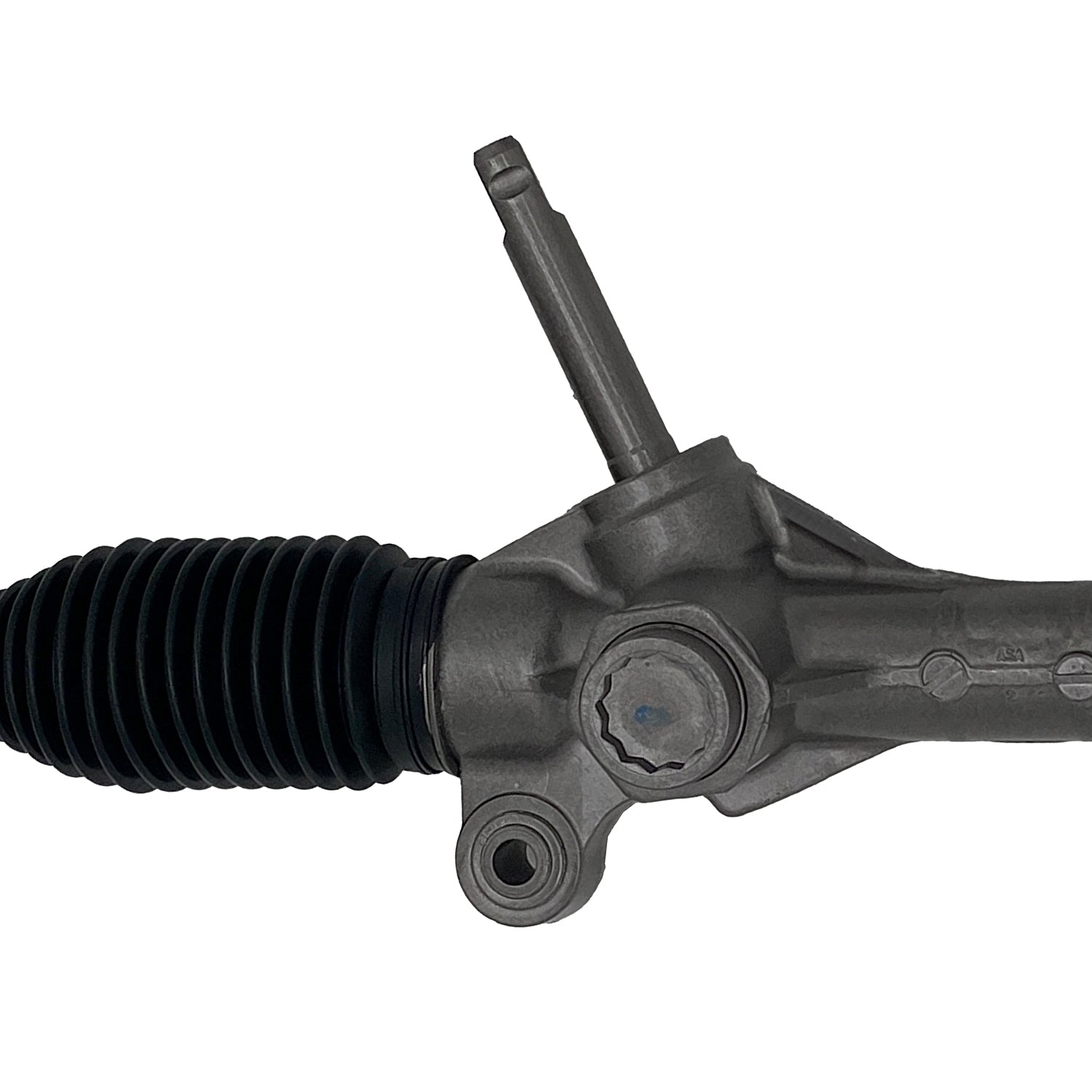

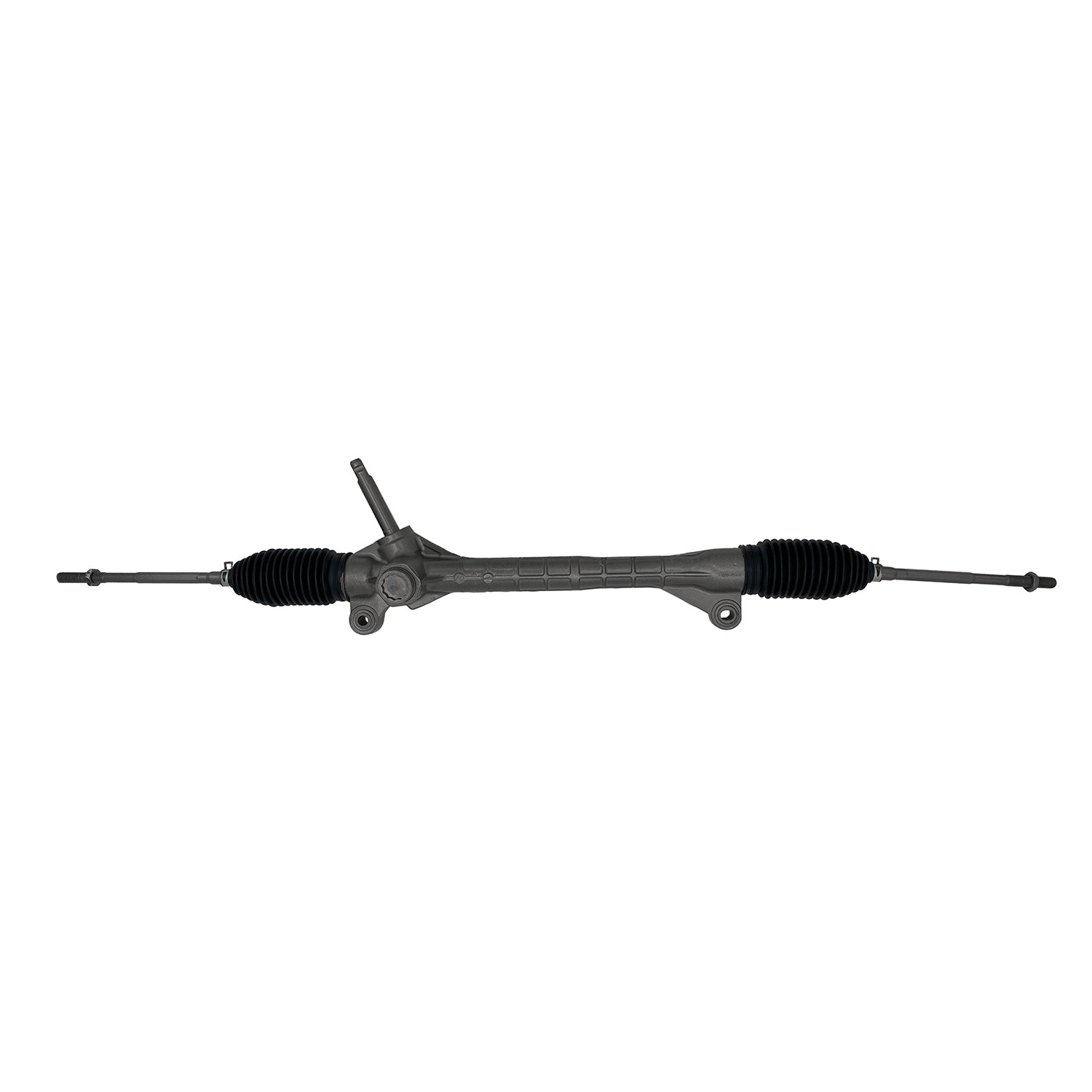

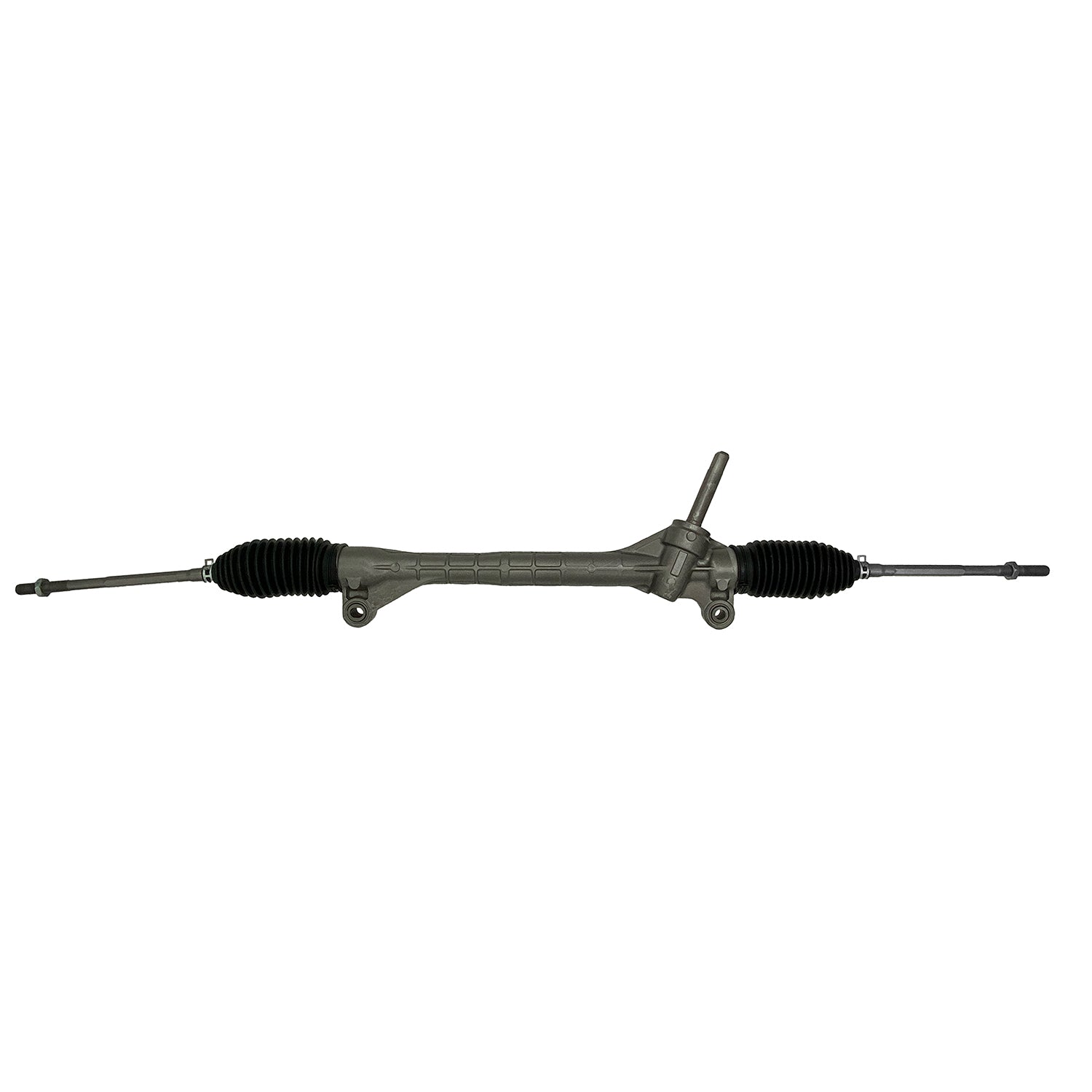

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94359M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94359M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 17.375 IN
Distance Between Mounting Holes 441.33 MM
Input Shaft Diameter 0.745 IN
Input Shaft Diameter 18.92 MM
Input Shaft Length 3.875 IN
Input Shaft Length 98.43 MM
Mounting Hole Quantity 2
Rack Length 48.375 IN
Rack Length 1228.73 MM
Thread Length 2.349 IN
Thread Length 59.66 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.5
Type Manual

Application Info: Saturn Vue (2002-2010) ***W/2.4L L4 Engine***

Interchange: Saturn - 15797215

BBB Cross-Reference: 203-0118

Cardone Cross-Reference: 1G-1812

Instructions - 1
