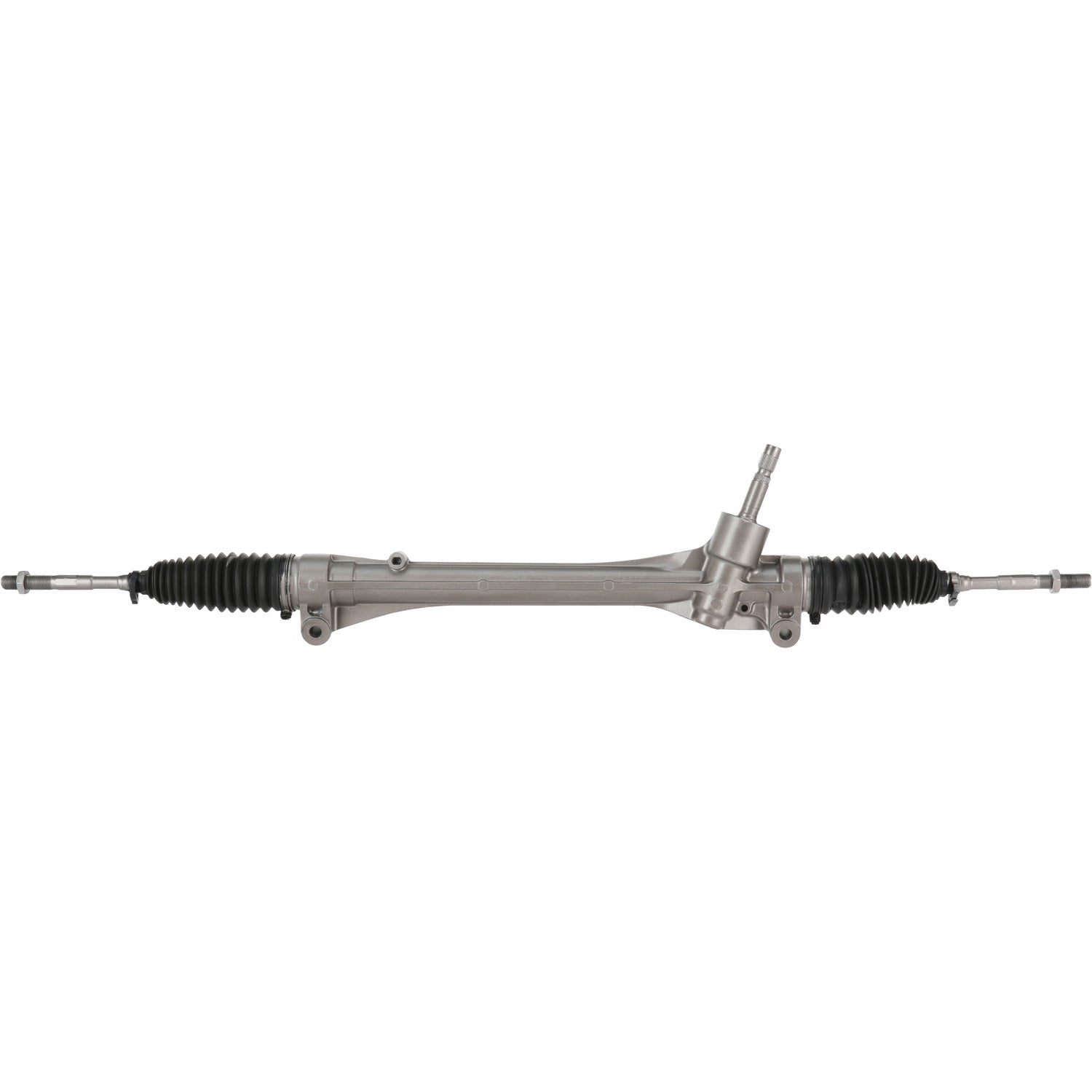

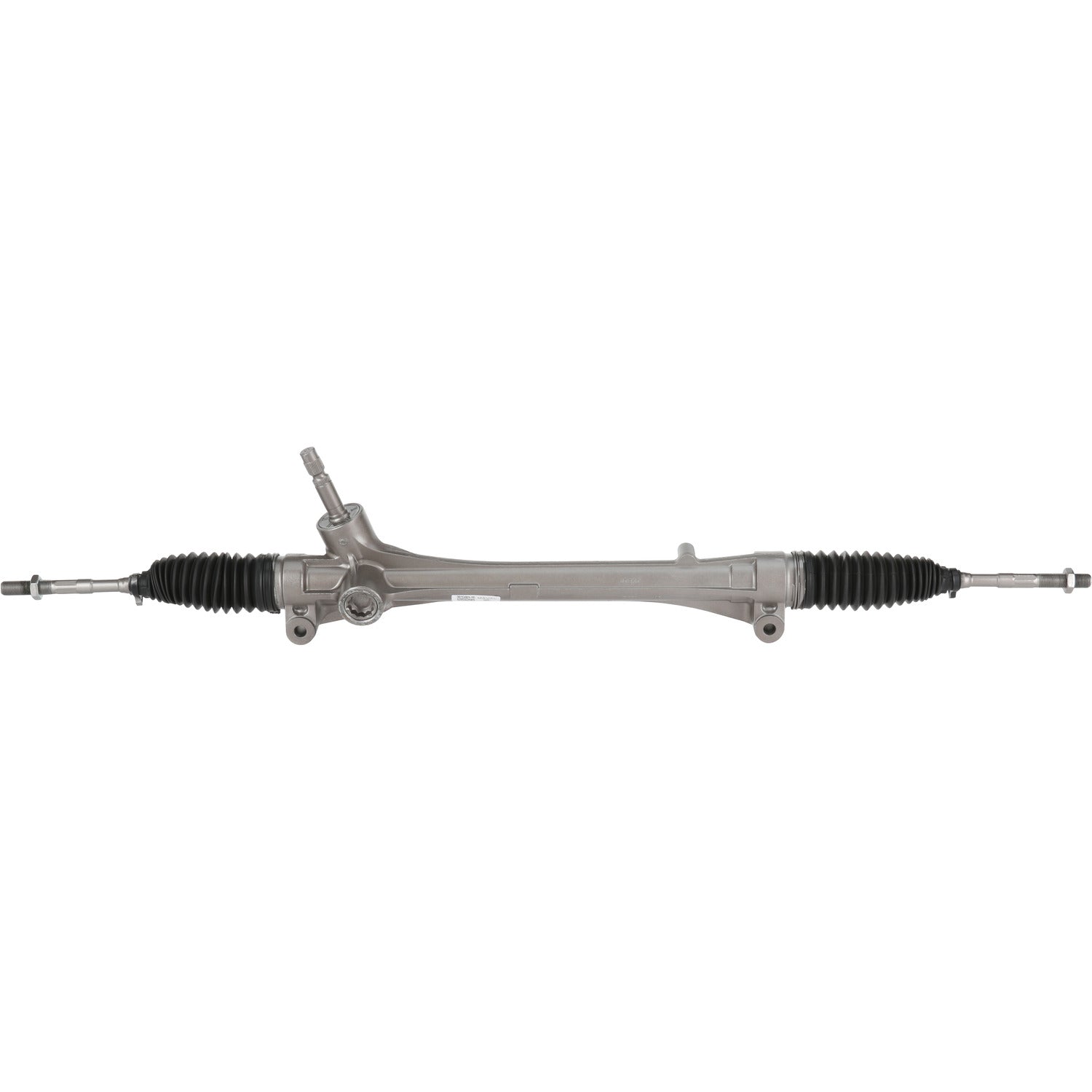

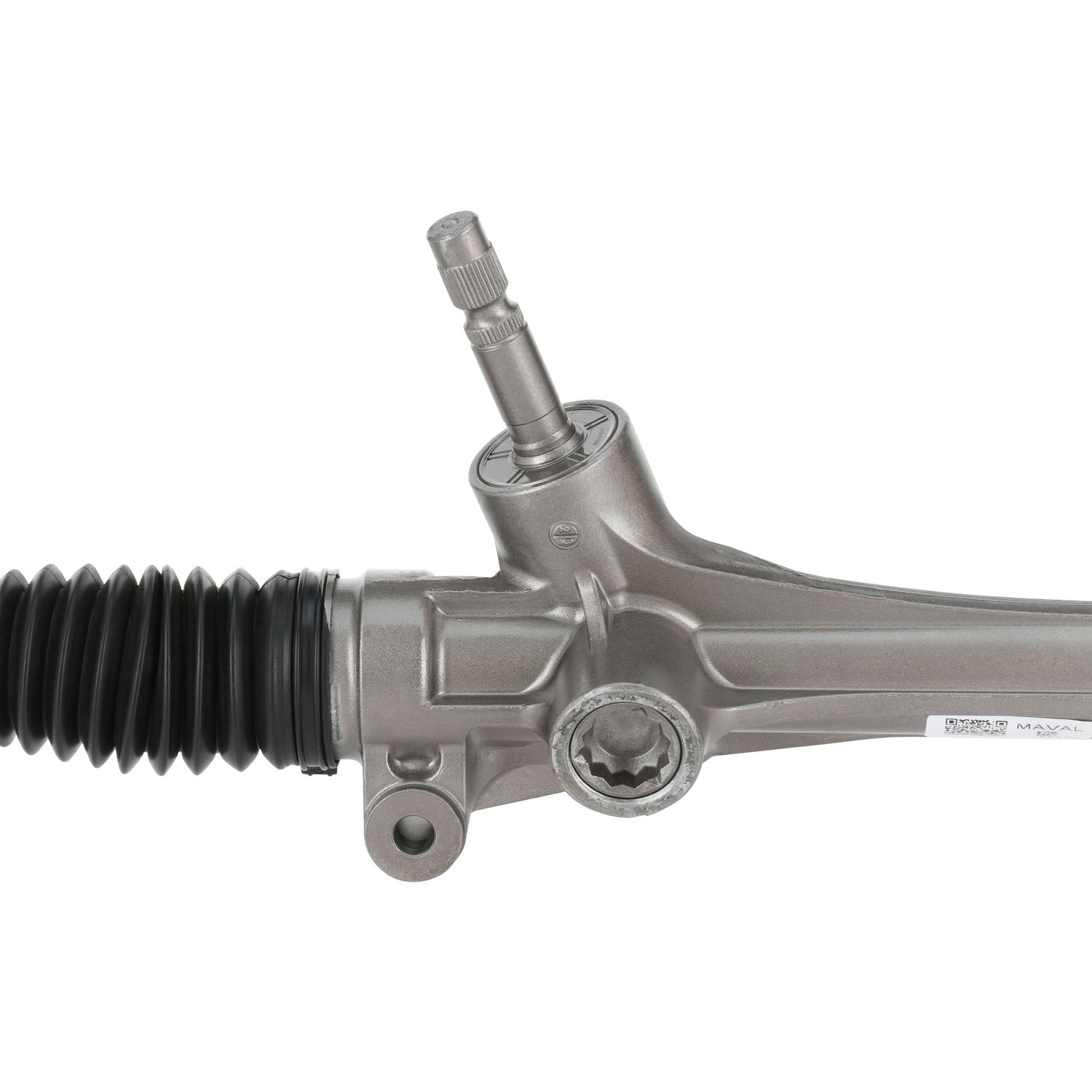

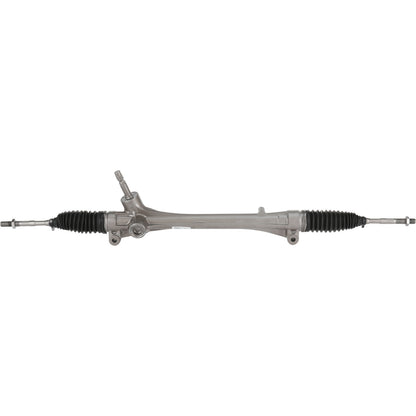

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94358M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94358M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 19.125 IN
Distance Between Mounting Holes 485.78 MM
Input Shaft Diameter 0.782 IN
Input Shaft Diameter 19.86 MM
Input Shaft Length 3.188 IN
Input Shaft Length 80.96 MM
Mounting Hole Quantity 2
Rack Length 44 IN
Rack Length 1117.6 MM
Thread Length 2.066 IN
Thread Length 52.48 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.938
Type Manual

Application Info: Lexus RX350 (2010-2015), RX450h (2010-2015)

Interchange: 45510-48040

BBB Cross-Reference: 211-0128

Cardone Cross-Reference: 1G-2702

Instructions - 1
