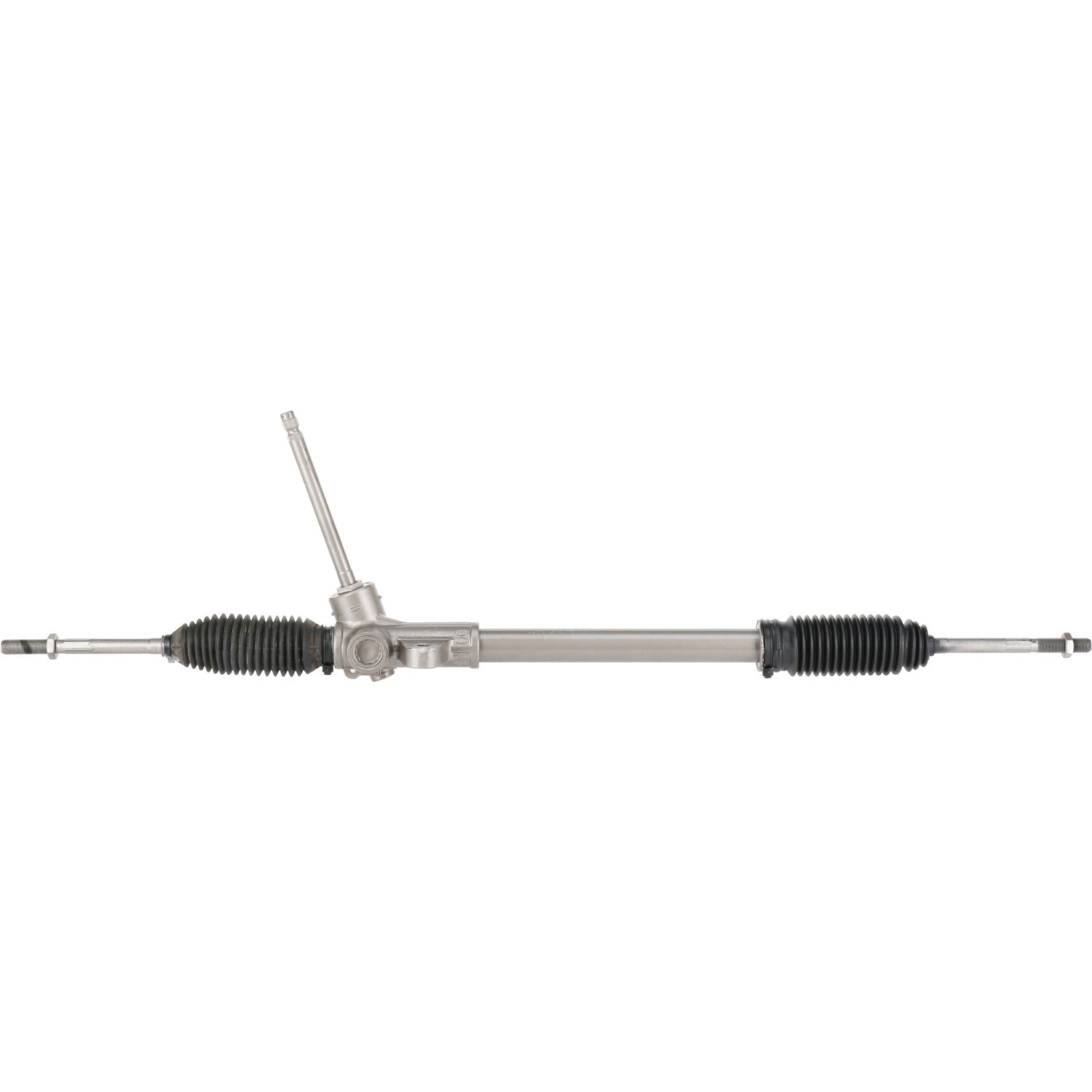

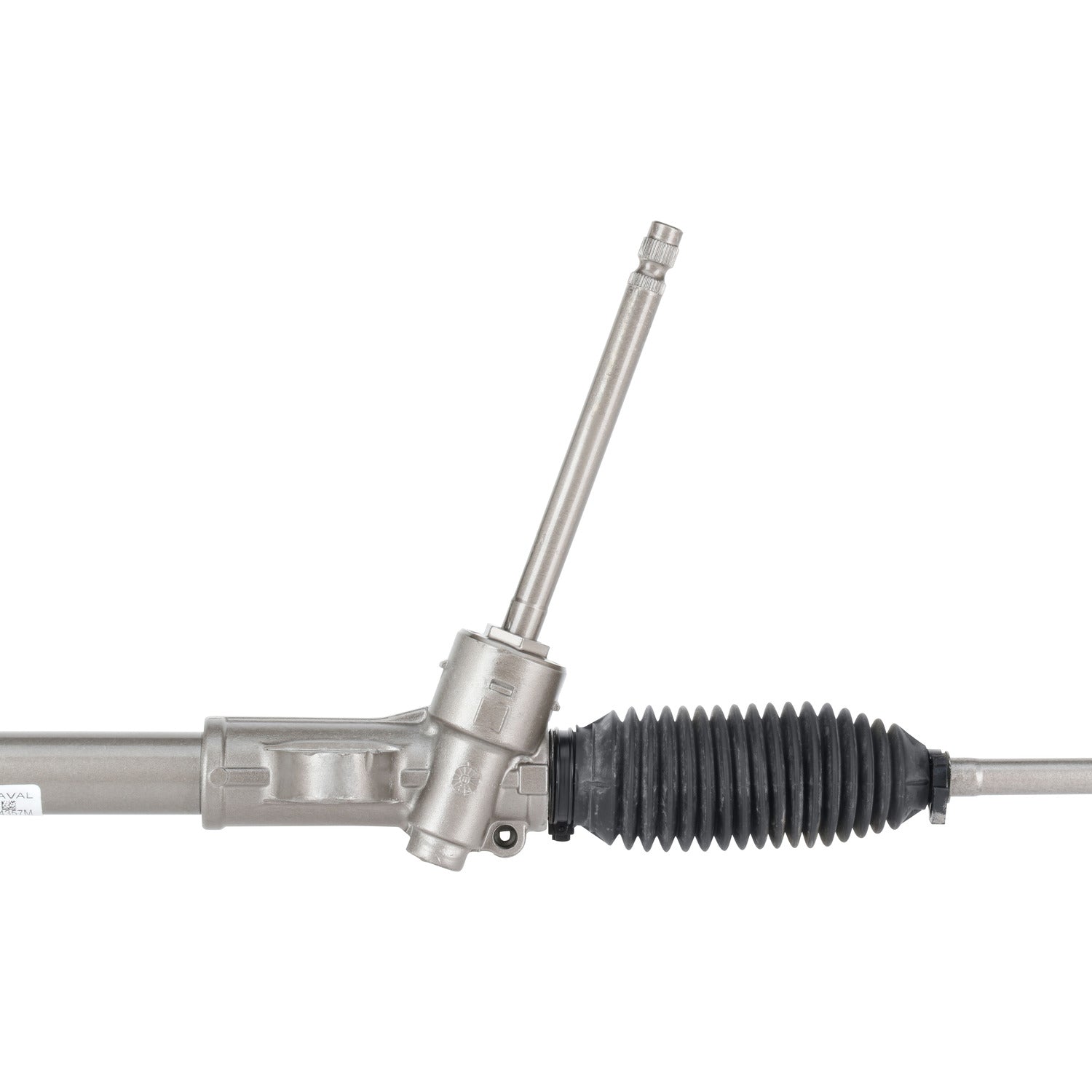

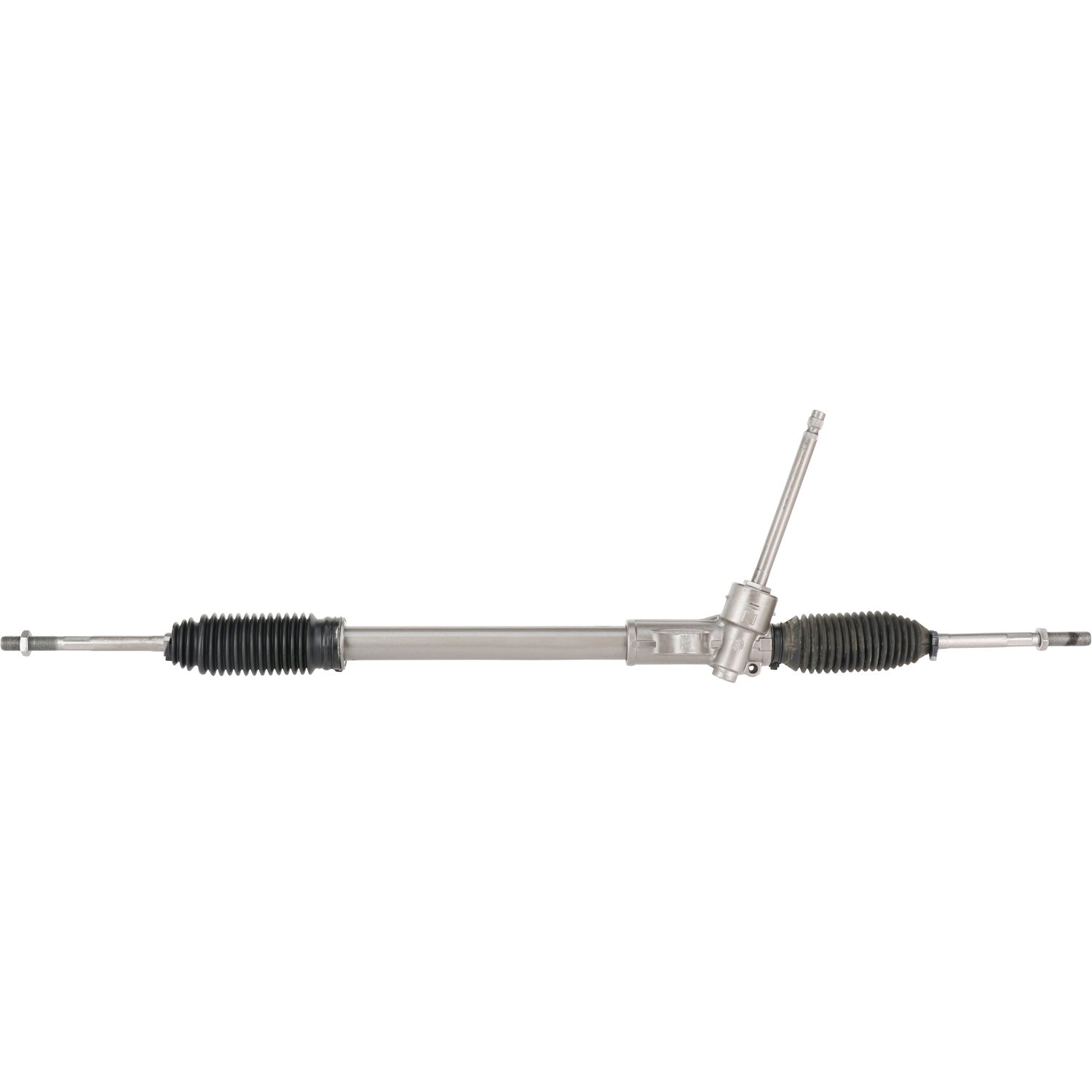

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94357M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94357M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel-Aluminum
Distance Between Mounting Holes 3.688 IN
Distance Between Mounting Holes 93.66 MM
Input Shaft Diameter 0.64 IN
Input Shaft Diameter 16.26 MM
Input Shaft Length 7.438 IN
Input Shaft Length 188.91 MM
Mounting Hole Quantity 2
Rack Length 43.875 IN
Rack Length 1114.43 MM
Thread Length 2.135 IN
Thread Length 54.23 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.813
Type Manual

Application Info: Kia Soul (2012-13)

Interchange: 56500-2K001

BBB Cross-Reference: 213-0172

Cardone Cross-Reference: 1G-2407

Instructions - 1
