MAVAL

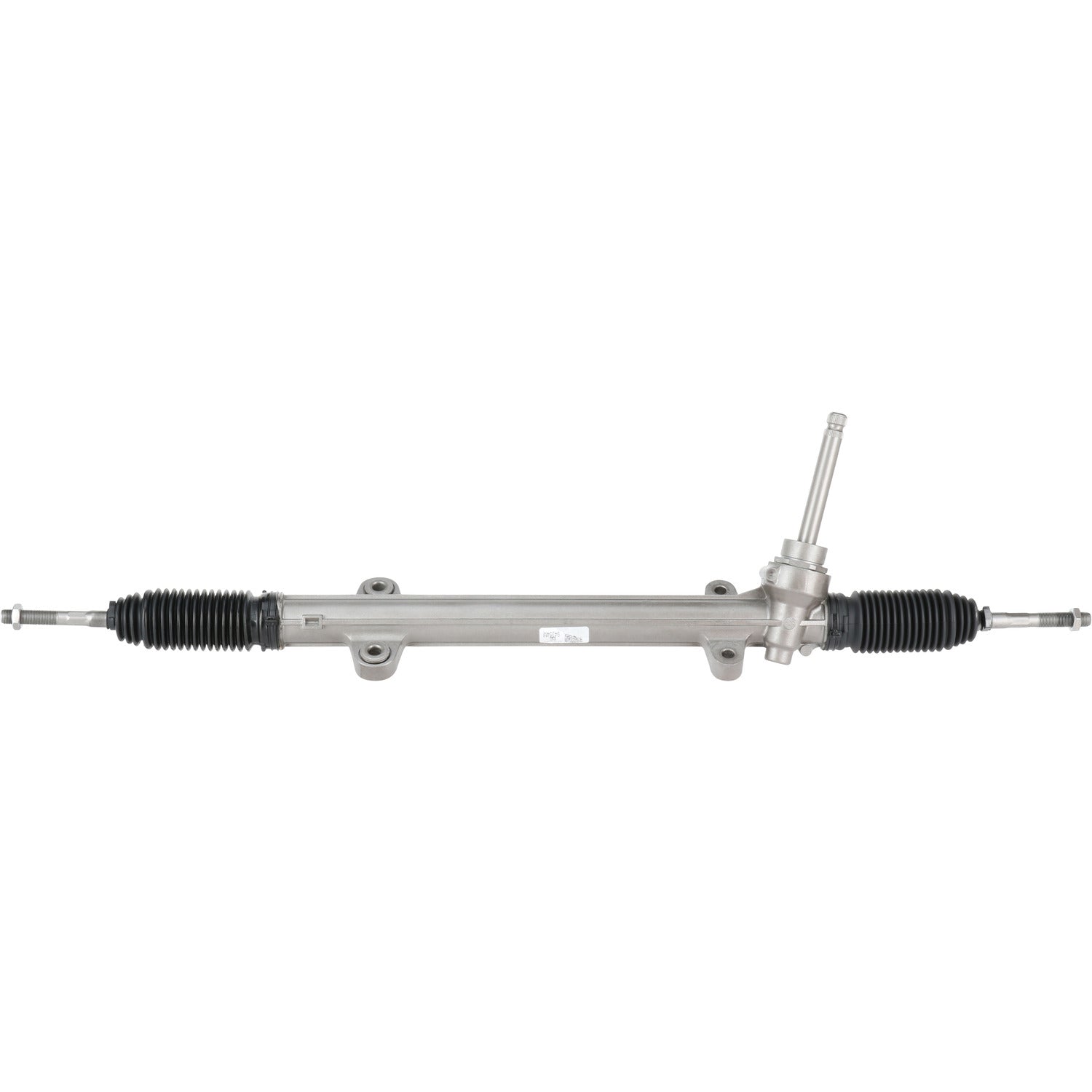

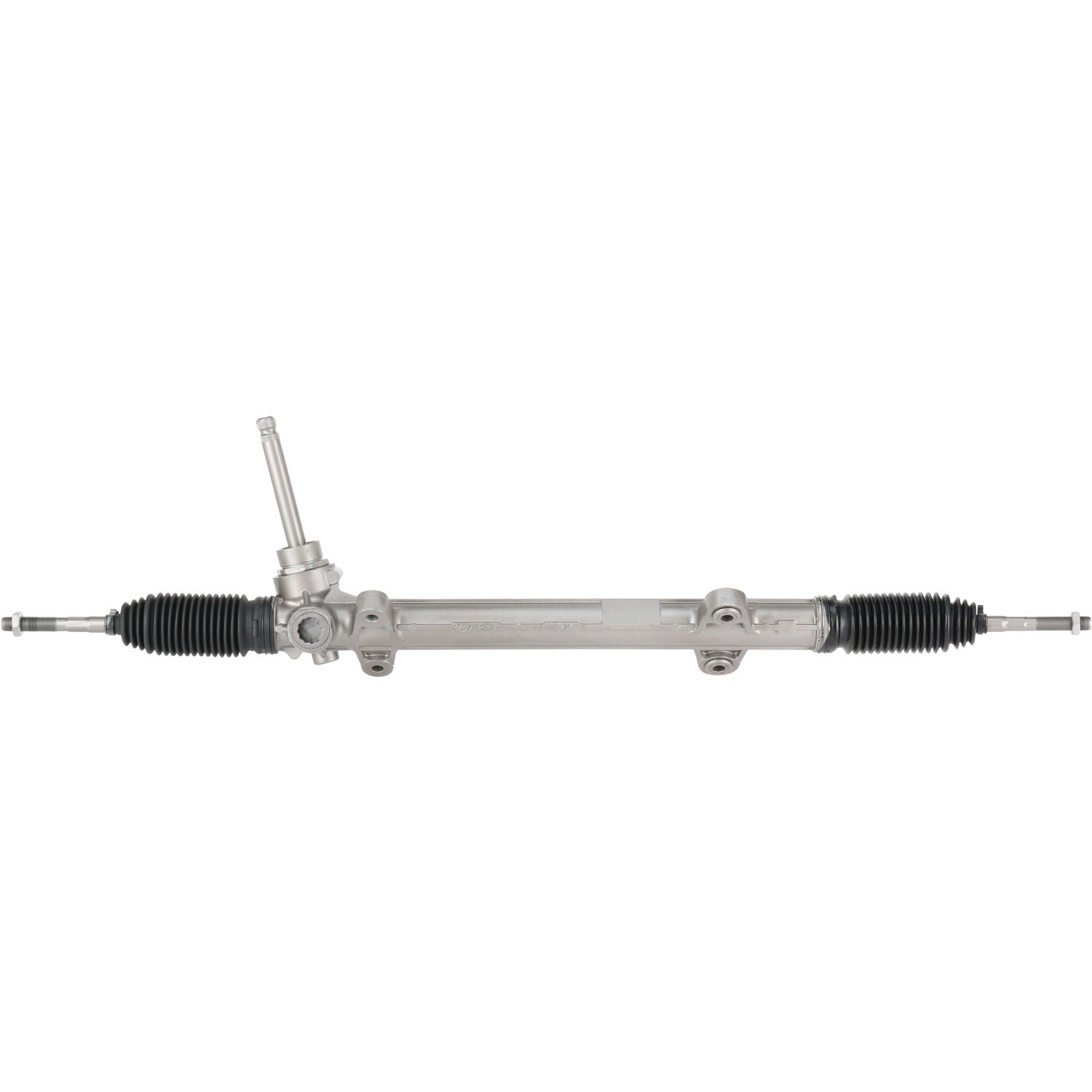

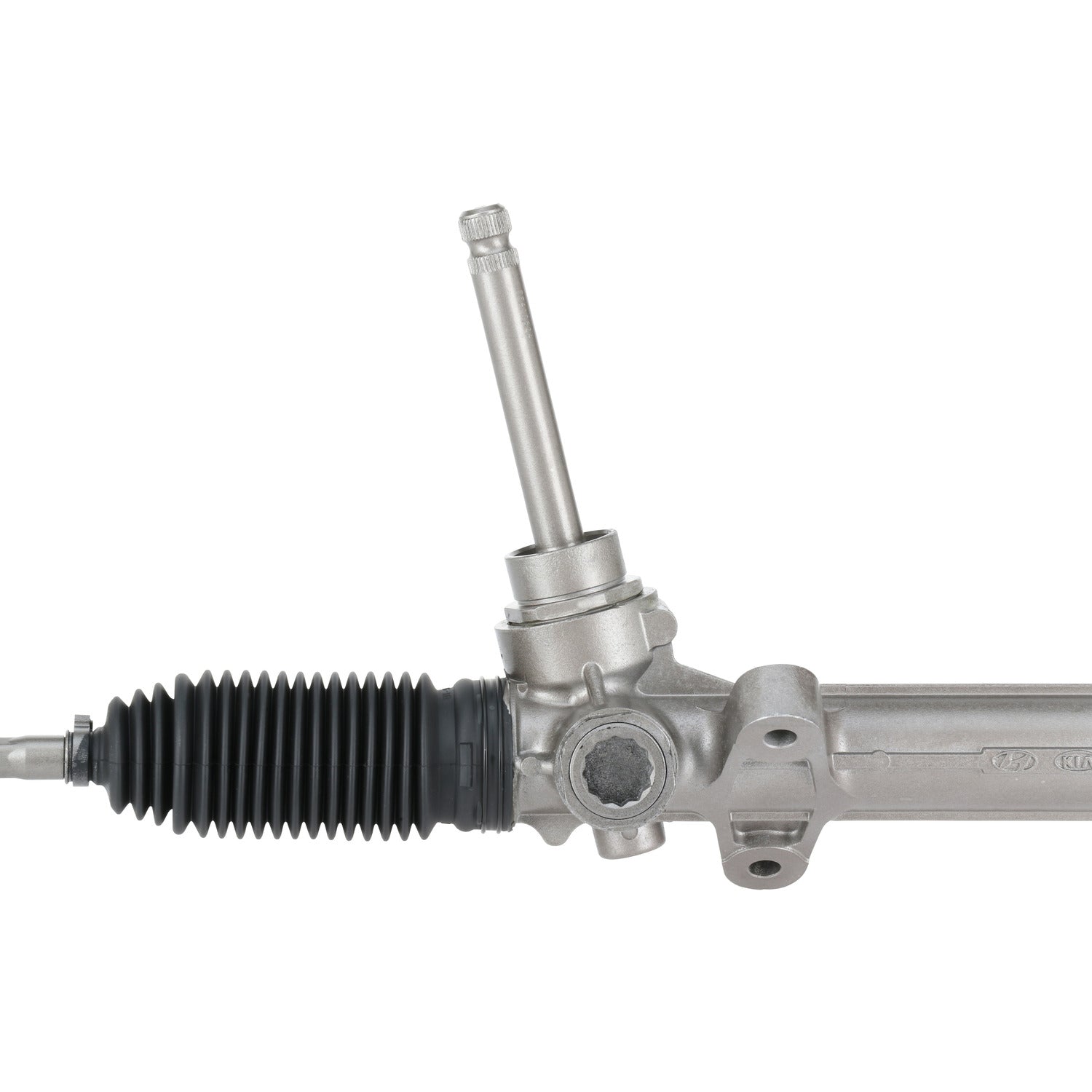

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94354M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94354M

SKU:94354M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 14.375 IN
Distance Between Mounting Holes 365.13 MM
Input Shaft Diameter 0.775 IN
Input Shaft Diameter 19.69 MM
Input Shaft Length 5.375 IN
Input Shaft Length 136.53 MM
Mounting Hole Quantity 4
Rack Length 43.375 IN
Rack Length 1101.73 MM
Thread Length 1.987 IN
Thread Length 50.47 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.938
Type Manual

Application Info: Hyundai Sonata (2011-14) ***W/O Hybrid, W/O Sport Steering***

Interchange: 56500-3Q000

BBB Cross-Reference: 213-0151

Cardone Cross-Reference: 1G-2403

Instructions - 1
