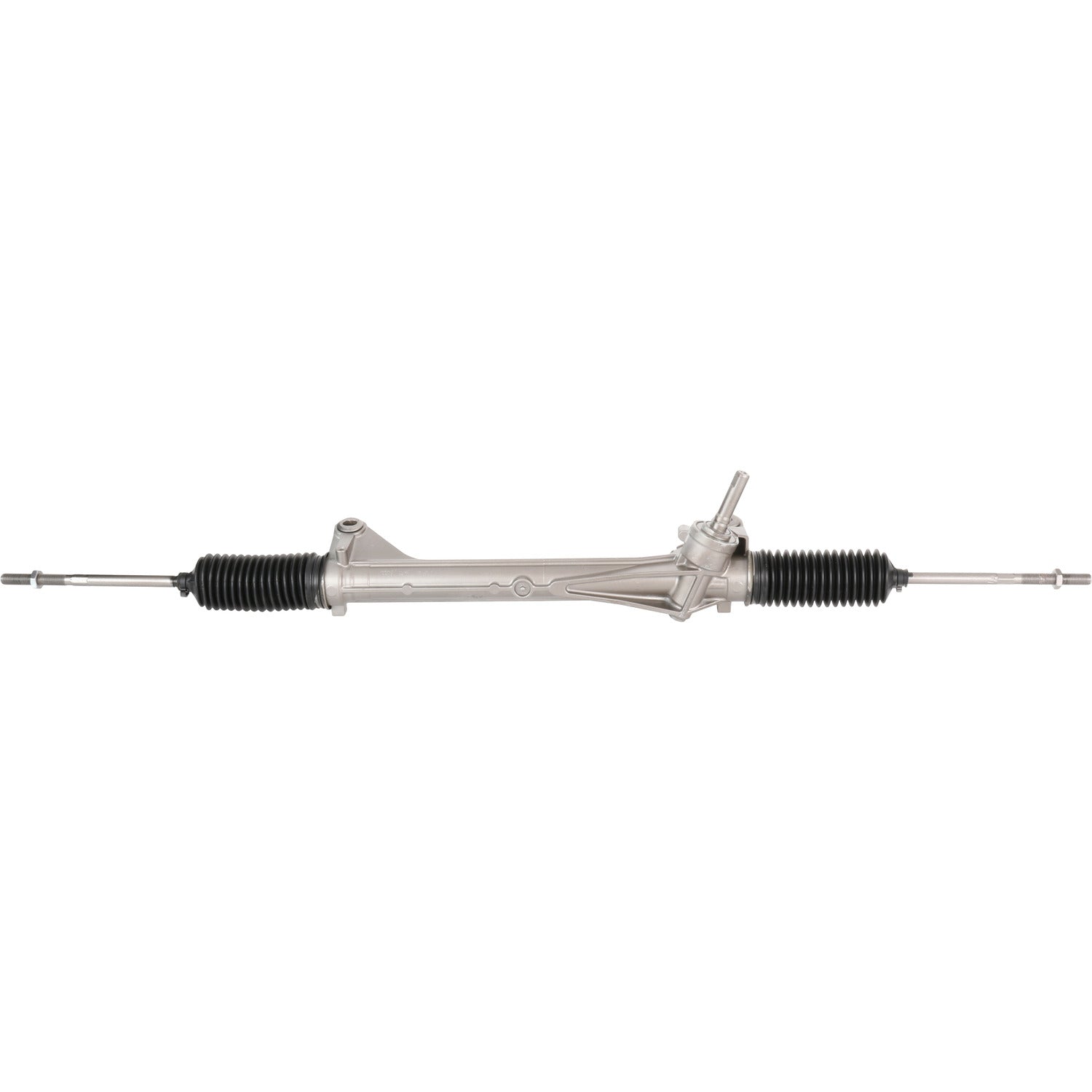

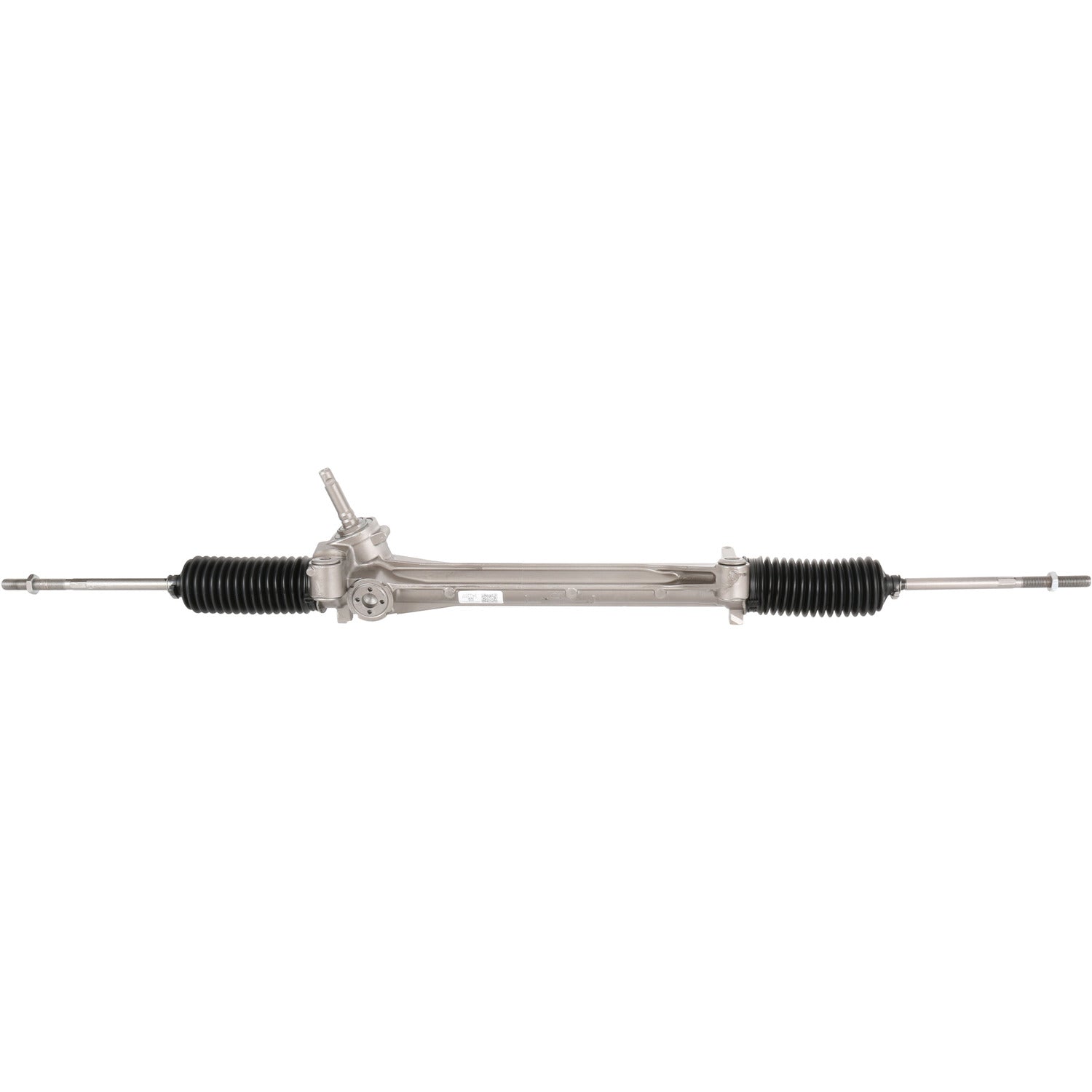

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94338M
Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94338M
SKU:94338M

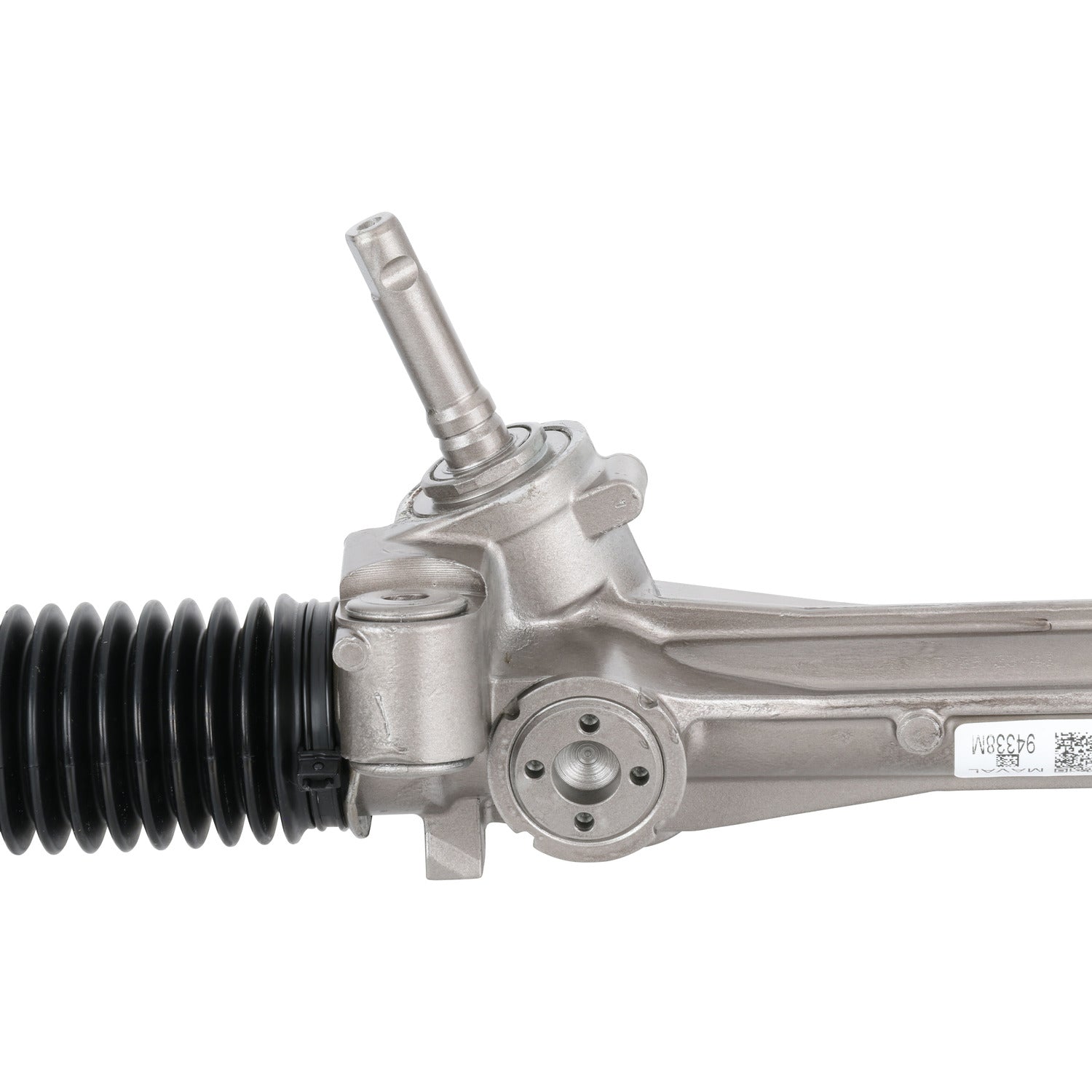

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 17.75 | IN |
| Distance Between Mounting Holes | 450.85 | MM |
| Input Shaft Diameter | 0.758 | IN |
| Input Shaft Diameter | 19.25 | MM |
| Input Shaft Length | 2.75 | IN |
| Input Shaft Length | 69.85 | MM |
| Mounting Hole Quantity | 2 | |
| Rack Length | 49.875 | IN |
| Rack Length | 1266.83 | MM |
| Thread Length | 3.056 | IN |
| Thread Length | 77.62 | MM |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 3 | |
| Type | Manual |
Application Info: Ford Escape (2010-12); Mazda Tribute (2008-11); Mercury Mariner (2010-11)
Interchange: AL8Z3504A, AL8Z3504AB, AL8Z3504BE, ZZC0302110A, ZZC032110R0A, ZZDM32110, ZZEA32110A
BBB Cross-Reference: 201-0128
Cardone Cross-Reference: 1G-2006
