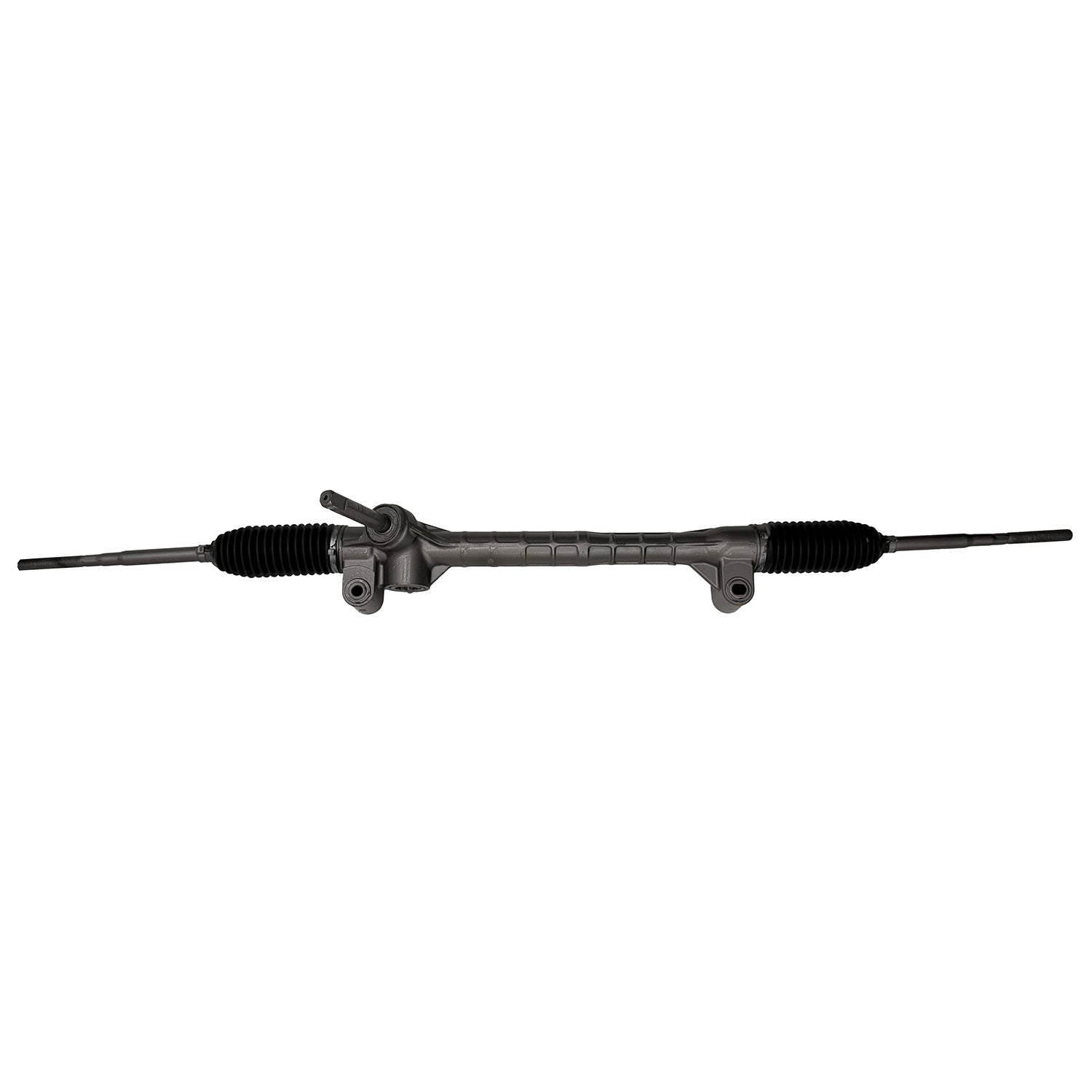

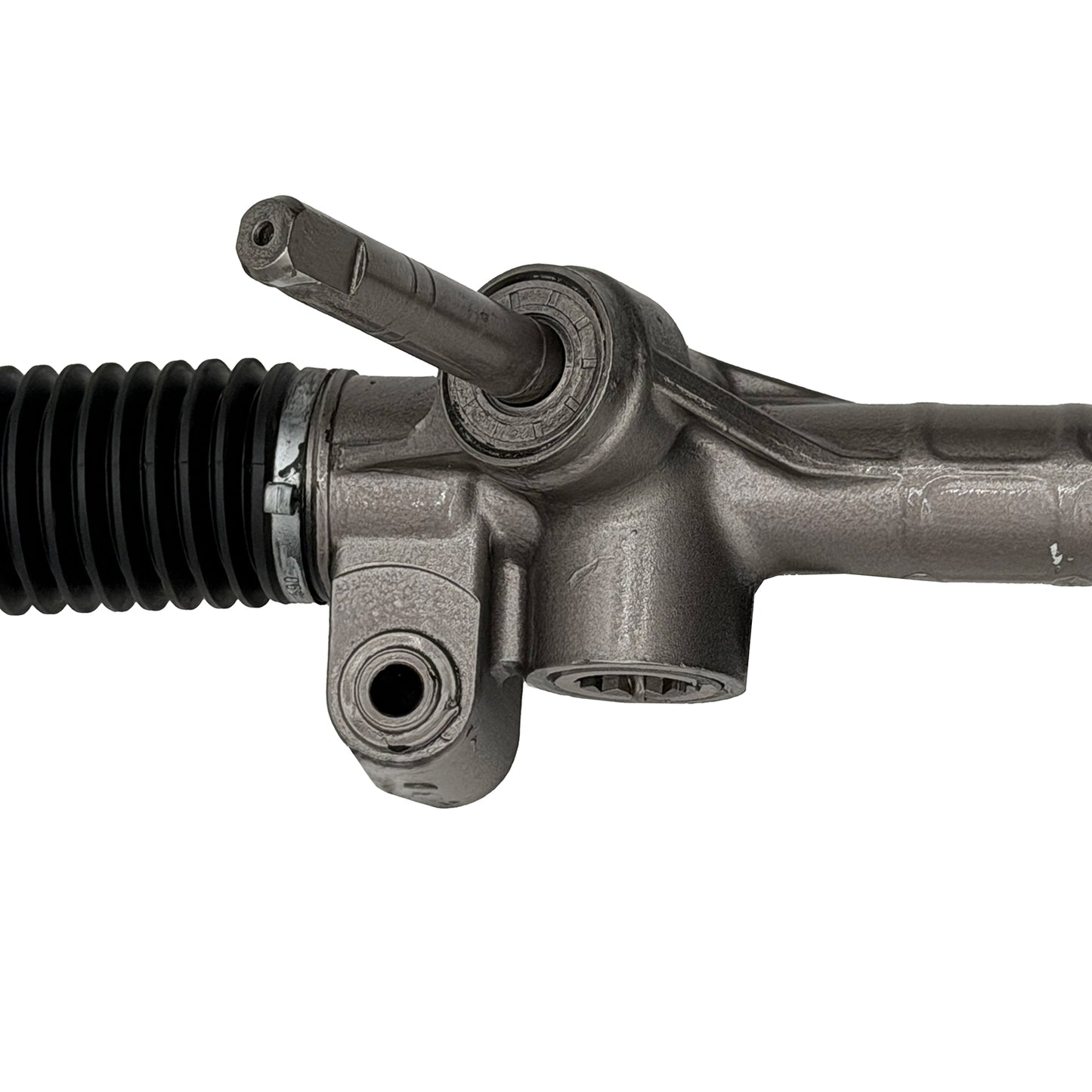

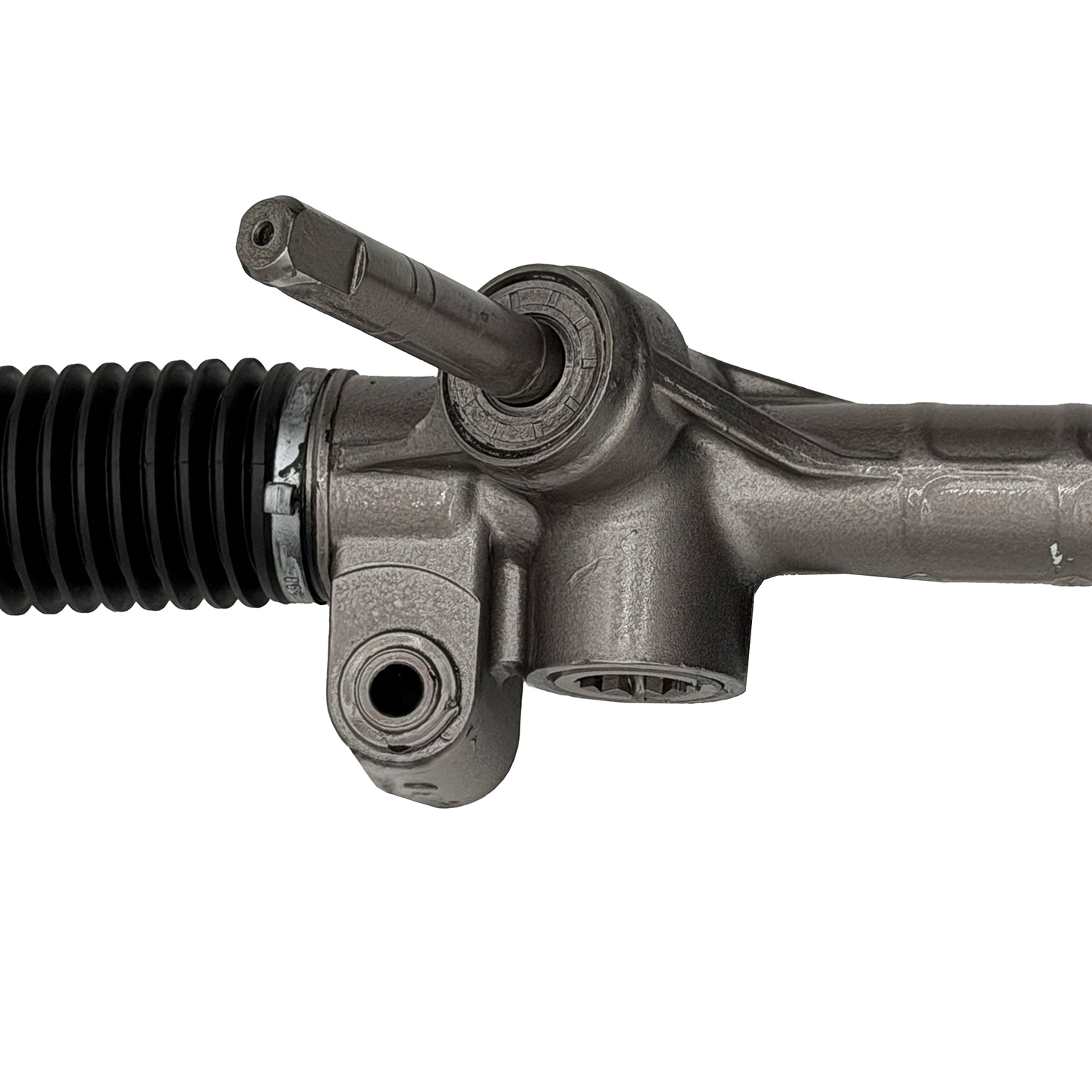

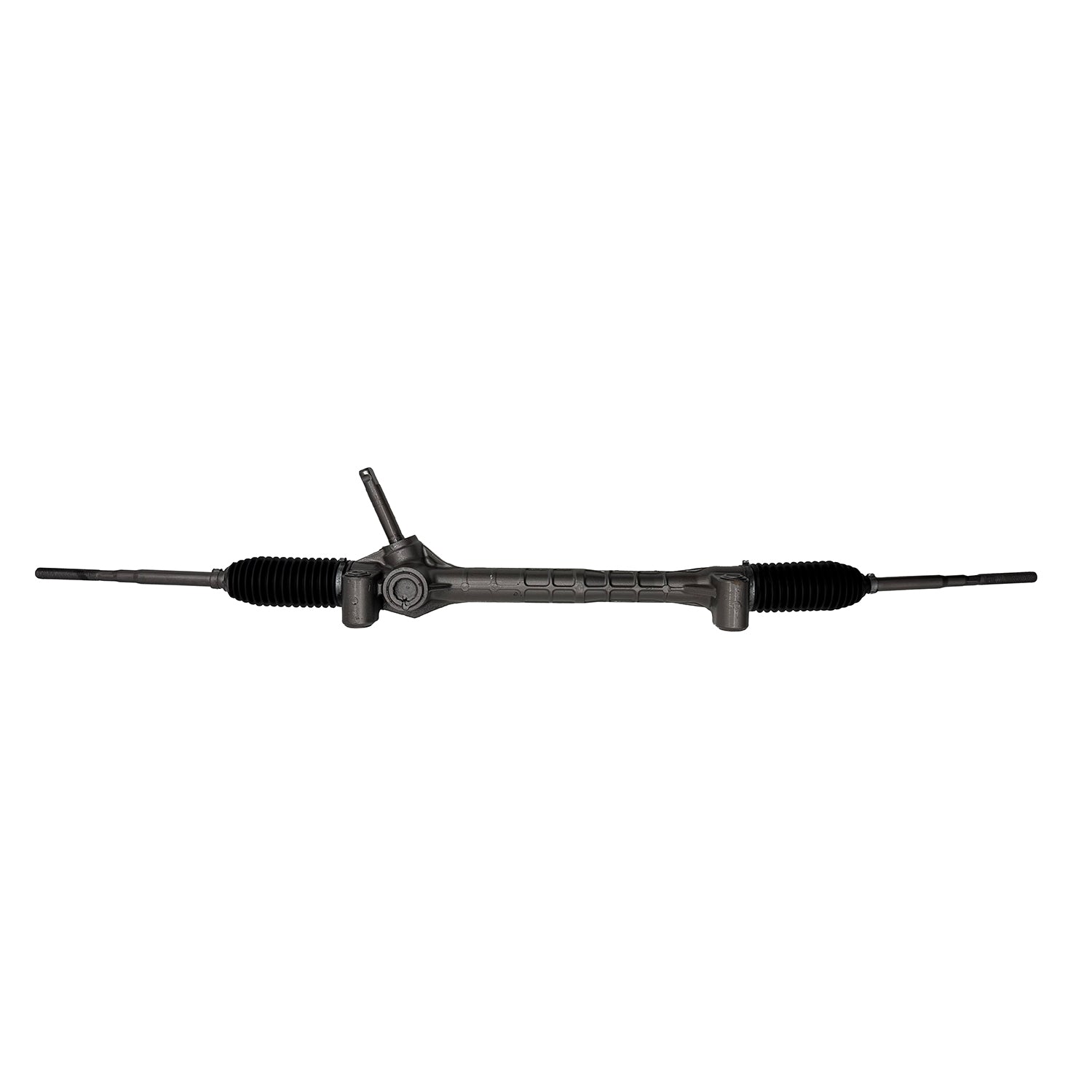

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94334M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94334M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 17.125 IN
Distance Between Mounting Holes 434.98 MM
Input Shaft Diameter 0.747 IN
Input Shaft Diameter 18.97 MM
Input Shaft Length 3.875 IN
Input Shaft Length 98.43 MM
Mounting Hole Quantity 2
Rack Length 47.625 IN
Rack Length 1209.68 MM
Thread Length 2.185 IN
Thread Length 55.5 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.875
Type Manual


Application Info: Chevrolet Cobalt (2005-10), HHR (2008-10); Pontiac G4 (2005-06), G5 (2007-10) ***W/Performance Handling Suspension (FE5) OR Sport Suspension (FE3)***

Interchange: 10373033, 15802533, 15816430, 25805999, 25956914, 25956925

BBB Cross-Reference: 203-0121

Cardone Cross-Reference: 1G-1815

Instructions - 1
