MAVAL

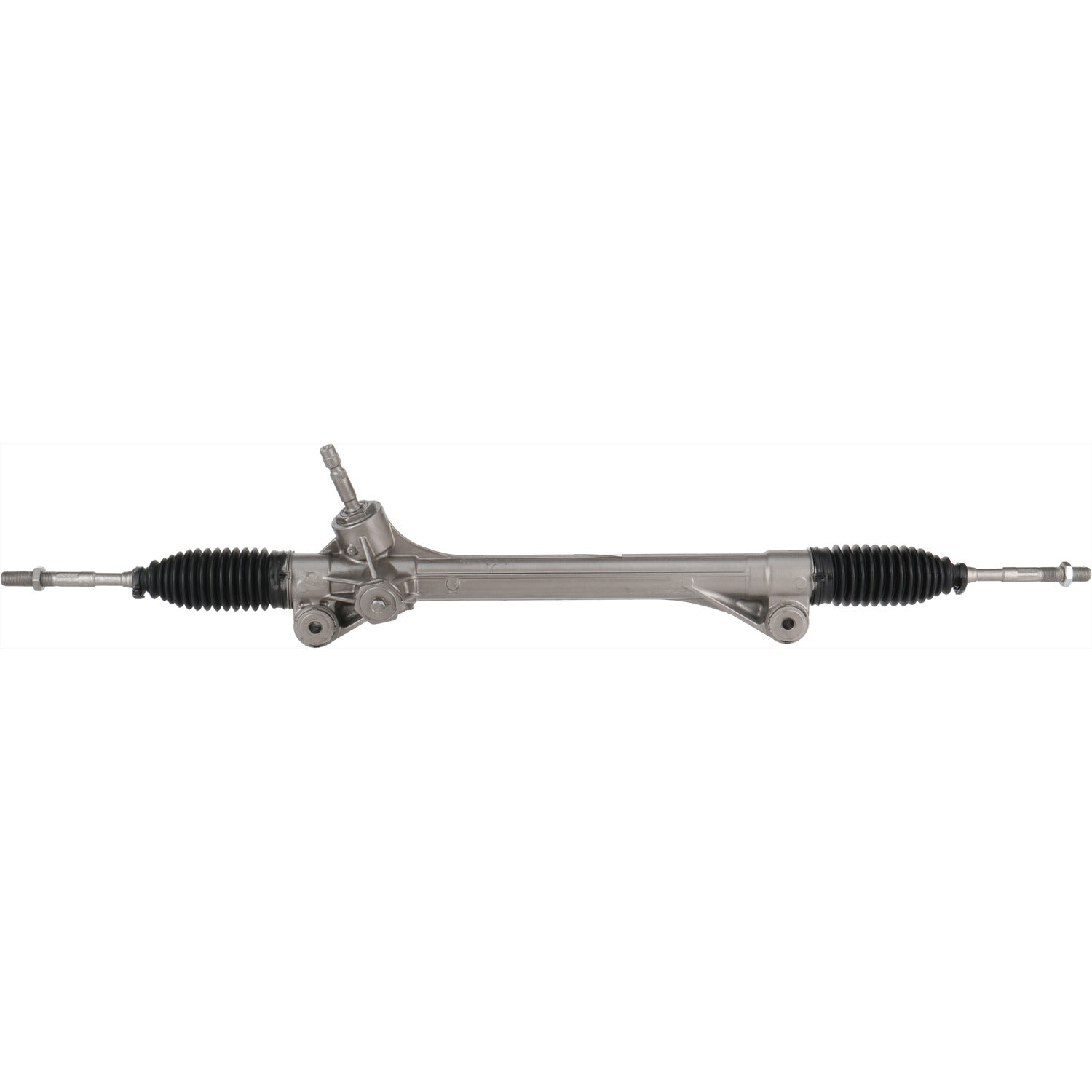

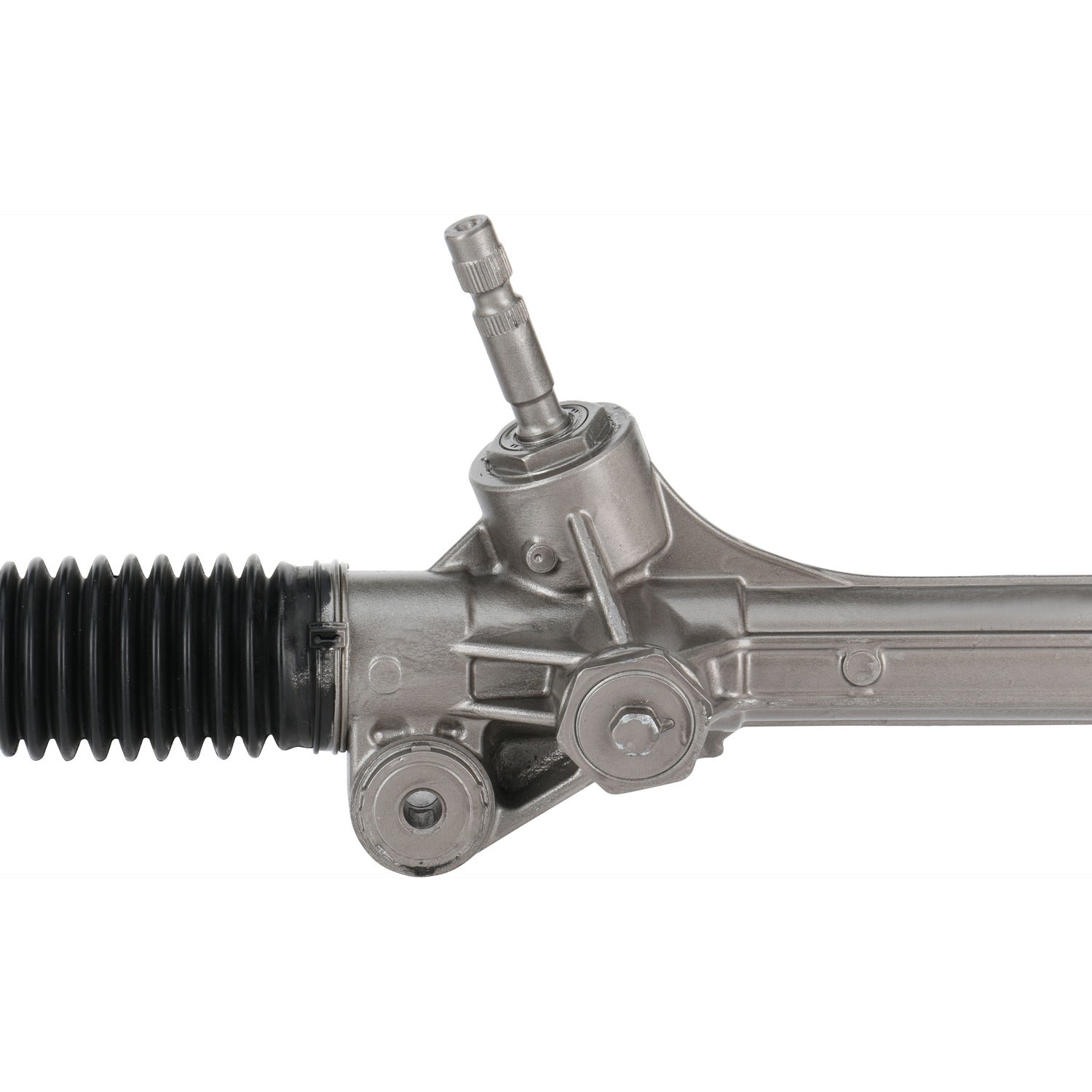

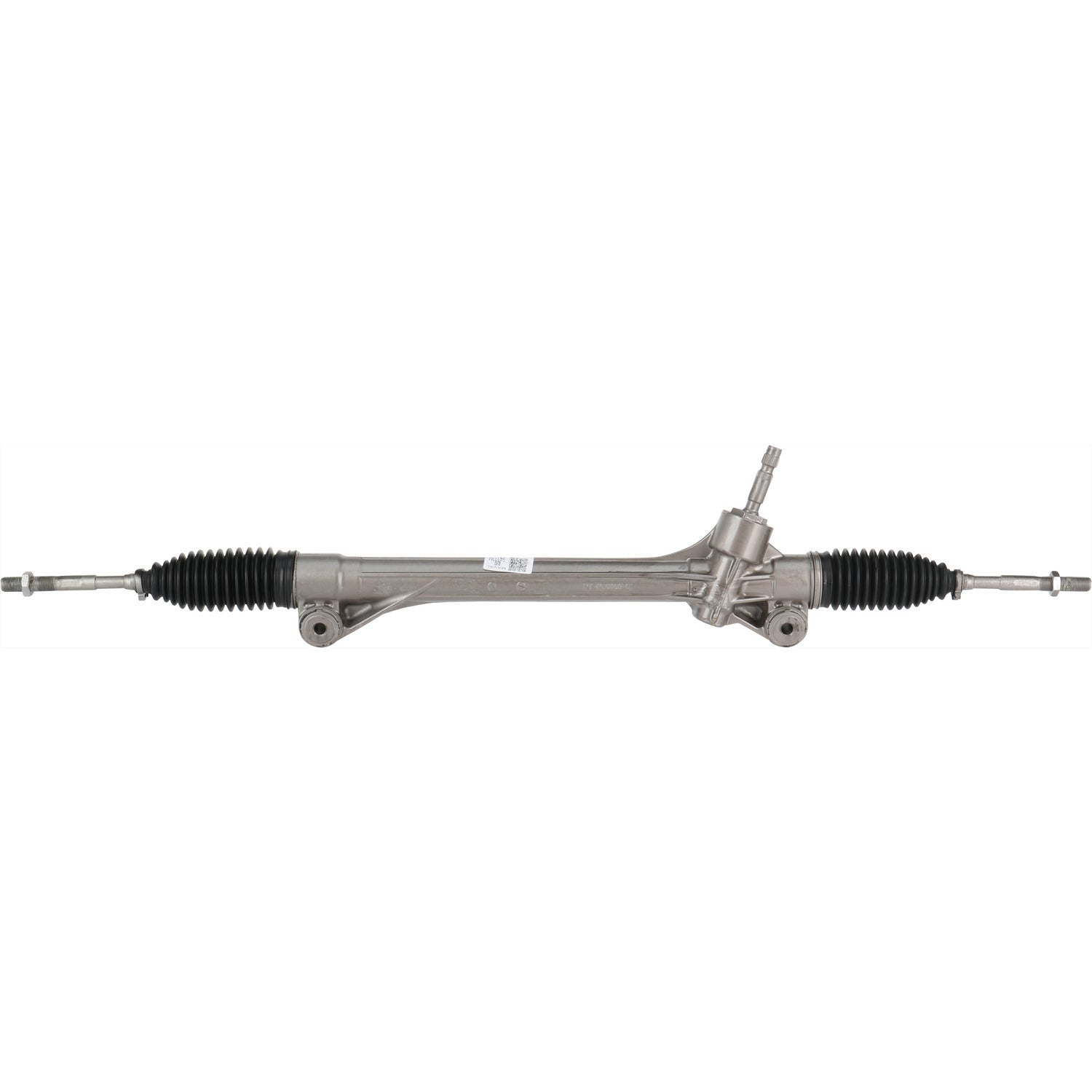

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94333M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94333M

SKU:94333M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 19.063 IN
Distance Between Mounting Holes 484.19 MM
Input Shaft Diameter 0.668 IN
Input Shaft Diameter 16.97 MM
Input Shaft Length 2.875 IN
Input Shaft Length 73.03 MM
Mounting Hole Quantity 2
Rack Length 44 IN
Rack Length 1117.6 MM
Thread Length 1.953 IN
Thread Length 49.61 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.063
Type Manual

Application Info: Toyota Highlander (2008-13)

Interchange: Toyota - 45510-48010

BBB Cross-Reference: 211-0117

Cardone Cross-Reference: 1G-2669

Instructions - 1
