MAVAL

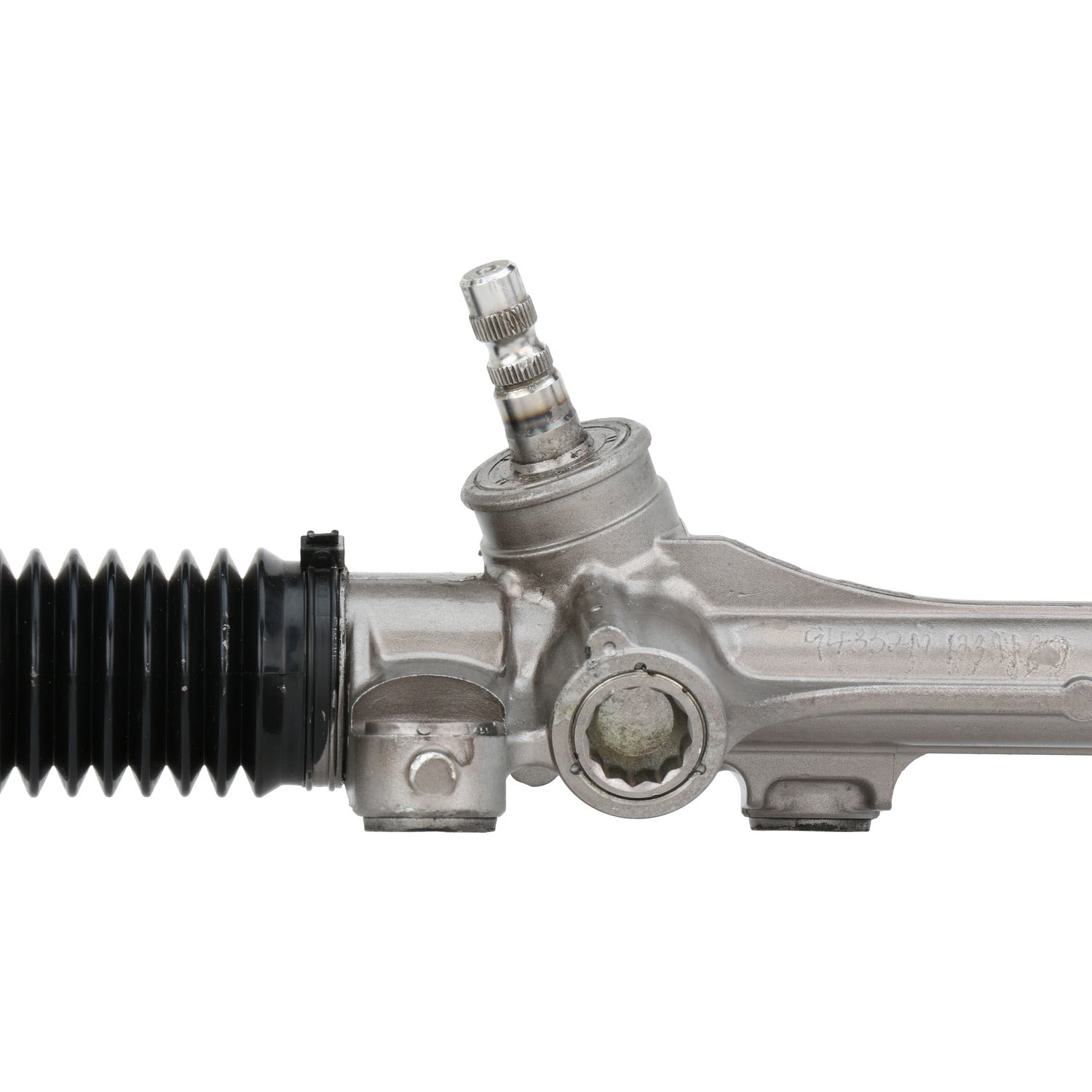

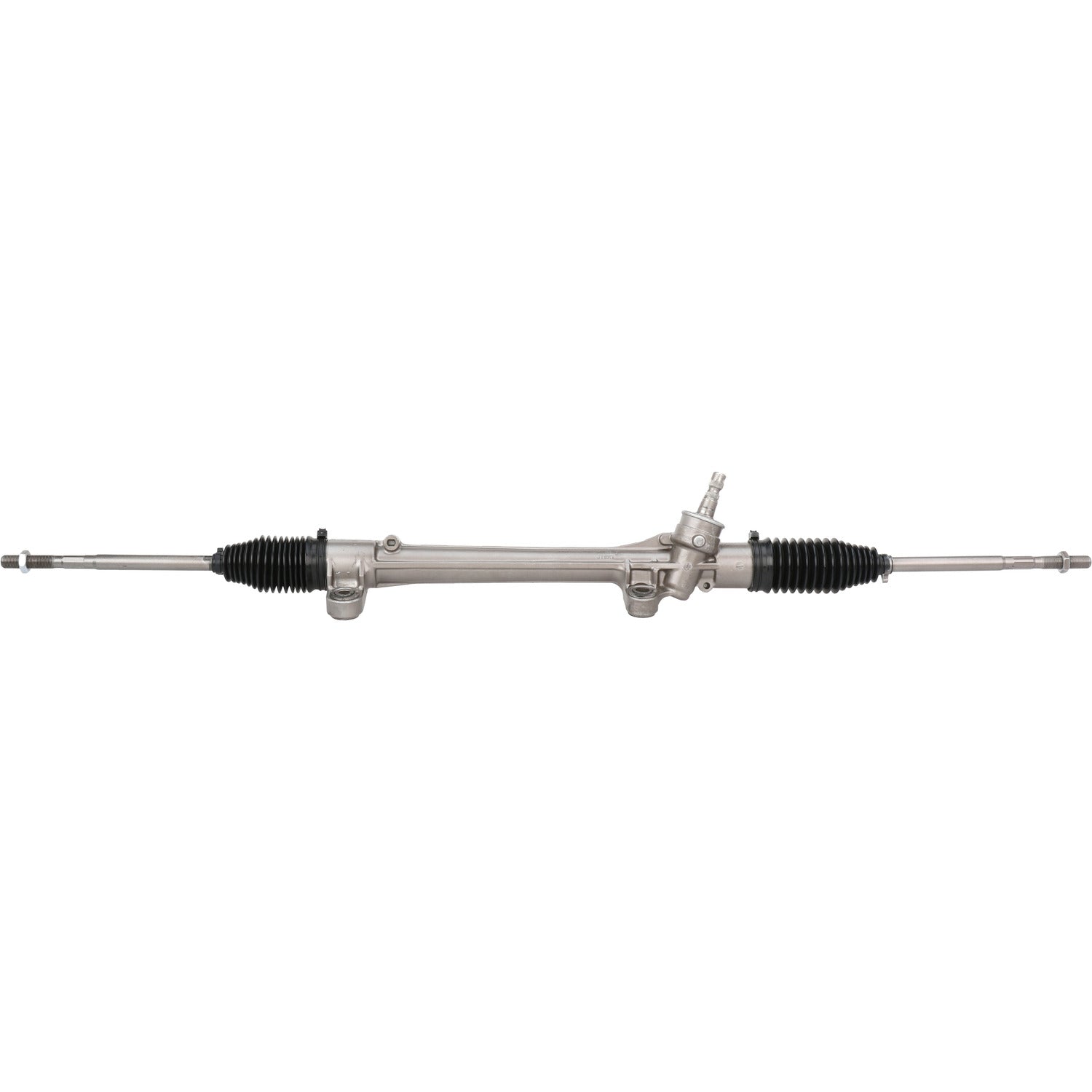

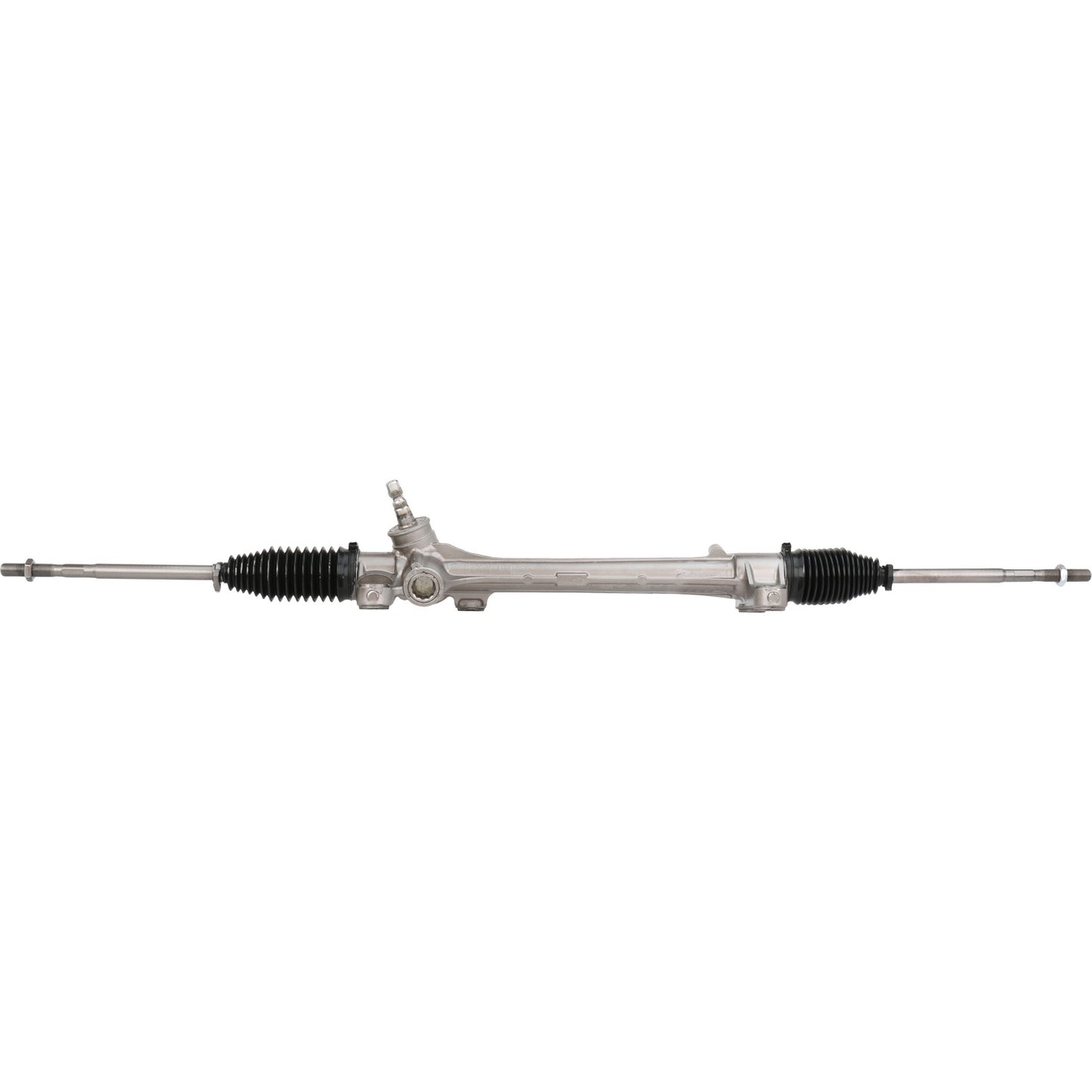

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94332M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94332M

SKU:94332M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 13.125 IN
Distance Between Mounting Holes 333.38 MM
Input Shaft Diameter 0.782 IN
Input Shaft Diameter 19.86 MM
Input Shaft Length 2.188 IN
Input Shaft Length 55.56 MM
Mounting Hole Quantity 4
Rack Length 48.563 IN
Rack Length 1233.49 MM
Thread Length 2.08 IN
Thread Length 52.83 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3
Type Manual

Application Info: Pontiac Vibe (2009-10); Toyota Matrix (2009-13) ***W/FWD, W/Automatic Transmission***

Interchange: 45510-02230

BBB Cross-Reference: 211-0133

Cardone Cross-Reference: 1G-2699

Instructions - 1
