MAVAL

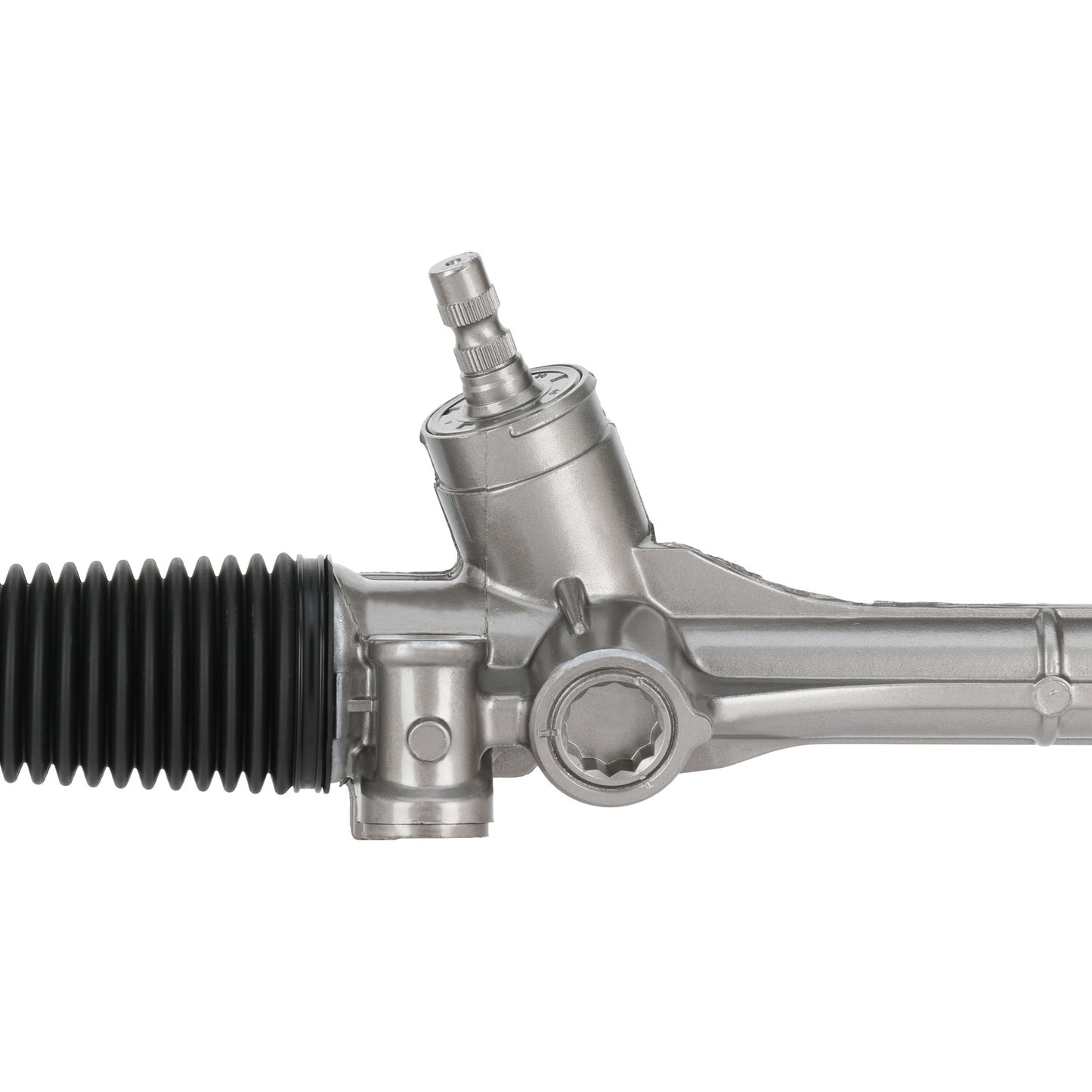

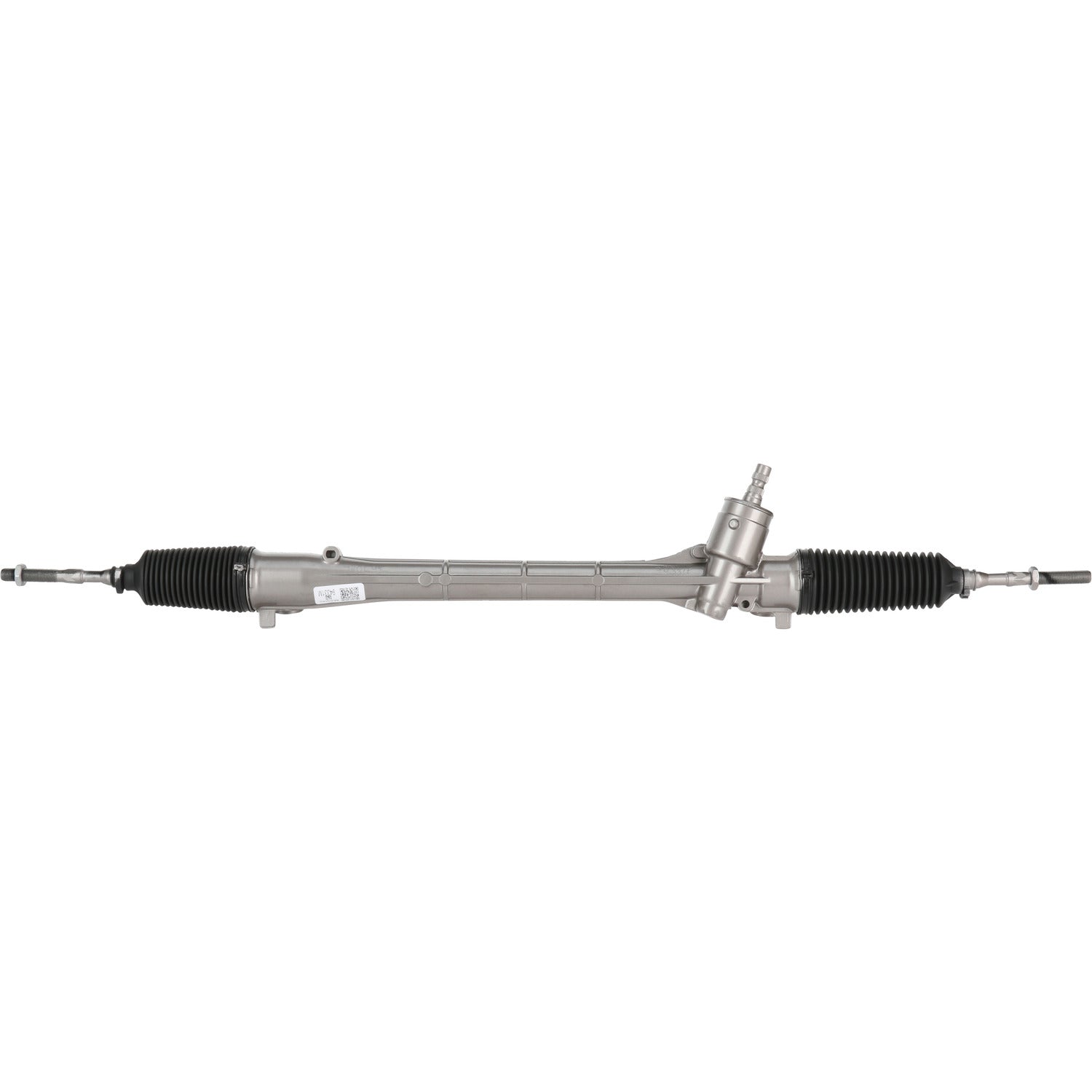

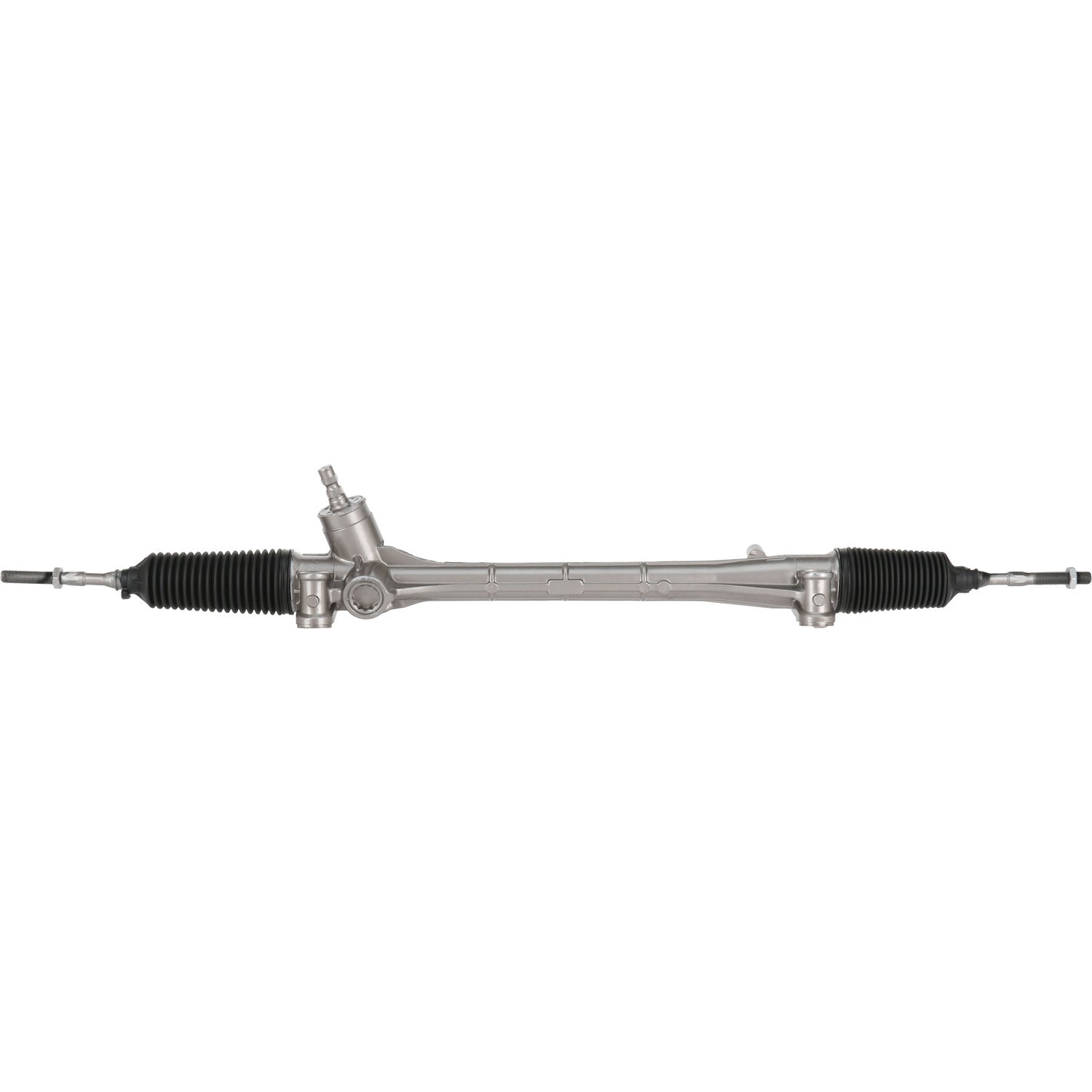

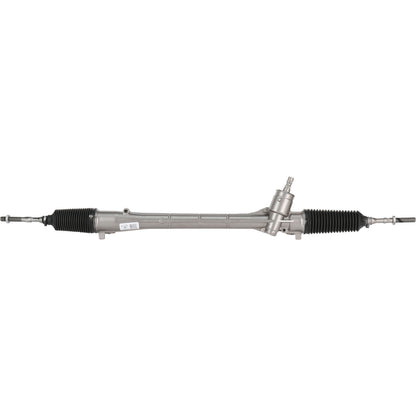

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94331M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94331M

SKU:94331M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 19.688 IN
Distance Between Mounting Holes 500.06 MM
Input Shaft Diameter 0.784 IN
Input Shaft Diameter 19.91 MM
Input Shaft Length 1.75 IN
Input Shaft Length 44.45 MM
Mounting Hole Quantity 2
Rack Length 43.063 IN
Rack Length 1093.79 MM
Thread Length 2.017 IN
Thread Length 51.23 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.625
Type Manual

Application Info: Toyota Prius (2010-15) ***W/15" OR 16" Wheels***

Interchange: 45510-47040

BBB Cross-Reference: 211-0131

Cardone Cross-Reference: 1G-26004

Instructions - 1
