MAVAL

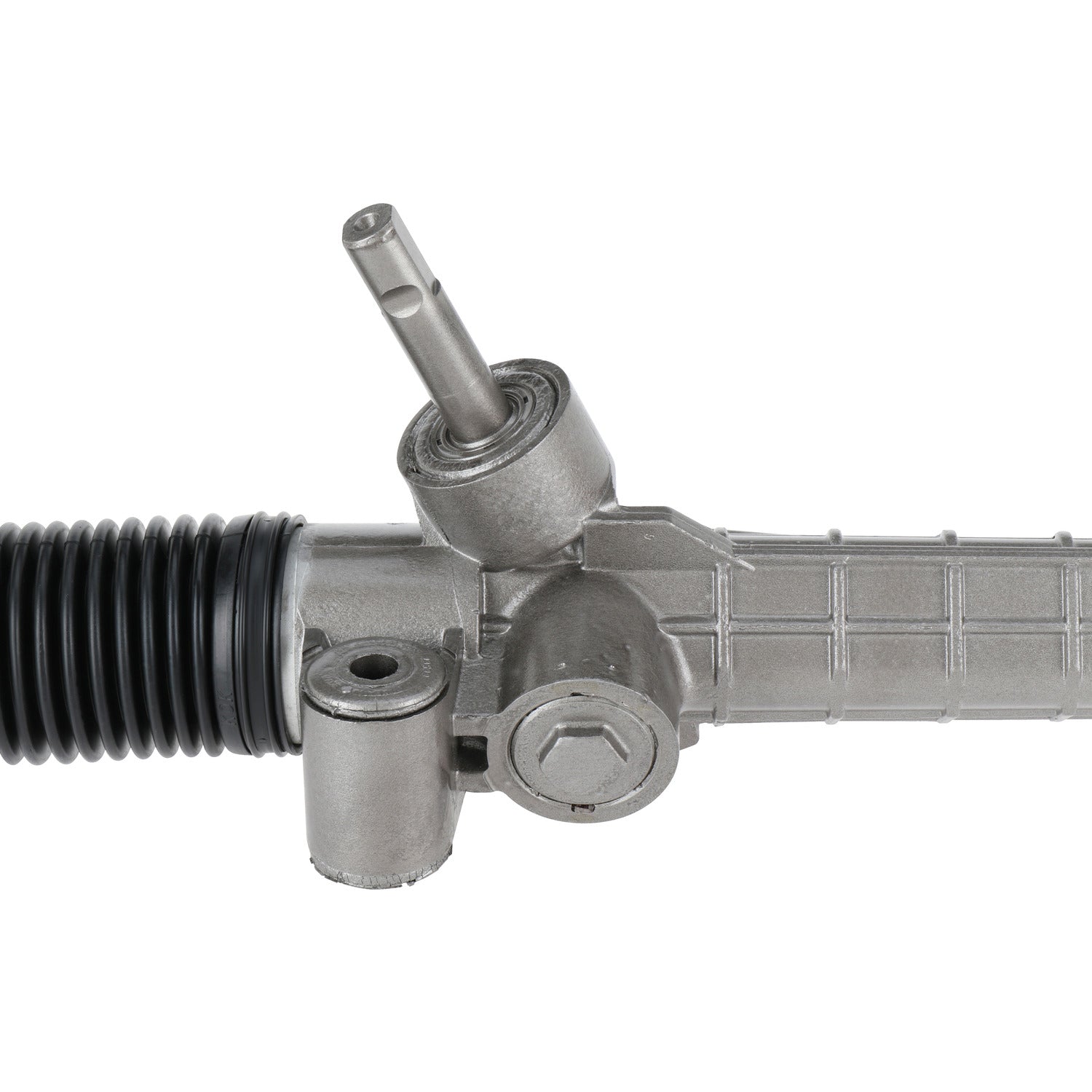

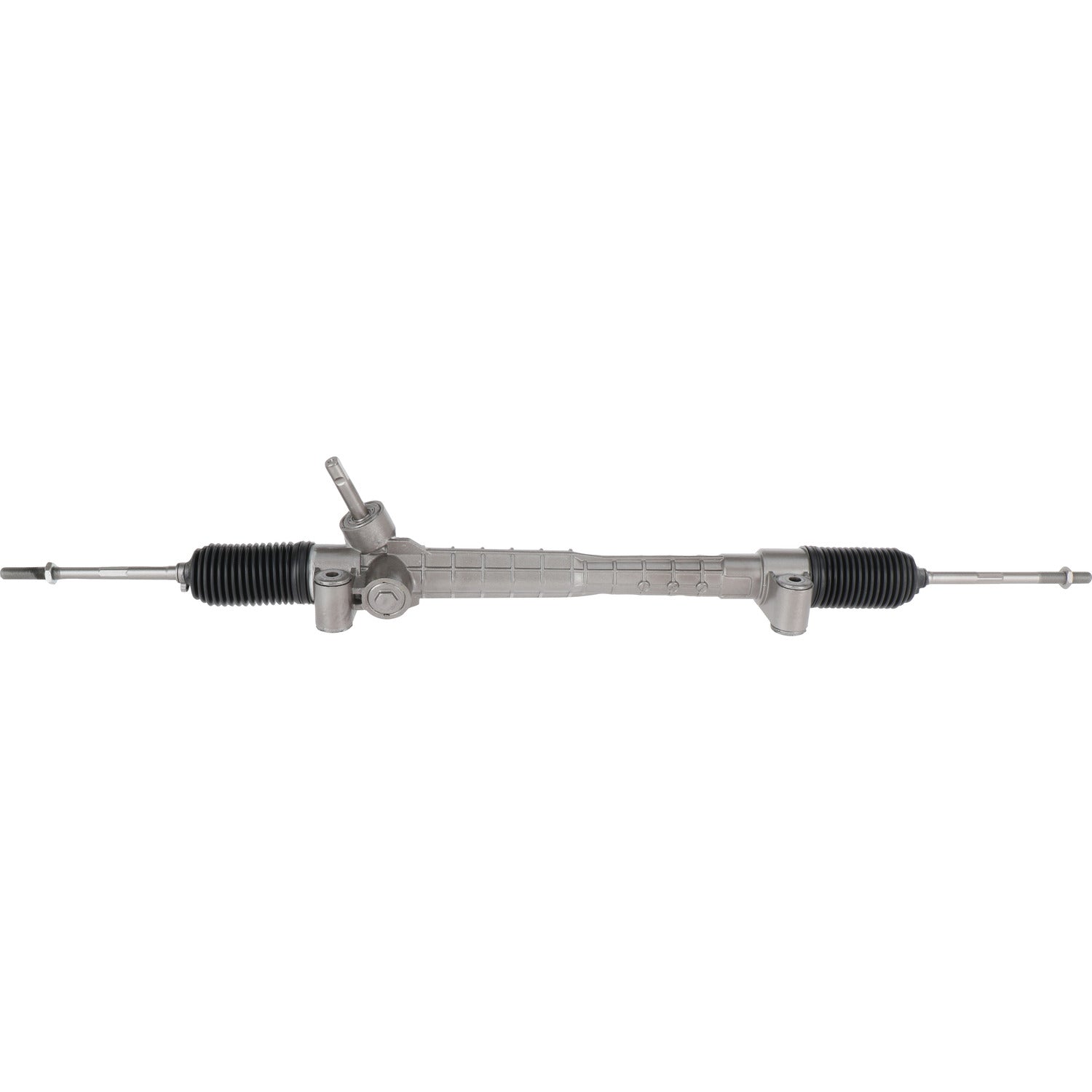

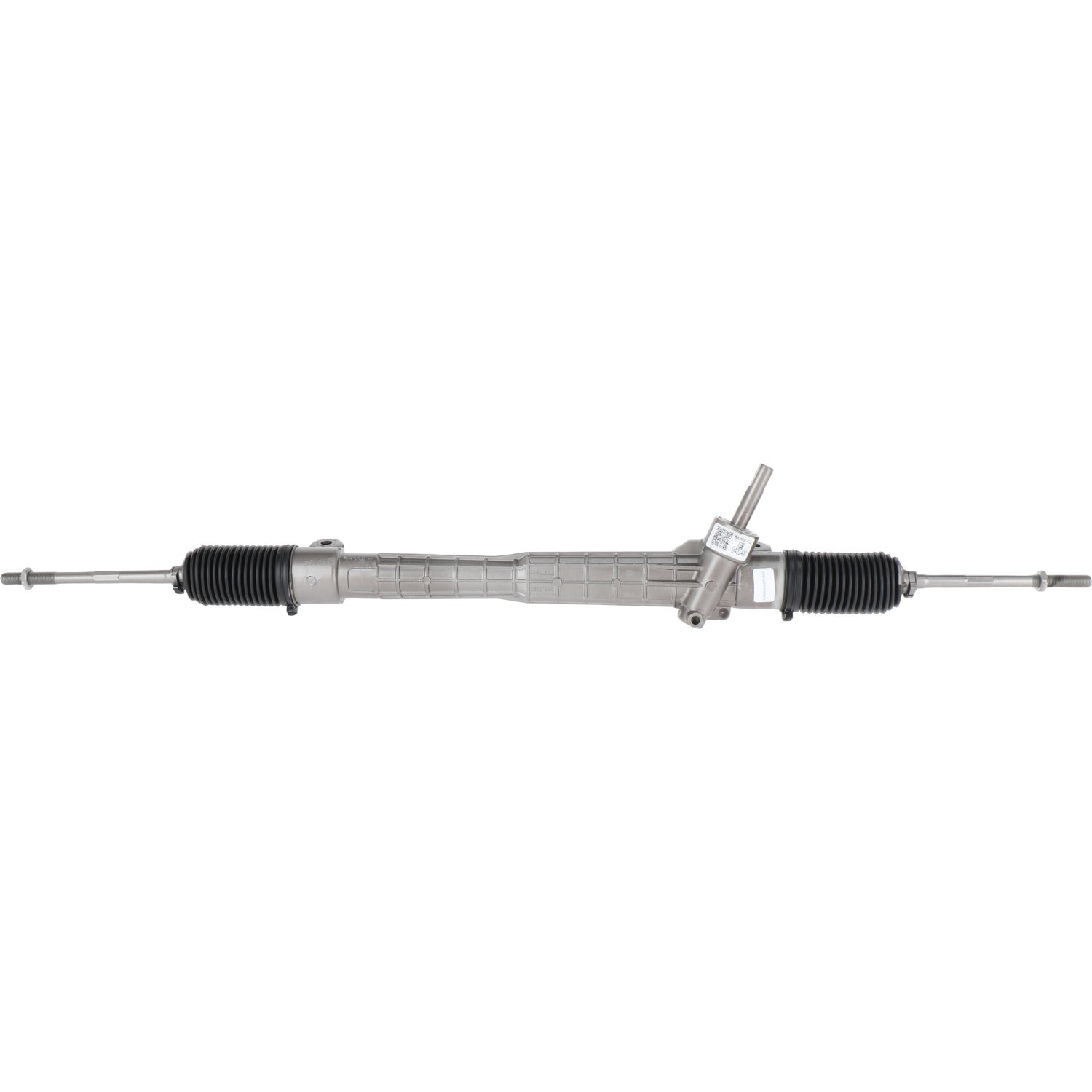

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94324M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94324M

SKU:94324M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 18.125 IN
Distance Between Mounting Holes 460.38 MM
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.76 MM
Input Shaft Length 2.625 IN
Input Shaft Length 66.68 MM
Mounting Hole Quantity 2
Rack Length 45.563 IN
Rack Length 1157.29 MM
Thread Length 2.414 IN
Thread Length 61.32 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3
Type Manual

Application Info: Chevrolet Malibu (2004-12); Pontiac G6 (2005-10); Saturn Aura (2007-09) ***W/EPS Steering***

Interchange: 15216791, 15277887, 15858369, 19303499, 21998461, 22687087, 25902150, 25978193

BBB Cross-Reference: 203-0117

Cardone Cross-Reference: 1G-1810

Instructions - 1
