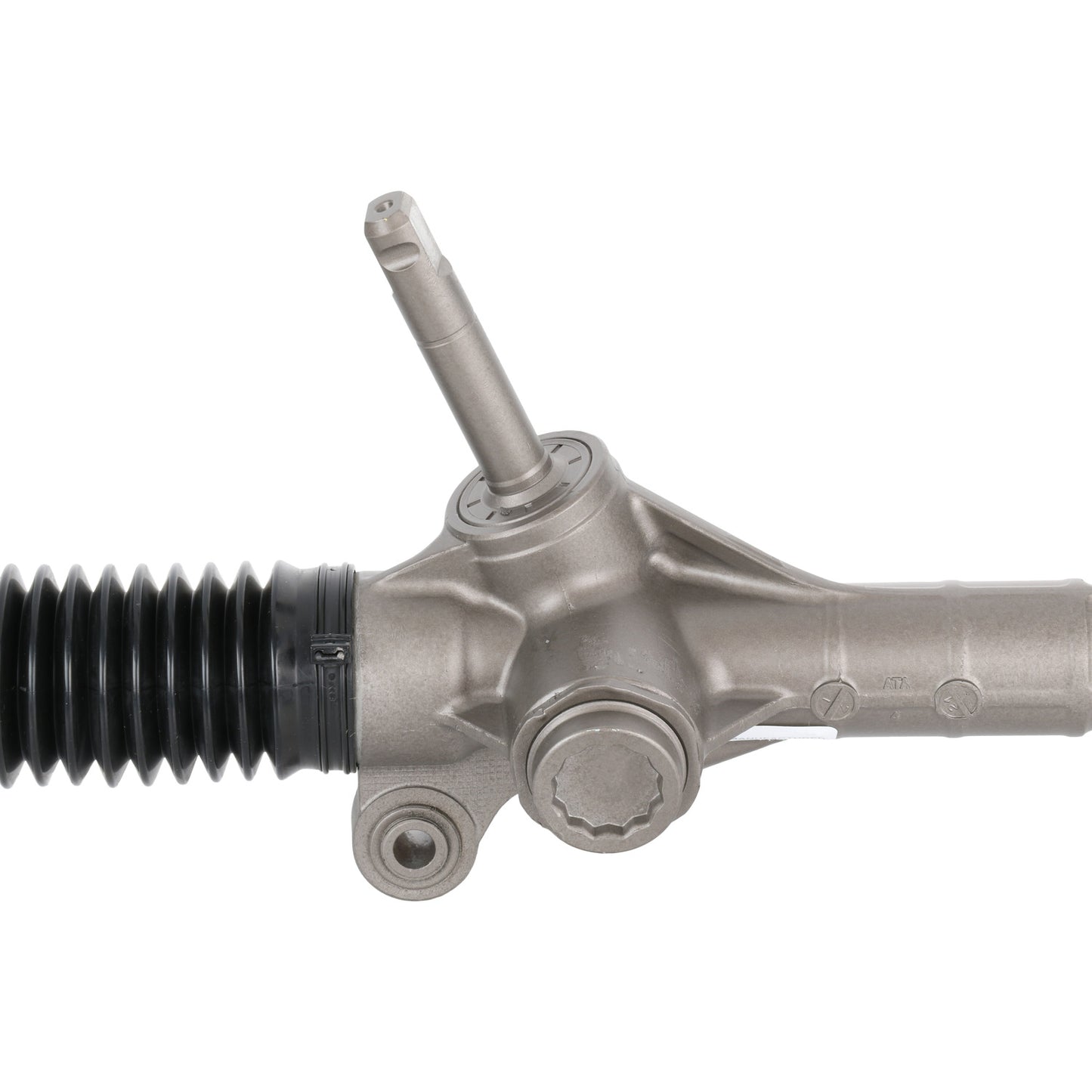

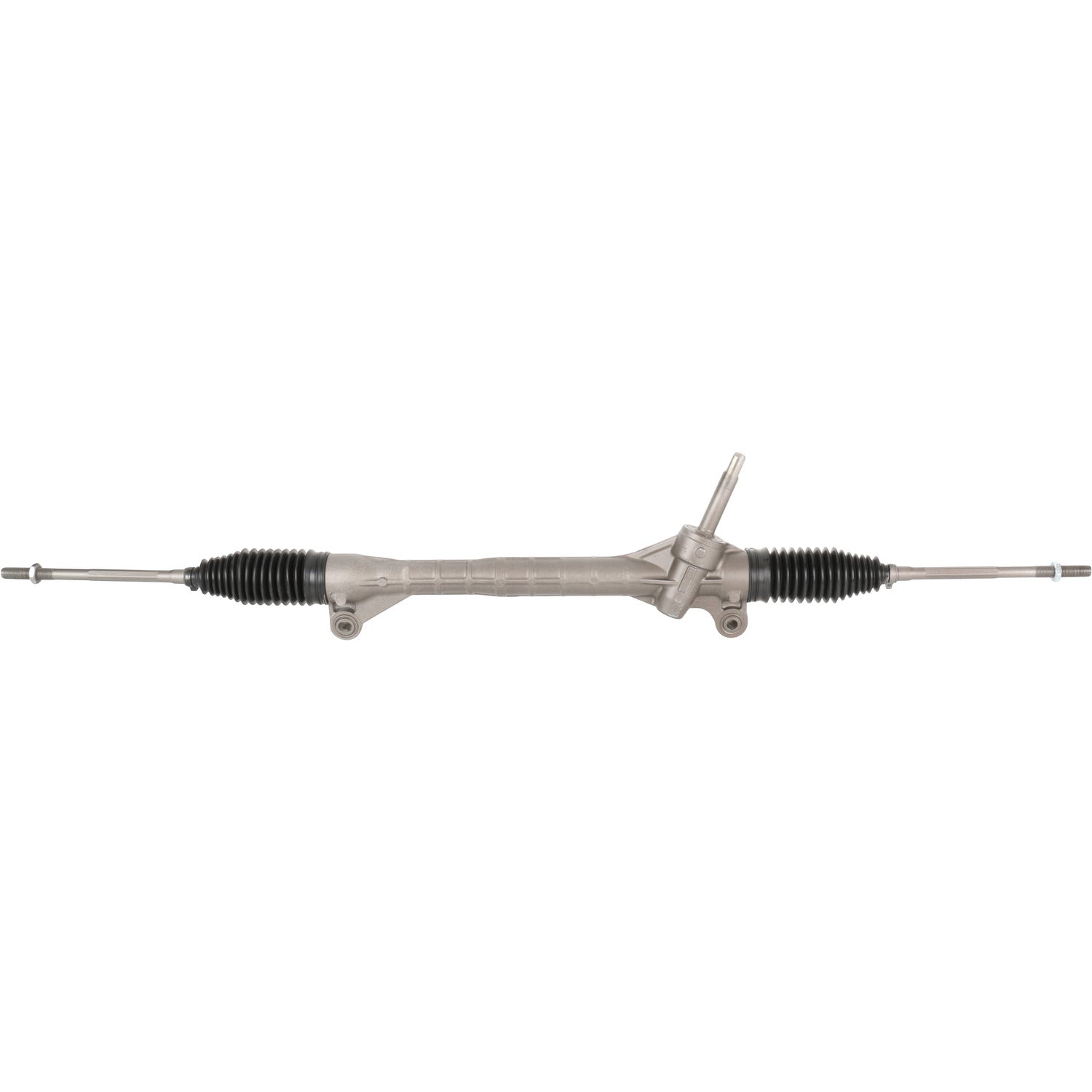

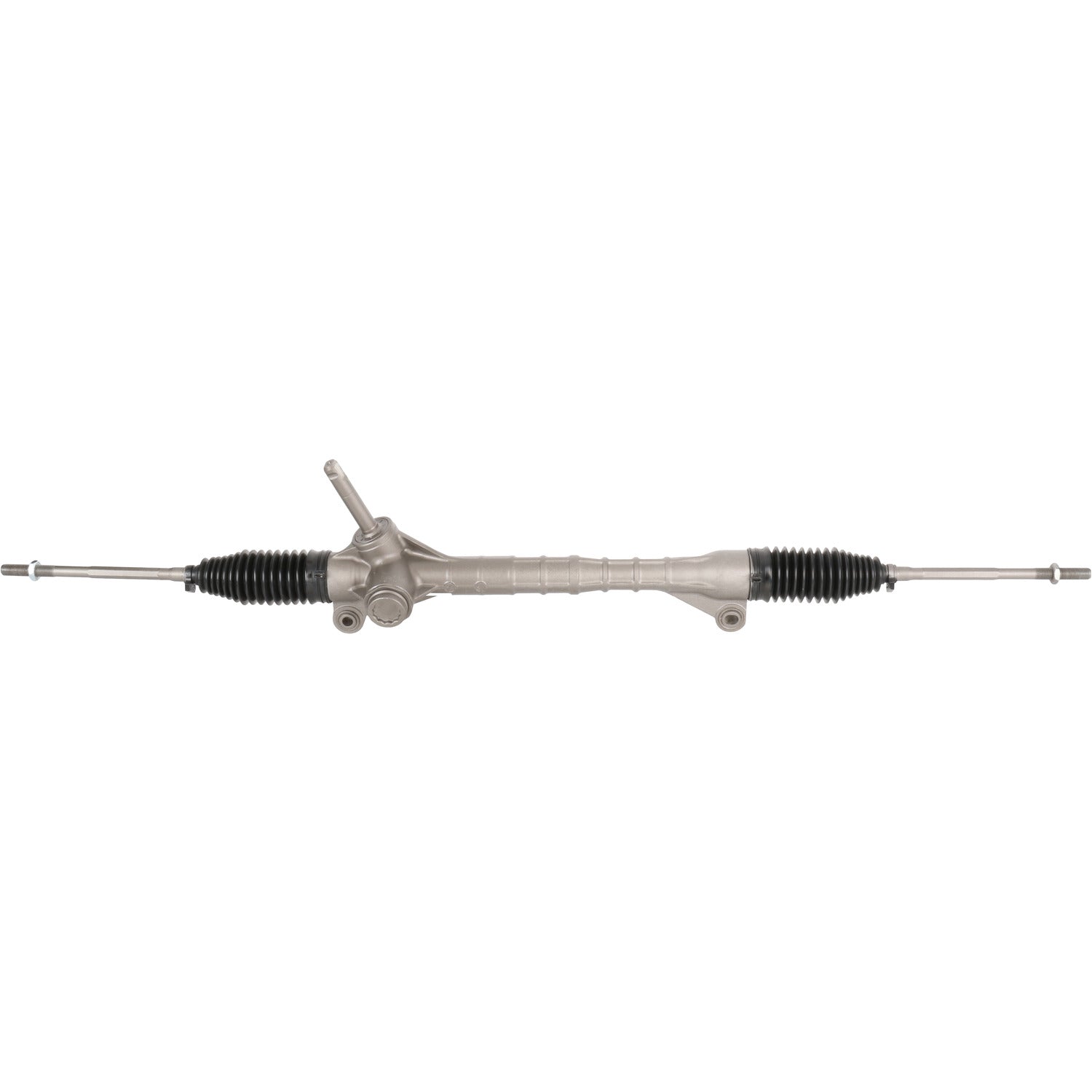

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94323M
Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94323M
SKU:94323M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| New Or Remanufactured | Remanufactured | |
| Mounting Hole Quantity | 2 | |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 3.5 | |
| Rack Length | 1228.73 | MM |
| Thread Length | 2.349 | IN |
| Thread Length | 59.66 | MM |
| Distance Between Mounting Holes | 17.375 | IN |
| Distance Between Mounting Holes | 441.33 | MM |
| Input Shaft Diameter | 0.745 | IN |
| Input Shaft Diameter | 18.92 | MM |
| Input Shaft Length | 3.875 | IN |
| Input Shaft Length | 98.43 | MM |
| Rack Length | 48.375 | IN |
Application Info: 2005-2009 Chevrolet Equinox LS LT LTZ (Note: W/Electric Power Assist); 2006-2009 Pontiac Torrent Base (Note: W/Electric Power Assist)
Interchange: Chrysler - 19133700
BBB Cross-Reference: 203-0118
Cardone Cross-Reference: 1G-1813
