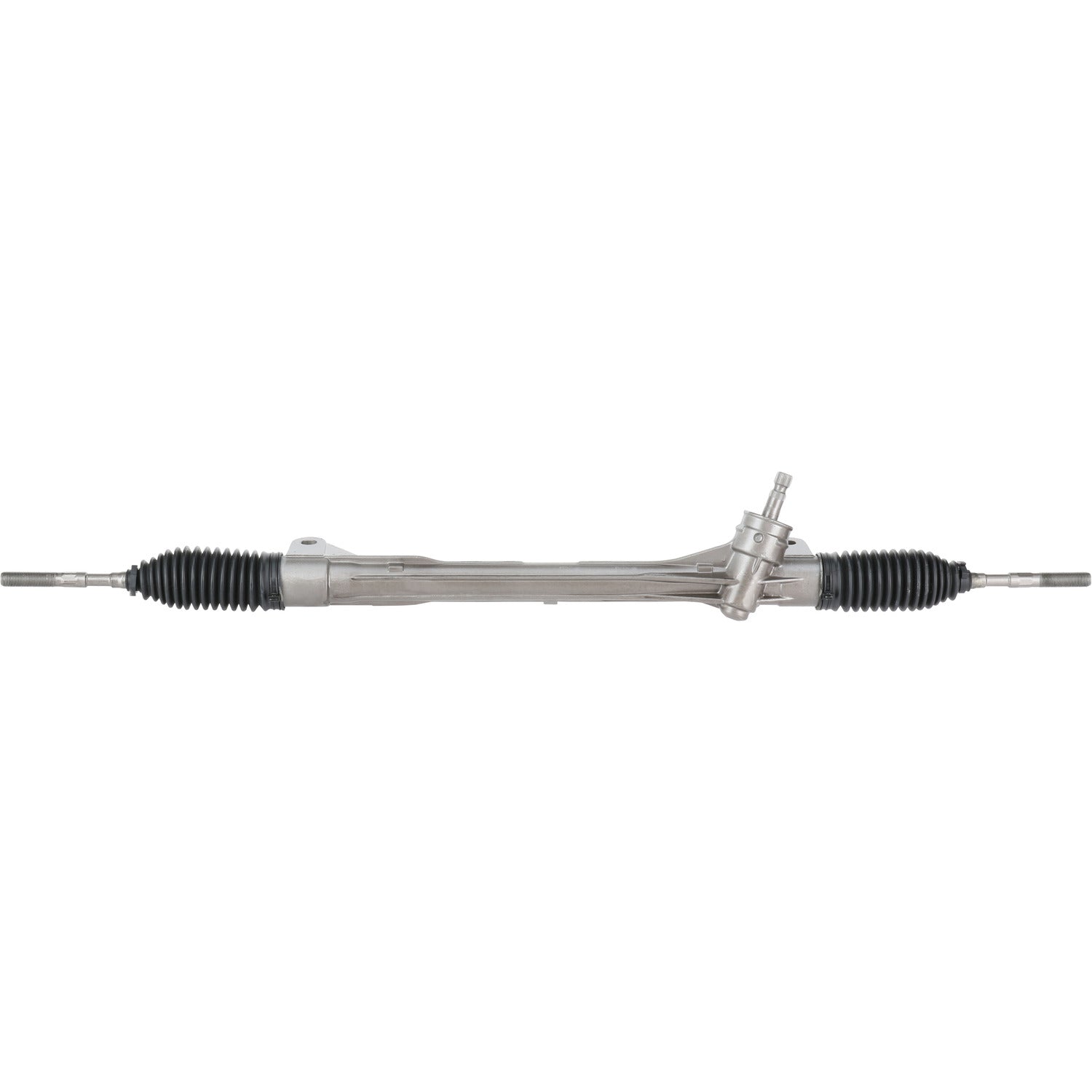

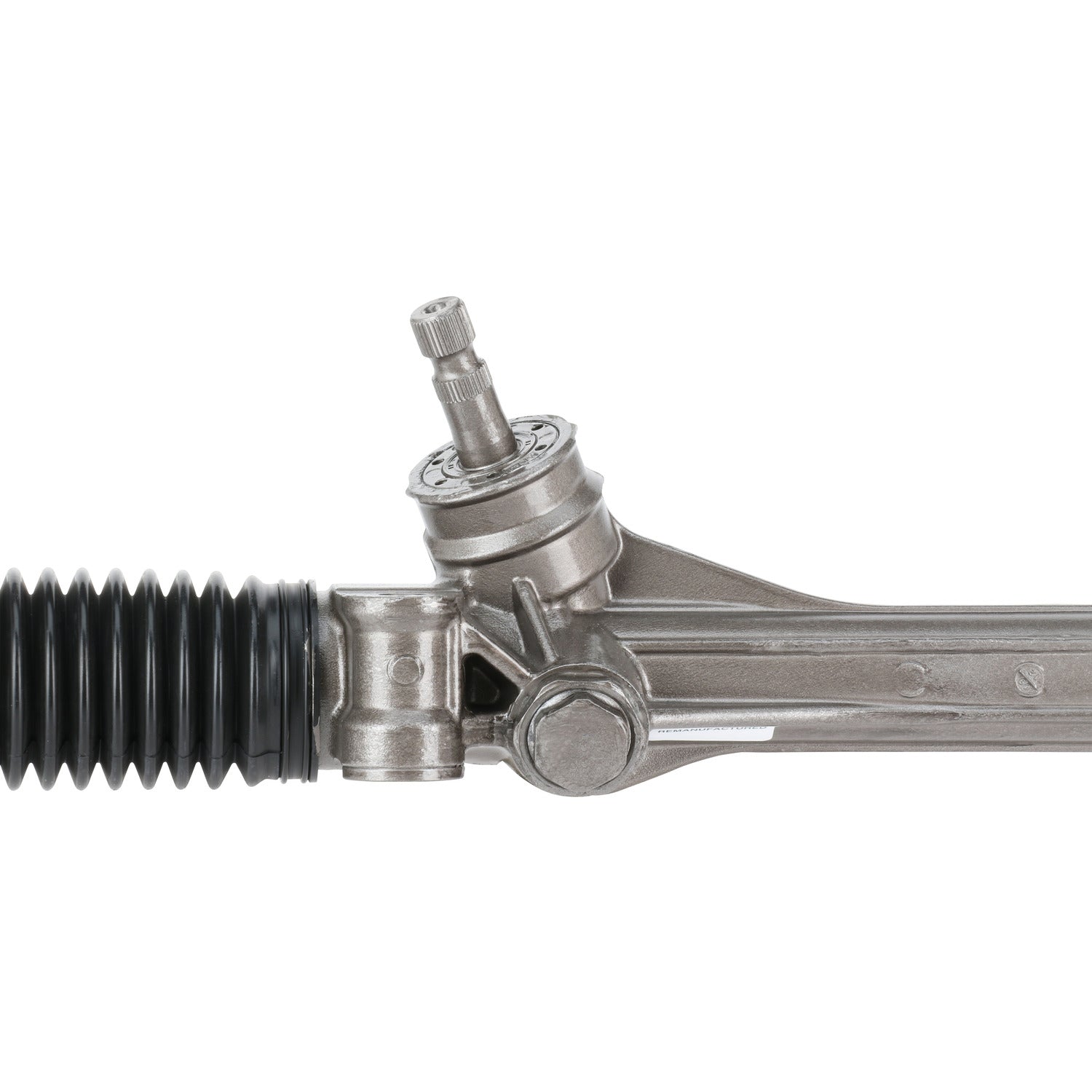

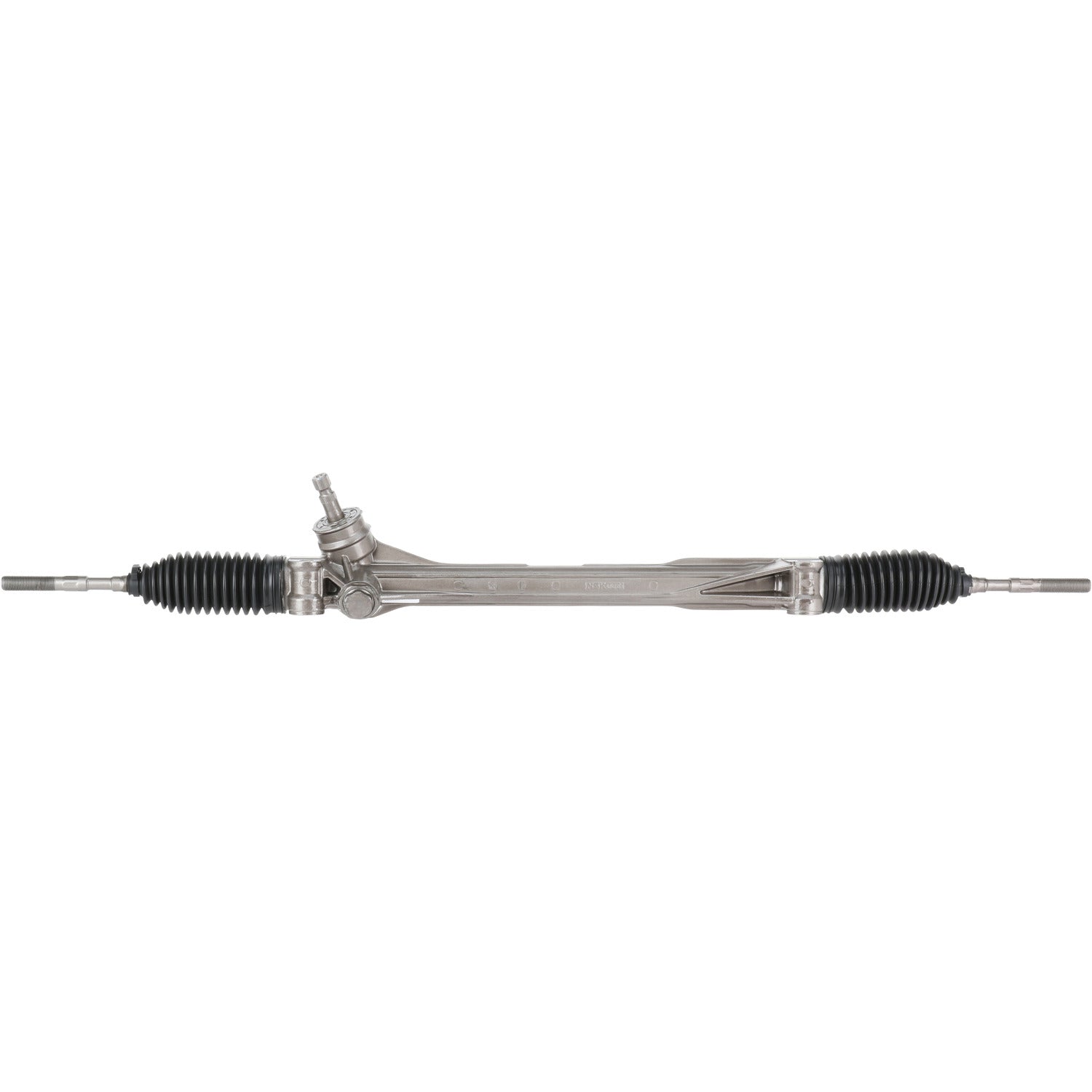

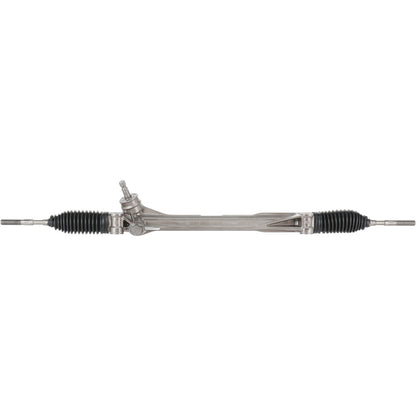

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94320M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94320M

SKU:94320M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 19.75 IN
Distance Between Mounting Holes 501.65 MM
Input Shaft Diameter 0.707 IN
Input Shaft Diameter 17.96 MM
Input Shaft Length 1.938 IN
Input Shaft Length 49.21 MM
Mounting Hole Quantity 2
Rack Length 43.5 IN
Rack Length 1104.9 MM
Thread Length 2.043 IN
Thread Length 51.89 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.688
Type Manual

Application Info: Toyota RAV4 (2006-12) ***W/2.5L L4 Engine OR 3.5L V6 Engine, W/Sport Trim***

Interchange: 45510-0R020

BBB Cross-Reference: 211-0123

Cardone Cross-Reference: 1G-2697
