MAVAL

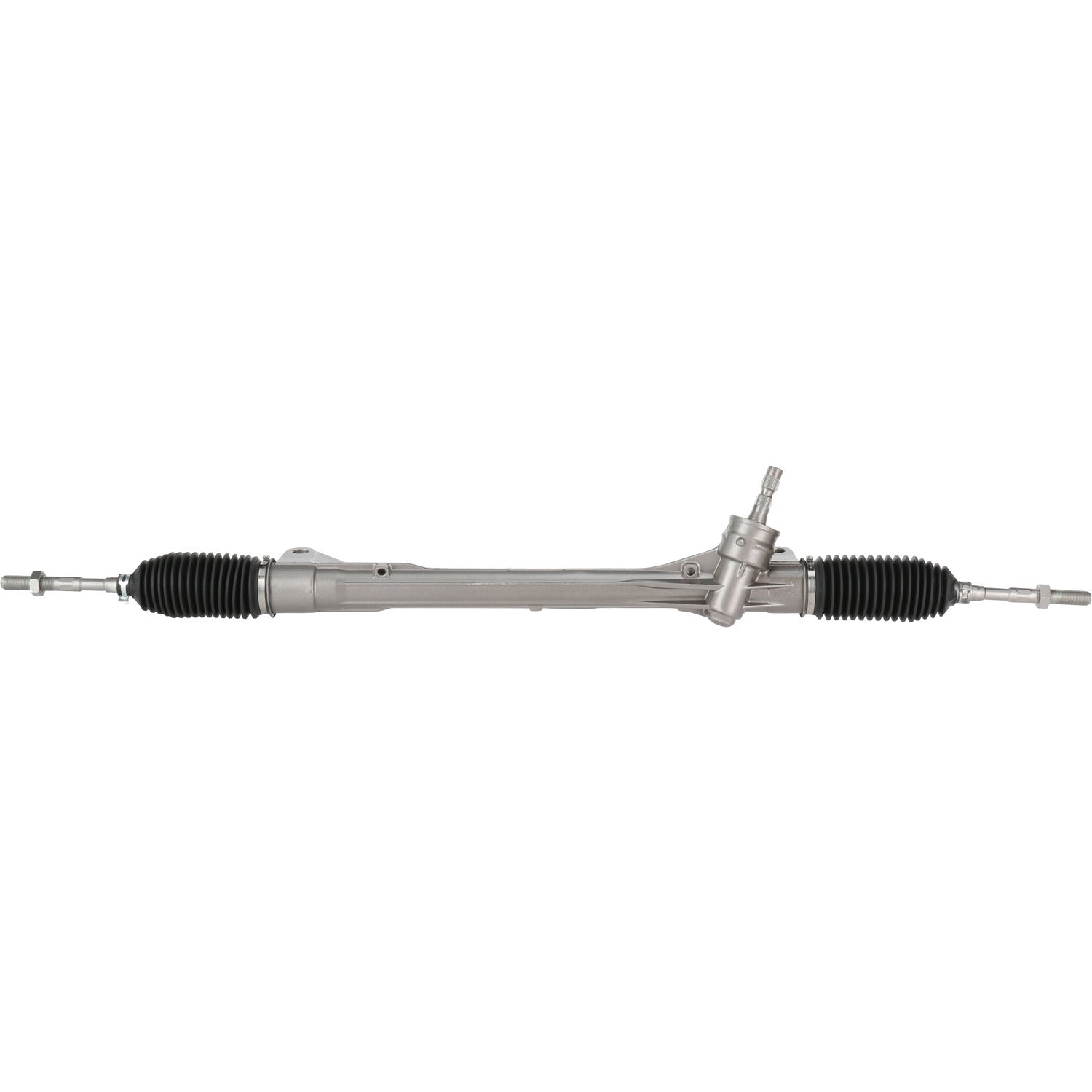

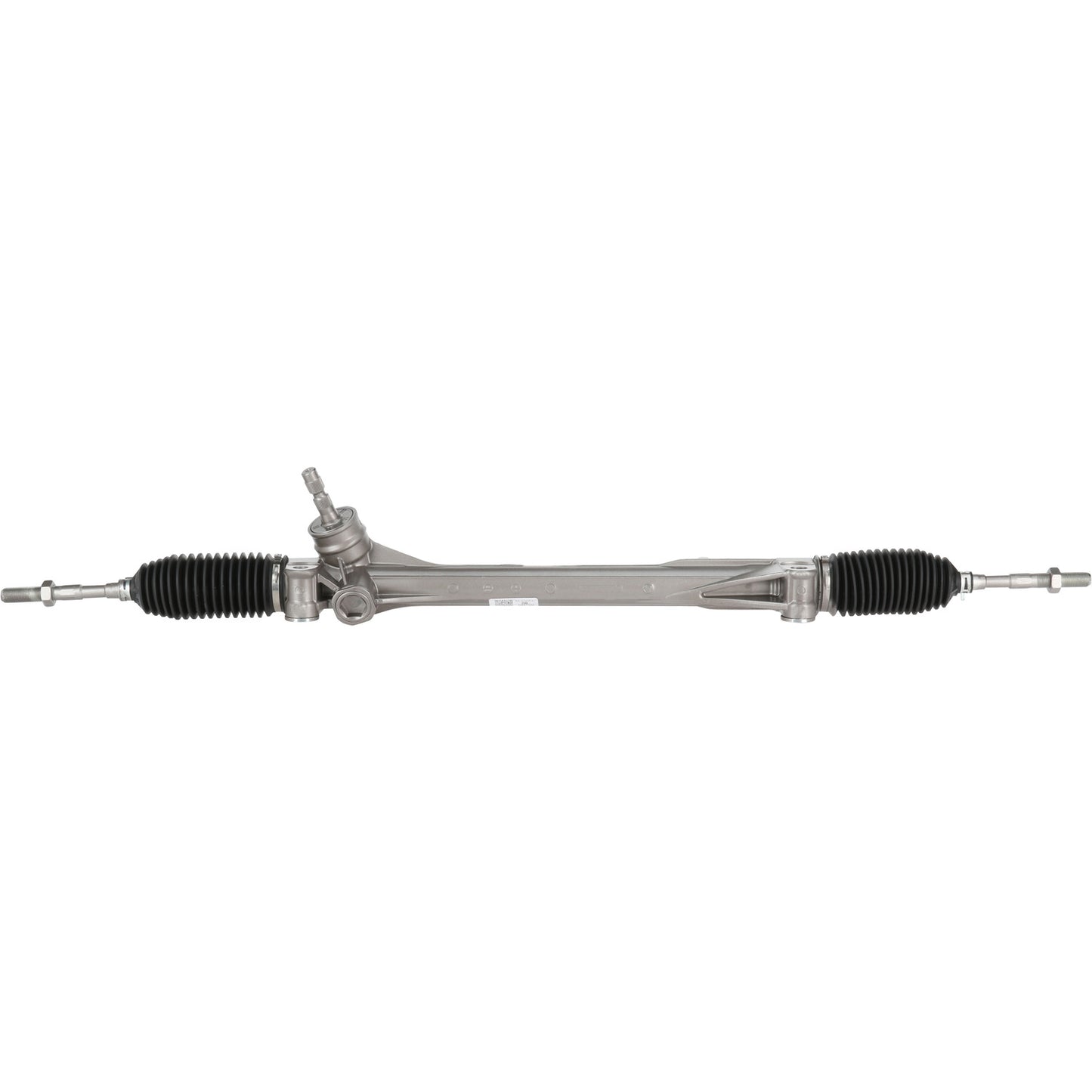

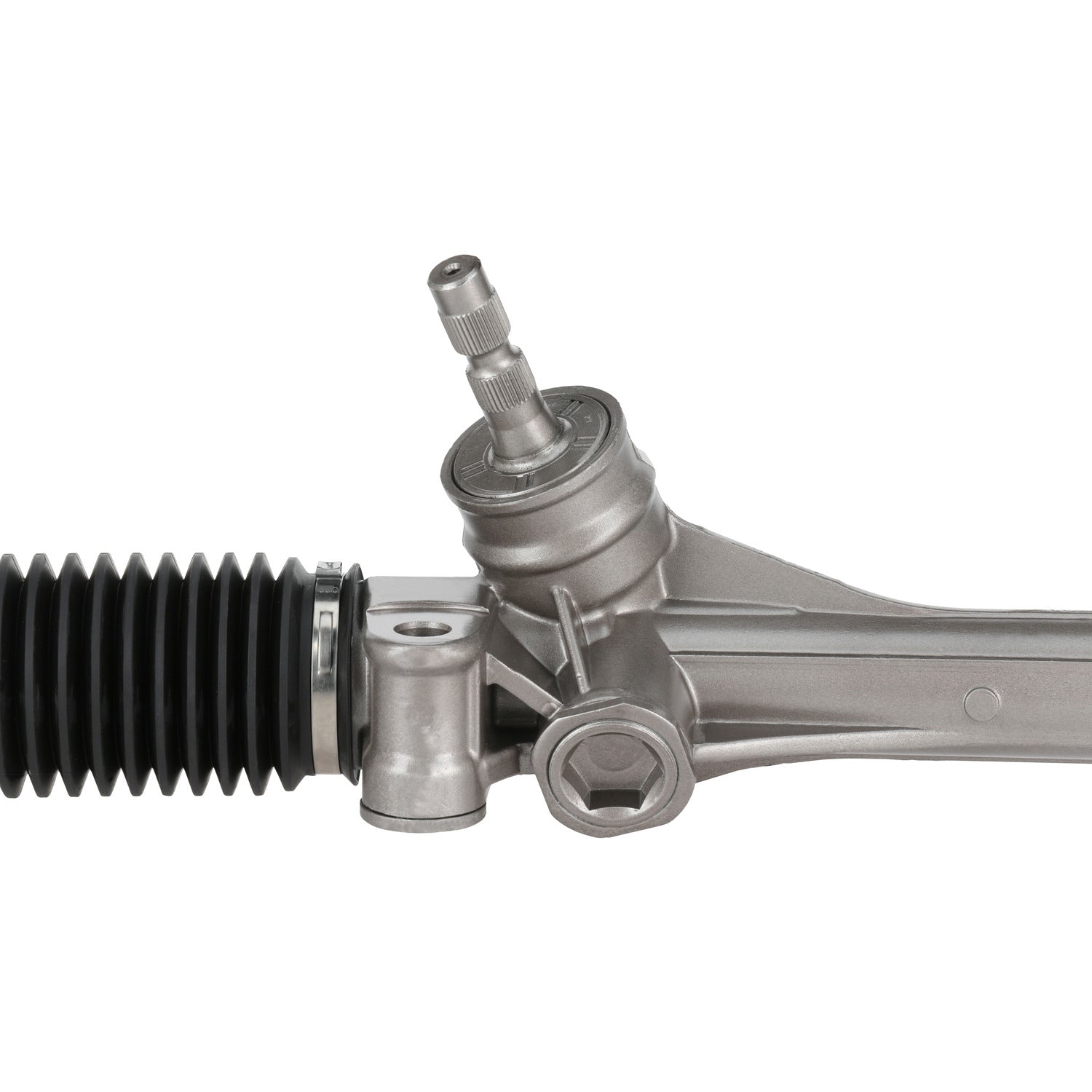

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94315M

Rack and Pinion Assembly - MAVAL - Manual - Remanufactured - 94315M

SKU:94315M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 19.75 IN
Distance Between Mounting Holes 501.65 MM
Input Shaft Diameter 0.748 IN
Input Shaft Diameter 19 MM
Input Shaft Length 5.188 IN
Input Shaft Length 131.76 MM
Mounting Hole Quantity 2
Rack Length 43.688 IN
Rack Length 1109.66 MM
Thread Length 2.043 IN
Thread Length 51.89 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.813
Type Manual

Application Info: 2006-2012 Toyota RAV4 Limited Base (Cylinder: 4 & Block: L / Note: 2.81 pinion turns lock to lock)

Interchange: 455100R010, 4551042030, 4551042080

BBB Cross-Reference: 211-0122

Cardone Cross-Reference: 1G-2694

Instructions - 1
