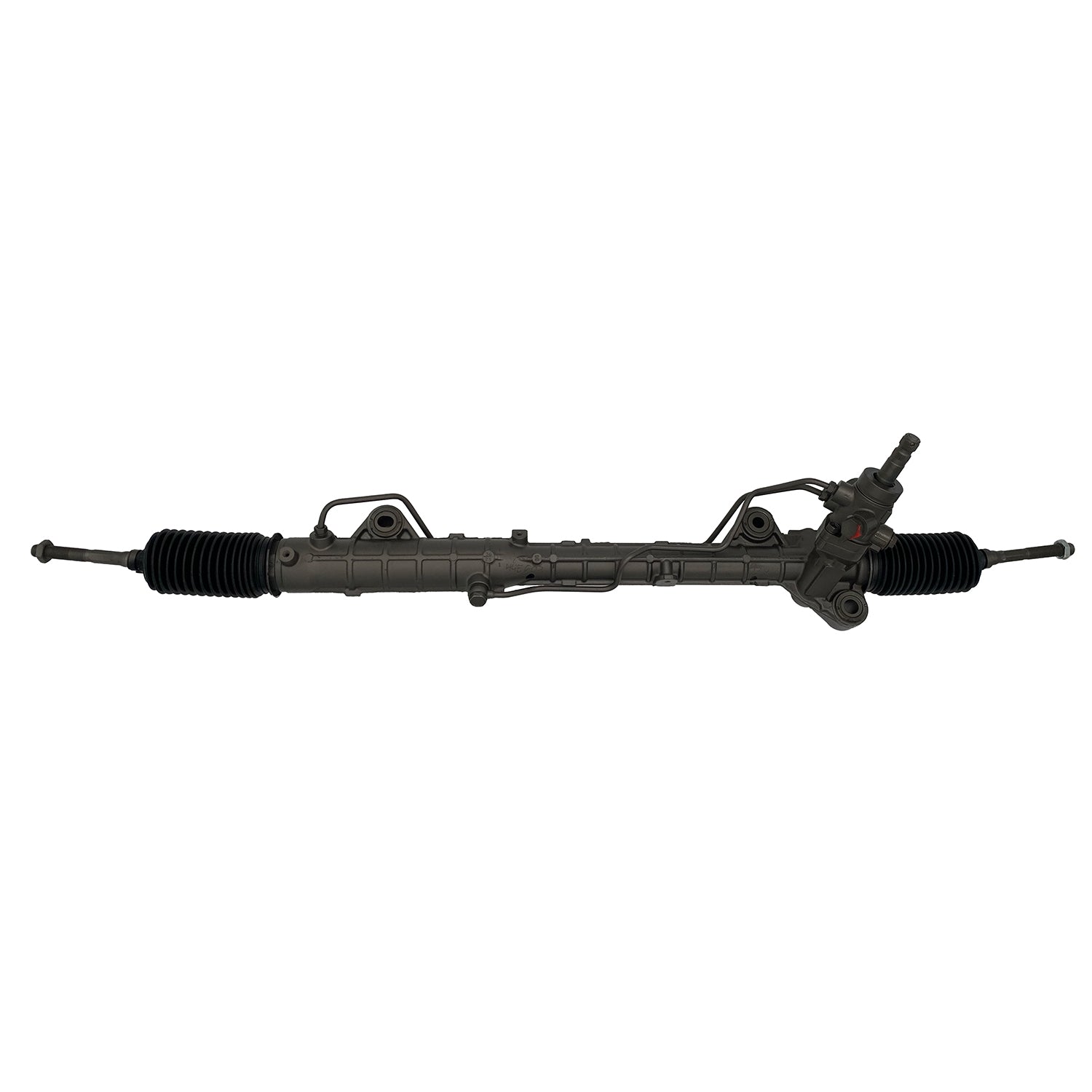

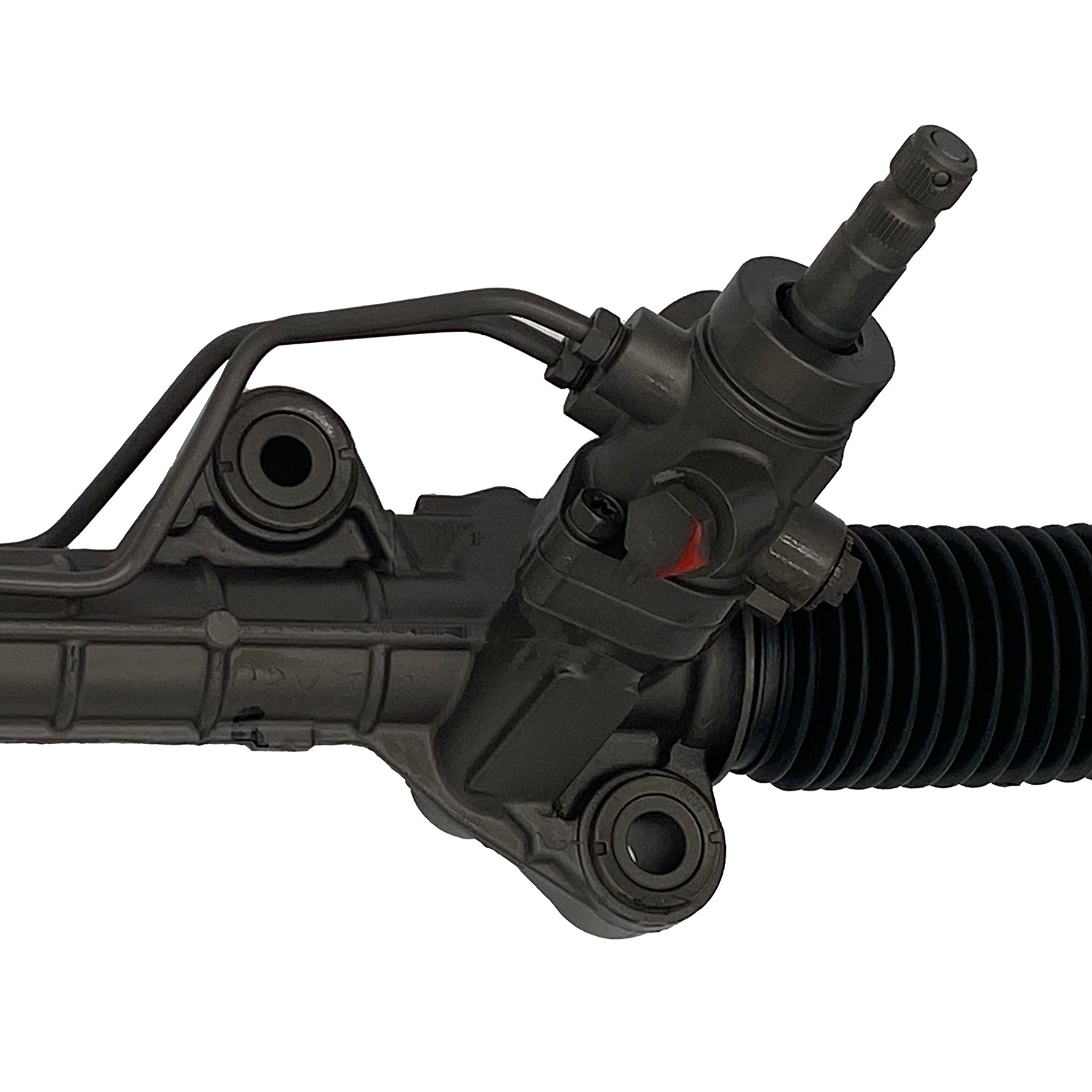

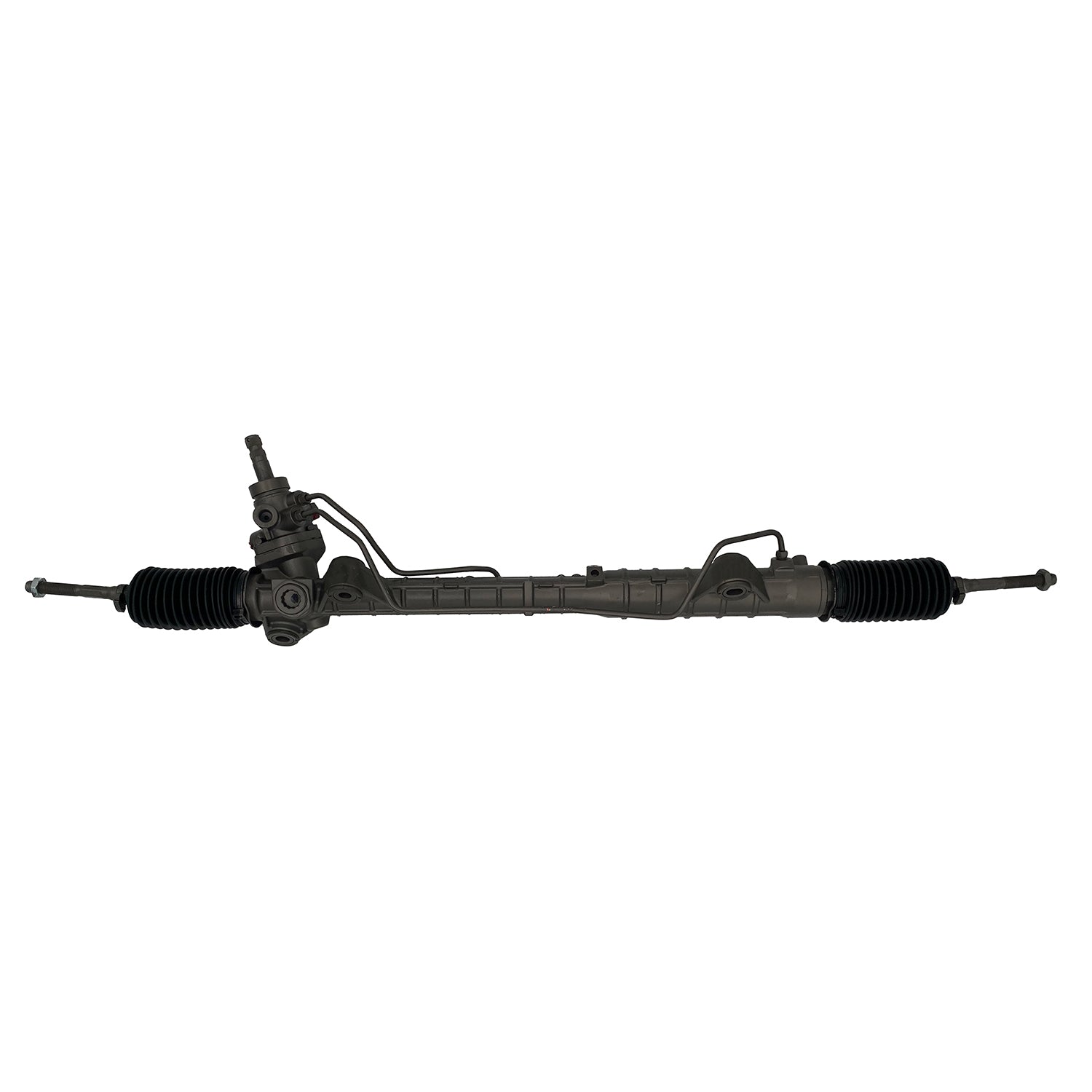

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9387M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9387M

SKU:9387M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 16.06 IN
Distance Between Mounting Holes 408 MM
Hose Port Type Washer
Input Shaft Diameter 0.67 IN
Input Shaft Diameter 17.02 MM
Input Shaft Length 2 IN
Input Shaft Length 50.8 MM
Number of Mounting Holes 3
Pressure Port Thread Size M14 x 1.5
Rack Length 44.38 IN
Rack Length 1127.13 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.15 IN
Thread Length 54.66 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.5



Application Info: Mazda Mazda-6 2003-2005 - All Models

Interchange: Mazda - GK2A-32-110A

BBB Cross-Reference:

Cardone Cross-Reference: 26-2031
