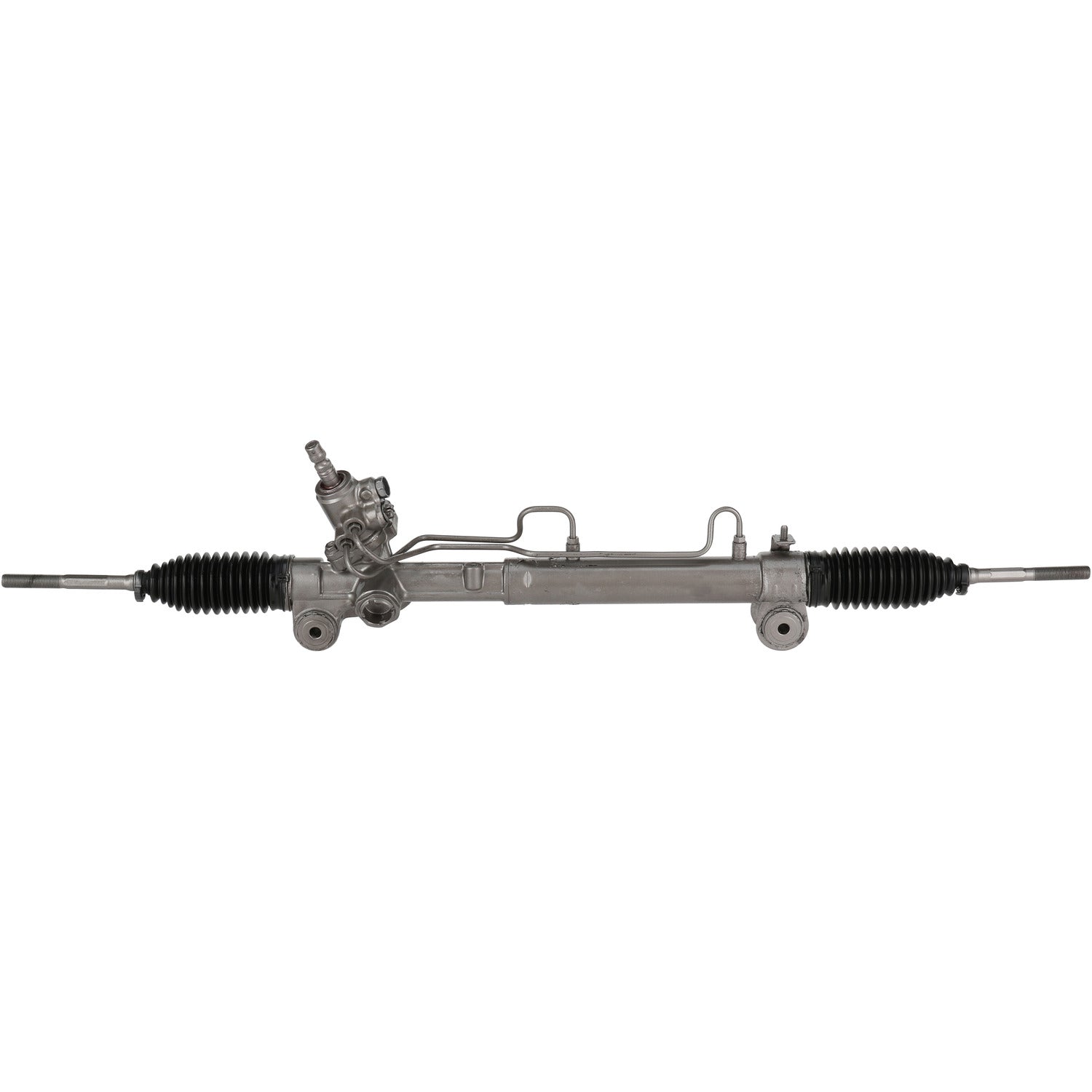

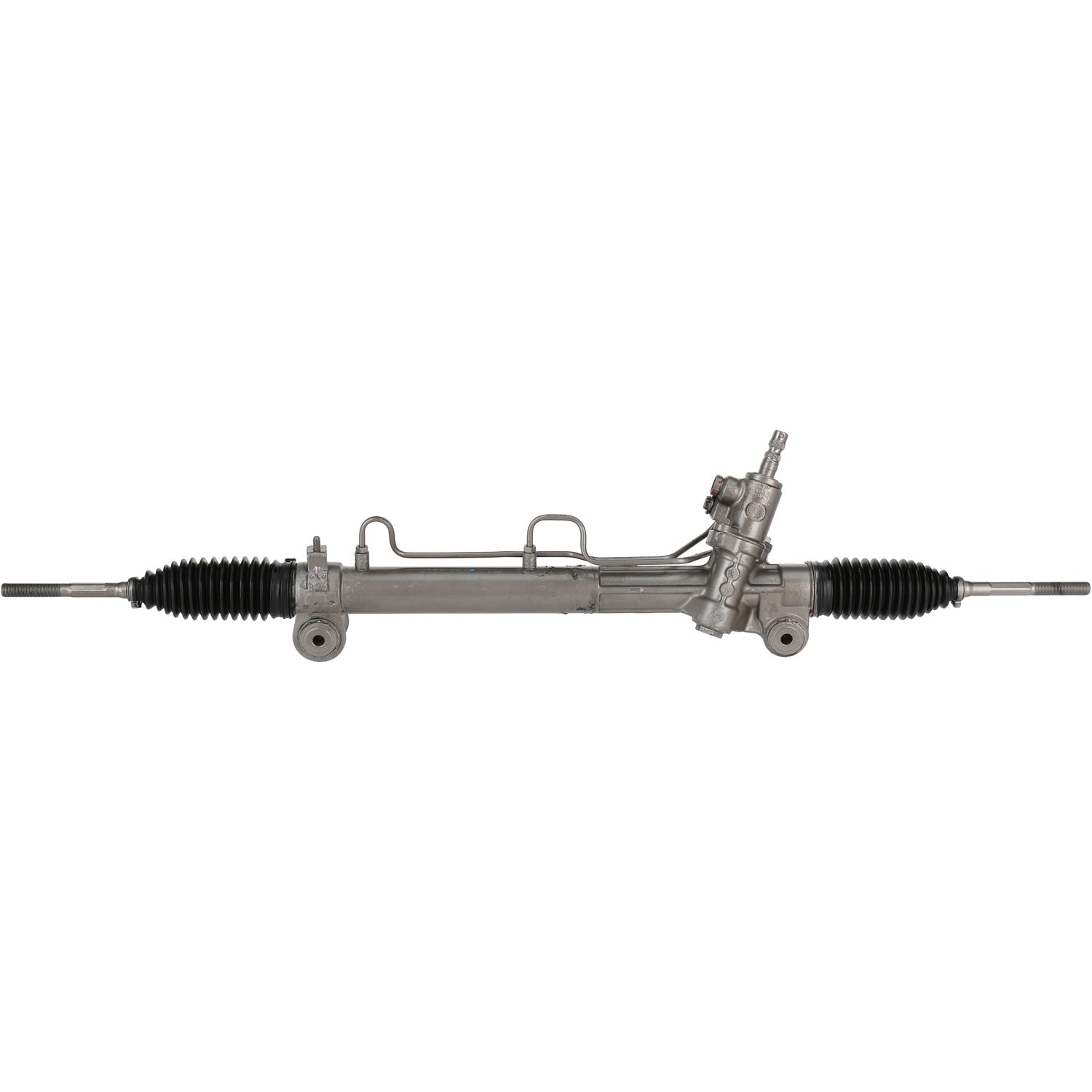

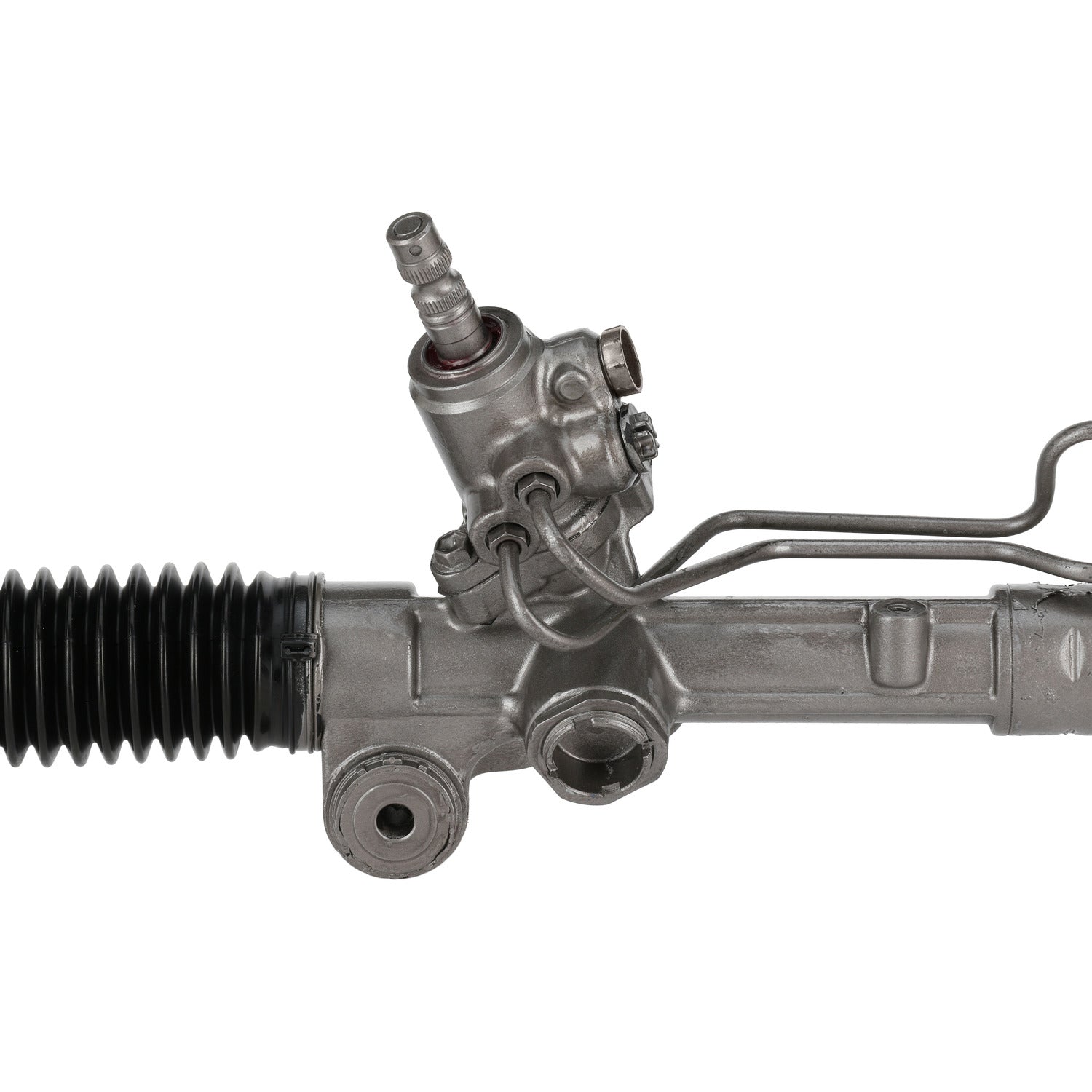

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9374M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9374M

SKU:9374M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Distance Between Mounting Holes 19.13 IN
Distance Between Mounting Holes 486 MM
Hose Port Type O-Ring/O-Ring
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.4 MM
Input Shaft Length 1.26 IN
Input Shaft Length 32 MM
Number of Mounting Holes 2
Pressure Port Thread Size M16 x 1.5
Rack Length 43.9 IN
Rack Length 1115 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.17 IN
Thread Length 55 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.06

Application Info: Toyota Camry SE, XLE (2002-06), Solara SE (2004-08); Lexus ES300 (2002-03), ES330 (2004-06) ***Applications W/16" Tires***

Interchange: 44200-33332, 44250-06140, 44250-06141, 44250-33330, 44250-33331, 44250-AA010, 45503-09230, 45503-39225, TR45503-09230

BBB Cross-Reference: 311-0195

Cardone Cross-Reference: 26-2606
