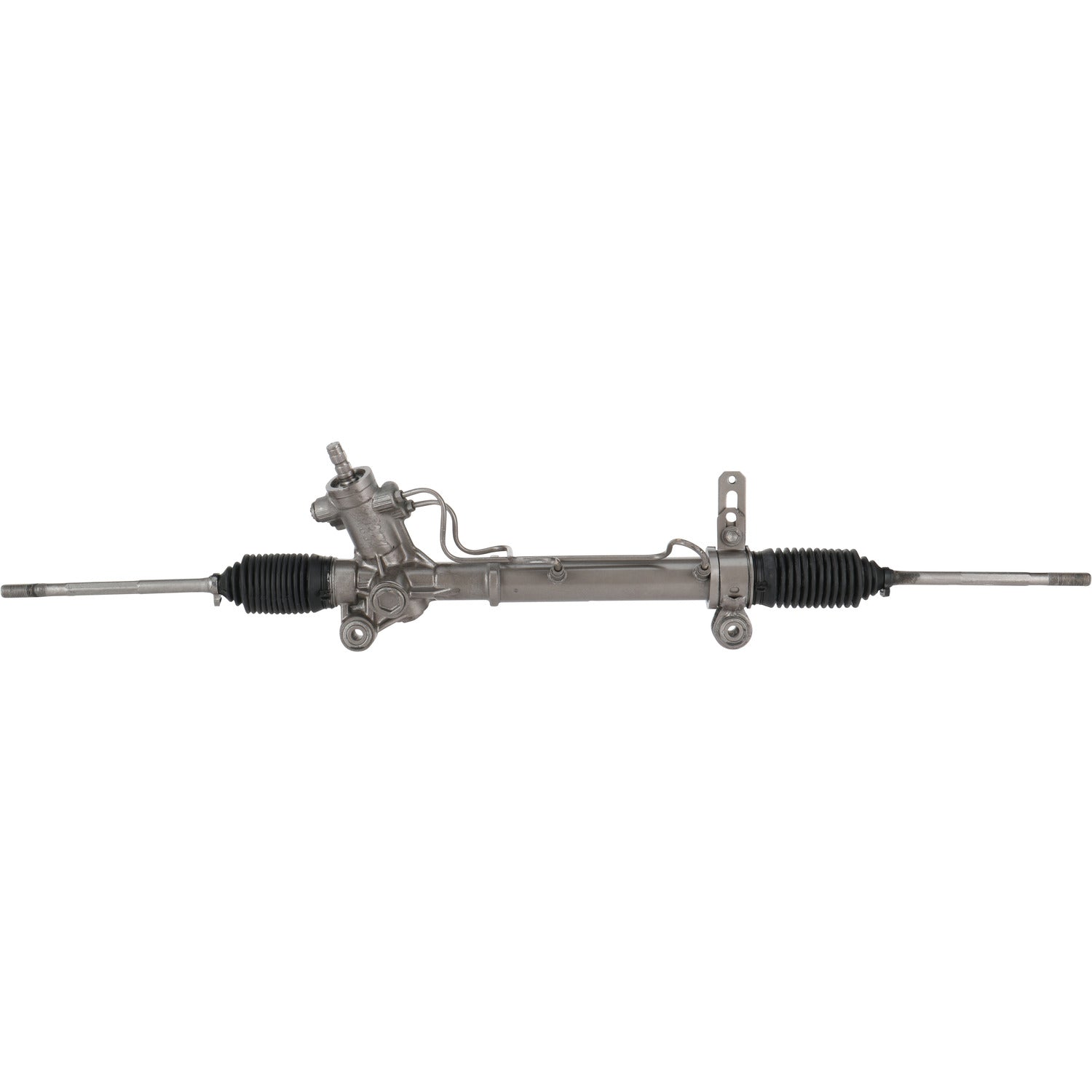

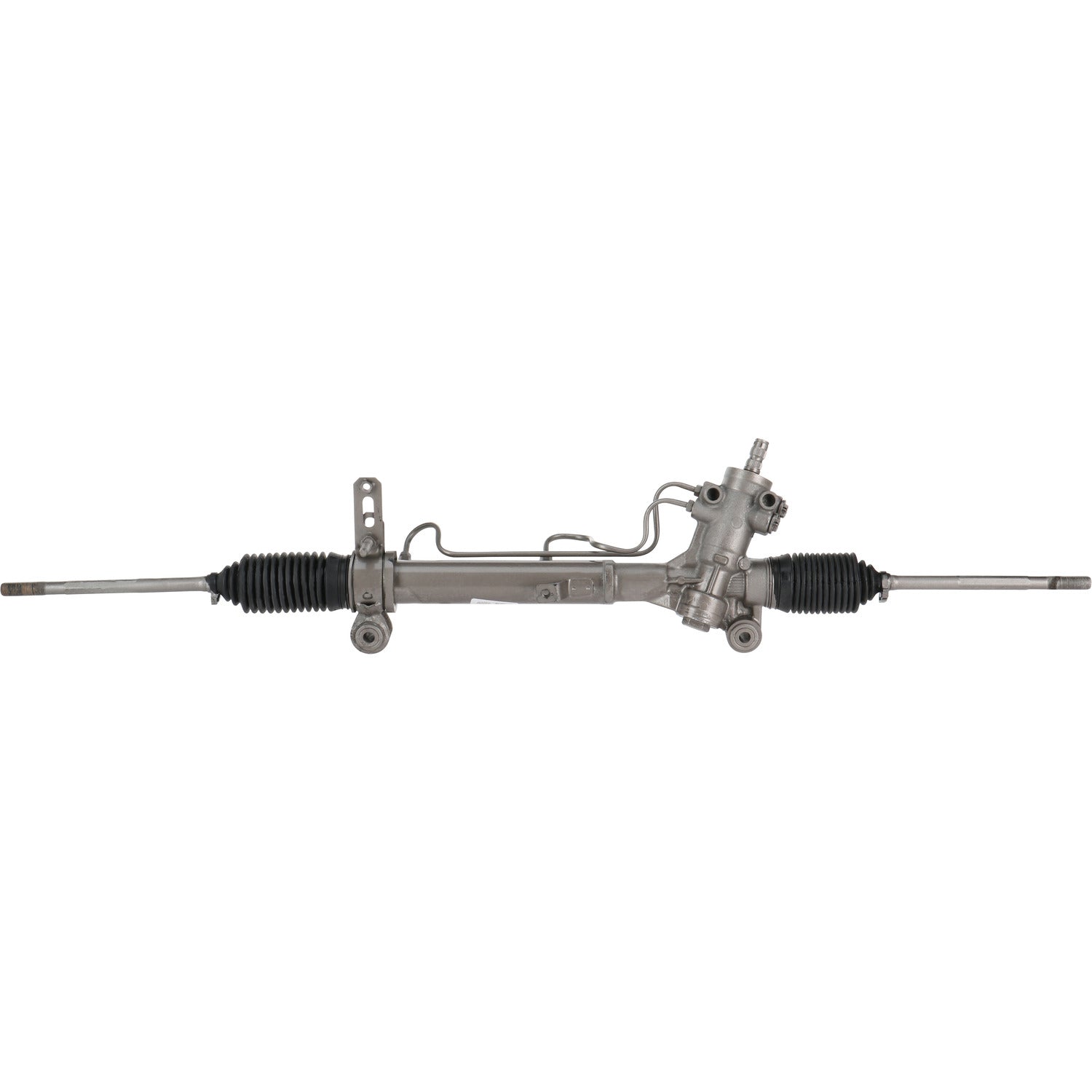

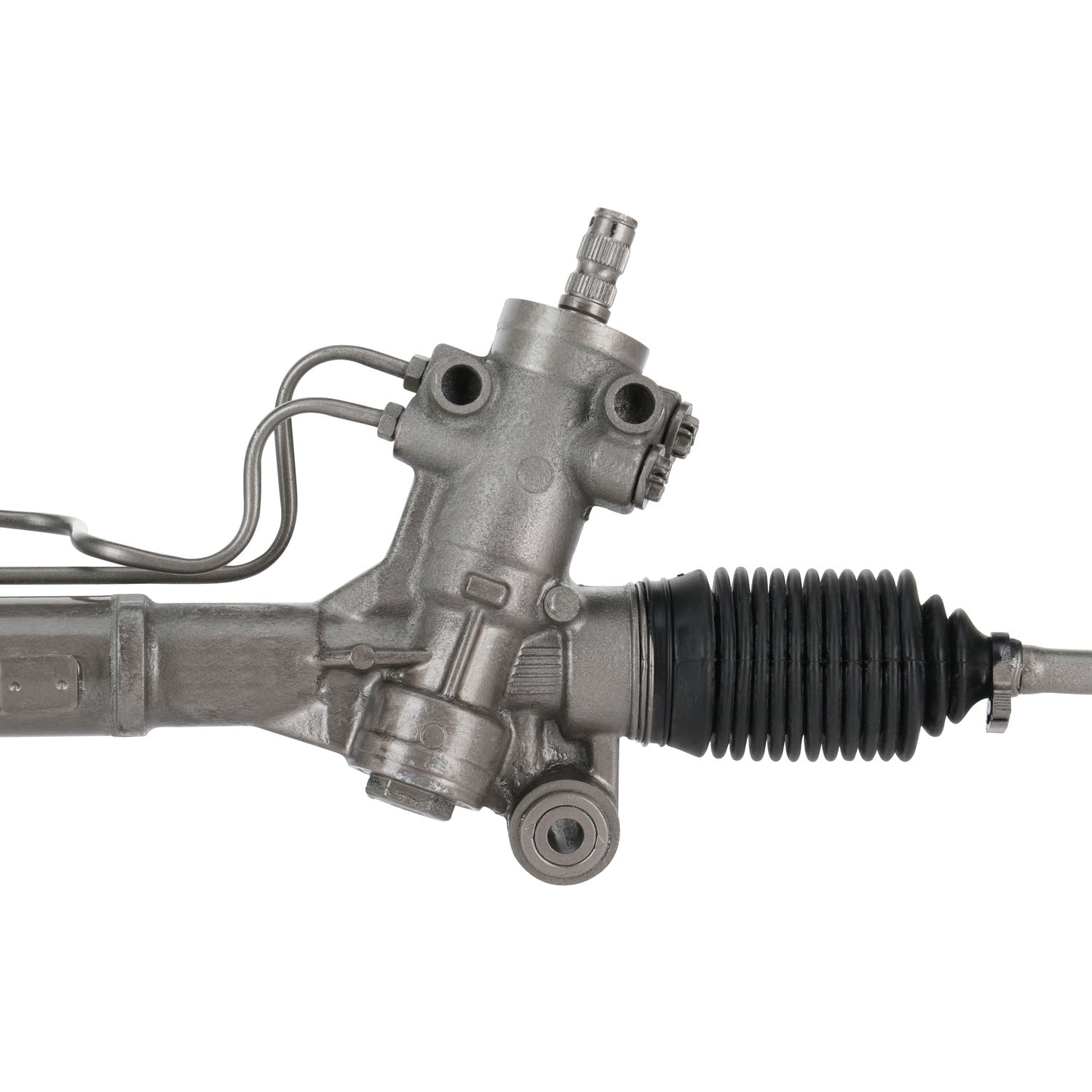

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9350M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9350M

SKU:9350M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type Seat
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Number of Mounting Holes 2
Pressure Port Thread Size M16 x 1.5
Rack Length 45 IN
Rack Length 1143 MM
Return Port Thread Size M17 x 1.5
Thread Length 1.68 IN
Thread Length 42.55 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.88

Application Info: Toyota RAV4 (2001-03)

Interchange: 44200-42120, 45503-49055

BBB Cross-Reference: 311-0198

Cardone Cross-Reference: 26-2612
