MAVAL

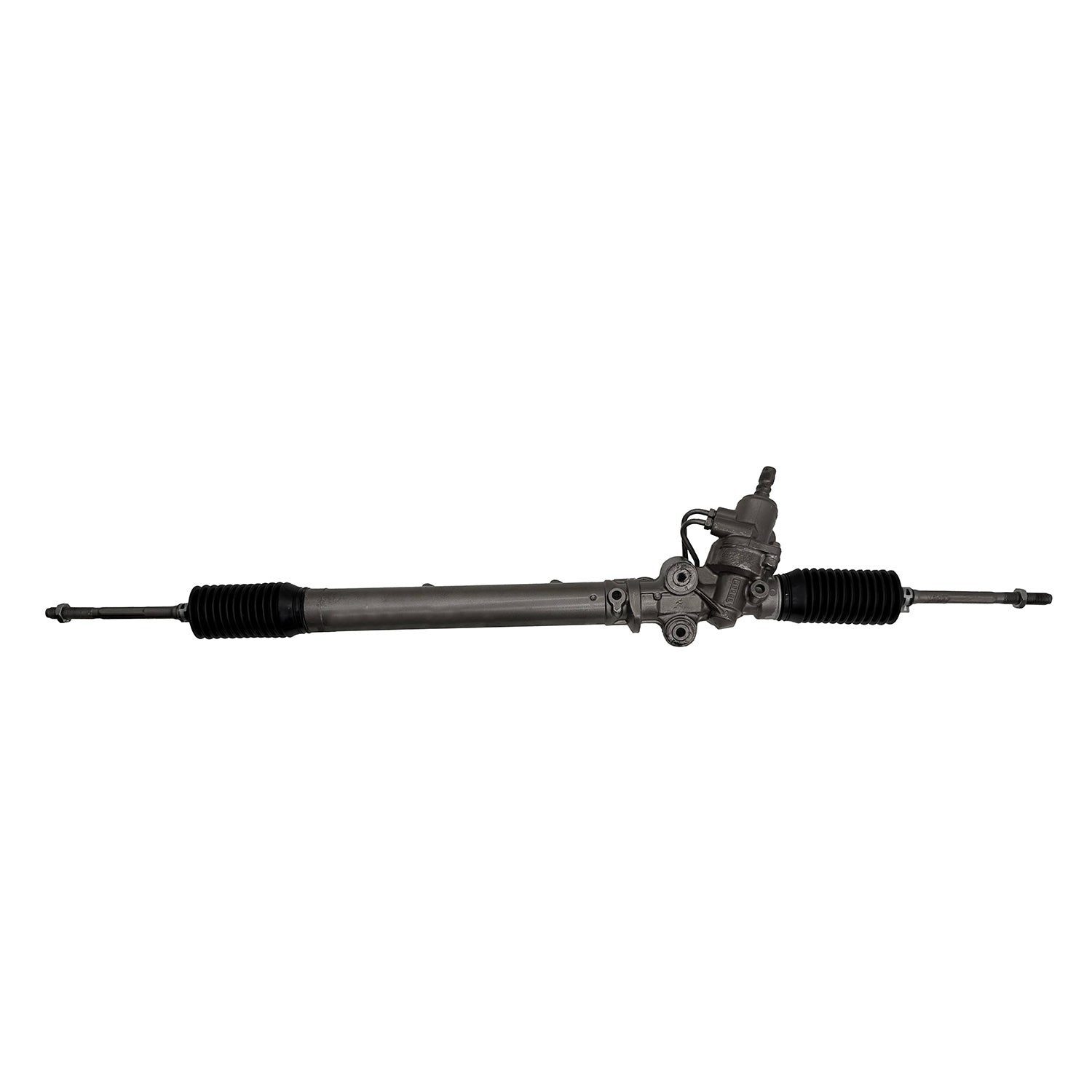

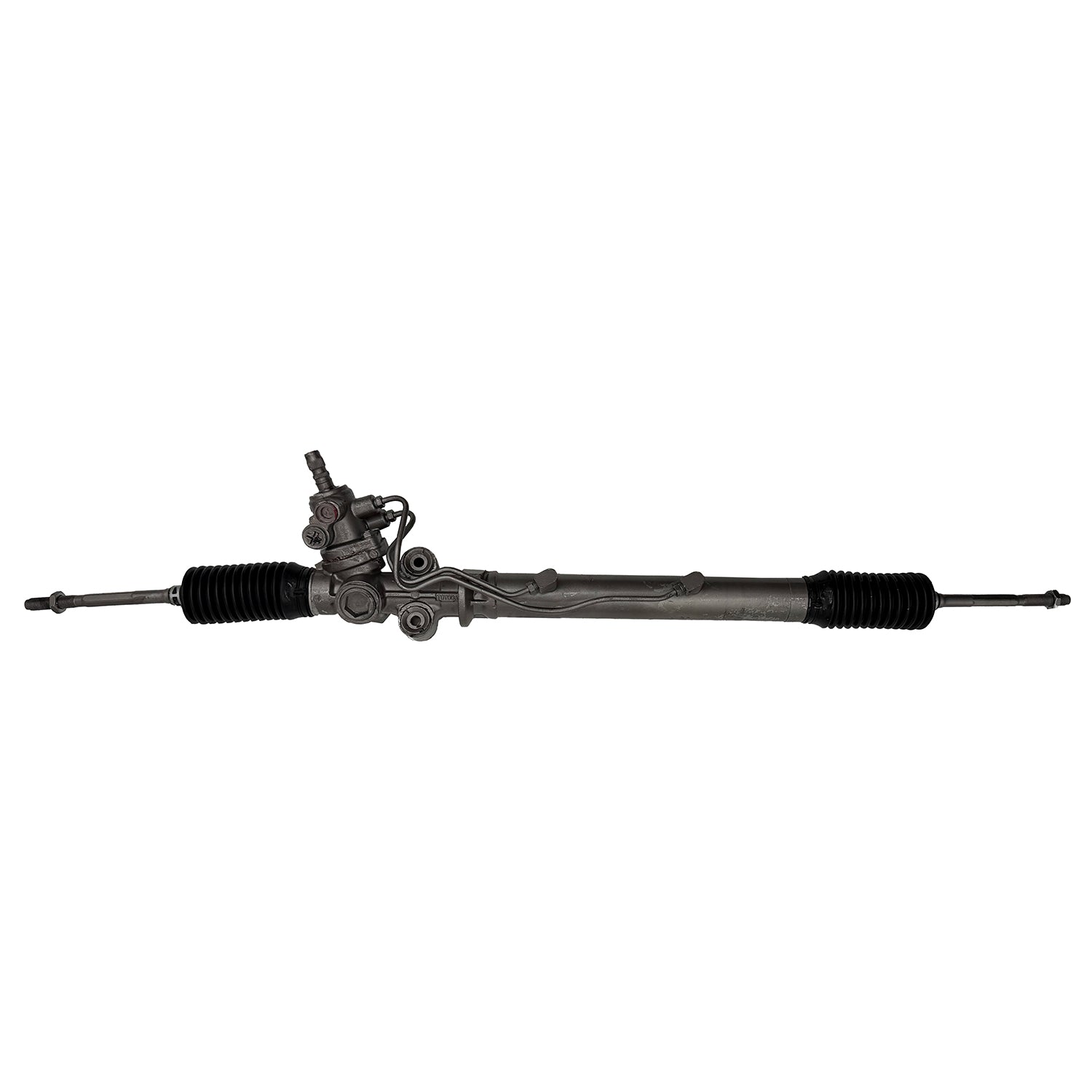

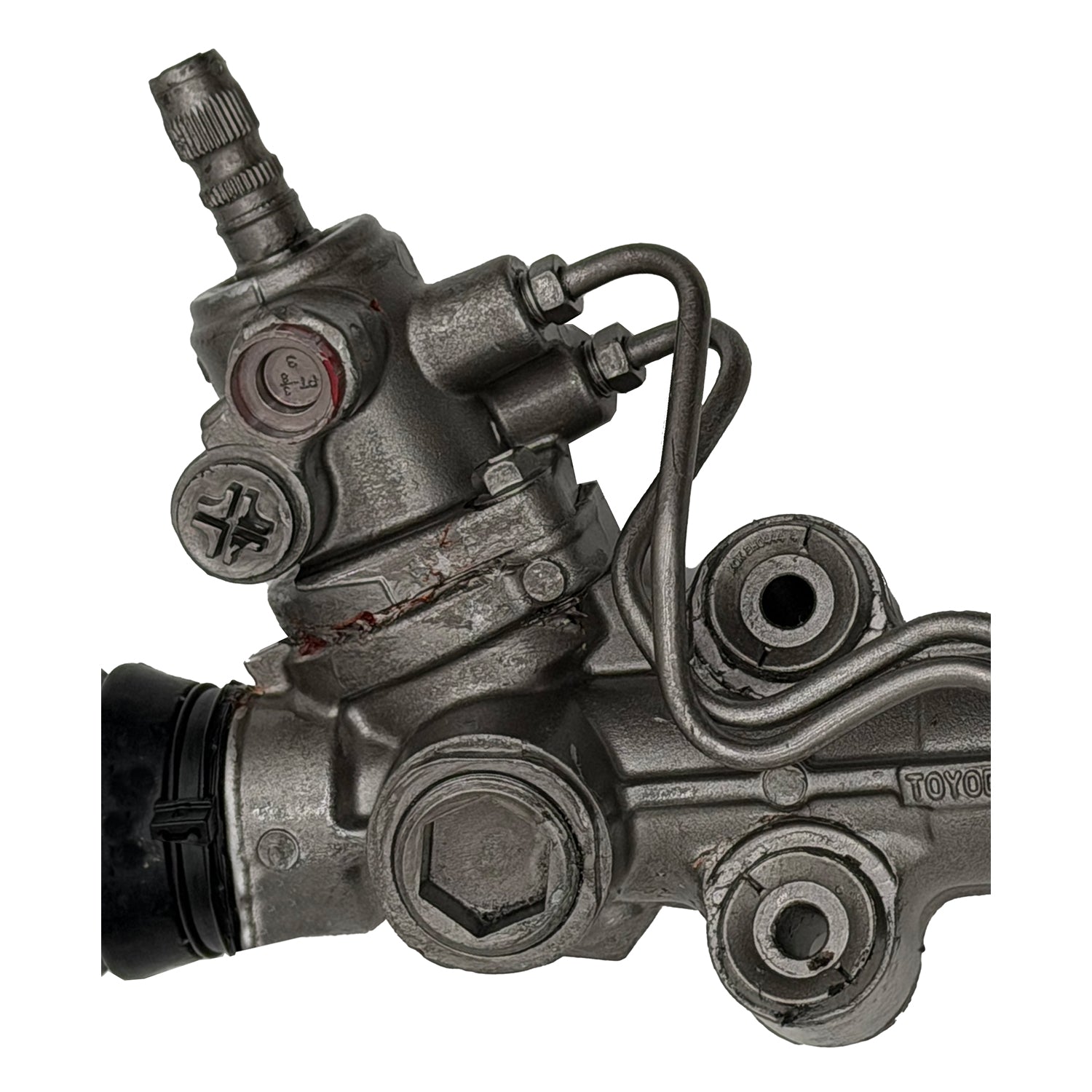

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9349M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9349M

SKU:9349M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 2.5 IN
Distance Between Mounting Holes 63.5 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.95 MM
Input Shaft Length 2 IN
Input Shaft Length 50.8 MM
Number of Mounting Holes 2
Pressure Port Thread Size M16 x 1.5
Rack Length 45 IN
Rack Length 1143 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.03 IN
Thread Length 51.56 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.25

Application Info: Lexus IS300 (2001)

Interchange: Toyota - 44250-53020

BBB Cross-Reference: 311-0183

Cardone Cross-Reference: 26-2622

Instructions - 1               Instructions - 2
