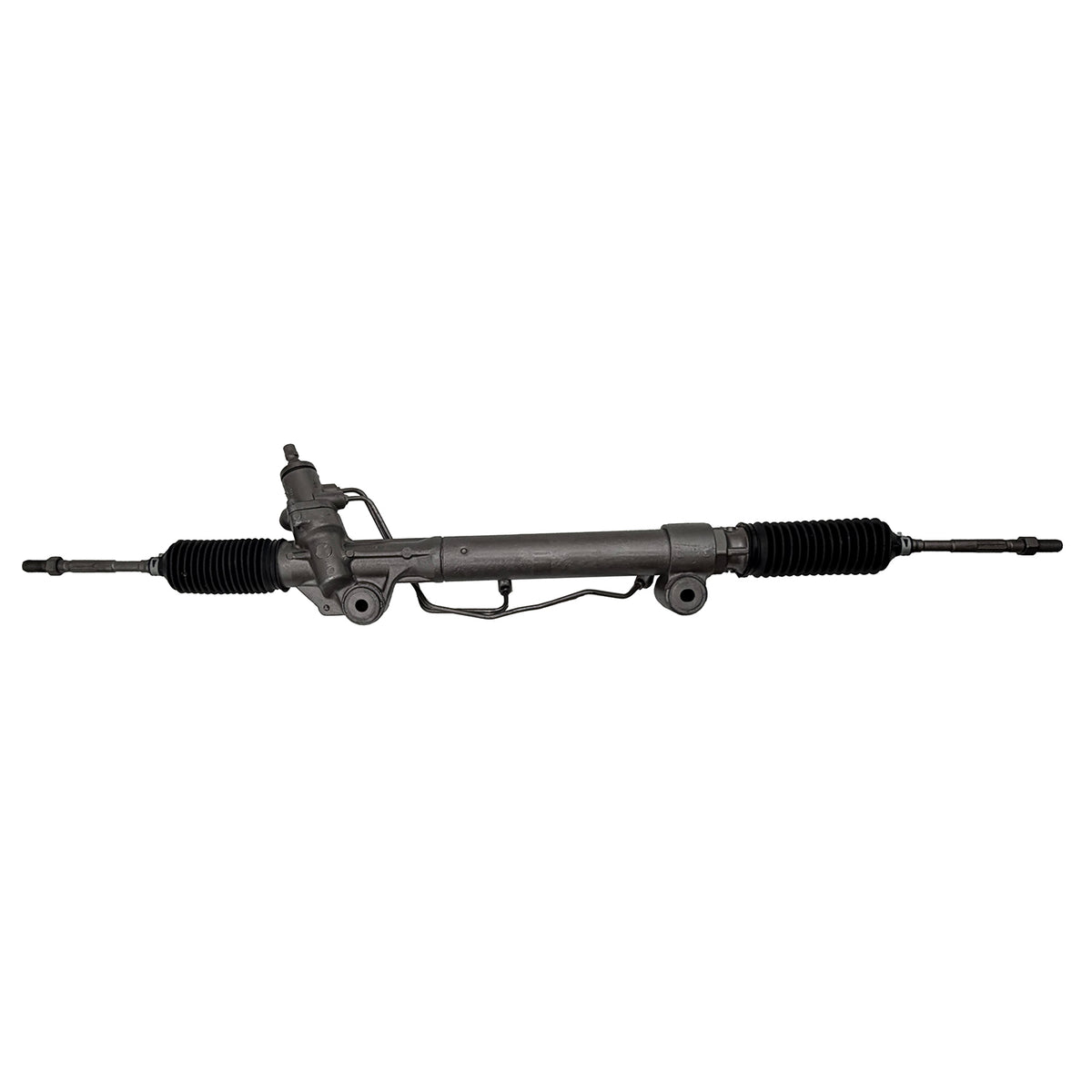

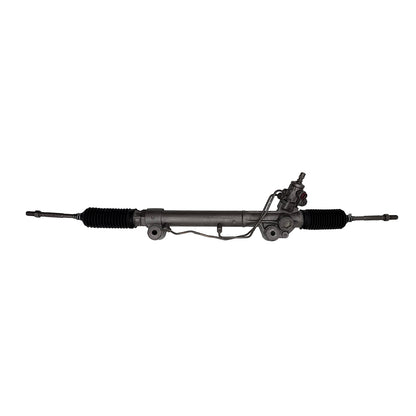

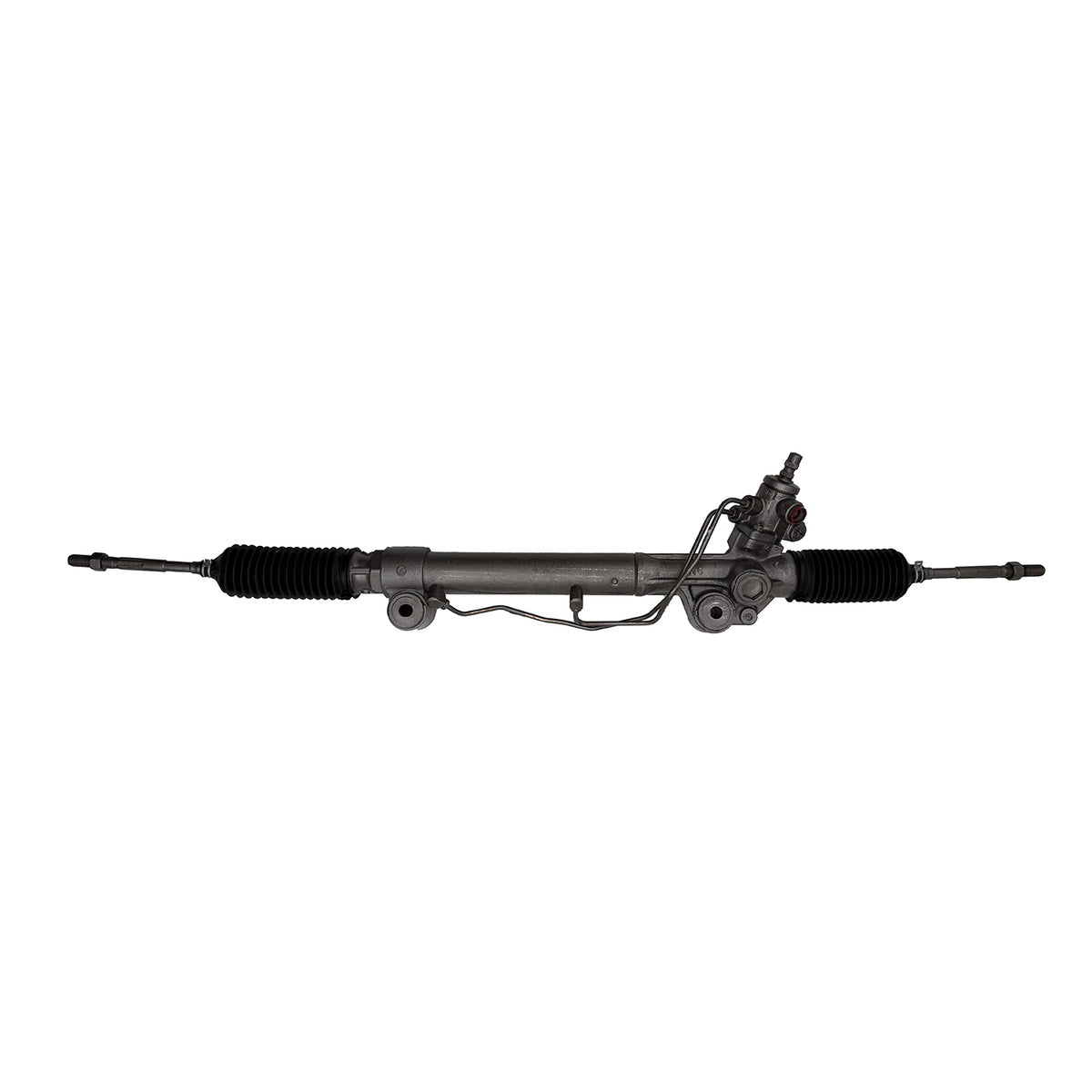

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93463M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93463M

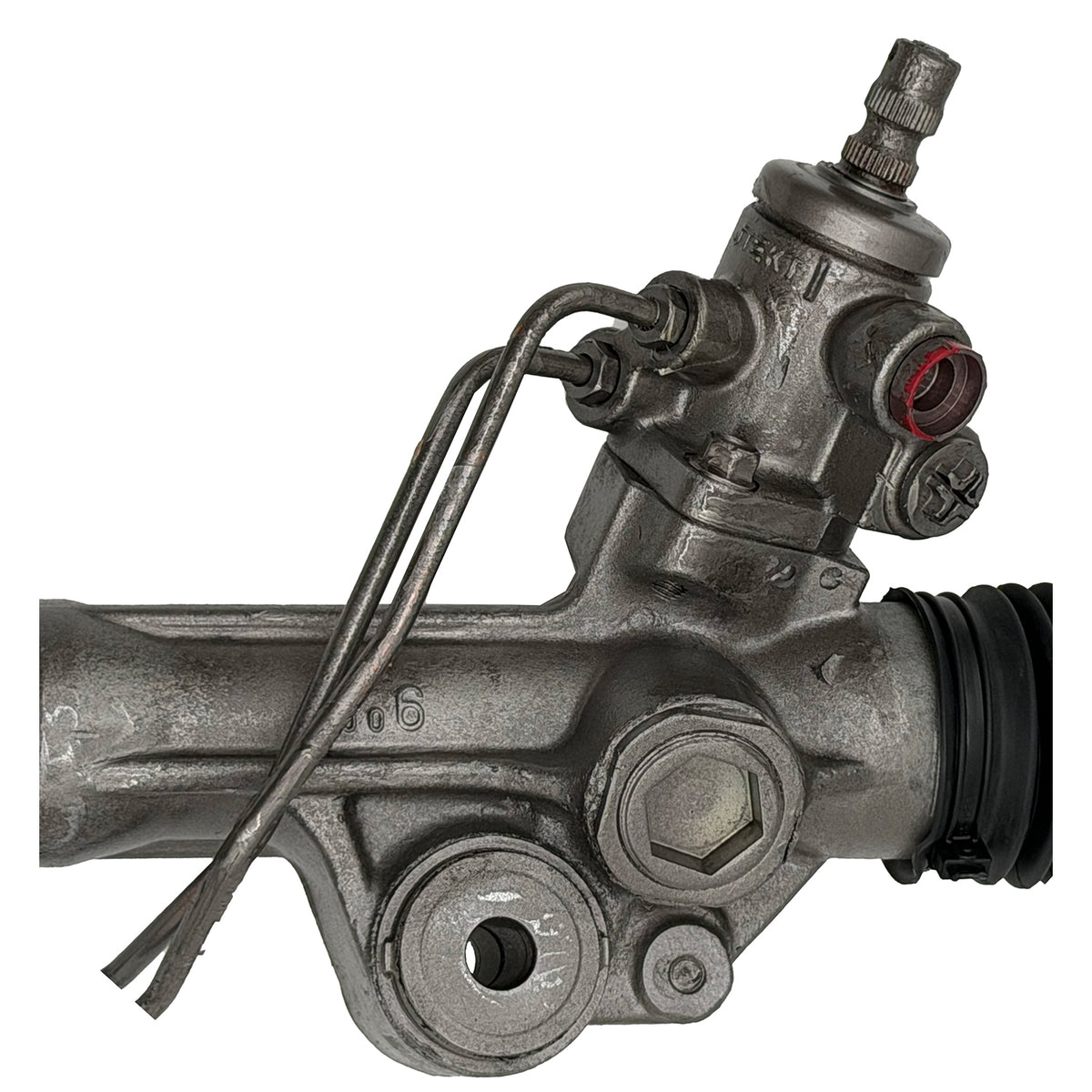

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 15.19 IN
Distance Between Mounting Holes 385.78 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.02 MM
Input Shaft Length 1.63 IN
Input Shaft Length 41.28 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 48.94 IN
Rack Length 1243.03 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.16 IN
Thread Length 54.84 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.8125


Application Info: Toyota FJ Cruiser (2010-2014)

Interchange: Toyota - 44200-35100 - Toyota - 44200-35101 - Toyota - 44200-35102 - Toyota - 44200-35103 - Toyota - 44250-35100

BBB Cross-Reference: 311-0230

Cardone Cross-Reference: 26-2655
