MAVAL

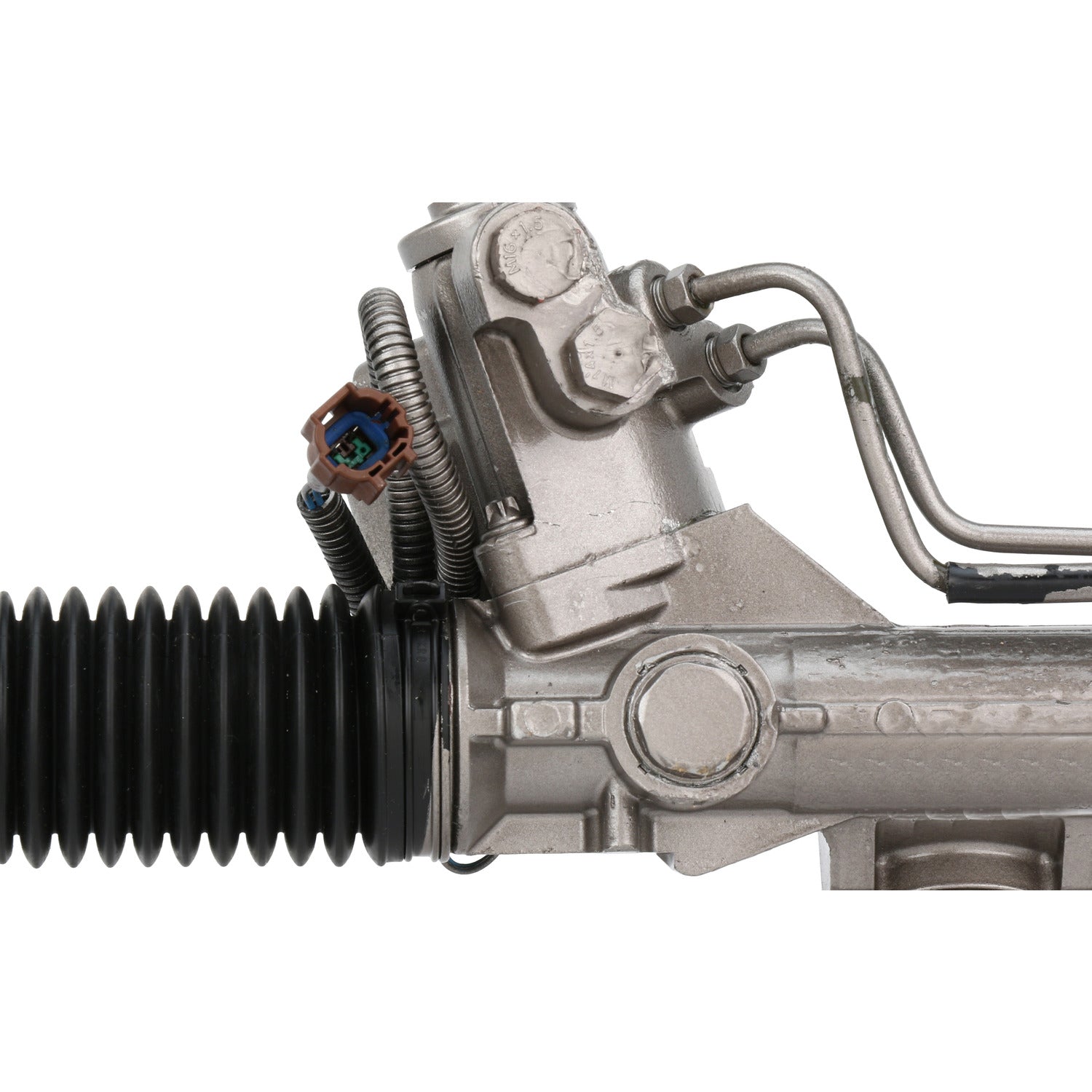

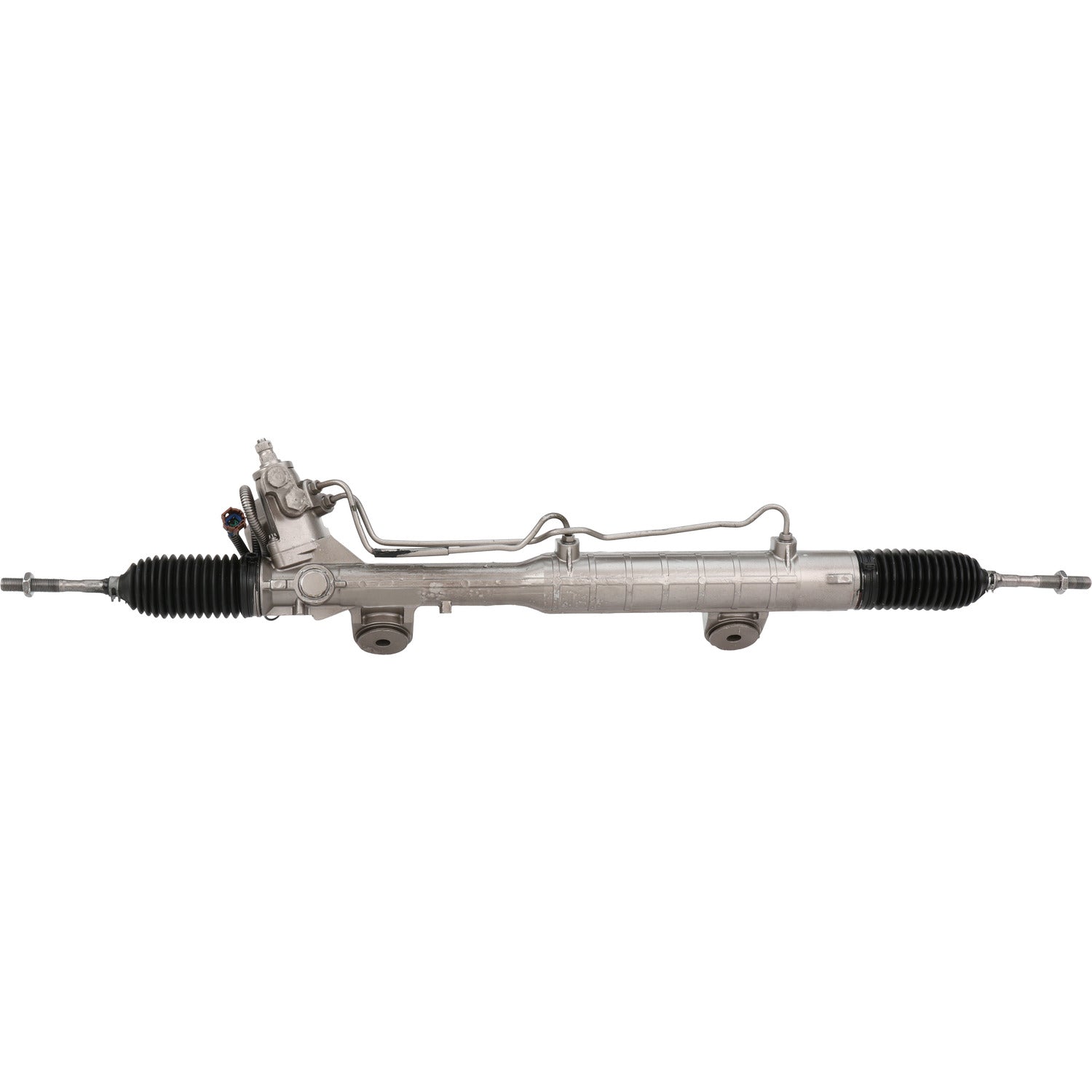

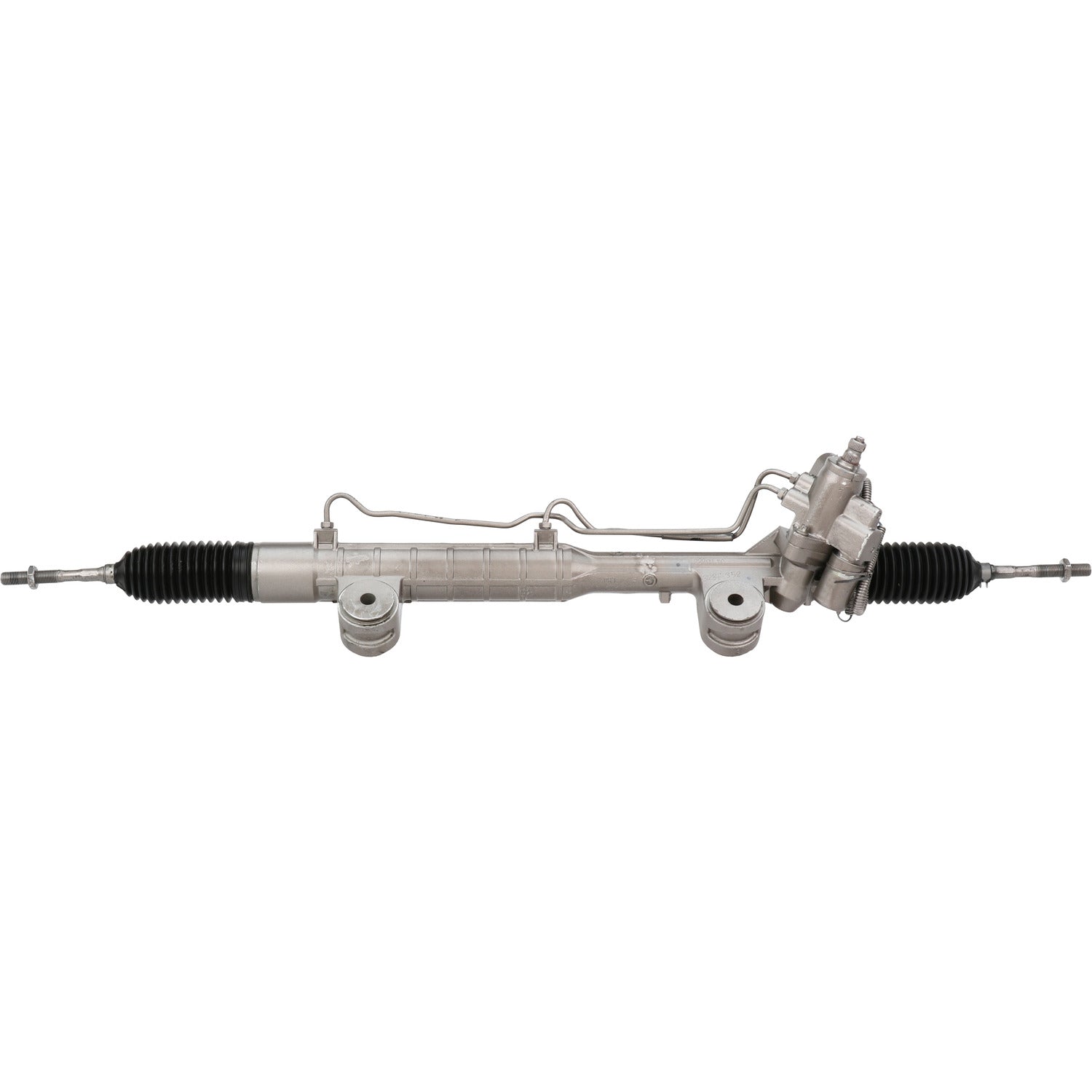

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93391M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93391M

SKU:93391M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Distance Between Mounting Holes 15.25 IN
Distance Between Mounting Holes 387.35 MM
Type Hydraulic
Inner Tie Rods Included Yes
Input Shaft Diameter 0.677 IN
Input Shaft Diameter 17.183 MM
Input Shaft Length 1.125 IN
Input Shaft Length 28.575 MM
Mounting Hole Quantity 2
New Or Remanufactured Remanufactured
Pressure Port Thread Size M12X1.50
Rack Length 43.563 IN
Rack Length 1106.49 MM
Return Port Thread Size M16x1.50
Total Turns Lock To Lock 2.938

Application Info: 2009-2014 Nissan 370Z (Transmission Control Type: Automatic / Note: Without Sport package, With 18 in. tire, Includes electronic solenoid)

Interchange: Nissan - 49001-1EA0A - Nissan - 49001-1EA0B

BBB Cross-Reference: 310-0210

Cardone Cross-Reference: 26-3084

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4
