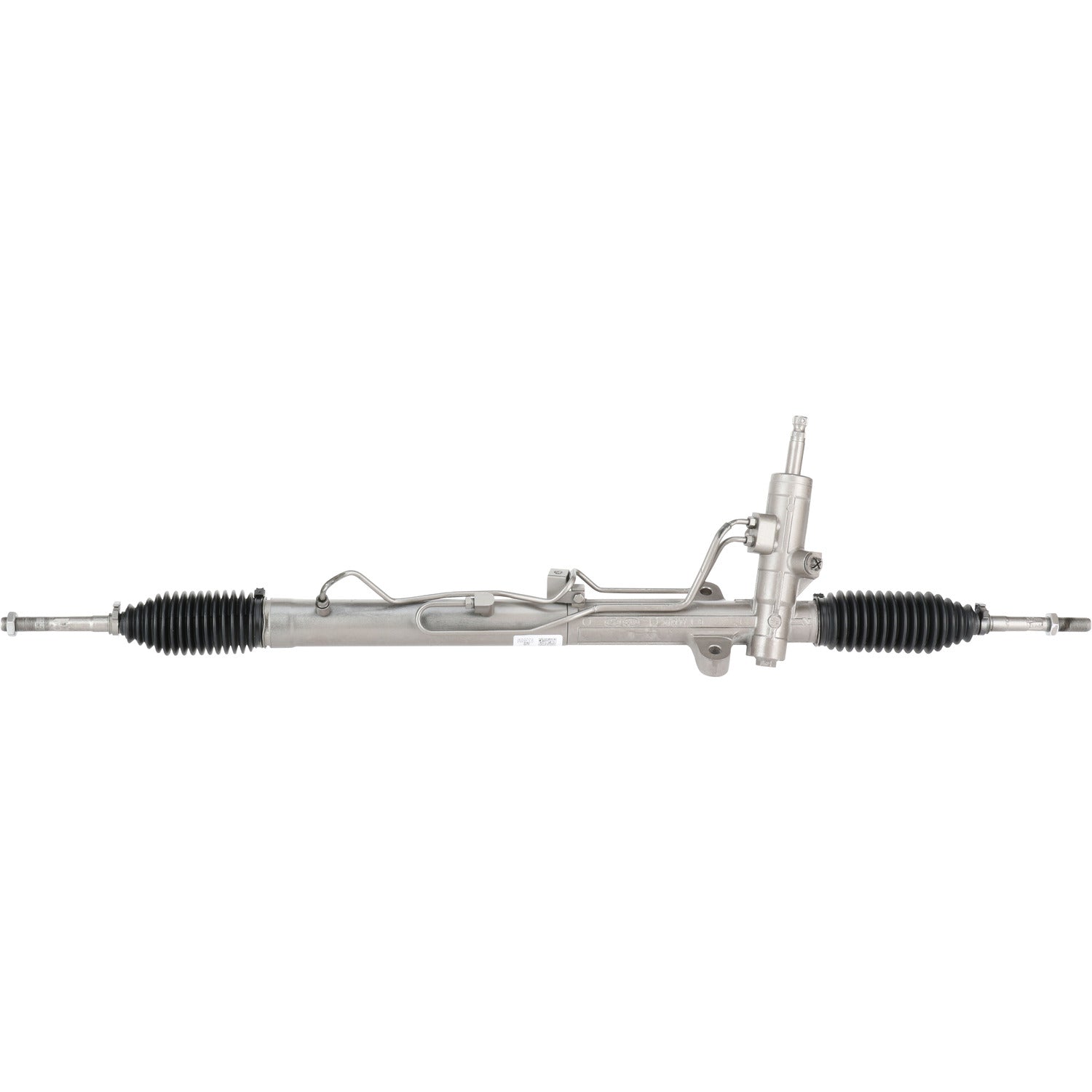

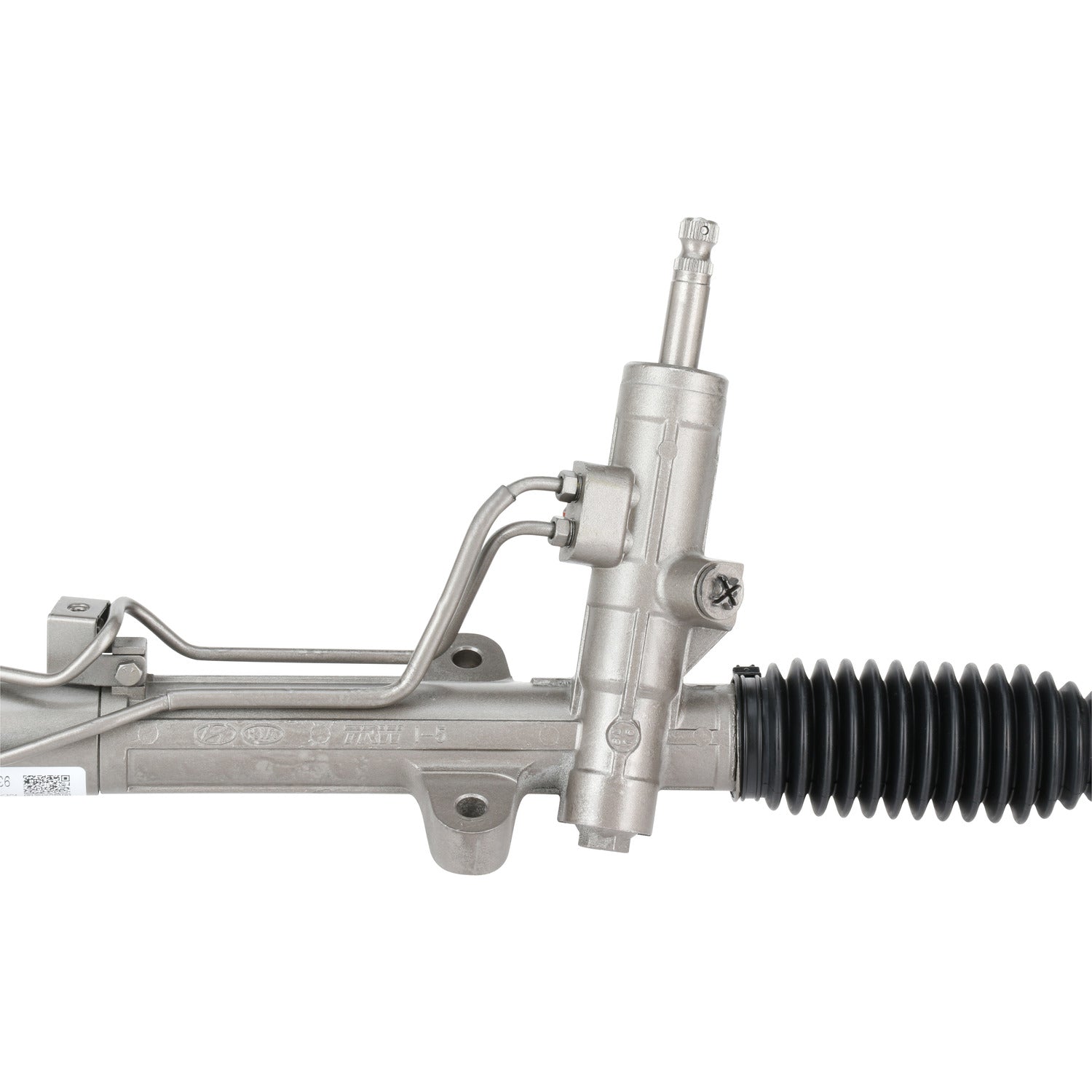

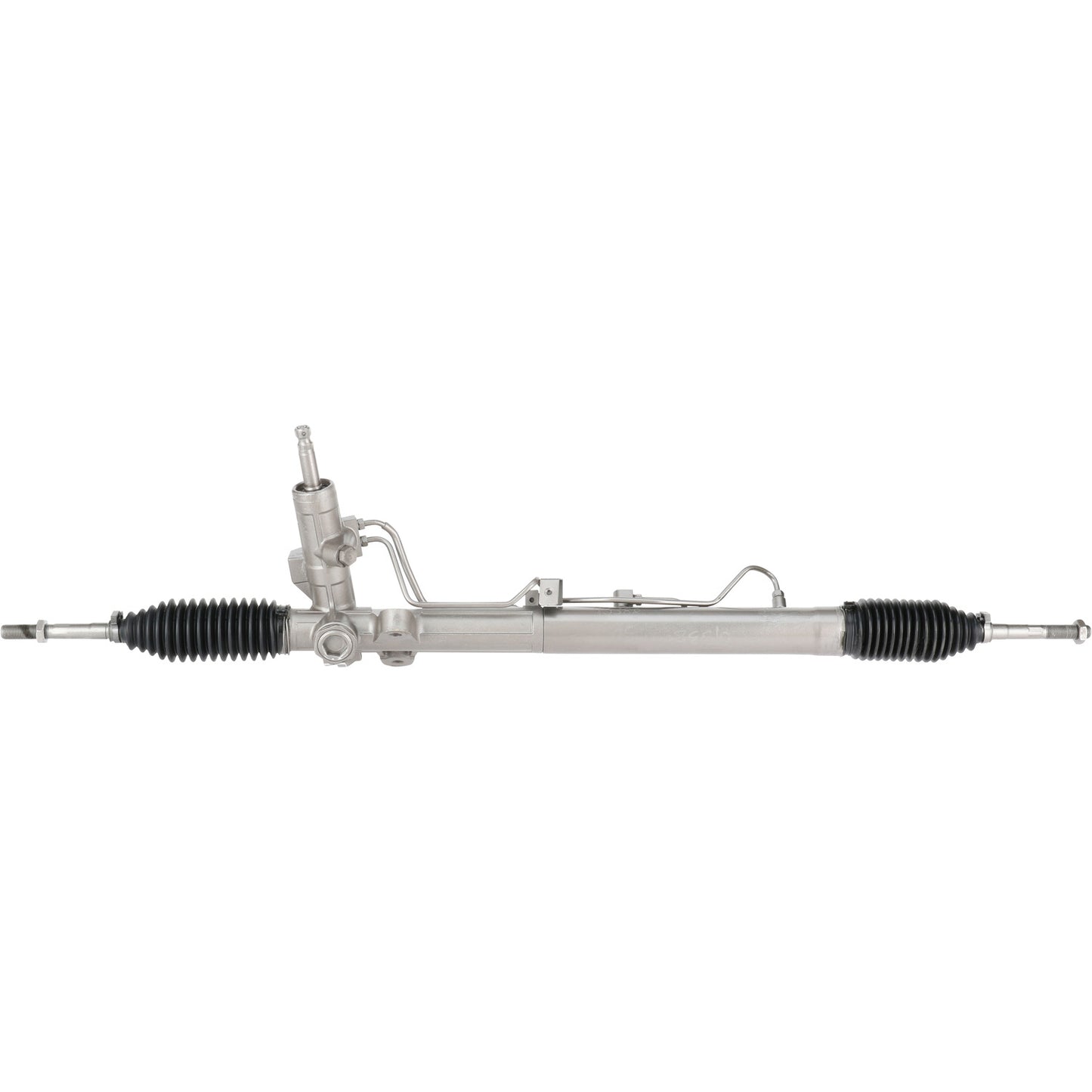

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93388M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93388M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.63 IN
Distance Between Mounting Holes 92.08 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 2.5 IN
Input Shaft Length 63.5 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 44.13 IN
Rack Length 1120.78 MM
Return Port Thread Size M14 x 1.5
Thread Length 1.82 IN
Thread Length 46.23 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.88

Application Info: Kia Rondo (2007-2011) ***W/2.4L L4*** W/16" Tires

Interchange: Kia - 57710-2G221

BBB Cross-Reference:

Cardone Cross-Reference: 26-2436

Instructions - 1               Instructions - 2

Instructions - 3
