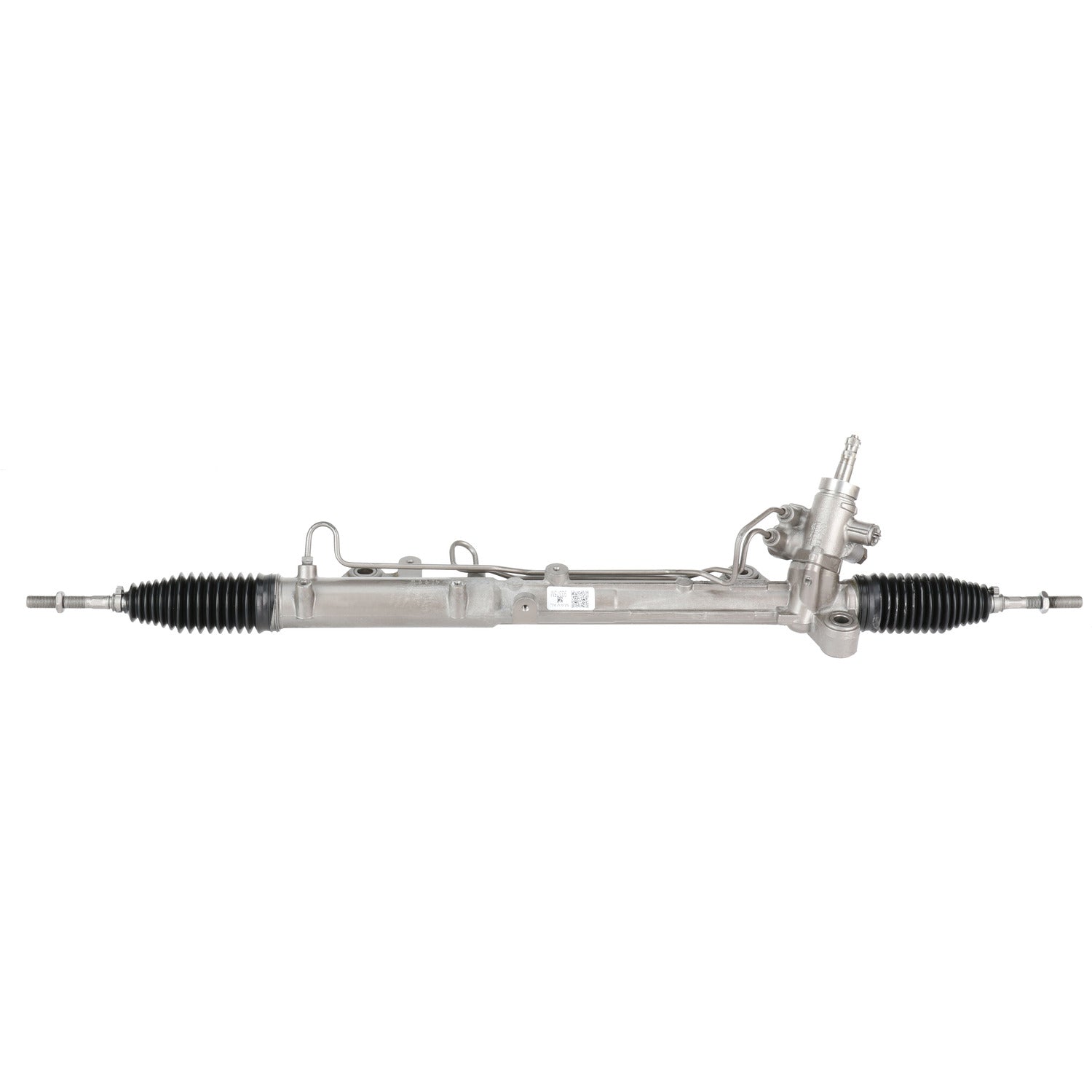

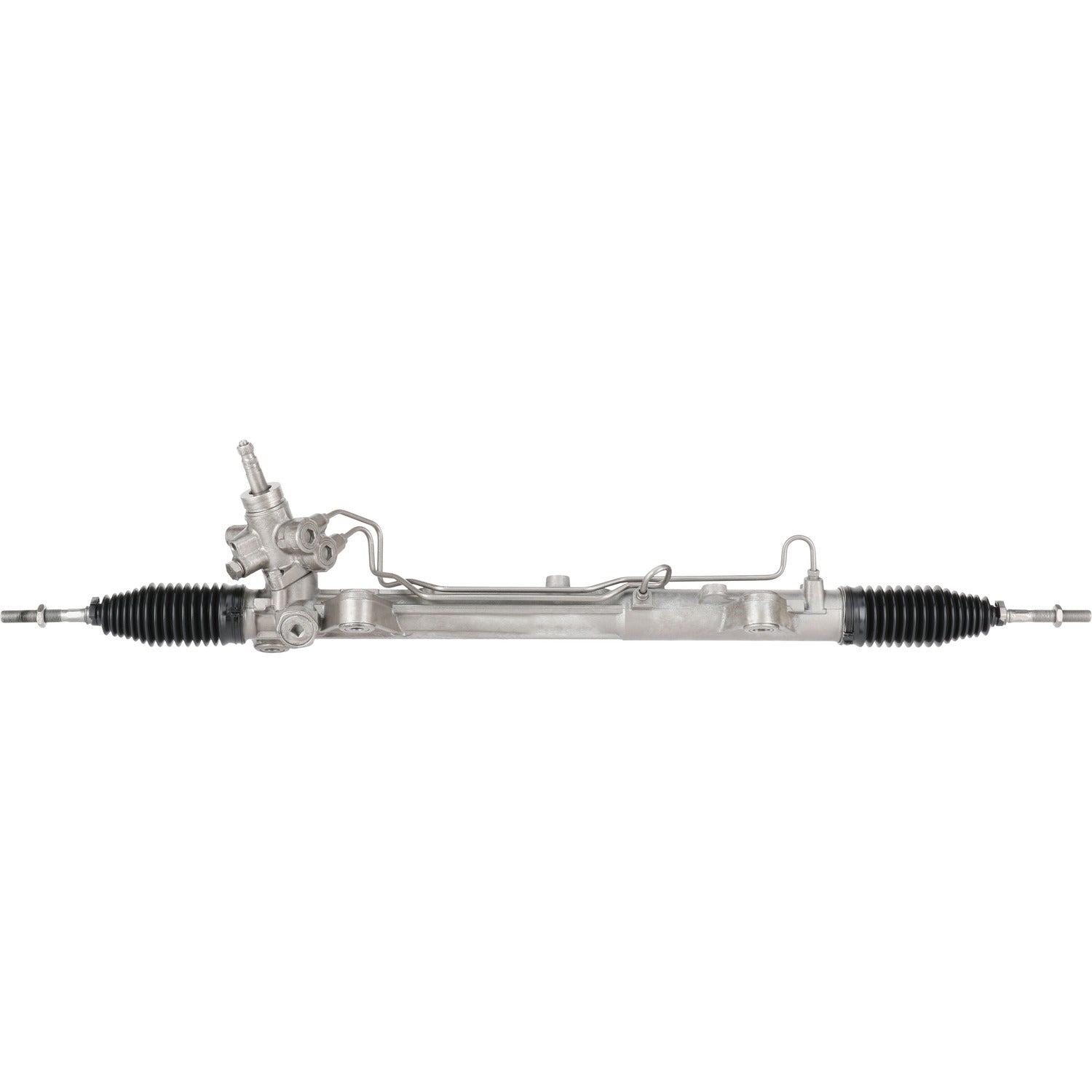

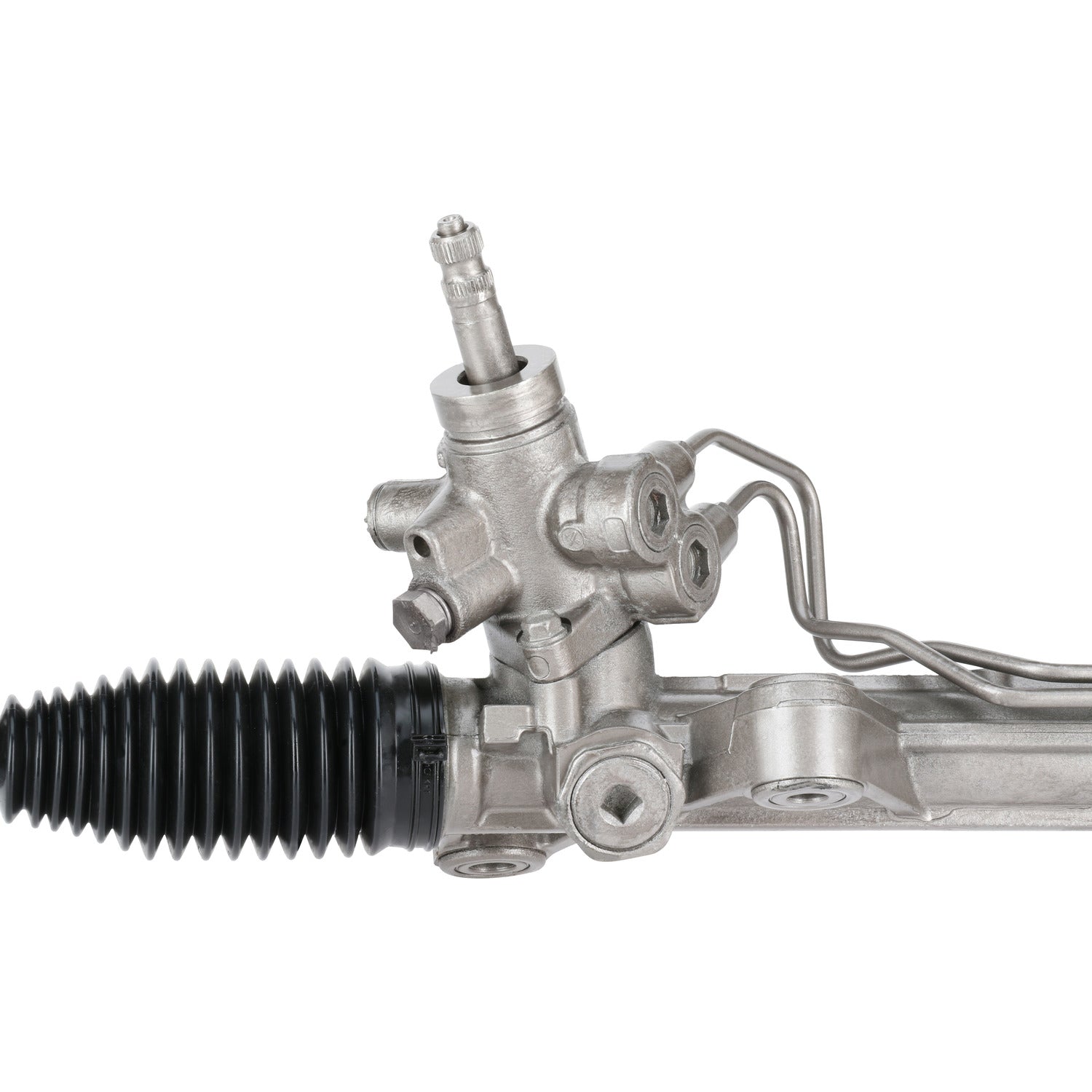

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93375M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93375M

SKU:93375M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 16.13 IN
Distance Between Mounting Holes 409.58 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.68 IN
Input Shaft Diameter 17.22 MM
Input Shaft Length 1.94 IN
Input Shaft Length 49.2 MM
Mounting Hole Quantity 3
Pressure Port Thread Size M14 x 1.5
Rack Length 43.63 IN
Rack Length 1108.08 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.34 IN
Thread Length 59.44 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.94

Application Info: Mazda 6 (2009-2013)

Interchange: Mazda - GS3L-32-110C

BBB Cross-Reference: 308-0173

Cardone Cross-Reference: 26-2074
