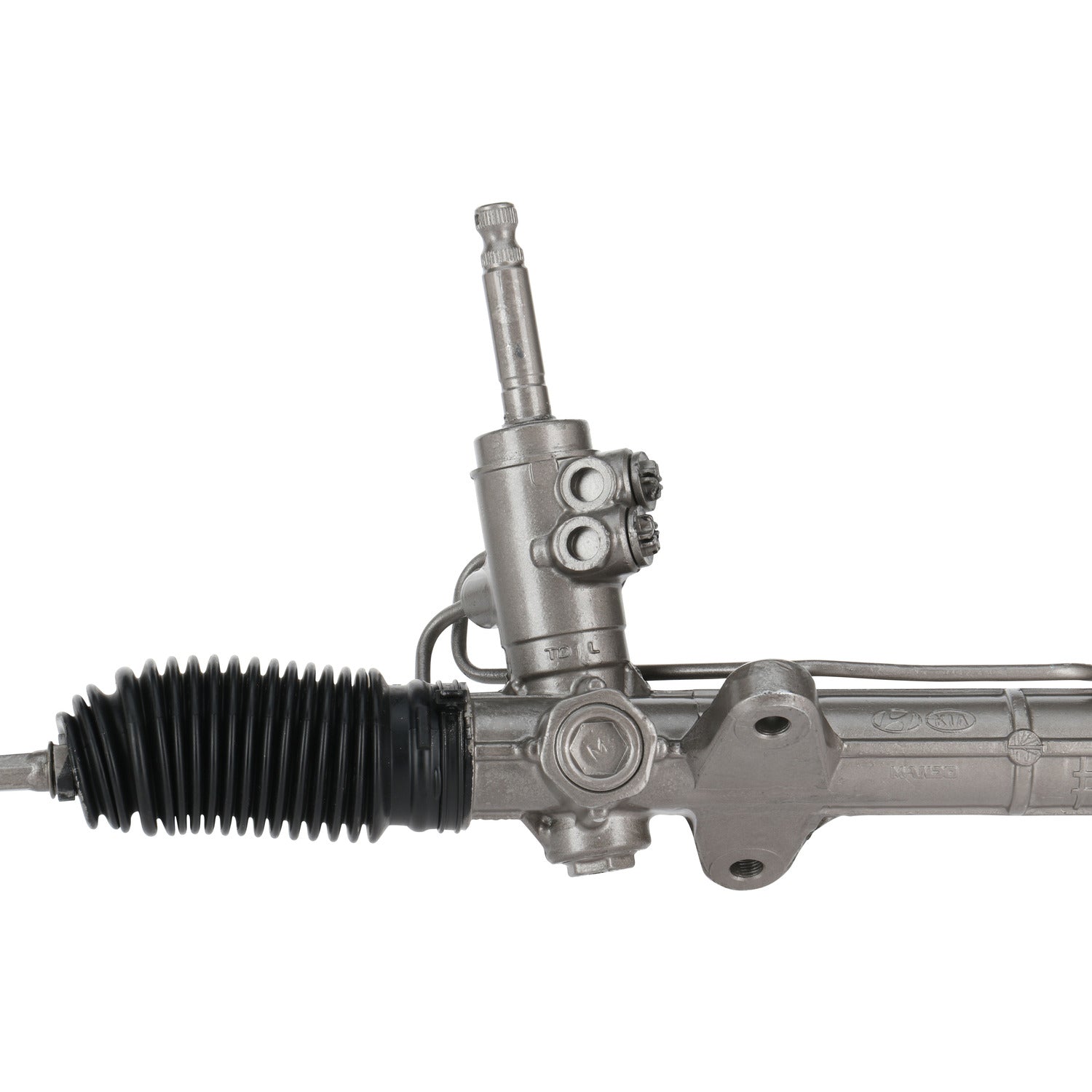

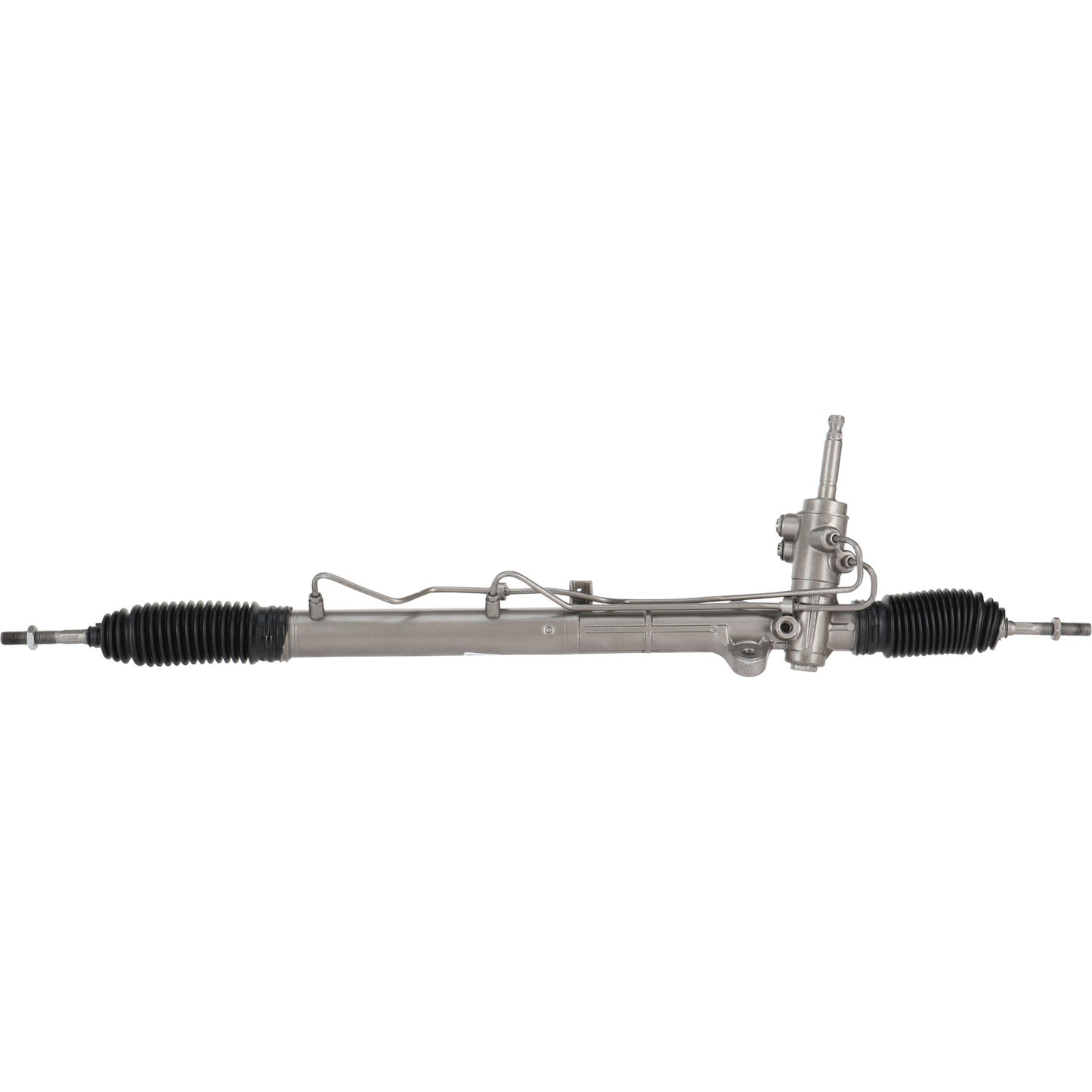

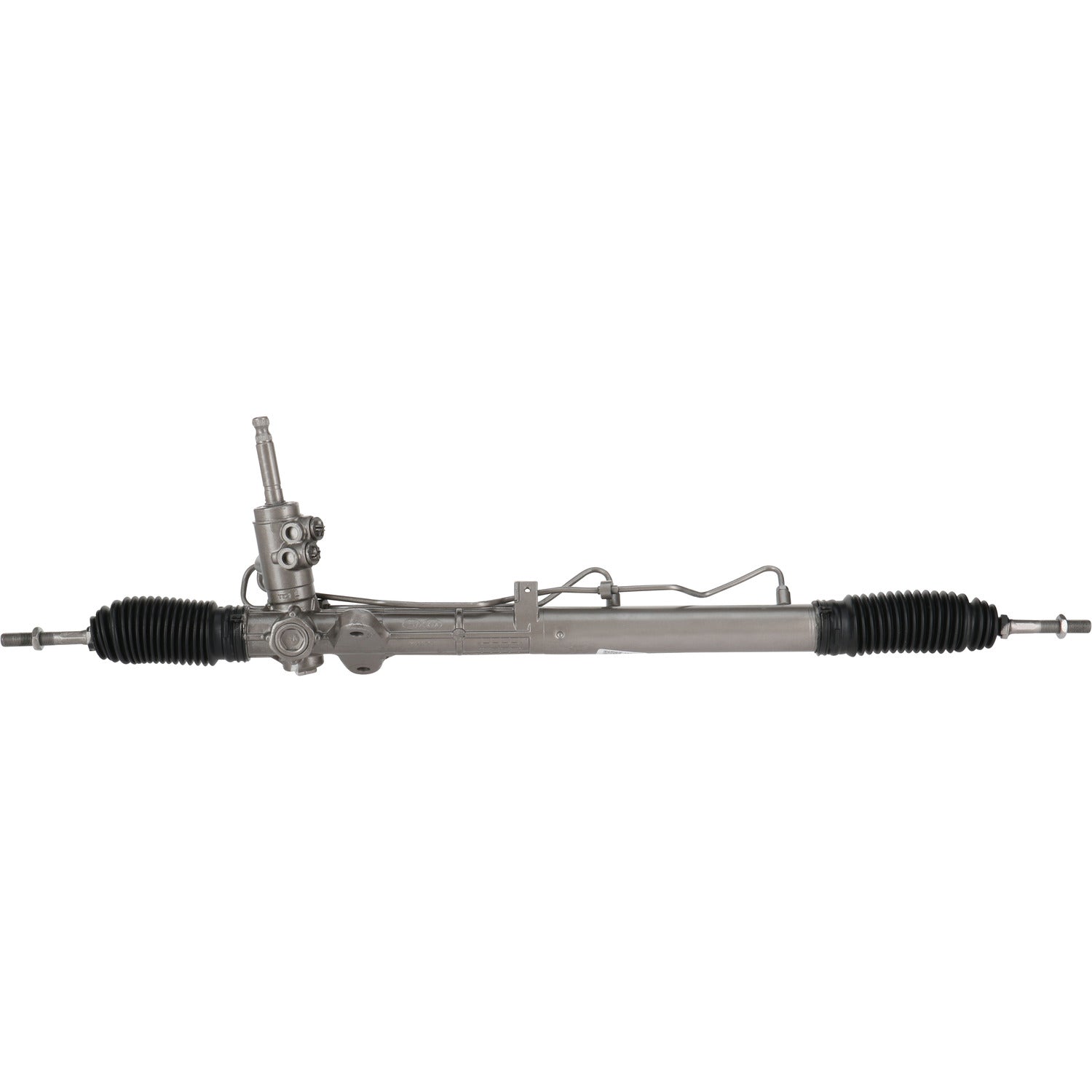

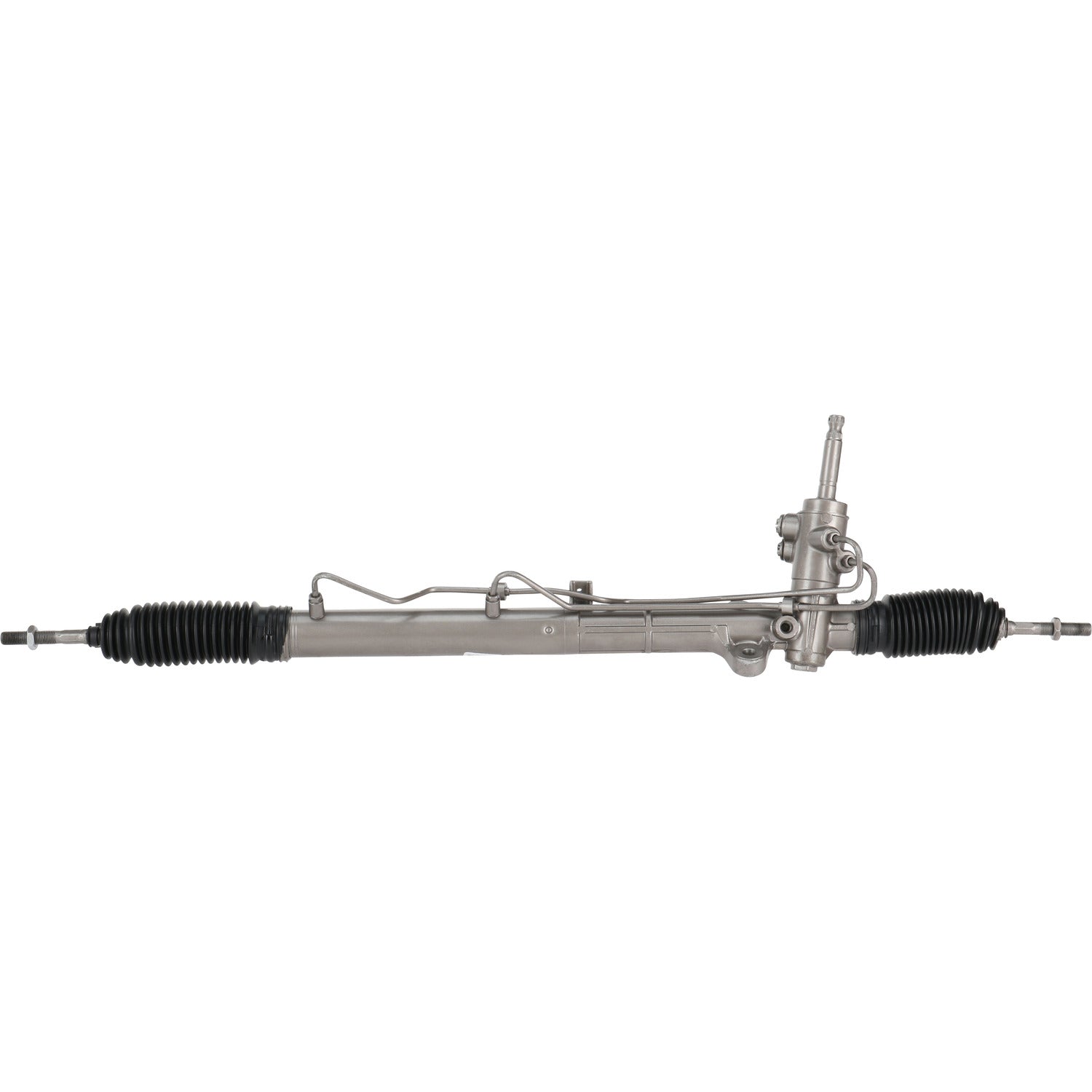

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93373M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93373M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.63 IN
Distance Between Mounting Holes 92.08 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 17.93 MM
Input Shaft Length 3.25 IN
Input Shaft Length 82.55 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 41.38 IN
Rack Length 1050.93 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.95 IN
Thread Length 49.4 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.75

Application Info: Kia Forte (2010-13) ***W/17" Wheels ONLY***

Interchange: Kia - 57700-1M600

BBB Cross-Reference: 313-0372

Cardone Cross-Reference: 26-2446

Instructions - 1               Instructions - 2
