MAVAL

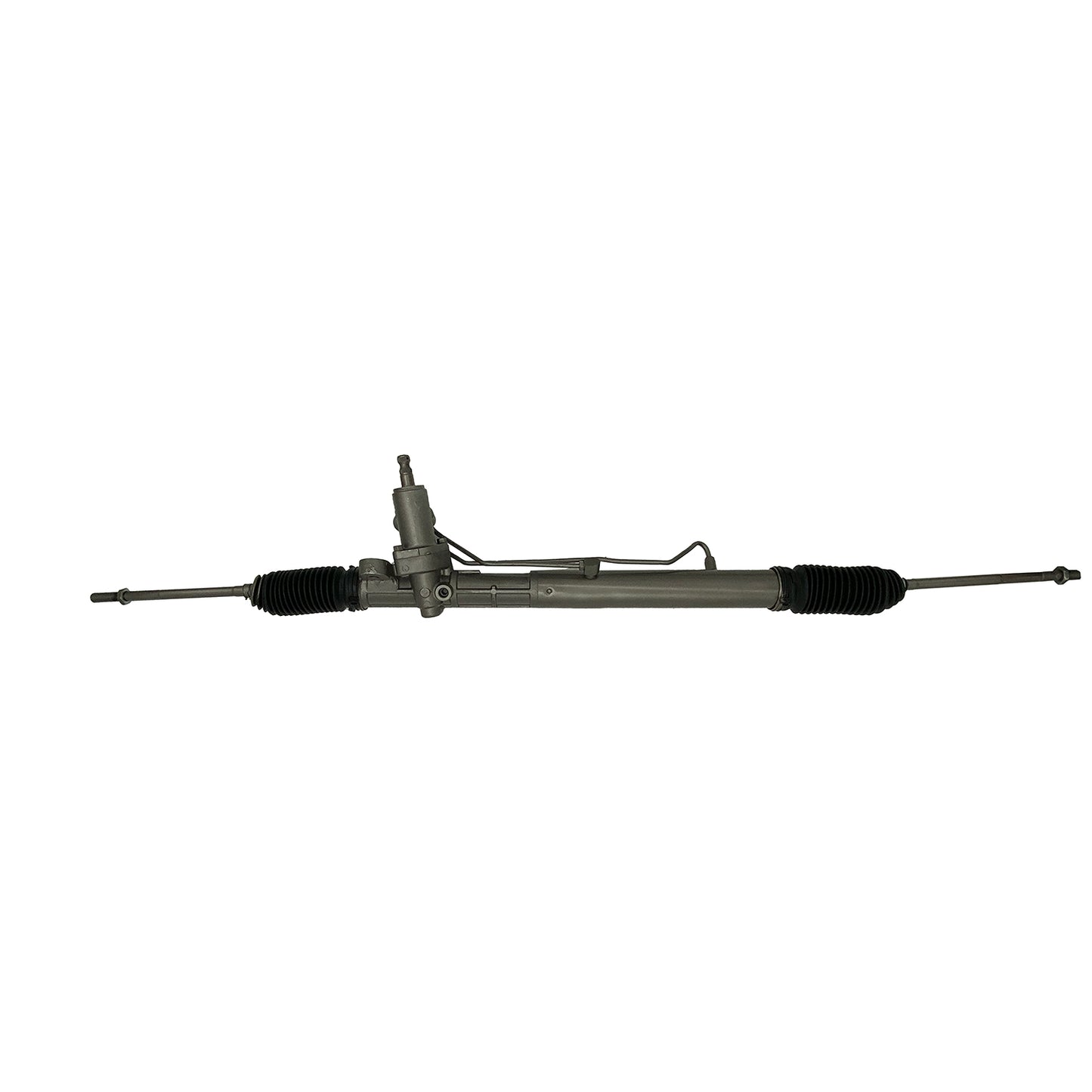

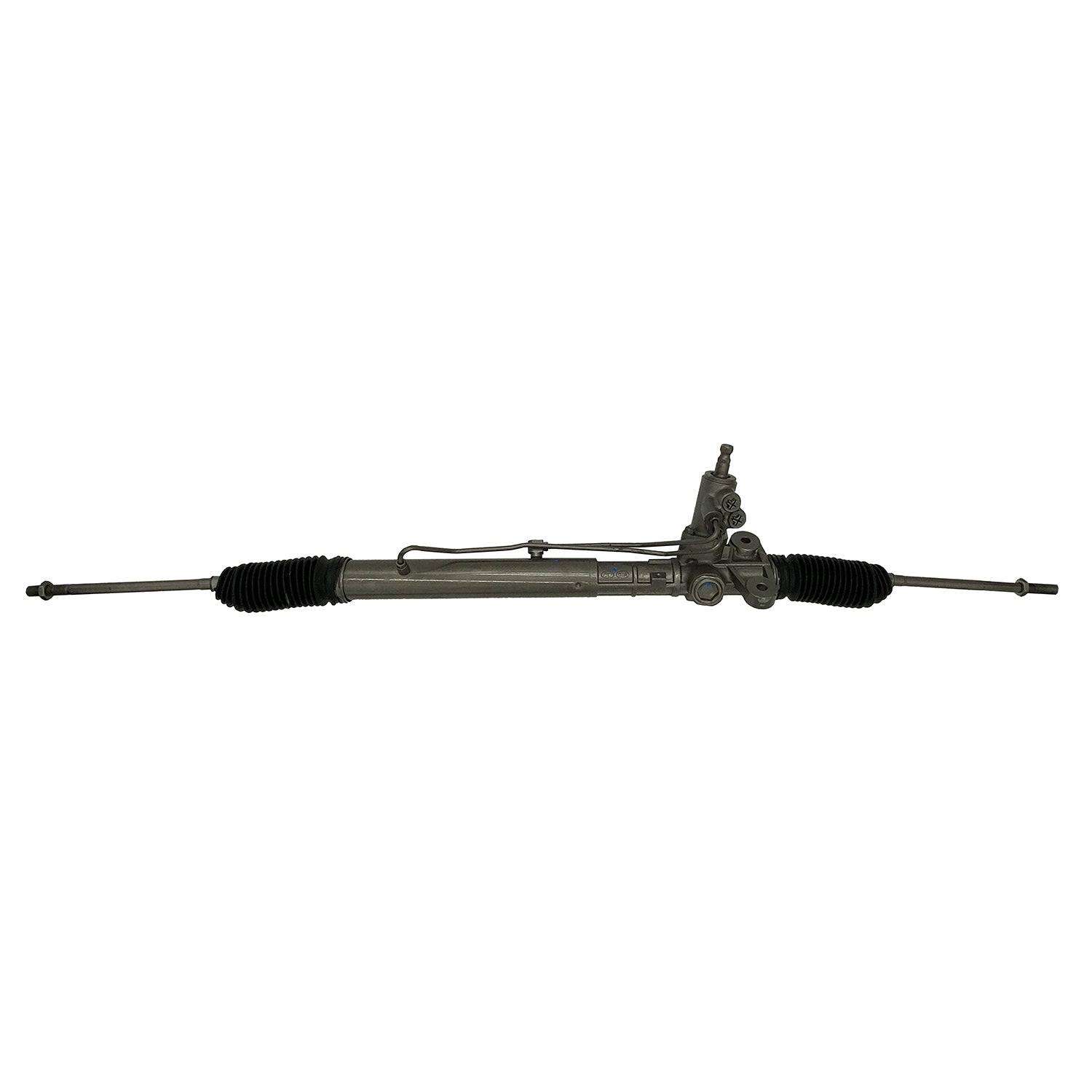

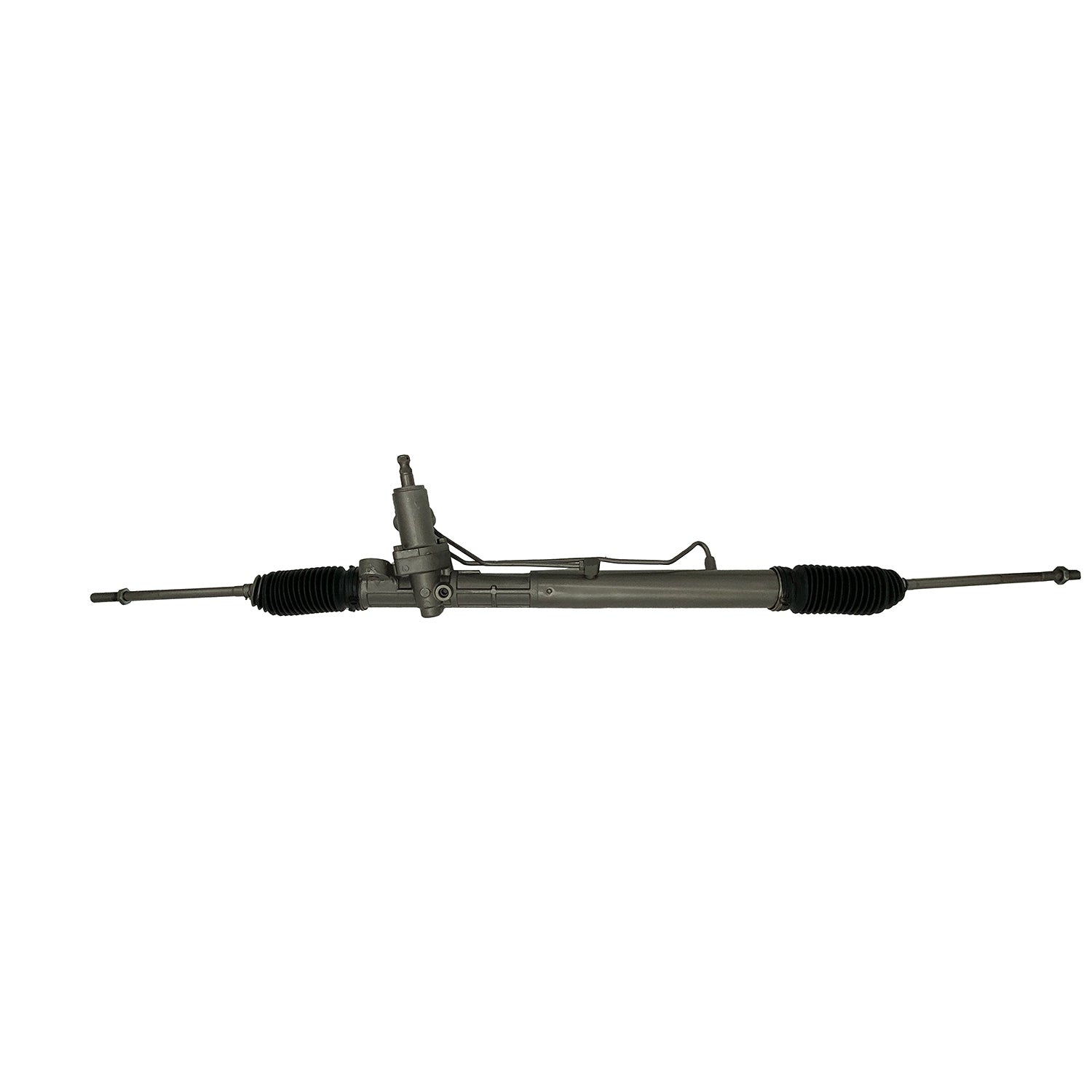

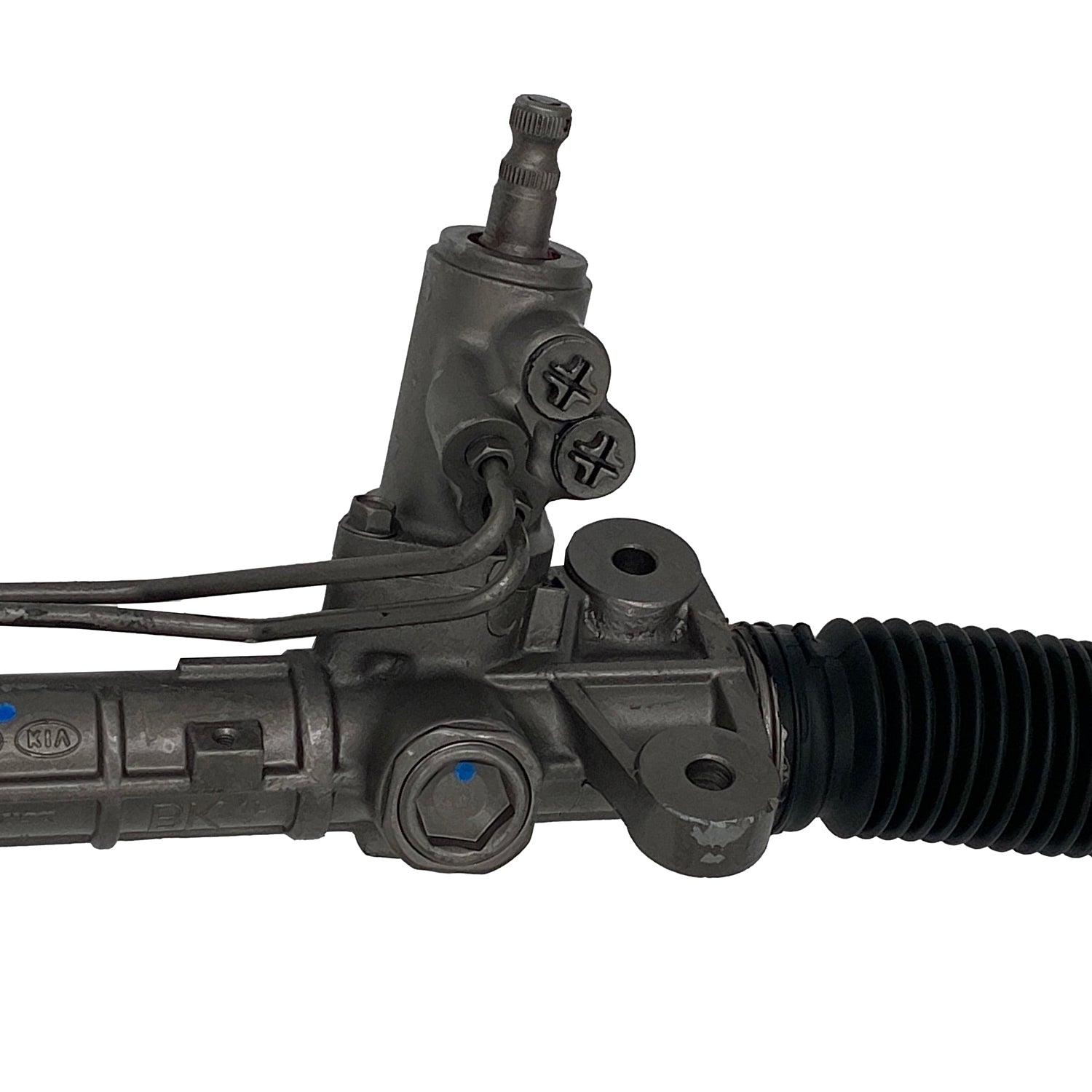

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93370M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93370M

SKU:93370M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.56 IN
Distance Between Mounting Holes 90.5 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.58 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 52.5 IN
Rack Length 1333.5 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.91 IN
Thread Length 48.51 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.63



Application Info: Hyundai Genesis Coupe (2010-2012)

Interchange: Hyundai - 57700-2M000

BBB Cross-Reference:

Cardone Cross-Reference: 26-2451
